As the year draws to a close, we start looking forward to a new year and a new release of Maple. With every new release comes many new features and updates to explore.

We are looking for several new beta testers with a good working knowledge of Maple; We need your input, your ideas, and your experience with our products to help us improve the software and get it ready for general release.

There are many benefits to becoming a beta tester:

• You’ll get to use the new software before anyone else does.
• You’ll help us make our software better in ways that work for you.
• Your suggestions could determine the future direction of the software.
• You’ll get feedback right from the development team.

If you are interested in becoming a beta tester for the next version of Maple, please email: beta (at) maplesoft.com for more information.

This is a post that I wrote for the Altair Innovation Intelligence blog.

I have a grudging respect for Victorian engineers. Isambard Kingdom Brunel, for example, designed bridges, steam ships and railway stations with nothing but intellectual flair, hand-calculations and painstakingly crafted schematics. His notebooks are digitally preserved, and make for fascinating reading for anyone with an interest in the history of engineering.

His notebooks have several characteristics.

• Equations are written in natural math notation
• Text and diagrams are freely mixed with calculations
• Calculation flow is clear and well-structured

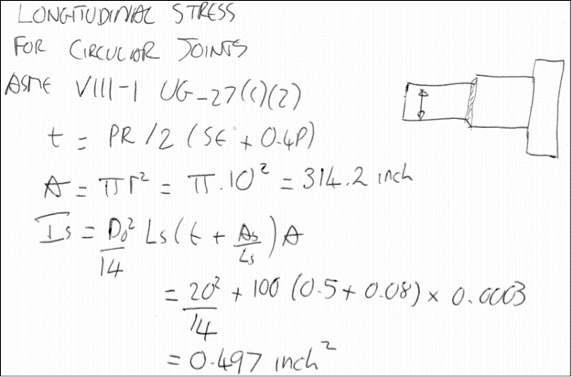

Hand calculations mix equations, text and diagrams.

Engineers still use paper for quick calculations and analyses, but how would Brunel have calculated the shape of the Clifton Suspension Bridge or the dimensions of its chain links if he worked today?

If computational support is needed, engineers often choose spreadsheets. They’re ubiquitous, and the barrier to entry is low. It’s just too easy to fire-up a spreadsheet and do a few simple design calculations.

 Spreadsheets are difficult to debug, validate and extend.

Spreadsheets are great at manipulating tabular data. I use them for tracking expenses and budgeting.

However, the very design of spreadsheets encourages the propagation of errors in equation-oriented engineering calculations

• Results are difficult to validate because equations are hidden and written in programming notation
• You’re often jumping about from one cell to another in a different part of the worksheet, with no clear visual roadmap to signpost the flow of a calculation

For these limitations alone, I doubt if Brunel would have used a spreadsheet.

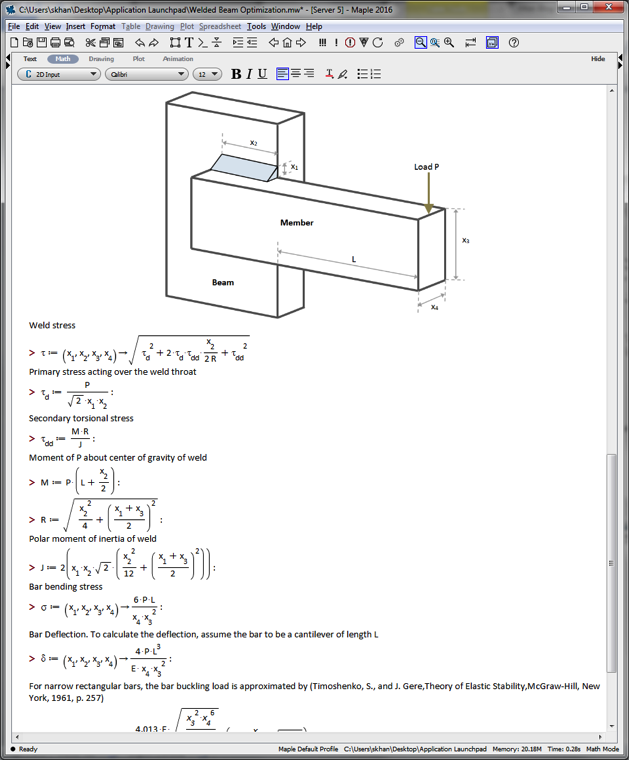

Technology has now evolved to the point where an engineer can reproduce the design metaphor of Brunel’s paper notebooks in software – a freeform mix of calculations, text, drawings and equations in an electronic notebook. A number of these tools are available (including Maple, available via the APA website).

 Modern calculation tools reproduce the design metaphor of hand calculations.

Additionally, these modern software tools can do math that is improbably difficult to do by hand (for example, FFTs, matrix computation and optimization) and connect to CAD packages.

For example, Brunel could have designed the chain links on the Clifton Suspension Bridge, and updated the dimensions of a CAD diagram, while still maintaining the readability of hand calculations, all from the same electronic notebook.

That seems like a smarter choice.

Would I go back to the physical notebooks that Brunel diligently filled with hand calculations? Given the scrawl that I call my handwriting, probably not.

Has anyone tried to run the following in Maple command-line mode (i.e. in terminal window, type "maple" to start it without the graphic interface),

"

expr1:=t1+t2+t3+t4+t5+t6+t7+t8+t9+t10+t11+t12+t13+t14+t15+t16+t17+t18+t19+t20+t21+t22+t0-t0+t23;
expr2:=t1+t2+t3+t4+t5+t6+t7+t8+t9+t10+t11+t12+t13+t14+t15+t16+t17+t18+t19+t20+t21+t22+t0-t0+t23;
print(expr1-expr2);

"

Surprisingly, I didn't get "0" with my Maple 17 (under Linux platform) or 18 (under Mac OSX platform). Can anyone help me confirm this?

Earlier today, we published some changes to MaplePrimes in order to add some new features that have been requested by our users.

Delete as Spam

Users with a reputation score above 500 have always had the ability to remove inappropriate or spam posts using the Delete function. As of this update, a Delete as Spam feature has been added that provides some additional capabilities targeted directly at the spam messages that are posted on MaplePrimes. When this feature is used, the following occurs:

• The message is deleted
• The author's account is marked as a spam account and blocked
• All other messages from the author are removed

Since this is a powerful feature, there are also some safeguards in place to prevent accidents from occurring:

• Only users with a reputation less than 10 can be removed in this way
• In the event that content is ever inadvertently removed, MaplePrimes administrators have the ability to restore content removed in this way.

Hopefully, these features make it much more difficult for spam accounts to get traction on MaplePrimes, and also reduce the time involved in policing the spam that is posted.

Draft Messages

You now have the ability to save a message as a draft so that you can come back to it later. All draft messages are saved in your profile and can be managed by clicking the account option at the top of every page.

Advanced Search

Some powerful searching capabilities have been added to MaplePrimes with the addition of a new Advanced Search feature. Using this search allows you to quickly find questions or posts within a particular date range, by author and/or by tag.

Save page as PDF

We know that some of our members maintain personal archives of MaplePrimes content, and to make this easier, we have added a feature that generates a PDF copy of a page. This option is available in the More area that appears under every post and question.

View your Replies

Your MaplePrimes user profile page has always included archives of your posts, questions and answers. With today's update, replies are also available.

In addition to these, some other minor changes & fixes were made.

As always, thank you very much for your dedication to MaplePrimes and for your suggestions. We hope that you find these features useful and look forward to other ideas that you have!

Like most companies today, Maplesoft monitors its website traffic, including the traffic coming to MaplePrimes. This allows us to view statistical data such as how many total visits MaplePrimes gets, how many unique visitors it gets, what countries these visitors come from, how many questions are asked and answered, how many people read but never respond to posts, etc.

Recently one of our regular MaplePrimes users made the comment that MaplePrimes does not reach new Maple users. We found this comment interesting because our data and traffic numbers show a different trend. MaplePrimes gets unique visitors in the hundreds of thousands each year, and since its inception, it has welcomed unique visitors in the many millions. Based on these unique visitor numbers and the thousands of common searches specifically about Maple that people are doing, we can see that many of these unique visitors are in fact new Maple users looking for resources and support as they begin using Maple. Other visitors to MaplePrimes include people who use Google (or other search engines) to find an answer to a particular mathematics or engineering question, regardless of what mathematics software they choose to use, and Google points them to MaplePrimes. There are some popular posts that were written months, even years ago, that are still getting high visitor views today, showing the longevity of the information on MaplePrimes.

MaplePrimes gets the majority of its visible activity from a small number of extremely active members. In public user forums around the world, these types of members are given many names – power users, friendlies, evangelists. Every active public user forum has them. On MaplePrimes, it’s this small number of active members that are highly visible. But, what our traffic data reveals is the silent majority. These people, many of them repeat visitors, are quietly reviewing the questions and answers that our evangelists are posting. The silent majority of MaplePrimes visitors are the readers; they are the quiet consumers of information. For every person that writes, comments on, or likes a post, there are thousands more that read it.

Here are a few more MaplePrimes traffic data points for your reference:

• MaplePrimes is very international and draws people from all around the world. Here are the top 10 countries where the most MaplePrimes visitors come from:

1. USA
2. India
3. Canada
4. Germany
5. China
6. United Kingdom
7. Brazil
8. Australia
9. France
10. Denmark

• Here are the top 5 keywords people are using in their searches on MaplePrimes:

1. Data from plot
2. Physics
3. Sprintf
4. Size of plot
5. Fractal

• MaplePrimes is growing at a very fast rate: Traffic (visitors to the site) and membership size is growing at nearly double the pace it was last year. The total number of posts and questions this year is also much higher compared to the same timeframe last year.

• This question has been viewed nearly 50,000 times since it was posted in June 2009: http://www.mapleprimes.com/questions/37261-Sinnpi2

• Our top 5 MaplePrimes members have each visited MaplePrimes more than 1200 times and viewed a combined total of more than 10,000 pages (that is total page views, not unique page views). Our top 25 MaplePrimes members have visited at least 250 times each (many of them nearly 1000 times each) and our top 50 MaplePrimes members have visited a combined total of over 23,000 times, visiting nearly 200,000 pages. Thank you! We’re glad you like it. :-)

Maple's dsolve numeric can solve delay ODEs and DAEs as of Maple 18. However, if I am not wrong, it cannot solve delay equations with a time dependent history. In this post I show two examples.

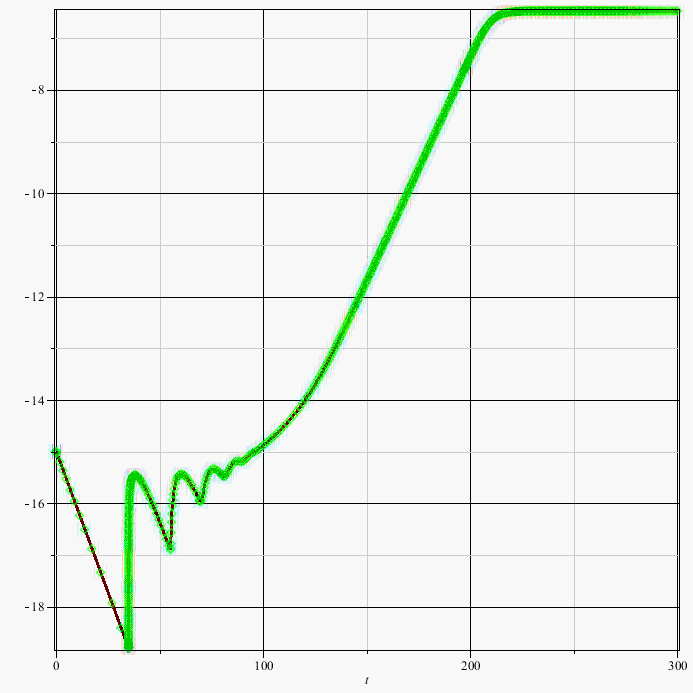

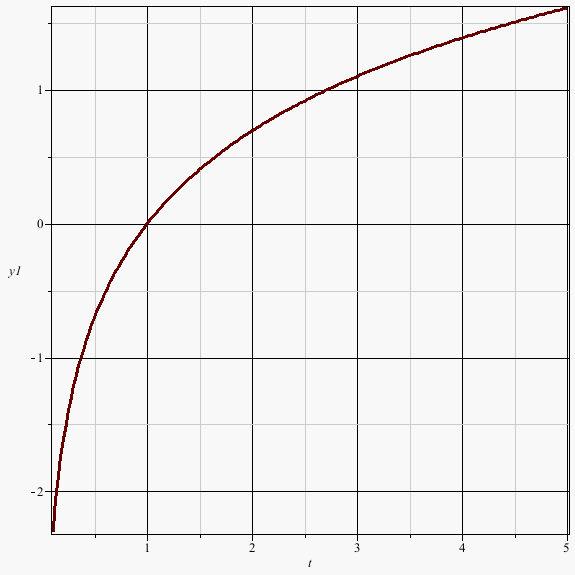

Example 1:

y1(t) and y2(t) with time dependent history. Use of piecewise helps this problem to be solved efficiently. Hopefully Maple will add history soon in its capability.

Example 2:

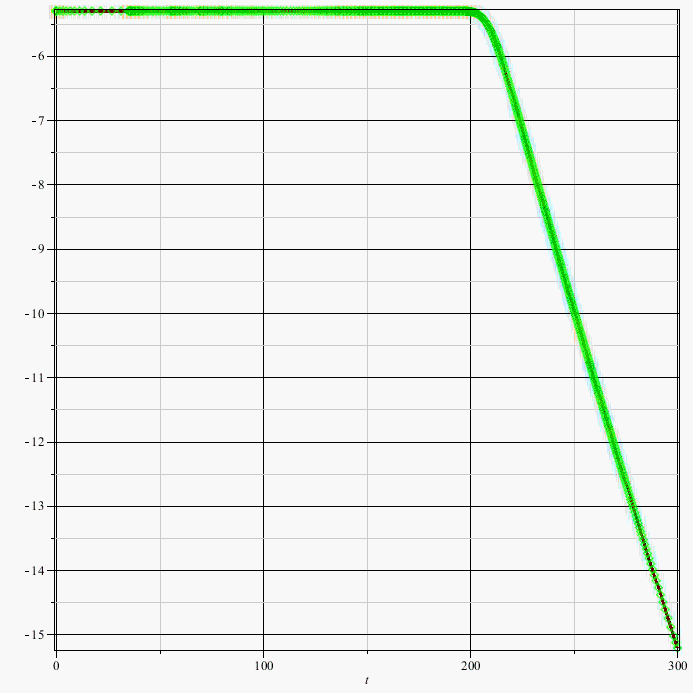

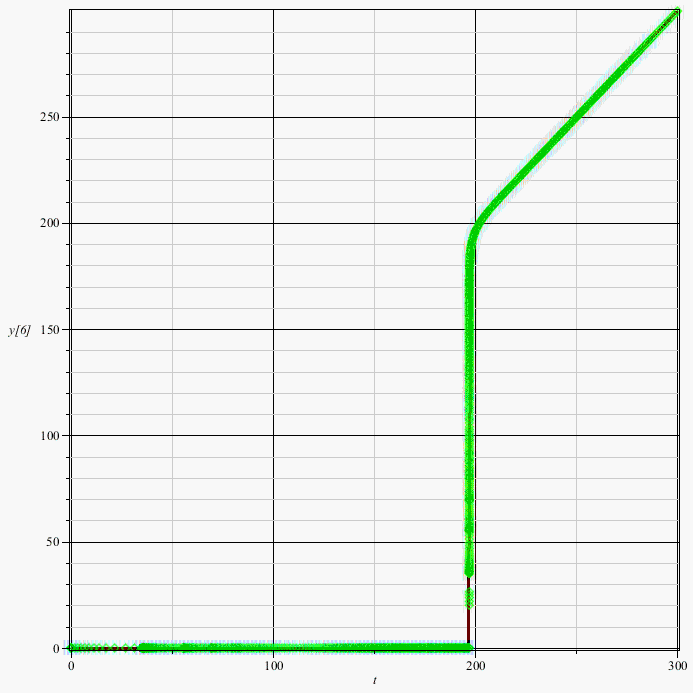

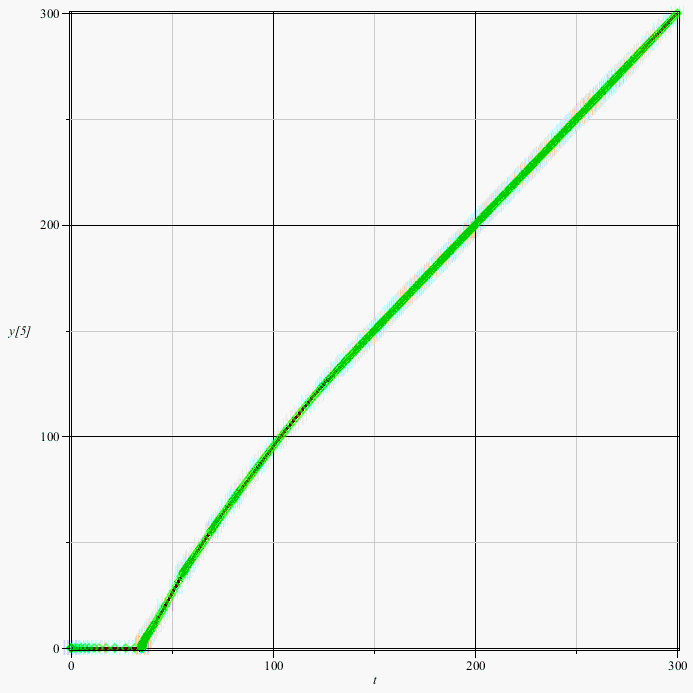

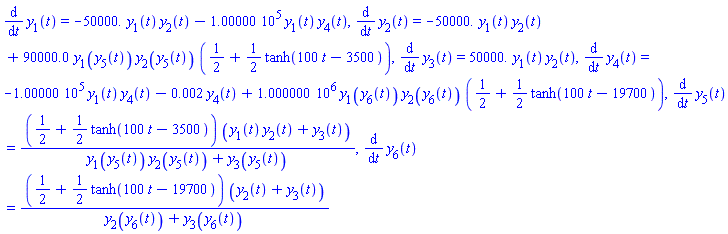

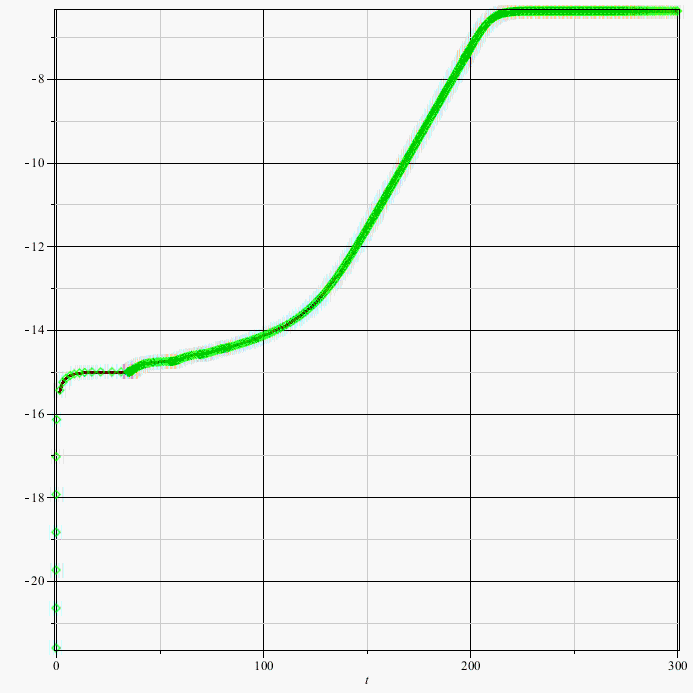

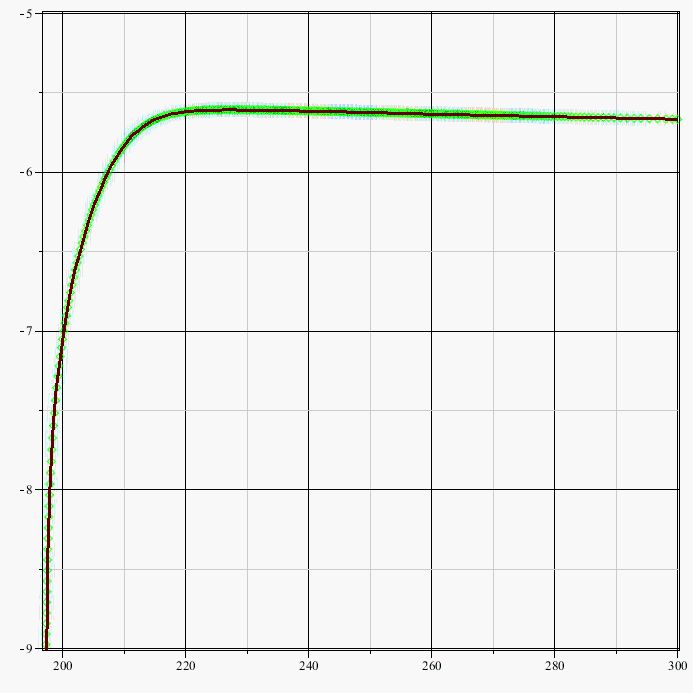

This is a very a complicated stiff problem from immunology. As of now, I believe only Maple can solve this (other than RADAR5 from Prof. Hairer). Details and plots are posted in the attached code.

Let me know if any one has a delay problem that needs to be solved. I have tested many delay problems in Maple (they work fine). The attached examples required addtional tweaking, hence the post.

I want to take this opportunity to congratulate and thank Maple's dsolve numeric/delay solvers for their fantastic job. Maple is world leader not because of example1, but because of its ability to solve example 2.

Download delayimmunetopost.mws

I happen to just have a look at mathematica's imagedeconvolve function http://reference.wolfram.com/language/ref/ImageDeconvolve.html .  I had a look at the Examples and saw how a very blurred image of Neil Armstrong standing on the moon with the lunar lander was deconvolved into some really amazing detail.

I don't believe that image could deconvolve into what they show on that page, It's somewhat misleading.

The only way that deconvolved image could have such great detail is the blurred image used was most likely convolved from the detailed image.

I wanted to let everyone know that there is a Maple 2015 update available. Maple 2015.1 provides:

• Support for high-resolution monitors (e.g. 4K, UHD)
• Updated translations for Brazilian Portuguese, French, Japanese, and Simplified Chinese
• Enhancements to the Explore command
• Improvements to the DataSets package
• Updates to the Microsoft Excel plug-in
• Enhancements to unit handling
• A variety of improvements to the math engine, interface, and documentation

To get this update, you can use Tools>Check for Updates from within Maple, or visit Maple 2015.1 Downloads.

If you are a MapleSim 2015 user, you already have this update, as it was part of the MapleSim 2015 installation.

Kim

The trailers for the new Star Wars movie (Star Wars: The Force Awakens) introduced a new Droid called BB-8. This curious little guy features a spherical body and a controlled instrumented head. More recently, the BB-8 droid was showcased in a Star Wars celebration event and to many peoples' surprise it is real and not a CGI effect!

We have a Sphero robot from Orbotix here at the office, and there was an immediate connection between BB-8 and the Sphero. All that remains is to add the head!

Many have already put together their version of the BB-8, but I wanted to have a physical model that I can play with in a virtual environment and explore some design options.

Preparation:

To build a model of BB-8 like robotic system in MapleSim (Maplesoft's physical modeling software environment), I first needed a couple things in place before going forward:

1. A few simple CAD shapes (half-sphere, wheels)


2. A component to represent the contact between two spheres (both outside contact and inside contact)

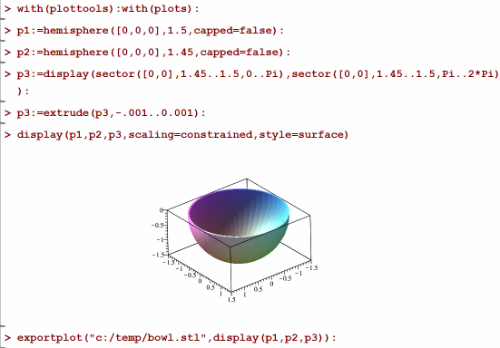

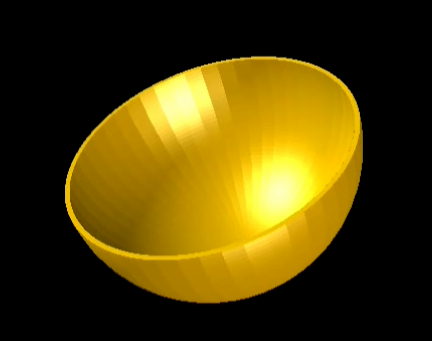

I used Maple’s plottools package to build the CAD files I needed. First a half-spherical shape:

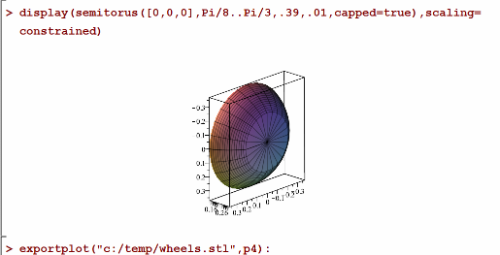

Then a wheel:

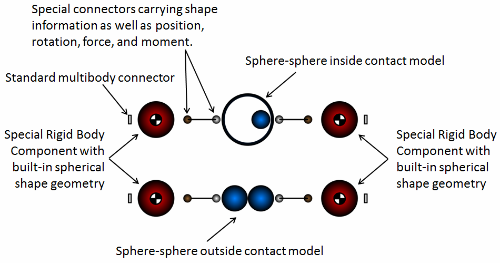

The next step was to create the contact component in MapleSim. I used a Modelica custom component to bring together vector calculations of normal and tangential forces with a variety of options for convenience into one component:

Build the model:

We start with a spherical shape contacting the ground:

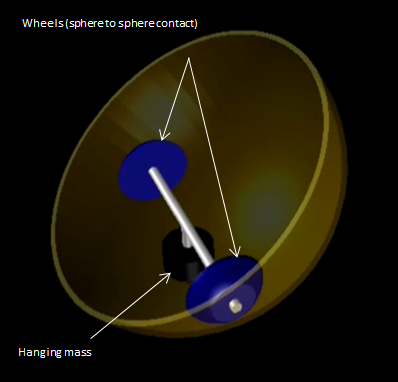

Then we add two wheels inside it, and a hanging mass to keep the reference axis vertical when the wheels turn:

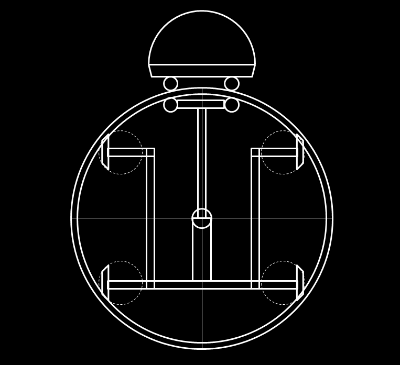

Learning from published diagrams showing the internal mechanism of a Sphero, another set of free wheels improves the overall stability when motion commands are given to the two active wheels:

Now this model can be used to move around the surface by giving speed commands to the individual motors that drive to the two bottom wheels. What is needed next is the head and the mechanism to move it around.

Since the head can move almost freely, independent of body rotation, it has to be controlled via magnetic contacts and a controlled arm.

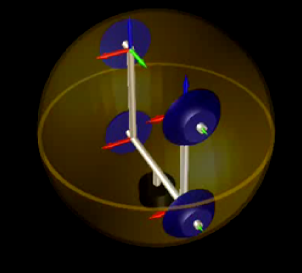

First, we add the control arm:

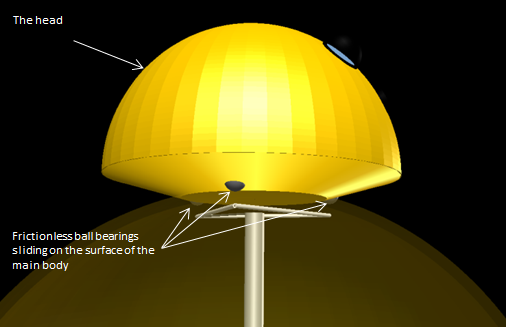

Now we need to build the head.

The head has an identical triangle to the one at the end of the control arm. At each vertex there is a ball bearing that would slide on the surface of the main spherical body without friction. The magnetic force between the corresponding vertices of the two triangles is modeled via the available point-to-point force element in MapleSim.

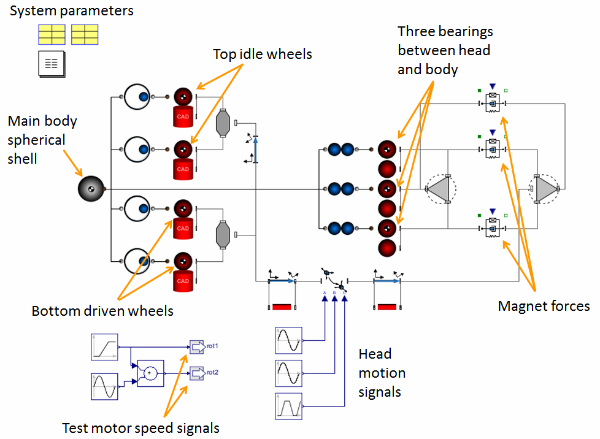

Once assembled, the MapleSim model diagram looks like this:

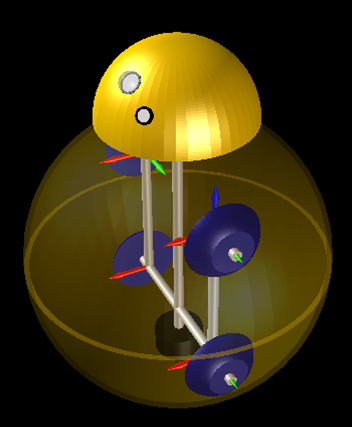

...and our BB-8 droid looks like this:

Seeing the BB-8 in action:

Now that we have constructed our droid in MapleSim, we can animate and see it in action!

Math powers the world. From tracking the spread of an epidemic to designing a new rocket engine, mathematical equations allow us to understand a challenge and formulate an approach to solving it. Everywhere around us, math is ubiquitous; an equation determines how your thermostat controls your home furnace; a mathematical algorithm is used to encode the signal from your cell phone. More than ever, we rely on mathematics to make our lives better. And continually, our mathematical techniques get more refined as we solve more and more complex problems.

Someone asked on math.stackexchange.com about plotting x*y*z=1 and, while it's easy enough to handle it with implicitplot3d it raised the question of how to get nice constained axes in the case that the x- or y-range is much less than the z-range.

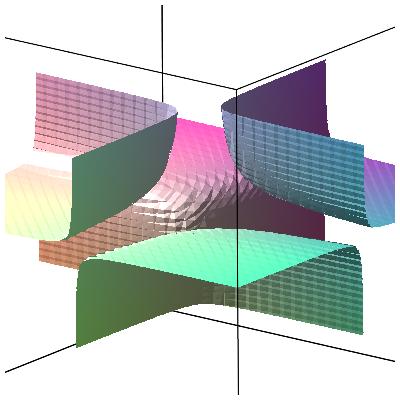

Here's what WolframAlpha gives. (Mathematica handles it straight an an plot of the explict z=1/(x*y), which is interesting although I'm more interested here in axes scaling than in discontinuous 3D plots)

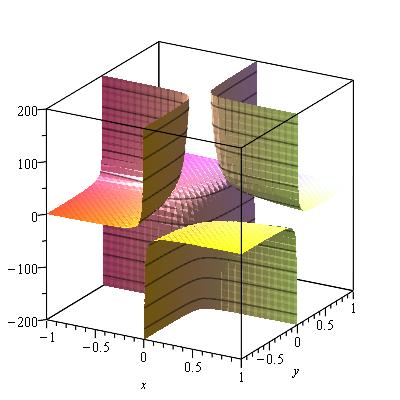

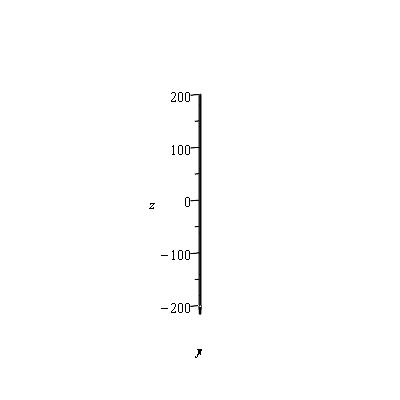

Here is the result of a call to implicitplot3d with default scaling=unconstrained. The axes appear like in a cube, each of equal "length".

Here is the same plot, with scaling=constrained. This is not pretty, because the x- and y-range are much smalled than the z-range.

How can we control the axes scaling? Resizing the inlined plot window with the mouse just affects the window. The plot itself remains  rendered in a cube. Using right-click menus to rescale just makes all axes grow or shrink together.

One unattractive approach it to force a small z-view on a plot of a much larger z-range, for a piecewise or procedure that is undefined outisde a specific range.

plots:-implicitplot3d(proc(x,y,z)
                        if abs(z)>200 then undefined;
                        else x*y*z-1; end if;
                      end proc,
                      -1..1, -1..1, -200..200, view=[-1..1,-1..1,-400..400],
                      style=surfacecontour, grid=[30,30,30]);

Another approach is to scale the x and y variables, scale their ranges, and then force scaled tickmark values. Here is a rough procedure to automate such a thing. The basic idea is for it to accept the same kinds of arguments are implicitplot3d does, with two extra options for scaling the axis x-relative-to-z, and axis y-relative-to-z.

implplot3d:=proc( expr,
                  rng1::name=range(numeric),
                  rng2::name=range(numeric),
                  rng3::name=range(numeric),
                  {scalex::numeric:=1, scaley::numeric:=1} )
   local d1, d2, dz, n1, n2, r1, r2, rngs, scx, scy;
   uses plotfn=plots:-implicitplot3d;
   (n1,n2) := lhs(rng1), lhs(rng2);
   dz := rhs(rhs(rng3))-lhs(rhs(rng3));
   (scx,scy) := scalex*dz/(rhs(rhs(rng1))-lhs(rhs(rng1))),
                scaley*dz/(rhs(rhs(rng2))-lhs(rhs(rng2)));
   (r1,r2) := map(`*`,rhs(rng1),scx), map(`*`,rhs(rng2),scy);
   (d1,d2) := rhs(r1)-lhs(r1), rhs(r1)-lhs(r1);
   plotfn( subs([n1=n1/scx, n2=n2/scy], expr),
           n1=r1, n2=r2, rng3, _rest[],
           ':-axis[1]'=[':-tickmarks'=[seq(i=evalf[3](i/scx),i=r1,d1/4)]],
           ':-axis[2]'=[':-tickmarks'=[seq(i=evalf[3](i/scy),i=r2,d2/4)]],
           ':-scaling'=':-constrained');
end proc:

The above could be better. It could also detect user-supplied custom x- or y-tickmarks and then scale those instead of forming new ones.

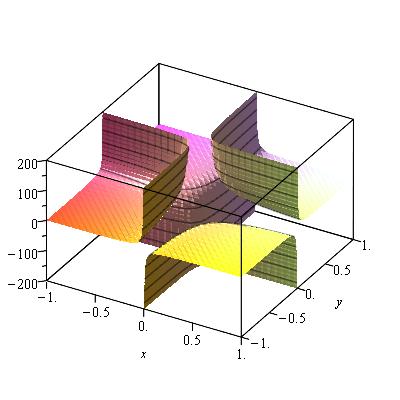

Here is an example of using it,

implplot3d( x*y*z=1, x=-1..1, y=-1..1, z=-200..200, grid=[30,30,30],
            style=surfacecontour, shading=xy, orientation=[-60,60,0],
            scalex=1.618, scaley=1.618 );

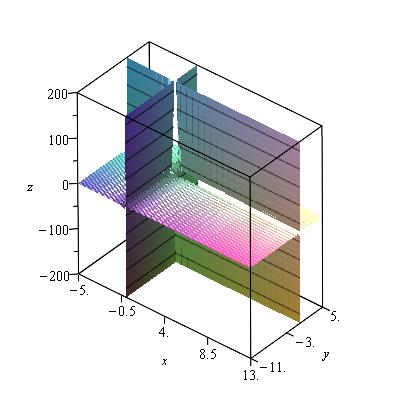

Here is another example

implplot3d( x*y*z=1, x=-5..13, y=-11..5, z=-200..200, grid=[30,30,30],
            style=surfacecontour, orientation=[-50,55,0],
            scaley=0.5 );

Ideally I would like to see the GUI handle all this, with say (two or three) additional (scalar) axis scaling properties in a PLOT3D structure. Barring that, one might ask whether a post-processing routine could use plots:-transform (or friend) and also force the tickmarks. For that I believe that picking off the effective x-, y-, and z-ranges is needed. That's not too hard for the result of a single call to the plot3d command. Where it could get difficult is in handling the result of plots:-display when fed a mix of several spacecurves, 3D implicit plots, and surfaces.

Have I overlooked something much easier?

acer

I would like to announce a new unofficial record computation of the MRB constant that was finished on Sun 21 Sep 2014 18:35:06.

I really would like to see someone beat it with Maple!

It took 1 month 27 days 2 hours 45 minutes 15 seconds. I computed 3,014,991 digits of the MRB constant, (confirming my previous 2,00,000 or more digit computation was actually accurate to 2,009,993 digits), with Mathematica 10.0. I Used my version of Richard Crandall's code:

____________________________________________________________________________

(*Fastest (at MRB's end) as of 25 Jul 2014.*)

DateString[]

prec = 3000000;(*Number of required decimals.*)ClearSystemCache[];

T0 = SessionTime[];

expM[pre_] :=

  Module[{a, d, s, k, bb, c, n, end, iprec, xvals, x, pc, cores = 12,

    tsize = 2^7, chunksize, start = 1, ll, ctab,

    pr = Floor[1.005 pre]}, chunksize = cores*tsize;

   n = Floor[1.32 pr];

   end = Ceiling[n/chunksize];

   Print["Iterations required: ", n];

   Print["end ", end];

   Print[end*chunksize]; d = ChebyshevT[n, 3];

   {b, c, s} = {SetPrecision[-1, 1.1*n], -d, 0};

   iprec = Ceiling[pr/27];

   Do[xvals = Flatten[ParallelTable[Table[ll = start + j*tsize + l;

        x = N[E^(Log[ll]/(ll)), iprec];

        pc = iprec;

        While[pc < pr, pc = Min[3 pc, pr];

         x = SetPrecision[x, pc];

         y = x^ll - ll;

         x = x (1 - 2 y/((ll + 1) y + 2 ll ll));];(*N[Exp[Log[ll]/ll],

        pr]*)x, {l, 0, tsize - 1}], {j, 0, cores - 1},

       Method -> "EvaluationsPerKernel" -> 4]];

    ctab = ParallelTable[Table[c = b - c;

       ll = start + l - 2;

       b *= 2 (ll + n) (ll - n)/((ll + 1) (2 ll + 1));

       c, {l, chunksize}], Method -> "EvaluationsPerKernel" -> 2];

    s += ctab.(xvals - 1);

    start += chunksize;

    Print["done iter ", k*chunksize, " ", SessionTime[] - T0];, {k, 0,

      end - 1}];

   N[-s/d, pr]];

t2 = Timing[MRBtest2 = expM[prec];]; DateString[]

Print[MRBtest2]

MRBtest2 - MRBtest2M

_________________________________________________________________________.

I used a six core Intel(R) Core(TM) i7-3930K CPU @ 3.20 GHz 3.20 GHz with 64 GB of RAM of which only 16 GB was used.

t2 From the computation was {1.961004112059*10^6, Null}.

For all real a, the partial sums s_n= sum((-1)^k (k^(1/k) -a), k=1..n) are bounded so that their limit points form an interval [-1.+  the MRB constant +a, MRB constant] of length 1-a, where the MRB constant is limit(,N=infinity).

For all complex z, the upper limit point of  s_n= sum((-1)^k (k^(1/k) -z), k=1..n) is the  the MRB constant.

We see that maple knows the basics of this because when we enter sum((-1)^k*(k^(1/k)-z), k = 1 .. n)

maple gives

.

marvinrayburns.com

you can change help of older maple version to 18 by this command:

HelpTools:-Database:-ConvertAll():

for example if you download DirectSearch optimization package it's help don't open in maple 18 because in maple 18 .hdb converted to .help and you can do this convert by HelpTools:-Database:-ConvertAll():

DirectSearch version 2 created for maple 13 and i converted it's help to 18.

after i typed this command maple 18 wrote:

"Converting G:\\Program Files\\Maple 18\\lib\\DirectSearch.hdb to G:\\Program Files\\Maple 18\\lib\\DirectSearch.help"
Warning, .hdb help databases are deprecated, 'G:\Program Files\Maple 18\lib\DirectSearch.hdb' will not be used, see ?HelpTools,Migrate help page for more information.

and when try again it worked properly and DirectSearch help opened.

Some years ago member William Fish started a long discussion in part about a numeric integral involving high parameter (high oscillation) Bessel J0. That numeric integration task appeared in a Bitwise Magazine article.

At that time even obtaining numeric results involved extra effort such as handling real and imaginary components of the integrand separately, and requesting particular methods (sometimes hacked, to bump up the subinterval limit, for very high parameter values).

That led to a post where I showed that the result could be obtained quickly by using a fast compiled BesselJ (J0) from an external library along with a modified low-level call to a particular evalf/Int solver.

And sometime after that a numeric result for the real & imaginary split integrand became much more readily (if not quickly) available by using a new `maxintervals` option of evalf/Int to specify the maximal number of subintervals for the particular solver.

Maple 18 has its own compiled implementations of the Bessel functions for "hardware" (double) precision arguments. So now the numeric evaluations of the integrand are computed much faster.

Using Maple 18.00 on 64bit Windows 7 the same numeric results obtain in under a second, in a simple, single call to evalf,Int.

restart:

CodeTools:-Usage(
  evalf(Int(BesselJ(0, 50001*x)*x*exp(I*(355*x^2*1/2)), x = .35 .. 1))
                 );
memory used=9.28MiB, alloc change=32.00MiB, cpu time=437.00ms, real time=441.00ms, gc time=0ns

                           -8                 -8
             3.181753502 10   - 7.798301124 10   I

restart:

CodeTools:-Usage(
  evalf(Int(BesselJ(0, 10000*x)*x*exp(I*(355*x^2*1/2)), x = .35 .. 1))
                 );
memory used=6.83MiB, alloc change=32.00MiB, cpu time=218.00ms, real time=211.00ms, gc time=15.60ms

                            -7                 -7
             -2.007752340 10   + 4.275388462 10   I

Of course the ramifications of fast, compiled Bessel functions at double precision extend much farther than just this one example. But I like seeing the speed improvement in terms of a concrete example.

acer
