Error when running 'm_model.m' to generate simulink function block when using 'Group all parameters into nested structure'. No errors when using 'Do not group parameters'.

Error using m_fullSwing (line 125)
Invalid setting in 'MapleSim_fullSwing/MapleSim_fullSwing/MapleSimParameters' for parameter 'Value'.
Caused by:
    Error using m_fullSwing (line 125)
    Expression '[Param.Address.ArmPlane, Param.Address.ClubRelHand,  ... ]' for
    parameter 'Value' in 'MapleSim_fullSwing/MapleSim_fullSwing/MapleSimParameters' cannot be evaluated.
        Error using m_fullSwing (line 125)
        Error: Invalid expression. When calling a function or indexing a variable, use parentheses. Otherwise, check for
        mismatched delimiters.


Starting the Maple 2019 wishlist.  Anything in particular users would like to see added or upgraded to maple can add it here.

Let us consider

plots:-inequal(max(1, min(x, 2))+max(1, min(y, 2)) <= 3, x = -4 .. 4, y = -4 .. 4);

and compare it with

plots:-implicitplot(max(1, min(x, 2))+max(1, min(y, 2)) = 3, x = -4 .. 4, y = -4 .. 4, gridrefine = 2);

The latter plot must be a subset of the former plot, but it isn't so. bug_in_inequal.mw

Hello,

At the moment there is no support on GitHub for language recognition and syntax highlighting for Maple. I think better support for Maple on GitHub would be a good thing:

1. It makes Maple more recognizable, for example in language searches such as this one for one of its competitors.

2. The list of currently supported languages is long and even contains many obscure entries. Maple is not obscure and deserves to be there.

So, why am I posting this here, as it concerns GitHub more than Maple? The reason is that adding support for new languages is often done by GitHub users themselves, using the Linguist library mentioned on this help page. The process does not seem very difficult to me, but it requires a few careful steps.

Referring to those steps:

1. I think it would be nice to add support for the extensions , and .

2. Perhaps this project by @Daniel Skoog could be used for syntax highlighting? However, currently it does not have a license.

3. Does anybody know of a body of Maple source code that is representative of the modern Maple language as a whole? Probably it should be available under a permissive open source license such as MIT or BSD. (I am not sure whether GPLed work would qualify.)

5. I know of a few Maple projects by others that are maintained on GitHub, such as the ParametricMatrixTools package and some packages by Daniel Skoog. If there are other Maple projects being maintained on GitHub, it would be good to know about them in the comments.

So, in summary, could you perhaps help me with the above Steps 2, 3 and 5 or, if you prefer, could you take care of them yourself and open a pull request, so Maple on GitHub can literally get the recognition it deserves?

My best wishes,

Sebastiaan Janssens.

There are many questions that complain about Latex conversion in Maple.

I'd like to again request that Maplesoft improves Latex output of its expressions. If Maple can just fix how it generates fractions, that will good enough for now.

I am willing to send Maplesoft a personal check of the amount of one month salary for one of your developers to do this fix if you are willing to do it. It should not take more than one month to do this simple fix in your code. It might even take one day if someone knows the code.

The problem comes when there is a fraction in the expression. the Latex output instead of using proper latex code using "\frac{}{}", it instead uses "/" which makes the output terrible.

Another case, where Maple generate (expression)^{-1} instead of \frac{1}{expression}.

It can't be that hard to fix these 2 issues, which can go a long way towards making the latex generated by Maple much better. Here is an example

eq:=-(1/2)*1/y = (1/3)*x^3+z:
sol:=solve(eq,y);

latex(sol);
-3/2\, \left( {x}^{3}+3\,z \right) ^{-1}

Which renders as

Which is terrible. The screen output is much better.

Compare this to Mathematica

eq = -(1/2)*(1/y) == (1/3)*x^3 + z;
sol = y /. First@Solve[eq, y];
TeXForm[sol]

   -\frac{3}{2 \left(x^3+3 z\right)}

Which renders in Latex as

If Maplesoft does not think Latex is improtant, then they are completely wrong. CAS support in Latex is very important. Ignoring Latex means you will lose customers who want good Latex support of the math output of Maple. After all, Math and Latex go togother. And Maple is supposed to be all about Mathematics.

Any chance of Maplesoft taking some time to fix these issues in Latex? Maple has not had any improvement in Latex for years and years. I keep buying Maple each year, and nothing changes in its Latex export.

thank you

In as much as the embedded component suite is a brilliant tool for the custom design of online educational programs, student tests, etc, my purposes are orientated around encouraging and assisting of self directed investigation, with the utilization of the packages of maple, but in a manner that allows the user to neglect the requirement to have any knowledge of maple code itself, allowing them to focus entirely on their discipline of choice.

So because the content the user will enter into the interface I am designing is naturally going to be quite variant from individual to individual, one of the  necessary properties that does not exist is for the math containers to have the option of being resizeable at the discretion of the user.

At the moment, I have added buttons that allow the user to resize the window by pressing one of four buttons entitled "increase height". "decrease height", "increase width" and "decrease height". This will suffice for my first working prototype but i just feel that it would be much neater if it were possible to resize the math component directly, and some option of the neighbouring embedded components to either shift their position accordingly, or maintain rectilinear alignment with the greater proportion of other components by all embedded components shifting accordingly when one math container is resized.

The Maple splash screen needs a makeover, it's not too exciting so looking at the maplesoft website the opening screen has an image that would have been rather fitting for the Maple 2018 splash screen.  Here's the image I'm talking about.

Please take a look at the attached document, a partial design for a power supply I'm working on.  I find I am spending a lot of time reformatting results with units to look as nice as what you see here.  For every result, I need to do Units Formatting, change to a sensible unit like uH instead of 10^-6 H, and then do Numeric Formatting to change the number to show just three significant digits.  That requires from 0 to 2 decimals, in fixed point.

This is the way engineering documents should look.  You want to see a fixed point number from 1.00 to 999, with a certain number of significant digits (not decimal points), and have the unit scaled accordingly.  You want to see 12.3 uA, not 1.23402 x 10^-5 A.

I would like to see Maple add "N significant digits" to its Numeric Formatting options and auto-scale results with units to the appropriate multiplier.  If I could set that as my default result formatting it would save a huge amount of work.  Often as a design progresses the multiplier will change, also.  A result may initially come out in mA but later change to uA.  Not only do I have to do them all manually now, but I have to go back and change them.  Automating all that would be a great help.

(You may also notice that my vector results with units are not scaled like I describe here.  If anyone can tell me how to do that I would appreciate it.  Otherwise, it looks like a bug to me.)

Example_Document.zip

Irrational numbers: numbers that cannot be represented as a ratio of integers. The decimal form of a rational number is non-repeating and non-terminating.

Change to:

Irrational numbers: numbers that cannot be represented as a ratio of integers. The decimal form of an irrational number is non-repeating and non-terminating.

or change to

Irrational numbers can be represented by decimal fractions in which the digits go on forever without ever repeating a pattern.  See Downing, Douglas. Dictionary of Mathematics Terms. 2nd ed. Hauppauge, NY: Barron's Ed. Series, Inc., 1995, p. 176).

Let us consider

sol1 := dsolve({diff(y(x), x) = solve((1/2)*(diff(y(x), x))^2 = (1-ln(y(x)^2))*y(x)^2, diff(y(x), x))[1],
y(0) = 1}, numeric);
sol1 := proc(x_rkf45) ... end proc

The problem under consideration has the symbolic solution:

sol2 := dsolve({diff(y(x), x) = solve((1/2)*(diff(y(x), x))^2 = (1-ln(y(x)^2))*y(x)^2, diff(y(x), x))[1],
y(0) = 1});

sol2 := y(x) = exp(x*sqrt(2)-x^2)

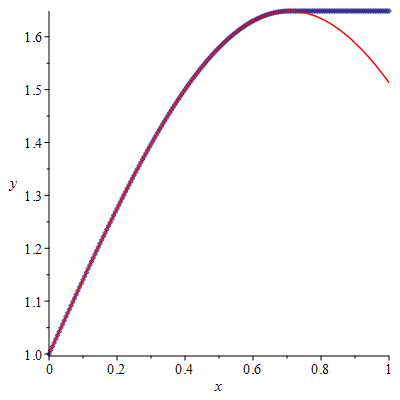

Let us compare the plots of sol1 and sol2 (which should coincide):

A := plots:-odeplot(sol1, x = 0 .. 1, color = navy, style = point):
B := plot(rhs(sol2), x = 0 .. 1, color = red):
plots:-display([A, B]);

The plots differ after approximately 0.707. Bug_in_dsolve_numeric.mw

Edit. The title and one of the tags.

I submit a bug through MaplePrimes because I can't do it as usually (Hope some people understand me.). Let us consider

with(LinearAlgebra):
M := Matrix(5, 5,  (i, j) -> (10*i+j)*sin((1/180)*Pi*(10*i+j))):
MatrixInverse(M);
 #One sees a long and wrong output instead of the warning "Matrix M is singular"

Indeed,

Digits := 500; evalf(Determinant(M), 495);

                           1.3 10 ^(-488)

Bug_in_MatrixInverse.mw

I submit a bug through MaplePrimes because I can't do it as usually (Hope some people understand me.). Let us consider

restart; pdsolve([diff(u(t, x), t, t) = diff(u(t, x), x, x), u(t, 0) = 0, u(t, Pi) = 0]);
pdsolve([diff(u(t, x), t, t) = diff(u(t, x), x, x), u(t, 0) = 0, u(t, Pi) = 0], generalsolution);
u(t, x) = Sum(sin(n*x)*(_C5(n)*cos(n*t)+_C1(n)*sin(n*t)), n = 1 .. infinity)
u(t, x) = Sum(sin(n*x)*(_C5(n)*cos(n*t)+_C1(n)*sin(n*t)), n = 1 .. infinity)

The question arises: what do these outputs mean? I don't see any explanation in ?pdsolve and ?examples,pdsolve_boundaryconditions. What are _C1(n) and _C5(n)? Under which conditions does the above series converge?

Moreover,

pdetest(%, [diff(u(t, x), t, t) = diff(u(t, x), x, x), u(t, 0) = 0, u(t, Pi) = 0]);
                           [0, 0, 0]

I think the above is simply a fake: it is possible to differentiate  a series only under certain conditions.

Bug_in_pdsolve.mw

Please, don't convert my post to a question. This is not correct and fair. Hope some people understand me.

Hello,

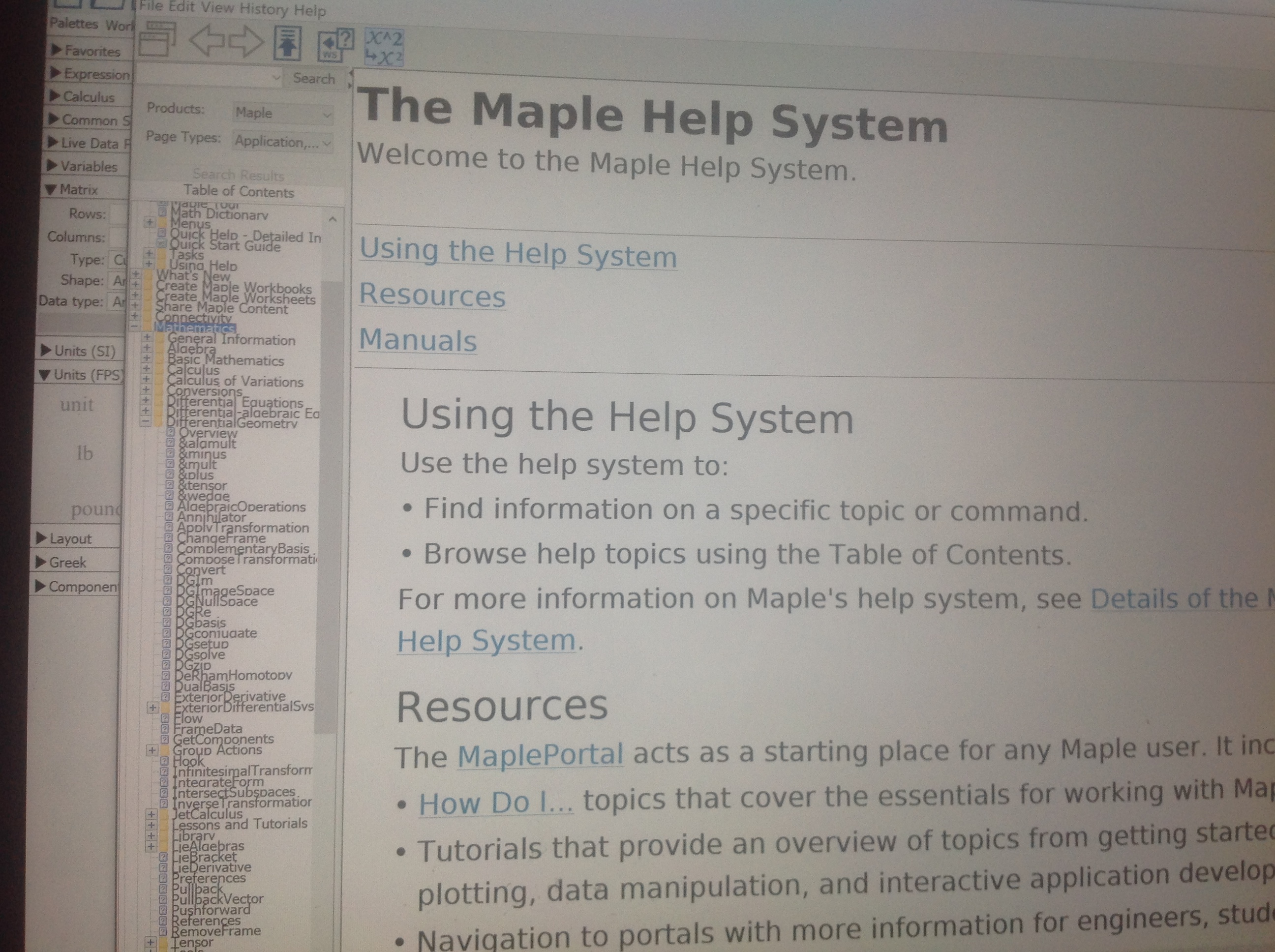

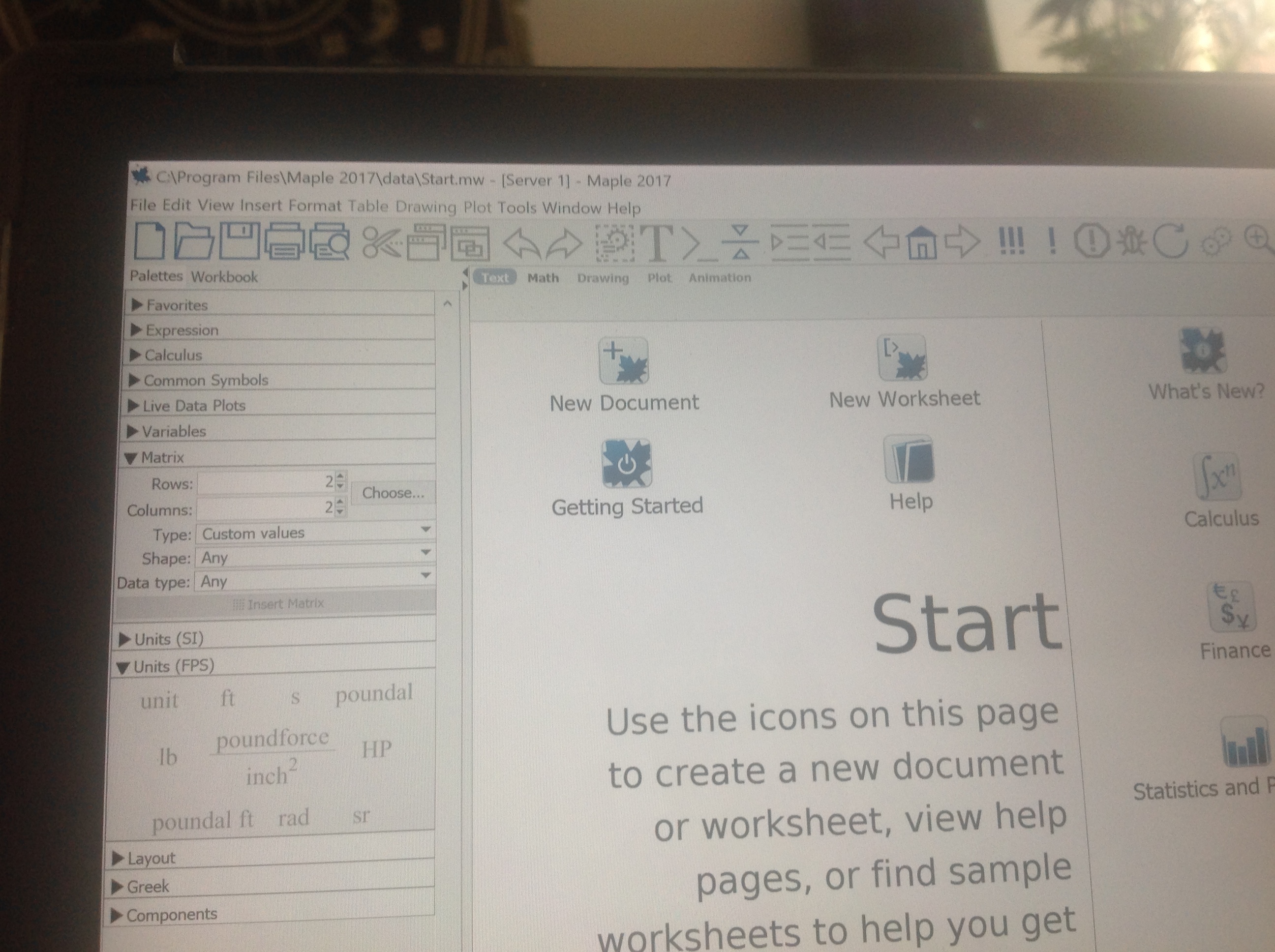

I often use in Maple the plot preview, but any time when i launch the plot preview, i must set the zoom factor to 100% to see all content of the document and further i have to maximize theplot-view window.

It is very uncomfortable to use the plot preview.

This should be fixed with the next upgrades of Maple.

See here the effect, when launching the plot previewer:

Thanks in advance

Volker

I'd like to present the following bugs in the IntTutor command.

1. Initialize

Student[Calculus1]:-IntTutor((1+cos(3*x))^(3/2), x);

then press the All Steps button. The command produces the answer (see Bug1_in_IntTutor.mw)

(4/9)*sqrt(2)*sin((3/2)*x)^3-(4/3)*sqrt(2)*sin((3/2)*x)

which is not correct in view of

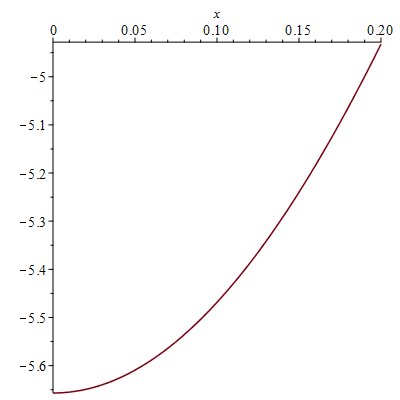

plot(diff((4/9)*sqrt(2)*sin((3/2)*x)^3-(4/3)*sqrt(2)*sin((3/2)*x), x)-(1+cos(3*x))^(3/2), x = 0 .. .2);

One may compare it with the Mathematica result Step-by-step2.pdf.

2. Initialize

Student[Calculus1]:-IntTutor(cos(x)^2/(1+tan(x)), x);

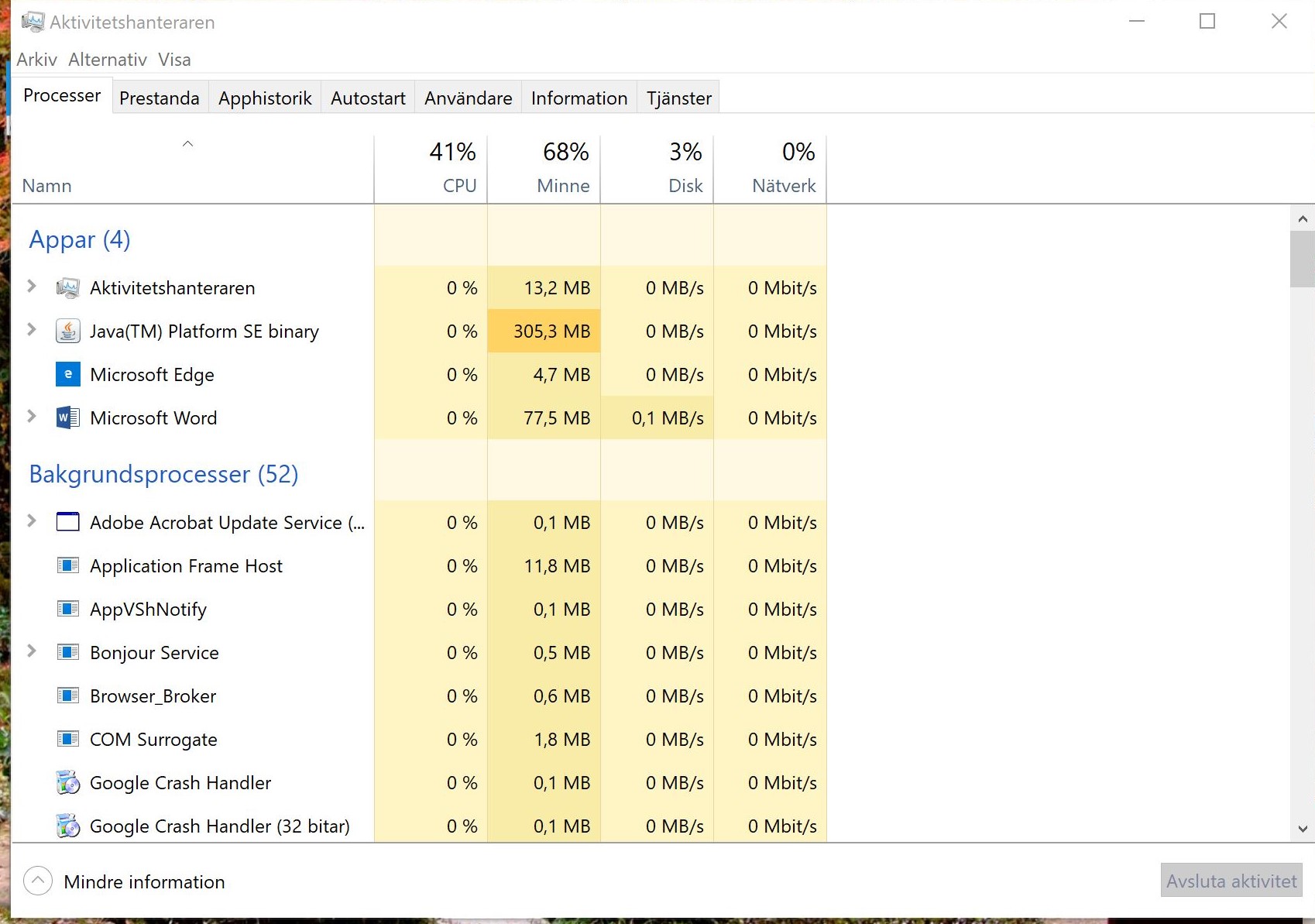

In the window press the Next Step button. This crashes (The kernel connection has been lost) my comp in approximately an half of hour (see screen2.docx). One may compare it with the Mathematica result Step-by-step.pdf .

Indeed,  "We wanted the best, but it turned out like always" .

It seems a large number of people, when initially using maple, wrongly deduce that for example sin(60) is the sin of 60 degrees and not the sin of 1/3 Pi radians.  I believe mathematica's default is degrees.  When a student compares an expression to another but forgets to realize a value is read as radians and not degrees they are perplexed when Maple returns false and Mathematica returns true.

As a suggestion, under tools->options allow a user to be able to change how maple reads values within trigonometric funtions as either radians or degrees.

Most times when someone computes the sin(60) what they really mean in Maple..
is sin(convert(60 degrees, radians))
