To celebrate this day of mathematics, I want to share my favourite equation involving Pi, the Bailey–Borwein–Plouffe (BBP) formula:

This is my favourite for a number of reasons. Firstly, Simon Plouffe and the late Peter Borwein (two of the authors that this formula is named after) are Canadian! While I personally have nothing to do with this formula, the fact that fellow Canadians contributed to such an elegant equation is something that I like to brag about.

Secondly, I find it fascinating how Plouffe first discovered this formula using a computer program. It can often be debated whether mathematics is discovered or invented, but there’s no doubt here since Plouffe found this formula by doing an extensive search with the PSLQ integer relation algorithm (interfaced with Maple). This is an example of how, with ingenuity and creativity, one can effectively use algorithms and programs as powerful tools to obtain mathematical results.

And finally (most importantly), with some clever rearranging, it can be used to compute arbitrary digits of Pi!

Digit 2024 is 8
Digit 31415 is 5
Digit 123456 is 4
Digit 314159 is also 4
Digit 355556 is… F?

That last digit might look strange… and that’s because they’re all in hexadecimal (base-16, where A-F represent 10-15). As it turns out, this type of formula only exists for Pi in bases that are powers of 2. Nevertheless, with the help of a Maple script and an implementation of the BBP formula by Carl Love, you can check out this Learn document to calculate some arbitrary digits of Pi in base-16 and learn a little bit about how it works.

After further developments, this formula led to project PiHex, a combined effort to calculate as many digits of Pi in binary as possible; it turns out that the quadrillionth bit of Pi is zero! This also led to a class of BBP-type formulas that can calculate the digits of other constants like (log2)*(π^2) and (log2)^5.

Part of what makes this formula so interesting is human curiosity: it’s fun to know these random digits. Another part is what makes mathematics so beautiful: you never know what discoveries this might lead to in the future. Now if you’ll excuse me, I have a slice of lemon meringue pie with my name on it 😋

References
BBP Formula (Wikipedia)
A Compendium of BBP-Type Formulas
The BBP Algorithm for Pi

Is it possible overlay one column graph on top of another ? And if, how do I do it?

Regards

I have here a function
                           "sin(x)/x"

and suppose sin(x)/x = 0
Can I now use MapleAI to retrieve the correct command for this in Maple..could I?

The intersection points with the x-axis are positive and negative multiples of Pi
I have put these in an ordered list, but Maple gives this:
For x domain = -20...20
X := {x = Pi}, {x = 2*Pi}, {x = 3*Pi}, {x = 4*Pi}, {x = 5*Pi}, {x = 6*Pi}, {x = -6*Pi}, {x = -5*Pi}, {x = -4*Pi}, {x = -3*Pi}, {x = -2*Pi}, {x = -Pi};


X := sort(eval~(x, [X]));
 X := [, -6 Pi, -5 Pi, -4 Pi, -3 Pi, -2 Pi, -Pi, 2 Pi, 3 Pi, 4 Pi, 5 Pi, 6 Pi]


A strange ranking that Maple comes up with ?

with(NaturalLanguage);
        [Explain, GetCommand, GetMath, Query, RawQuery]



GetCommand("give for Maple solve command all options?");
            "solve(equations, variables, options);"

Explain("give for Maple solve command all options?");

"Maple is a symbolic and numeric computing environment. Its

   "solve" command is used to find solutions (roots) of a given

   equation or a system of equations.


  There are a number of options (or "parameters") which can be

   specified in this command to alter its behavior:



  1. `Allsolutions`: This option makes Maple to generate all

   possible solutions of an equation.



  2. `Real`: This option only provides the real solutions. If

   equations do not have real solutions, it will return an

   empty set.



  3. `Positive`: It only includes positive solutions in the

   output.



  4. `explicit`: If specified, Maple attempts to isolate roots

   and provide an explicit solution for each variable.



  5. `assume = real`: This option restrict the solutions to

   only real numbers.



  6. `parametric`: This option allows Maple to write the

   solutions in a parametric form.



  7. `avoid ={x = a}`: This option makes solve exclude the

   possibility `x = a` as a solution.



  8. `MaxDegree = d`: This option allows you to limit the

   degree of the polynomial equations to be considered.



  9. `maxdepth = d`: This sets a limit on recursive depth to

   which the computation should go to seek a solution.



  10. `multiplicities`: This option reports multiplicity of the

   roots.



  11. `solutions = vars`: This option tells Maple to look for

   solutions for specific variables.



  12. `numeric`: This option makes solve find a numeric

   solution to the equation.



  13. `symbolic`: This option makes solve find a symbolic

   solution to the equation.



  14. `simplify`: This option simplifies the solutions returned

   by solve.



  15. `sqrt`: This option allows square roots in the output.



  It is important to note that not all options are suited for

   use with all types of equations. Also, the "solve" command

   in Maple can be occasionally limited by the complexity of

   the equation, and may sometimes fail to find solutions that

   more specialized software or methods can find."

I am trying to solve the following set of equations, I am able to find solutions for a simplified case (b=0) using the command solve but cannot seem to solve it for general b.

Is there a better way to attempt to find a solution?
solve.mw

Download solve.mw

In many special cases, generalized hypergeometric functions can be transformed into other (possibly less general) functions, but sometimes Maple fails to convert some of them to other functions when possible.
For instance,

4*hypergeom([1, 1], [2, 3, 7/2], -(x/2)**2) -
 35*hypergeom([1, 1], [2, 5/2, 3], -(x/2)**2) -
 2*hypergeom([1, 1], [3, 3, 7/2], -(x/2)**2) +
 10*hypergeom([1, 1], [5/2, 3, 3], -(x/2)**2): # which is, in fact, “360*((Ci(x) - ln(x) + 19/18 - gamma)/x**2 - sin(x)/x**3 + (cos(x) + 5/3)/x**4 - 8/3*sin(x)/x**5)”
expand(%);
 =



simplify(%);

Is it possible to obtain a non-hypergeometric form of it? E.g.,

.

Here are more examples that `simplify/hypergeom` (as well as expand) is unable to deal with:

1. hypergeom([1, 1, 3/2], [5/2, 5/2, 3, 3], -(x/2)**2):
2. hypergeom([1, 1], [5/2, 3, 3], -(x/2)**2):
3. hypergeom([1, 1], [3/2, 2, 2], -(x/2)**2):
4. hypergeom([3/2], [5/2, 5/2], -(x/2)**2):
5. … (to be continued)

I have read something like How to simplify this hypergeometric function? - MaplePrimes, yet those tricks do not appear to work here. Is there any workaround?

Edit. There seems to be a bug in `simplify/hypergeom`:

'hypergeom([-1/3, 1/3, -1/2 - m, -m], [1/2, 1/3 - m, 2/3 - m], 1)':
simplify(`%`, hypergeom) assuming m::nonnegint;
 =
                               -1
                               --
                               2

simplify(eval(`%%`, m = 0), 'constant');
 =
                               1

The expected result should be a piecewise function.

Hello. I'm trying to model the pharmacodynamics of salicylic acid with two body comportants, SA1 and SA2. At t=1, I wish to inject a single pulse of salicylic acid in the system, so that the variable Inj is equal to Dose for t=1 and equal to zero for any other time t.

But dsolve doesn't seem to take into account this "ifelse" nature of Inj, and as a result, it yields the wrong solution where SA1 and SA2 remain at the initial condition zero throughout. How can I fix this? Here's my code:

restart;

k12:=0.0452821;
k21:=0.0641682;
k1x:=0.00426118;
Dose:=484;
Inj:=ifelse(t=1,Dose,0);

ode_sys:=diff(SA2(t),t)=SA1(t)*k12-SA2(t)*k21,diff(SA1(t),t)=Inj-k1x*SA1(t);

ics:=SA2(0)=0,SA1(0)=0;

Solution1:=dsolve({ode_sys,ics},{SA1(t),SA2(t)},type=numeric);

plots:-odeplot(Solution1,[[t,SA1(t),color="red",thickness=1],[t,SA2(t),color="blue",thickness=1]],t=0..500,labels=["Time t","Salicylic acid"],labeldirections=[horizontal,vertical]);

It finds a solution where SA1 and SA2 remain zero throughout, whereas due to the single pulse of salicylic acid, they should be non-zero.

I also tried: Solution1:=dsolve({ode_sys,ics},{SA1(t),SA2(t)},type=numeric,parameters=[Inj=ifelse(t=1,Dose,0)]); but here I get an error message

Can you help? Many thanks. I'm still learning Maple with the book "Mathematische Probleme lösen mit Maple", and now also with the site gould.prof/learning-maple

Maple does not have full_simplify() command like with Mathematica.

So I figured why not make one?

Here is a basic implementation. All what it does is blindly tries different simplifications methods I know about and learned from this forum then at the end sorts the result by leaf count and returns to the user the one with smallest leaf count.

I tried it on few inputs.

Advantage of full_simplify() is that user does not have to keep trying themselves. One disadvantage is that this can take longer time. timelimit can be added to this to make it not hang.

Can you see and make more improvement to this function?

May be we all together can make a better full_simplify() in Maple to use. Feel free to edit and change.

#version 1.0
#increment version number each time when making changes.

full_simplify:=proc(e::anything)
   local result::list;
   local f:=proc(a,b)
      RETURN(MmaTranslator:-Mma:-LeafCount(a)<MmaTranslator:-Mma:-LeafCount(b))
   end proc;

   #add more methods as needed

   result:=[simplify(e),
            simplify(e,size),
            simplify(combine(e)),
            simplify(combine(e),size),
            radnormal(evala( combine(e) )),
            simplify(evala( combine(e) )),
            evala(radnormal( combine(e) )),
            simplify(radnormal( combine(e) )),
            evala(factor(e)),
            simplify(e,ln),
            simplify(e,power),
            simplify(e,RootOf),
            simplify(e,sqrt),
            simplify(e,trig),
            simplify(convert(e,trig)),
            simplify(convert(e,exp)),
            combine(e)
   ];
   RETURN( sort(result,f)[1]);

end proc:

worksheet below

Download full_simplify.mw

In a homework assignment on differential geometry, a student used Mathematica to calculate the torsion of a trefoil curve.  His result, using identical steps as mine, was significantly simpler than what I had gotten with Maple, although as we see in the attached workseet, they are mathematically equivalent.

Is there a way to coax Maple to reduce its result to something like my student has obtained?

Download torsion2.mw

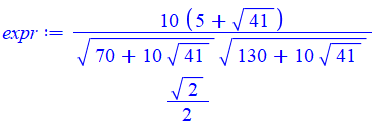

Is it possible to simplify the following relatively simple expression  (10*(5+sqrt(41)))/(sqrt(70+10*sqrt(41))*sqrt(130+10*sqrt(41)))  using 1-2 standard commands  simplify , combine, radnormal  and so on?   I was unable to do this in Maple 2018. Maybe newer versions of Maple will be able to handle this. I managed to simplify it in 3 steps:

expr:=(10*(5+sqrt(41)))/(sqrt(70+10*sqrt(41))*sqrt(130+10*sqrt(41)));
sqrt(simplify(expr^2));

One can use the "|" character to combine vectors to create a matrix. Is there a slick way to separate a matrix into a list of column vectors besides using the LinearAlgebra:-Column procedure?

I asked maple to solve a basic log inequality.
;

This is what happened.

Here is a link to the document to replicate this behavior.

log_inequality.mw

I know there is a solution , if you look at the [graph](https://www.desmos.com/calculator/3n7uzwrak4).

I also tried fsolve, but you have to narrow down the solution interval to look for a solution, and use an equality instead of an inequality.

Hi. Can maple compute right and left eigenvectors of a matrix?

Is there a simple command to convert the metric tensor (written in tensor product notation for the differential geometry package) to a matrix form accepted by the physics package?

Is there something similar for wedge products as well?

Please Help me to solve this problem


Download ode_Plots_error.mw
