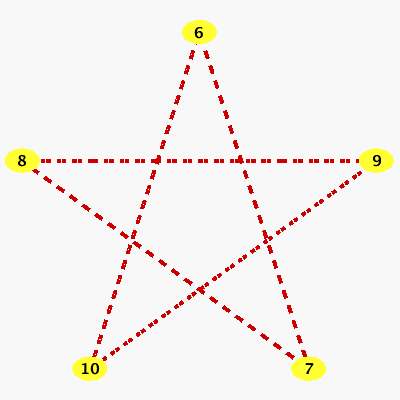

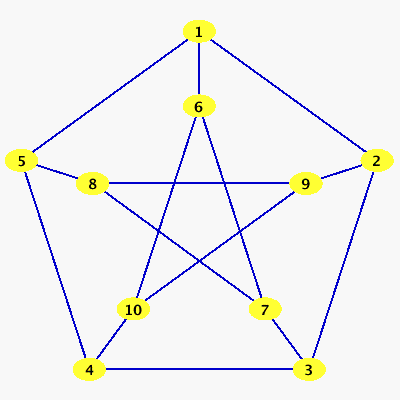

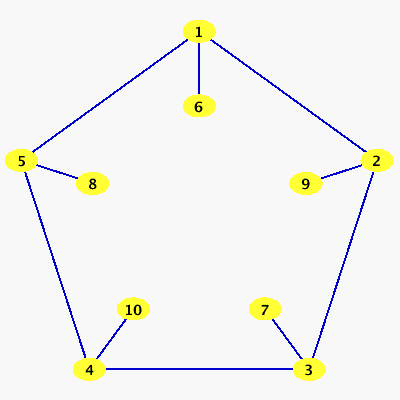

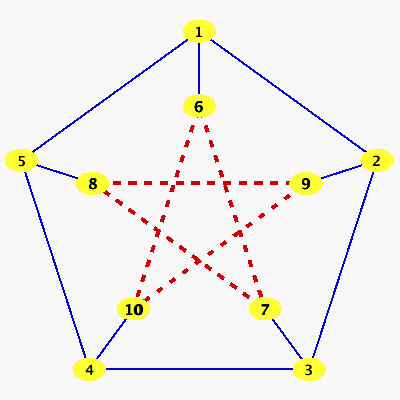

Here's an example of doing it. I take the Petersen graph and draw the central star with thick, red, dotted edges.

Download Subgraph_Different.mw

The following code will count the number of recursion levels allowed:

RC:= 0:   proc() :-RC:= :-RC+1; thisproc() end proc():   RC;

On my computer, this consistently returns 99755. So, that's the software limitation.

You should post the smallest example that you have of code that gives you the error message. It could be something that you're doing wrong, or it could be a bug in Maple.

You can get the same help from the on-board help system, which is still accessible via the command-line interface. At the command prompt, enter

???VariationalCalculus,EulerLagrange

(Using Cygwin, I need to hit Enter (or Return) twice for this command to be processed. I don't know if that will be true in SSH.)

The three question marks will take you directly to the Examples section of the help page. The command input of the examples will be in 1D plaintext (aka Maple Input), and the output will be in 2D ASCII (equivalent to interface(prettyprint= 1)). You should be able to copy-and-paste the command input. (Using Cygwin, I need to use the Copy and Paste functions directly from the mouse rather than the keyboard shortcuts Ctrl-C and Ctrl-V.)

In Maple, the constant Pi is capitalized; lowercase pi is just a variable.

If you want a decimal point in the output, the easiest way to get it is to use a decimal point in the input: sin(Pi/2.). However, I encourage you to first try doing your work with exact values rather than decimals.

Please don't check off all the Products boxes in your message header. This Question is about Maple itself.

There's a very, very limited facility for abstract sets in Maple. See ?in. Your set A might be specified as

A:= SetOf([realcons $ 3]);

and B might be

B:= SetOf(nonnegative);

I don't know if this works in Maple 13.

If you present some more-fully-formed ideas, we may be able to find better representations of them in Maple.

Your Question isn't about MaplePrimes, although it's on MaplePrimes. So, I removed MaplePrimes from your "Products" check-offs.

Please don't check off all the "Products" categories in the message header. Your Question is about Maple itself, not about any other product.

Getting a result with a RootOf isn't an error. It's an indication that there's no simpler way of expressing the exact roots of your equation. If you want a decimal approximation of the real root, use fsolve(EQ). If you want decimal approximations of all nine complex roots, use fsolve(EQ, complex).

Using the view option will stabilize the viewing window, thus making it appear that the point moves.

Explore(plots:-pointplot(a*[1, 1], view= [-10..10, -10..10]), a= -10..10);

I don't use context menus, so I don't know if the above is accessible via one.

I've only analyzed the case phi[4]*S[3]; I guess that the analysis for the other cases is similar. Your integrand has a singularity at x=1. ApproximateInt doesn't handle improper integrals.

If you don't provide any extra options, then ApproximateInt uses a midpoint Riemann method with only 11 evenly spaced evaluation points. ApproximateInt is primarily intended for educational illustration purposes. There is no inherent error control. You would have to decide on the value of partition required to achieve a certain accuracy.

Regarding Int/int's epsilon option: If you set epsilon to .5*10^(1-d), then the result will have d digits of accuracy if Maple can complete the calculation to that accuracy without using too many extra guard digits. If Maple can't complete the calculation thus, the integral is returned unevaluated. In that case, increasing the value of Digits while keeping epsilon the same may help the computation to complete.

The k in your expression is used as a function symbol, not a coefficient. A number can be used as a function that is a constant function that returns the number. For example, 3(x) is simply 3. There is no d in your expression, so I don't know why you expect something to happen when you substitute for d.

To enter boundary or initial conditions that have derivatives, use D form rather than diff form.

Maple's numeric dsolve won't allow infinity as a boundary point. You'll just have to use some number to substitute for infinity.

inf:= 10: #Substitute for infinity.
Bcs:= theta(inf) = 0, D(theta)(0) = -k*(1-theta(0)):
ode:=
     diff(theta(eta),eta$2) +
     pr*Q*(1/alpha*(1-exp(-alpha*eta))*diff(theta(eta),eta) +
     Omega*theta(eta))+B*(-alpha*exp(-alpha*eta))^2 =
     0
;

Now you'll need two boundary conditions for the differential order of the ODE, plus one boundary condition for every unspecified constant: B, Q, Omega, k, pr, and alpha. So, you need eight boundary conditions.

Assuming that your matrix represents an "augmented" matrix, i.e., one where the rightmost column represents the right sides of the equations, then do

LinearAlgebra:-LinearSolve(R, free= t);

The t can be any unused variable that you want to use for the parameters. If you don't supply one, Maple will make one up.

You need to substitute a procedure (colloquially called a function) for x[1] rather than substituting an expression for x[1](whatever). Like this:

eval(junk, x[1]= ((a,b,c)-> R(b,c)*sin(omega*a + phi(b,c))));

Always use eval for these high-level calculus substitutions. Using subs isn't necessarily wrong, but eval is safer. The use of subs should be reserved for low-level purely syntactic substitutions.

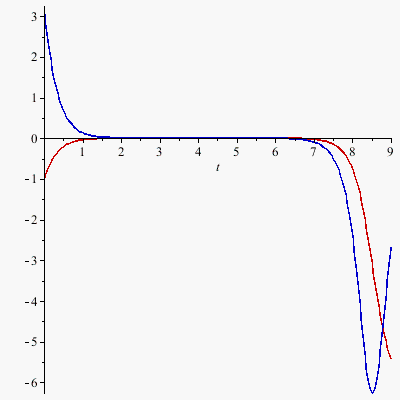

I am highly skeptical of Kitonum's Answer. I don't doubt the computed critical value of D(theta)(0)---I got the same value. But I do doubt the solution curves. And I doubt the existence of a finite T such that theta(T) = Pi and D(theta)(T) = 0. My intuition is that diff(theta(t), t) (for t > 0) is a strictly positive, strictly decreasing function whose limit at infinity is 0.

Here are some computations to support these hypotheses:

Download Highly_unstable_ODE.mw

In general, there's no way to do it. But many builtin (or kernel) functions come from open-source libraries. For example, reading the code for isprime, one sees that it uses (for some inputs) gmp_isprime. That's part of the GMP open-source library. So, if you Google "gmp isprime", you'll quickly find that code in C.

How about saving everything to one .mla file?

save H||(1..n), "H.mla";

I just read your other Question, regarding Grid, and I now realize that you probably really need nine separate files. That can be done for the kth file by

save cat(H,k), sprintf("H%d.mla", k);

By the way, you may be confusing things by calling these .mla files. Use another extension. If you use .m, the files will be compressed into Maple's own text-based but not-human-readable format, which'll probably save an iota of time.
