Let the expression be expr. Then do

op(indets(expr, specfunc(anything, RootOf))[1]);

Yes, it is easy with plotsetup(window). See help pages ?plot,device and ?plotsetup .

Your question is barely readable. In the future, enter your matrix into Maple and then cut-and-paste the matrix into your post.

I hope that you can draw your conclusions from the following worksheet. If not, ask for more help.


restart:

A:= < k+3, 2, k-4, 3;
      0,   2,  -9, 5;
      0,   0, k^2+k-2, k-1 >;

A := Matrix(3, 4, {(1, 1) = k+3, (1, 2) = 2, (1, 3) = k-4, (1, 4) = 3, (2, 1) = 0, (2, 2) = 2, (2, 3) = -9, (2, 4) = 5, (3, 1) = 0, (3, 2) = 0, (3, 3) = k^2+k-2, (3, 4) = k-1})

(1)

eval(A, k=1);

Matrix(3, 4, {(1, 1) = 4, (1, 2) = 2, (1, 3) = -3, (1, 4) = 3, (2, 1) = 0, (2, 2) = 2, (2, 3) = -9, (2, 4) = 5, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0})

(2)

solve(A[3,3] = 0, {k});

{k = 1}, {k = -2}

(3)

eval(A, k= -2);

Matrix(3, 4, {(1, 1) = 1, (1, 2) = 2, (1, 3) = -6, (1, 4) = 3, (2, 1) = 0, (2, 2) = 2, (2, 3) = -9, (2, 4) = 5, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = -3})

(4)




Download Parametric_linear_system.mw






restart:

Notice the use of  `*` instead of implied multiplication

Sys:=
     4*x1 + 2*x2 - 7*x3 - 11*x4 = 5,

     2*x1 + 1*x2 - 2*x3 - 4*x4 = 2,

     4*x1 + 2*x2 - 10*x3 - 14*x4 = 6
:

X:= [x||(1..4)]:

A:= LinearAlgebra:-GenerateMatrix([Sys], X, augmented);

A := Matrix(3, 5, {(1, 1) = 4, (1, 2) = 2, (1, 3) = -7, (1, 4) = -11, (1, 5) = 5, (2, 1) = 2, (2, 2) = 1, (2, 3) = -2, (2, 4) = -4, (2, 5) = 2, (3, 1) = 4, (3, 2) = 2, (3, 3) = -10, (3, 4) = -14, (3, 5) = 6})

(1)

R:= LinearAlgebra:-ReducedRowEchelonForm(A);

R := Matrix(3, 5, {(1, 1) = 1, (1, 2) = 1/2, (1, 3) = 0, (1, 4) = -1, (1, 5) = 2/3, (2, 1) = 0, (2, 2) = 0, (2, 3) = 1, (2, 4) = 1, (2, 5) = -1/3, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0})

(2)

Sol:= LinearAlgebra:-LinearSolve(A, free= t);

Sol := Vector(4, {(1) = t[1], (2) = -2*t[1]+4/3+2*t[4], (3) = -1/3-t[4], (4) = t[4]})

(3)

The solution space is two-dimensional. Verify the solution by plugging into the original system of equations.

eval(Sys, X =~ convert(Sol, list));

5 = 5, 2 = 2, 6 = 6

(4)




Download Linear_system.mw

Use command residue. For example

residue(1/z, z= 0);

     1

The problem is that you are using m in two different ways. You are using it as an index to the middle add, and you are using it as a procedure. Try this:

t:= exp(2*Pi*I/11);
Mij:= (i,j)-> M[(i mod 11)+1, (j mod 11)+1] ;
mu:= proc(i,j)
local n,m,k;
     add(add(add(a[k]*a[m]*a[n]*t^m*Mij(i+k-m,j+n-m), n= 0..10), m= 0..10), k= 0..10)
end proc;

Your "New problem" is caused by you trying to return an expression sequence. There is no facility for the return value of a procedure produced by unapply to be an expression sequence. There are two things you can do: (1) Make the return value a list, or (2) Make the return value a list and compose the result with op to convert it back to an expression sequence.

To do (1):

f:= unapply(
      [seq(product(t[j]^'Q[j,i]',j=1..RowDimension(Q)),i=1..ColumnDimension(Q))]
    , seq(t[i],i=1..RowDimension(Q))
);

To do (2):

f:= op@unapply(
      [seq(product(t[j]^'Q[j,i]',j=1..RowDimension(Q)),i=1..ColumnDimension(Q))]
    , seq(t[i],i=1..RowDimension(Q))
);

The solve command should contain variables u and v, not %u and %v.

You can do it like this:

for i in seq(0..100, 0.2), seq(100..0, -0.2) do ... end do;

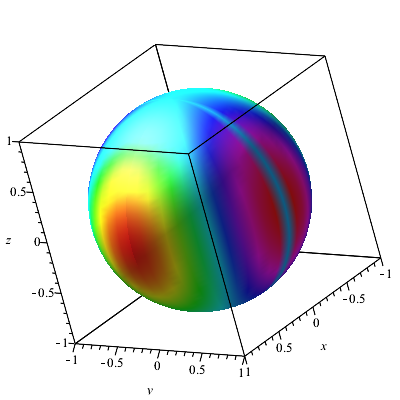

I will assume that the backslash in your expression should have been a forward slash---that it represents ordinary division. I'll plot a unit sphere in spherical coordinates. So, I am also assuming that you want x and y to range from -1 to 1.

f:= (x,y)-> (5*x^2*y^2-6*x^4)/((1-y^2)*(x^2+y^2)-y^2*(1-x^2-y^2));

plot3d(
     1, theta= 0..2*Pi, phi= 0..Pi,
     color= f(cos(theta)*sin(phi), sin(theta)*sin(phi)),
     coords= spherical, style= patchnogrid, labels= [x,y,z]
);



Make it a single command:

eval(y, isolate(x, D(a)));

Do you want a uniform random selection from all 6-tuples of nonnegative integers whose sum is 8? It can be done like this:

C:= combinat:-composition(8+6, 6):
C[(rand() mod nops(C))+1] -~ 1;

If you want to make such a random selection repeatedly, the above can be made more efficient. Let me know.

Your attempt to trap division-by-zero errors went awry. You set it up so that division by zero returns infinity, but the plots:-circle command doesn't know what to do with infinity as an argument. Your problem can solved by simply filtering out the values that lead to division by zero; there is no need to trap those errors.

To fix the problem, simply replace the line

d := seq(circle([1, 1/i], 1/i, color = blue), i = -20 .. 20, .1);

with

d:= seq(`if`(i=0, NULL, circle([1, 1/i], 1/i, color= blue)), i= -20 .. 20, .1):

The principles for solving the system of piecewise ODEs are the same as the simplified example above. It is done like this:

Sys1:= EQ||(1..3), op(2, EQ4), op(2, EQ5):
Sys2:= EQ||(1..3), op(4, EQ4), op(4, EQ5):
ICs1:= seq(q||k(0)=0, k= 1..5), seq(D(q||k)(0)=0, k= 1..3):
Sol1:= dsolve({Sys1, ICs1}, numeric, maxfun=0, range= 0..10):
ICs2:= eval(
     [seq(q||k(10) = q||k(t), k= 1..5),
      seq(D(q||k)(10) = diff(q||k(t), t), k= 1..3)
     ], Sol1(10)
)[]:
Sol2:= dsolve({Sys2, ICs2}, numeric, maxfun= 0):

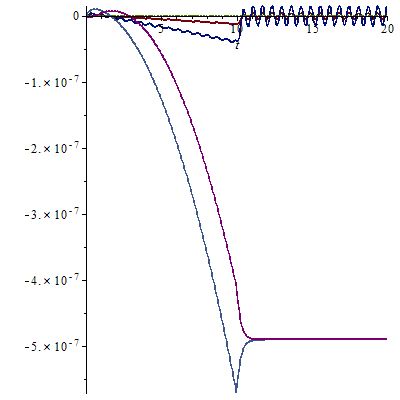

P1:= plots:-odeplot(Sol1, [seq([t, q||k(t)], k= 1..5)], t= 0..10):
P2:= plots:-odeplot(Sol2, [seq([t, q||k(t)], k= 1..5)], t= 10..20):
plots:-display([P1,P2]);

The solution to this ODE becomes singular before t = 0.03. However, I will show how to work with an ODE like this using the function f(x,t) from your earlier post. That one doesn't go singular until about t = 15.


restart:

f:= (x,t)-> piecewise(t < 10, (1-t)*sin(Pi*x), 10 < t, 0):

f(x,t);

piecewise(t < 10, (1-t)*sin(Pi*x), 10 < t, 0)

eq1:= diff(y(t),t$2) - y(t)^2 - f(x,t) = 0:

eq2:= simplify(int(lhs(eq1)*sin(Pi*x), x= 0..1));

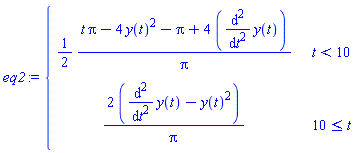

eq2 := piecewise(t < 10, (1/2)*(t*Pi-4*y(t)^2-Pi+4*(diff(y(t), t, t)))/Pi, 10 <= t, (2*(diff(y(t), t, t)-y(t)^2))/Pi)

To set up the arguments to dsolve, you need to know the operand positions within the piecewise expression. The upper branch is operand 2 and the lower branch is operand 4.

lprint(%);

piecewise(t < 10, (1/2)*(t*Pi-4*y(t)^2-Pi+4*(diff(diff(y(t), t), t)))/Pi, 10 <= t, 2*(diff(diff(y(t), t), t)-y(t)^2)/Pi)

We call dsolve twice: once for 0 <= t <= 10 and once for t > 10.

Sol1:= dsolve({op(2, eq2), y(0)=0, D(y)(0)=0}, numeric):

We use that solution to get new initial conditions for t = 10.

Sol2:= dsolve({op(4, eq2), eval({y(10) = y(t), D(y)(10) = diff(y(t), t)}, Sol1(10))[]}, numeric):

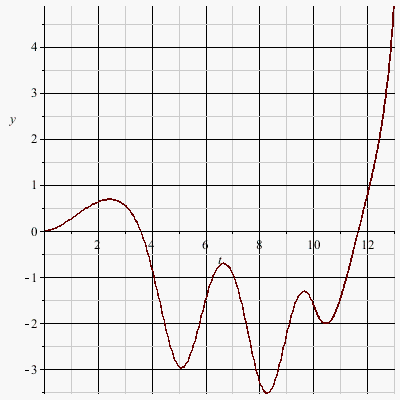

P1:= plots:-odeplot(Sol1, [t, y(t)], t= 0..10):

P2:= plots:-odeplot(Sol2, [t, y(t)], t= 10..13):

plots:-display([P1,P2]);



``
