To get everything in this one post, let's recall the setting from my initial response:

ODE := diff(y(t),t$2)+y(t)=piecewise(t in [0,Pi],t, t>Pi,Pi);
ICS := y(0)=0, D(y)(0)=0;
ODE2 := diff(y(t),t$2)+y(t)=piecewise(t <Pi,t, t>Pi,Pi);

To precisely define the RHS as you were trying to do in your original post I would use:

ODE3 := diff(y(t),t$2)+y(t)=piecewise( t>=0 and t <=Pi, t , t>Pi, Pi ):

But, this has no affect on the solution of the IVP for t>=0:

dsolve( {ODE3,ICS}, y(t) );
  y(t) = piecewise(t < 0, 0, t < Pi, -sin(t) + t, Pi <= t, -2 sin(t) + Pi)

To compare the three different right-hand sides of the ODEs, see

plot( map(rhs,[ODE,ODE2,ODE3]), t=-1..5,
      style=point, symbol=[asterisk,cross,circle,asterisk], symbolsize=15,
      color=[green,red,blue], numpoints=50, adaptive=false );

Doug

---------------------------------------------------------------------
Douglas B. Meade  <><
Math, USC, Columbia, SC 29208  E-mail: mailto:meade@math.sc.edu
Phone:  (803) 777-6183         URL:    http://www.math.sc.ed

To get everything in this one post, let's recall the setting from my initial response:

ODE := diff(y(t),t$2)+y(t)=piecewise(t in [0,Pi],t, t>Pi,Pi);
ICS := y(0)=0, D(y)(0)=0;
ODE2 := diff(y(t),t$2)+y(t)=piecewise(t <Pi,t, t>Pi,Pi);

To precisely define the RHS as you were trying to do in your original post I would use:

ODE3 := diff(y(t),t$2)+y(t)=piecewise( t>=0 and t <=Pi, t , t>Pi, Pi ):

But, this has no affect on the solution of the IVP for t>=0:

dsolve( {ODE3,ICS}, y(t) );
  y(t) = piecewise(t < 0, 0, t < Pi, -sin(t) + t, Pi <= t, -2 sin(t) + Pi)

To compare the three different right-hand sides of the ODEs, see

plot( map(rhs,[ODE,ODE2,ODE3]), t=-1..5,
      style=point, symbol=[asterisk,cross,circle,asterisk], symbolsize=15,
      color=[green,red,blue], numpoints=50, adaptive=false );

Doug

---------------------------------------------------------------------
Douglas B. Meade  <><
Math, USC, Columbia, SC 29208  E-mail: mailto:meade@math.sc.edu
Phone:  (803) 777-6183         URL:    http://www.math.sc.ed

The phase portrait arrow routines I wrote last night for the discussion in Phase diagram for k(dot) and k can also be used in this analysis.

We start by putting all of the definitions from Robert's post in one place:

restart: with(plots): with(DEtools):
a:= 0.04: b:= 0.06: c:= (a+b)/2:
f:= x-> 20*x^(0.5):
g:= x-> 10*x^(-0.5):
zss:=b: zss: xss:=fsolve(g(x)-zss,x): xss: yss:=f(xss): yss:
xdot:= diff(x(t),t) = f(x(t))-y(t):
ydot:= diff(y(t),t) = (g(x(t))-z(t))*y(t):
zdot:= diff(z(t),t) = (z(t)-a)*(c-z(t))+(z(t)-b)*(g(x(t))-z(t))*y(t)/(f(x(t))-y(t)):
xd:=eval(rhs(xdot),{x(t)=x, y(t)=y, z(t)=z}):
yd:=eval(rhs(ydot),{x(t)=x, y(t)=y, z(t)=z}):
zd:=eval(rhs(zdot),{x(t)=x, y(t)=y, z(t)=z}):
zss:=b: zss; xss:=fsolve(g(x)-zss,x): xss; yss:=f(xss): yss;
opts:=fieldstrength=average(0.5), axes=boxed, grid=[5,5,5], arrows=SLIM, thickness=2, tickmarks=[4,4,4], orientation=[-15,60]:
SYS :={xdot, ydot, zdot}:
VAR := [x(t),y(t),z(t)]:
INI := [[x(0)=0.99*xss, y(0)=1.01*yss, z(0)=0.99*zss], [x(0)=1.01*xss, y(0)=1.01*yss, z(0)=0.99*zss], [x(0)=0.99*xss, y(0)=1.01*yss, z(0)=1.01*zss], [x(0)=1.01*xss, y(0)=1.01*yss, z(0)=1.01*zss]]:

sys:=convert([xdot,ydot,zdot],rational);
PDEtools[dchange]({x(t)=u(t)^2,y(t)=w(t)+20*u(t),z(t)=v(t)+10/u(t)},       sys,[u(t),v(t),w(t)]);
simplify(%) assuming u(t)>0;
newsys:= expand(solve(%,        {diff(u(t),t), diff(v(t), t), diff(w(t),t)})) ;

eval(newsys, u(t) = 100);
sys100:= select(has,%, diff);

vp := subs(sys100, v(t)=v, w(t)=w, diff(v(t),t));
wp := subs(sys100, v(t)=v, w(t)=w, diff(w(t),t));

Here are the two routines for creating arrows in the phase portrait

PParrow2 := proc( sys, pt )
  local opt;
  if  _npassed>2 then opt := _passed[3..-1] else opt := NULL end if;
  plots:-display( [ PParrow1(sys[1],pt,<1,0>,opt),
                    PParrow1(sys[2],pt,<0,1>,opt) ] )
end proc:
PParrow1 := proc( eqn, pt, dir )
  local d, p, opt;
  if  _npassed>3 then opt := _passed[4..-1] else opt := NULL end if;
  d := signum( eval(eqn,pt) )*dir;
  p  := map(rhs,pt);
  plots:-arrow(p,d,opt)
end proc:

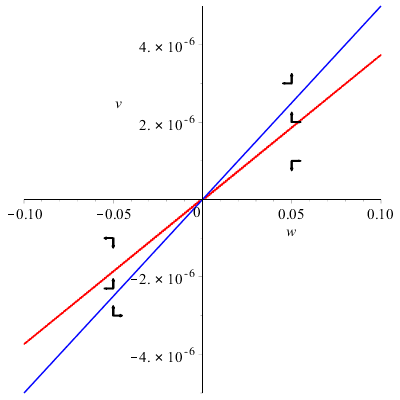

And here is how the result that I obtain, showing the nullclines and the flow of solutions in each region defined by the nullclines:

display( [
  implicitplot([vp,wp], w=-0.1  .. 0.1, v = -0.001 .. 0.001, colour=[red,blue],gridrefine=3),
  PParrow1(vp,[w= 0.05,v= 1e-6],<0,1>,length=0.25e-6,width=0.5e-3),
  PParrow1(wp,[w= 0.05,v= 1e-6],<1,0>,length=0.5e-2,width=1e-8),
  PParrow1(vp,[w= 0.05,v= 2e-6],<0,1>,length=0.25e-6,width=0.5e-3),
  PParrow1(wp,[w= 0.05,v= 2e-6],<1,0>,length=0.5e-2,width=1e-8),
  PParrow1(vp,[w= 0.05,v= 3e-6],<0,1>,length=0.25e-6,width=0.5e-3),
  PParrow1(wp,[w= 0.05,v= 3e-6],<1,0>,length=0.5e-2,width=1e-8),
  PParrow1(vp,[w=-0.05,v=-1e-6],<0,1>,length=0.25e-6,width=0.5e-3),
  PParrow1(wp,[w=-0.05,v=-1e-6],<1,0>,length=0.5e-2,width=5e-9,head_width=5e-8),
  PParrow1(vp,[w=-0.05,v=-2.3e-6],<0,1>,length=0.25e-6,width=0.5e-3),
  PParrow1(wp,[w=-0.05,v=-2.3e-6],<1,0>,length=0.5e-2,width=1e-10,head_width=1e-9),
  PParrow1(vp,[w=-0.05,v=-3e-6],<0,1>,length=0.25e-6,width=0.5e-3),
  PParrow1(wp,[w=-0.05,v=-3e-6],<1,0>,length=0.5e-2,width=5e-9,head_width=5e-8),
  NULL ] );

This is consistent with the previous plots, but with a little additional information. Note the use of options from plots,arrow to deal with the different scales on the axes.
