These are answers submitted by Kitonum

a:=[1,2,3,4,5]:

convert(cat(op(a)), string);

                                               "12345"

applyrule(exp(a::anything + lambda::realcons*b::symbol) = exp(a)*exp(lambda*b), F);

If the series is absolutely convergent, then it can be summed by a blocks, for example

evalf(sum(sum(1/(i^4+j^4), i=0..infinity), j=1..infinity));

                                        1.844054925+0.*I

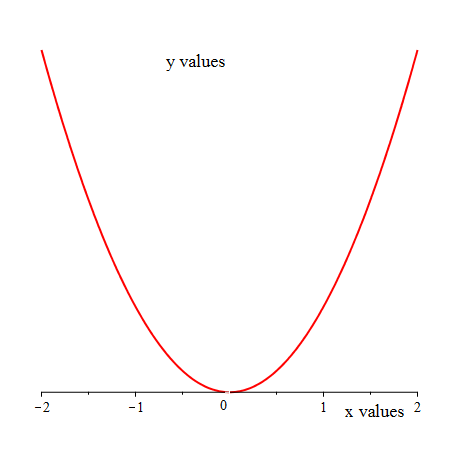

A := plot(x^2, x = -2 .. 2, color = red, thickness = 2, axis[2] = [color = white], labels=[" "," "]):

B := plots[textplot]([[1.9, -0.1, "x values"], [0, 4, "y values"]], align = [below, left], font = [TIMES, ROMAN, 14]):

plots[display](A, B);





Edited.





The procedure  IntersectionOfSegments  solves the problem for any segments on the plane. If the segments do not intersect, then the procedure returns NULL. If segments intersect at the single point, the procedure returns this point (as a list). If the intersection of segments is a segment, then the procedure returns this segment (as a listlist).

IntersectionOfSegments:=proc(S1::listlist,S2::listlist)

local A, B, C, D, f, g, T1, T2, S11, S21, T;

uses geometry;

point(A, S1[1]); point(B, S1[2]); point(C, S2[1]); point(D, S2[2]);

f:=unapply(lhs(Equation(line(AB, [A,B]),[x,y])),x,y);

g:=unapply(lhs(Equation(line(CD, [C,D]),[x,y])),x,y);

if is(f(S2[1][])*f(S2[2][])<=0) and is(g(S1[1][])*g(S1[2][])<=0) then  if is(f(S2[1][])<>0) or is(f(S2[2][])<>0)  then return rhs~(convert(solve({f(x,y), g(x,y)}),list))  elif

is(S1[1,1]<>S1[2,1]) then S11:=sort(S1,(a,b)->is(a[1]<=b[1])); S21:=sort(S2,(a,b)->is(a[1]<=b[1])); if is(S11[2,1]>=S21[1,1]) and is(S11[1,1]<=S21[2,1]) then T1:=sort([S11[1],S21[1]],(a,b)->is(a[1]<=b[1])); T2:=sort([S11[2],S21[2]],(a,b)->is(a[1]<=b[1]));

T:=[T1[2],T2[1]];

return `if`(T1[2]<>T2[1],sort([T1[2],T2[1]],(a,b)->is(a[1]<=b[1])), T1[2]) fi else

S11:=sort(S1,(a,b)->is(a[2]<=b[2])); S21:=sort(S2,(a,b)->is(a[2]<=b[2]));

if is(S11[2,2]>=S21[1,2]) and is(S11[1,2]<=S21[2,2]) then T1:=sort([S11[1],S21[1]],(a,b)->is(a[2]<=b[2])); T2:=sort([S11[2],S21[2]],(a,b)->is(a[2]<=b[2]));

T:=[T1[2],T2[1]];

`if`(is(T1[2]<>T2[1]),sort([T1[2],T2[1]],(a,b)->is(a[2]<=b[2])), T1[2])

fi;  fi; fi;

end proc:



Examples of use:

IntersectionOfSegments([[0,1],[1,0]], [[0,-1],[1,2]]);

IntersectionOfSegments([[0,1],[1,0]], [[1/2,1/2],[2,-1]]);

IntersectionOfSegments([[0,1],[1,0]], [[-2,3],[-1,2]]);

IntersectionOfSegments([[0,0],[0,2]], [[0,1],[0,3]]);

IntersectionOfSegments([[0,0],[0,2]], [[0,5/2],[0,3]]);

IntersectionOfSegments([[0,0],[0,2]], [[0,2],[0,3]]);





 Segments.mws







I have plotted your system  for several values of  r, from which we can see:
1) There are always 2 positive solutions (2 points in the ranges omega=0..1, a=0..1).
2) These two points are located far enough from one another.

Further, using  fsolve  command, we find all the solutions for  20 values  r=0.1 .. 2



restart; A := sqrt(a^2+r^2/(1+r)^2); B := sqrt(a^2/(a^2+r^2/(1+r)^2)); C := A*EllipticE(B)-r^2*EllipticK(B)/((1+r)^2*A); Sys := [0.4e-3*a^2*omega^2+(-a*(1+r)+a*omega^2+4*r*C/(a*Pi))^2-0.1e-3 = 0, 0.1e-1^2+(1/4)*(-a*(1+r)+a*omega^2+4*r*C/(a*Pi))*(omega^2-r-1-4*r*C/(a^2*Pi)+4*r*(EllipticE(B)*a/A+(1/2)*A*(2*a/A^2-2*a^3/A^4)*(EllipticE(B)/B-EllipticK(B)/B)/B-(1/2)*r^2*(2*a/A^2-2*a^3/A^4)*(EllipticE(B)/((-B^2+1)*B)-EllipticK(B)/B)/((1+r)^2*B*A)+r^2*EllipticK(B)*a/((1+r)^2*A^3))/(a*Pi))/(a*omega^2) = 0]
``

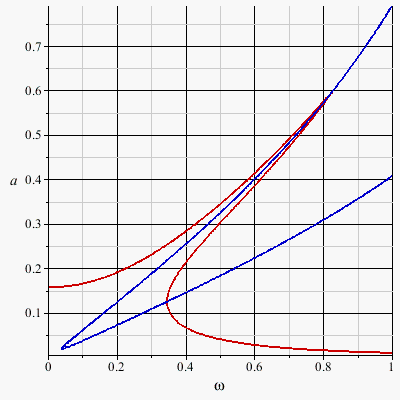

for r from .1 by .4 to 3 do plots[implicitplot](Sys, omega = 0 .. 1, a = 0 .. 1, color = [red, blue], gridrefine = 3) end do;



  ``

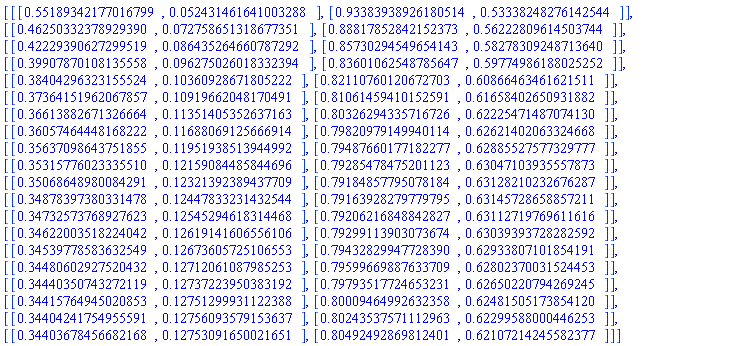

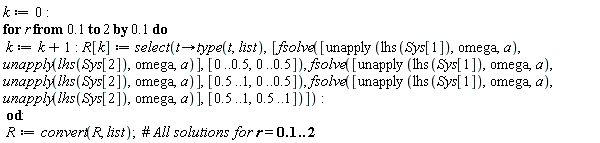

k := 0; for r from .1 by .1 to 2 do k := k+1; R[k] := select(proc (t) options operator, arrow; type(t, list) end proc, [fsolve([unapply(lhs(Sys[1]), omega, a), unapply(lhs(Sys[2]), omega, a)], [0 .. .5, 0 .. .5]), fsolve([unapply(lhs(Sys[1]), omega, a), unapply(lhs(Sys[2]), omega, a)], [.5 .. 1, 0 .. .5]), fsolve([unapply(lhs(Sys[1]), omega, a), unapply(lhs(Sys[2]), omega, a)], [.5 .. 1, .5 .. 1])]) end do; R := convert(R, list)

[[[.55189342177016799, 0.52431461641003288e-1], [.93383938926180514, .53338248276142544]], [[.46250332378929390, 0.72758651318677351e-1], [.88817852842152373, .56222809614503744]], [[.42229390627299519, 0.86435264660787292e-1], [.85730294549654143, .58278309248713640]], [[.39907870108135558, 0.96275026018332394e-1], [.83601062548785647, .59774986188025252]], [[.38404296323155524, .10360928671805222], [.82110760120672703, .60866463461621511]], [[.37364151962067857, .10919662048170491], [.81061459410152591, .61658402650931882]], [[.36613882671326664, .11351405352637163], [.80326294335716726, .62225471487074130]], [[.36057464448168222, .11688069125666914], [.79820979149940114, .62621402063324668]], [[.35637098643751855, .11951938513944992], [.79487660177182277, .62885527577329777]], [[.35315776023335510, .12159084485844696], [.79285478475201123, .63047103935557873]], [[.35068648980084291, .12321392389437709], [.79184857795078184, .63128210232676287]], [[.34878397380331478, .12447833231432544], [.79163928279779795, .63145728658857211]], [[.34732573768927623, .12545294618314468], [.79206216848842827, .63112719769611616]], [[.34622003518224042, .12619141606556106], [.79299113903073674, .63039393728282592]], [[.34539778583632549, .12673605725106553], [.79432829947728390, .62933807101854191]], [[.34480602927520432, .12712061087985253], [.79599669887633709, .62802370031524453]], [[.34440350743272119, .12737223950383192], [.79793517724653231, .62650220794269245]], [[.34415764945020853, .12751299931122388], [.80009464992632358, .62481505173854120]], [[.34404241754955591, .12756093579153637], [.80243537571112963, .62299588000446253]], [[.34403678456682168, .12753091650021651], [.80492492869812401, .62107214245582377]]]

(1)

``

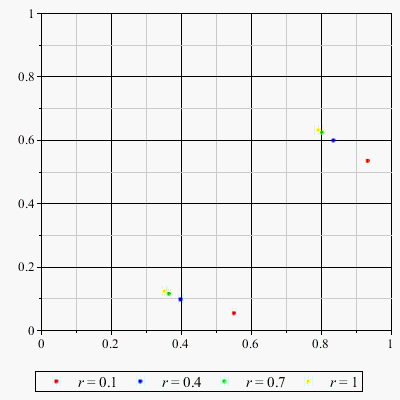

plot([R[1], R[4], R[7], R[10]], style = point, color = [red, blue, green, yellow], symbol = solidcircle, symbolsize = 8, view = [0 .. 1, 0 .. 1], legend = ['r' = .1, 'r' = .4, 'r' = .7, 'r' = 1]);



``


We have plotted only 4 pairs of points as for  r>=1 the points practically merge.

Download Syst1.mw

Your integrand is only defined on a finite set of points. To integrate, it is necessary  to continue on a certain range. For example on the range t=1..10  you can use splines:

x:=[1, 2, 3, 4, 5, 6, 7, 8, 9, 10]:

rho:= [0.045, 0.0459, 0.0564, 0.05689, 0.06015, 0.06235, 0.0654, 0.0687, 0.07012, 0.07251]:

eta:= [1.15, 1.256, 1.56, 1.85, 1.86, 2.01, 2.35, 2.56, 2.86, 2.901]:

f:=[seq(rho[i]*x[i]^4*eta[i]^2, i=1..10)]:

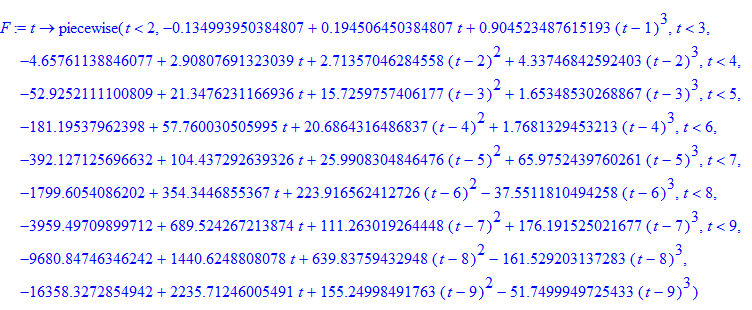

F:=unapply(CurveFitting[Spline](x,f,t), t);

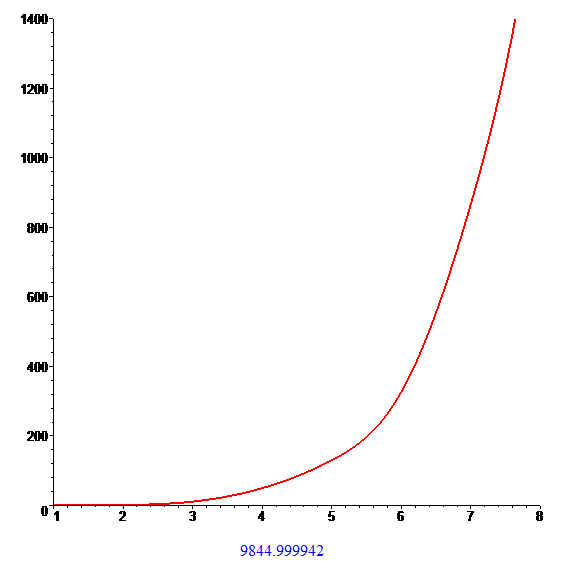

plot(F,1..10, color=red, thickness=2);

int(F(t), t=1..10);









 Addition. For some reason, Maple does not plot for t>8, although at certain points value of the function is calculated correctly:

F(9), F(10);

f[9], f[10];

                               3763.08485500000, 6102.29730500000

                                        3763.084855, 6102.297305



A bug?





p  is a polynomial not necessarily a cubic polynomial.

CriticalPoints:=p->solve(diff(p, x), x):



Example of use:

CriticalPoints(x^2*(x-1));

                                                     0, 2/3

Do

f:=x->x^2+6*x+12:

g:=x-> f(x)*exp(x):

f(2);

g(2);


                                          28

                                   28 exp(2)



or more automatically

restart;

sol:=dsolve({diff(f(x), x) = 2*x+6, f(0) = 12});

f:=unapply(eval(f(x), sol), x);

g:=x-> f(x)*exp(x):

f(2);

g(2);



Edited.

MUKUNDS

1) Many sub-expressions in your system are repeated. For a more compact notation, I gave them the names A, B, C

2) Variables  omega  and  a are squared, so it is enough to solve the system only for  omega>=0  and  a>=0 .

3) First, we plot both equations, from which find the ranges for each root.

4) Using  fsolve  command we find these roots.

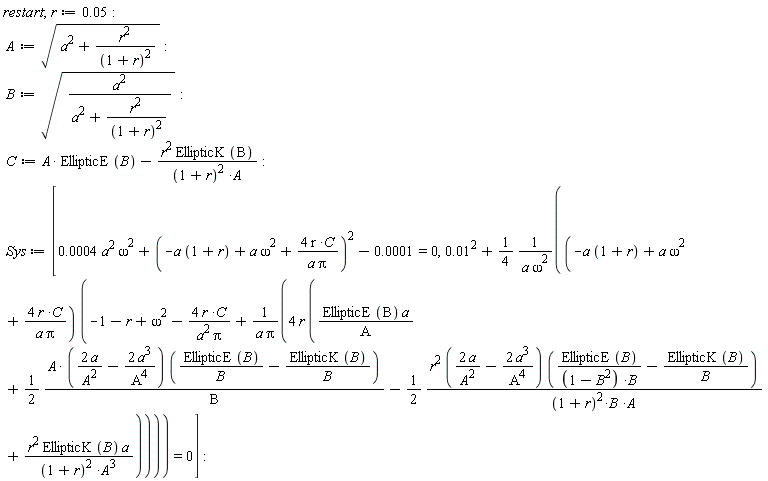

restart; r := 0.5e-1; A := sqrt(a^2+r^2/(1+r)^2); B := sqrt(a^2/(a^2+r^2/(1+r)^2)); C := A*EllipticE(B)-r^2*EllipticK(B)/((1+r)^2*A); Sys := [0.4e-3*a^2*omega^2+(-a*(1+r)+a*omega^2+4*r*C/(a*Pi))^2-0.1e-3 = 0, 0.1e-1^2+(1/4)*(-a*(1+r)+a*omega^2+4*r*C/(a*Pi))*(omega^2-r-1-4*r*C/(a^2*Pi)+4*r*(EllipticE(B)*a/A+(1/2)*A*(2*a/A^2-2*a^3/A^4)*(EllipticE(B)/B-EllipticK(B)/B)/B-(1/2)*r^2*(2*a/A^2-2*a^3/A^4)*(EllipticE(B)/((-B^2+1)*B)-EllipticK(B)/B)/((1+r)^2*B*A)+r^2*EllipticK(B)*a/((1+r)^2*A^3))/(a*Pi))/(a*omega^2) = 0]
``

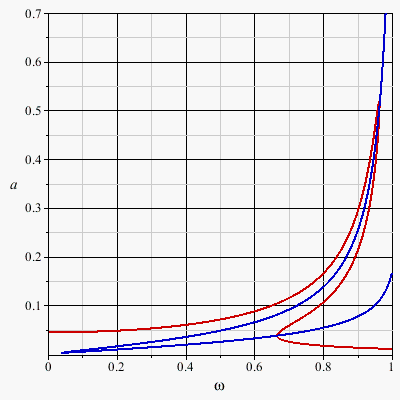

plots[implicitplot](Sys, omega = 0 .. 1, a = 0 .. .7, color = [red, blue], gridrefine = 5);







NULL

fsolve(Sys, {a = 0 .. 0.1, omega = 0.6 .. 0.8});

fsolve(Sys, {a = 0.5 .. 1, omega = 0.8 .. 1});



The other 6 solutions easy to find by all changes of signs of found 2 solutions.

Download Syst.mw

See some other ways to solve the problem here

I've fixed several additional errors and inaccuracies in your procedure. Now it is working properly both in Standard and in Classic worksheets.

Euler := proc(f::procedure, a, b, alpha, n::integer)

local w, h, i, xN, yN;

w := Matrix(2, n+1);  h := (b-a)/n;  i := 1;  xN := a; yN := alpha;

while i <= n+1 do

w[1, i] := evalf(xN); w[2, i] := evalf(yN);

yN := evalf(yN+h*f(xN, yN)); xN := evalf(xN+h);

i := i+1

end do;

interface(rtablesize = infinity);

w;

end proc:



Example of use with a visualization:

Data := Euler((x, y)->exp(x), 0, 2, 1, 10);

A := plot(Data[1], Data[2], color = blue, legend = "Approximate solution"):

B := plot(exp(x), x = 0 .. 2, 0 .. 8, color = red, legend = "Exact solution"):

plots[display](A, B);

Here is a simple example:

with(plots):

A:=listplot3d([[1,2],[3,4],[5,6],[7,8]], color=red):

B:=listplot3d([[1,3],[3,5],[5,7],[7,9]], color=yellow):

C:=listplot3d([[1,4],[3,6],[5,8],[7,10]], color=blue):

display(A,B,C, axes=normal);

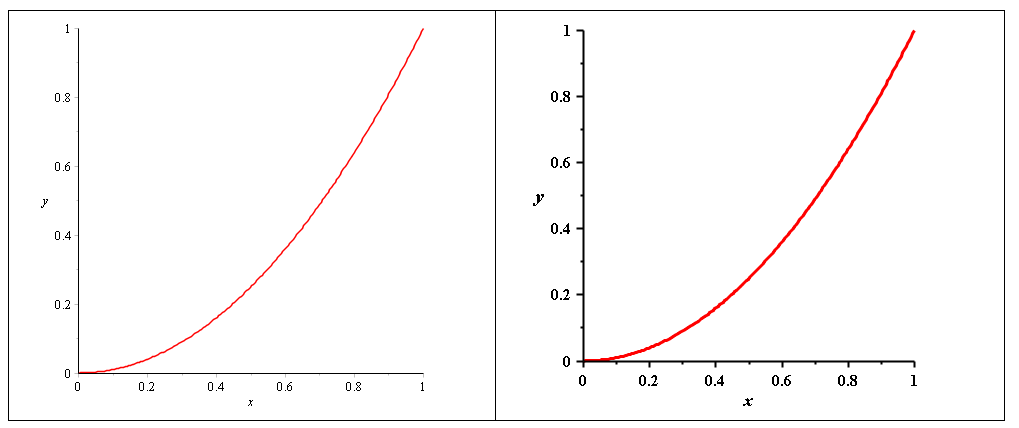

For a better visual perception of the plot the font for tickmarks and labels can also be changed. Compare:

A := plot(x^2, x = 0 .. 1, color = red, labels = [x, y]):

B := plot(x^2, x = 0 .. 1, thickness = 3, color = red, axis = [thickness = 2, tickmarks = [thickness = 2]], axesfont = [times, bold, 13], labelfont = [times, bold, 14], labels = [x, y]):

plots[display](<A | B>, scaling = constrained);









An example:

solve((x-1)*(x+1)*(x^2+1)=0, useassumptions) assuming real, positive;

                                                     1
