These are answers submitted by acer

something...

acer 32400
June 13 2017
1 0

I'm not really content with having to break up the original condition, let alone the speed, but...

kernelopts(version);

   Maple 2017.0, X86 64 LINUX, May 17 2017, Build ID 1231047

sol:=CodeTools:-Usage(
       SolveTools:-SemiAlgebraic(
         { evalc(abs(a+b*I+3-2*I))^2 =(K1)^2,
           evalc(abs(a+b*I-3-8*I))^2 = (K2)^2,
           K1>=0, K2>=0, (K1+K2)^2=(6*sqrt(2))^2},
           {K1,K2} ) ):
memory used=47.74GiB, alloc change=1.12GiB, cpu time=8.79m, real time=5.81m, gc time=4.39m

sollist:=PiecewiseTools:-ToList(sol):
bettersol:=solve(Or(seq(sollist[i,1],i=1..nops(sollist)-1)));

       bettersol := {a = b - 5, 2 <= b, b <= 8}

expr:=eval(evalc(abs(a+b*I)),op(1,bettersol));

                            2    2 1/2
            expr := ((b - 5)  + b )

brng:=`..`(op([2,..],convert(And(op(2..3,bettersol)),RealRange)));

                   brng := 2 .. 8

simplify( [ minimize( expr, b=brng, location) ] ):
op(1,%), op([2,1,1,..],%), eval(op(1,bettersol), op([2,1,1],%));

                1/2
             5 2
            ------, b = 5/2, a = -5/2
              2

simplify( [ maximize( expr, b=brng, location) ] ):
op(1,%), op([2,1,1,..],%), eval(op(1,bettersol), op([2,1,1],%));

                 1/2
               73   , b = 8, a = 3

source in text files...

acer 32400
June 12 2017
2 11

Use procedures as much as possible. Have the procedures be exports of a module. Keep all the procedures' sources (including those for all module members, whether locals or exports) in individual plaintext files, and keep the module's source in another text file. Use the $include directive to reference the module-members' sources from within that of the parent module.

That way all our procedures are defined in separate plaintext files, and they can all be used with full revision control. (Over the last 20 years I have used at least 4 different revision control systems on large Maple projects, with all the source in text files. Mostly unix/linux/cygwin. )

Next, write a short bit of code that uses the Maple `read` command, which pulls in and interprets all the above (e.g. read the master module defn file). This can build everything in a few lines. Optionally a separate short command can savelib the modules to ".mla" Library archive.

If you like you can make regular use of the $define directive at each text file's head, to specify common keywords. I do this to keep all references to other, stock package exports (e.g. LinearAlgebra) terse. You can even put such stuff in "include files".

I keep module defns in text files with extension ".mpl", and module members (local or exported procedures or submodules) in text files with extension ".mm", and other included common stuff in files ".mi".

Of course, all the files then have their own revision histories.

All the above makes my Maple project development scheme match that of my C/C##/etc projects, at least as far as "action code" goes.

You wrote "application". Does that mean an assembly of interactive components? For that kind of application I now generate the full worksheet and its components programatically, using text files there too. So my project's graphical interface bits are revision controlled just like my project's engine bits.

another way...

acer 32400
June 09 2017
1 4

For this example,


>

restart;
>

SS:=eval(S,isolate(((2*a*sin(S)*cos(S)^(2)))/(1-sin(S)^(3))=1,S)):
SS:=simplify(SS) assuming a>1:
>

shi:=eval(SS,a=1):
>

conds:=[S<SS,a>1,S>-Pi/2]:
>

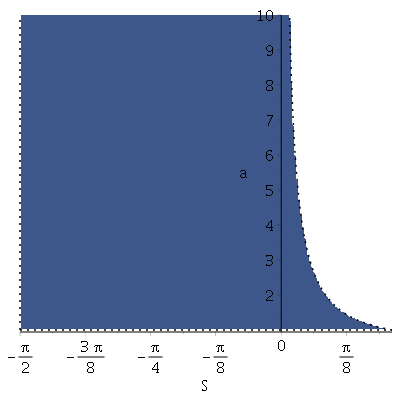

plots:-inequal(conds,S=-Pi/2..shi,a=1..10,xtickmarks=piticks);




>

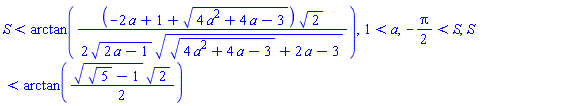

op(conds),S<shi;

S < arctan((1/2)*(-2*a+1+(4*a^2+4*a-3)^(1/2))*2^(1/2)/((2*a-1)^(1/2)*((4*a^2+4*a-3)^(1/2)+2*a-3)^(1/2))), 1 < a, -(1/2)*Pi < S, S < arctan((1/2)*(5^(1/2)-1)^(1/2)*2^(1/2))

trigsol.mw

extrema...

acer 32400
June 08 2017
2 6
z:=a+b*I:

extrema(evalc(abs(z)),evalc({abs(z+1)+4*abs(z-1)=25}),
        {a,b});

                           {22/5, 28/5}

extrema(evalc(abs(z)),evalc({abs(z+1)+4*abs(z-1)=25}),
        {a,b}, 's');

                           {22/5, 28/5}

s;

               {{a = -22/5, b = 0}, {a = 28/5, b = 0}}
On stackexchange you seem to have come up with abs(z)=sqrt(591/17). So what point z (with that modulus) satisfies the additional constraint?

something...

acer 32400
June 07 2017
1 0

There's likely an easier way... (especially to obtain gg from ff).

>

ee:=int((0.0064-0.06851*I)/(0.0402+0.0868*I)
        *exp((-0.9696+0.7611*I)
             /(0.0402+0.0868*I)*(t-tau)),tau=0..t):
>

ff:=simplify(ee);

0.3840233117e-1-0.4051359914e-1*I+(-0.3840233117e-1+0.4051359914e-1*I)*exp((2.96007991+12.54141950*I)*t)

>

gg:=subsindets(
      eval(simplify(
             subsindets(ff,'complex(float)',
                        u->``(csgn(u))
                           *convert(u/csgn(u),polar))),
           ``=(u->u)),
      'specfunc(anything,polar)',
      evalc);

(0.3840233118e-1-0.4051359914e-1*I)*(-exp((2.960079912+12.54141950*I)*t)+1)

>

subsindets(gg,
           'specfunc(anything,exp)',
           u->simplify((Re+Im*I)(u))) assuming t::real;

(0.3840233118e-1-0.4051359914e-1*I)*(-exp(2.960079912*t)*(I*sin(12.5414195*t)+cos(12.5414195*t))+1)

>



Download simpp.mw

focus on a/b rather than position...

acer 32400
June 07 2017
2 2

It's not completely clear to me why (a/b)^p is wanted but not (w__2/w__1)^p.

And it's not clear to me whether the order of the multiplicands in the desired target form will matter.

Also, I might elect for a mechanism that did not rely on the happenstance position of any of the multiplicands, at any intermediate stage.

So below are two more ways to follow up Kitonum's Answer's first stage, which focus deliberately on a/b. For this example it's not necessary to assume y>0 so I wrote out all the other assumptions for that first stage, despite it being longer code. (You might know that you can assume all positive, however.) The second way makes extra effort, just to ensure that the (a/b)^p term appears at left, as the first multiplicand in the final form.

>

restart;
>

x__1 := y^(1/(a+b))/(w__1*b/(a*w__2))^(b/(a+b)):
B := combine(expand(x__1)) assuming a>0, b>0, w__1>0, w__2>0:
>

map(normal,eval(simplify(eval(B,a=Q*b)),Q=a/b)) assuming a>=0, b>=0;

y^(1/(a+b))*w__1^(-b/(a+b))*(a/b)^(b/(a+b))*w__2^(b/(a+b))

>

restart;
>

x__1 := y^(1/(a+b))/(w__1*b/(a*w__2))^(b/(a+b)):
B := combine(expand(x__1)) assuming a>0, b>0, w__1>0, w__2>0:
>

map(`*`@op,[selectremove(type,[op(B)],identical(a,b)^anything)]):
`*`(op(normal(eval(simplify(eval(%,a=Q*b)),Q=a/b)))) assuming a>=0, b>=0;

(a/b)^(b/(a+b))*y^(1/(a+b))*w__1^(-b/(a+b))*w__2^(b/(a+b))

>



Download algform.mw

fnormal...

acer 32400
June 02 2017
2 2

Have you tried mapping the fnormal command onto the Matrix (possibly with extra arguments for it's optional parameters digits and epsilon)?

%s...

acer 32400
June 02 2017
1 1

Since mat1 is that string then have you tried %s rather than %a in the format of this call to fprintf?

fprintf(filename2,"\n    arr = np.array([%a",mat1):

some additional performance improvements...

acer 32400
June 02 2017
0 4
>

restart; Digits := 20; a := 1.689; f := proc (n, Z) options operator, arrow; a*(sum(Z^(2*i)*hypergeom([n-i+2, 1/2], [3/2], cos(-Z^2/a))*(sum(pochhammer(n^2, j)*sin(Pi*Z^2/n), j = 0 .. i))/factorial(i)^2, i = 0 .. 100)) end proc; str := time[real](); simplify(fnormal(f(3, 1)), zero); simplify(fnormal(f(5, 1.1)), zero); simplify(fnormal(f(3, .92)), zero); (time[real]()-str)*seconds

1572.6261454761299422

68711.440007753956843

2648.5507166498596403

3.665*seconds

>

restart; Digits := 20; a := 1.689; f := proc (n, Z) options operator, arrow; a*(Sum(Z^(2*i)*hypergeom([n-i+2, 1/2], [3/2], cos(-Z^2/a))*(Sum(pochhammer(n^2, j)*sin(Pi*Z^2/n), j = 0 .. i))/factorial(i)^2, i = 0 .. 100)) end proc; str := time[real](); simplify(fnormal(evalf(f(3, 1))), zero); simplify(fnormal(evalf(f(5, 1.1))), zero); simplify(fnormal(evalf(f(3, .92))), zero); (time[real]()-str)*seconds

1572.6261454761299423

68711.440007753956845

2648.5507166498596401

.148*seconds



Optimizing the summand allows for a quicker computation.



>

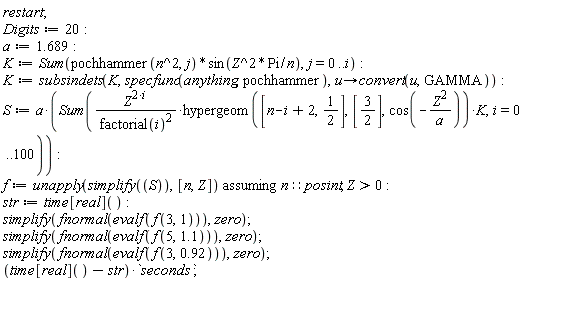

restart; Digits := 20; a := 1.689; K := Sum(pochhammer(n^2, j)*sin(Z^2*Pi/n), j = 0 .. i); K := subsindets(K, specfunc(anything, pochhammer), proc (u) options operator, arrow; convert(u, GAMMA) end proc); S := a*(Sum(Z^(2*i)*hypergeom([n-i+2, 1/2], [3/2], cos(-Z^2/a))*K/factorial(i)^2, i = 0 .. 100)); f := `assuming`([unapply(simplify(S), [n, Z])], [n::posint, Z > 0]); str := time[real](); simplify(fnormal(evalf(f(3, 1))), zero); simplify(fnormal(evalf(f(5, 1.1))), zero); simplify(fnormal(evalf(f(3, .92))), zero); (time[real]()-str)*seconds

1572.6261454761299422

68711.440007753956839

2648.5507166498596402

0.82e-1*seconds



But perhaps you are trying to approximate the infinite sum?

It looks like `evalf/Sum` can figure that out even quicker.

Optimizing the summand helps here too (though not as much of a gain.



>

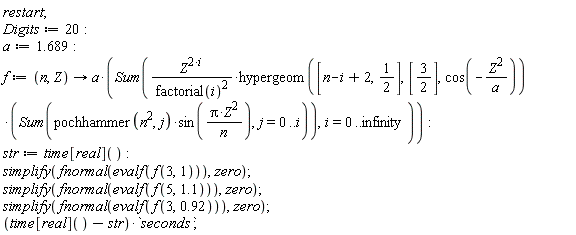

restart; Digits := 20; a := 1.689; f := proc (n, Z) options operator, arrow; a*(Sum(Z^(2*i)*hypergeom([n-i+2, 1/2], [3/2], cos(-Z^2/a))*(Sum(pochhammer(n^2, j)*sin(Pi*Z^2/n), j = 0 .. i))/factorial(i)^2, i = 0 .. infinity)) end proc; str := time[real](); simplify(fnormal(evalf(f(3, 1))), zero); simplify(fnormal(evalf(f(5, 1.1))), zero); simplify(fnormal(evalf(f(3, .92))), zero); (time[real]()-str)*seconds

1572.6261454761299423

68711.440007753956845

2648.5507166498596401

0.75e-1*seconds

>

restart; Digits := 20; a := 1.689; K := Sum(pochhammer(n^2, j)*sin(Z^2*Pi/n), j = 0 .. i); K := subsindets(K, specfunc(anything, pochhammer), proc (u) options operator, arrow; convert(u, GAMMA) end proc); S := a*(Sum(Z^(2*i)*hypergeom([n-i+2, 1/2], [3/2], cos(-Z^2/a))*K/factorial(i)^2, i = 0 .. infinity)); f := `assuming`([unapply(simplify(S), [n, Z])], [n::posint, Z > 0]); str := time[real](); simplify(fnormal(evalf(f(3, 1))), zero); simplify(fnormal(evalf(f(5, 1.1))), zero); simplify(fnormal(evalf(f(3, .92))), zero); (time[real]()-str)*seconds

1572.6261454761299423

68711.440007753956841

2648.5507166498596403

0.62e-1*seconds

>




Download eval-evalf_1.mw

dot...

acer 32400
May 31 2017
1 1

What do you see displayed if you replace that * (asterisk) with a . (period)?

something...

acer 32400
May 31 2017
1 1

You might be able to use this kind of approach.

>

restart

first define input x and output y as vector/list

>

x := [x1, x2, x3, x4, x5];

[x1, x2, x3, x4, x5]

[y1, y2, y3]

define output values

>

y1 := exp(-x1/T)*x2+log(x3)*x4+x5^2;

exp(-x1/T)*x2+ln(x3)*x4+x5^2

sin(x1)*x5+x3*x4*x5

c1*x1+c2*x2^2+c3*x3^3*x5+x1*x2*x4*exp(-x1/T)

calculate Jacobian and Hessian matrices

>

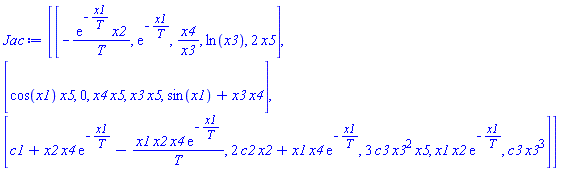

Jac := VectorCalculus:-Jacobian(y, x)

Jac := Matrix(3, 5, {(1, 1) = -exp(-x1/T)*x2/T, (1, 2) = exp(-x1/T), (1, 3) = x4/x3, (1, 4) = ln(x3), (1, 5) = 2*x5, (2, 1) = cos(x1)*x5, (2, 2) = 0, (2, 3) = x4*x5, (2, 4) = x3*x5, (2, 5) = sin(x1)+x3*x4, (3, 1) = c1+x2*x4*exp(-x1/T)-x1*x2*x4*exp(-x1/T)/T, (3, 2) = 2*c2*x2+x1*x4*exp(-x1/T), (3, 3) = 3*c3*x3^2*x5, (3, 4) = x1*x2*exp(-x1/T), (3, 5) = c3*x3^3})

>

H1 := VectorCalculus:-Hessian(y1, x); H2 := VectorCalculus:-Hessian(y2, x); H3 := VectorCalculus:-Hessian(y3, x)

H1 := Matrix(5, 5, {(1, 1) = exp(-x1/T)*x2/T^2, (1, 2) = -exp(-x1/T)/T, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = -exp(-x1/T)/T, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = -x4/x3^2, (3, 4) = 1/x3, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 1/x3, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 2})

H2 := Matrix(5, 5, {(1, 1) = -sin(x1)*x5, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = cos(x1), (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = x5, (3, 5) = x4, (4, 1) = 0, (4, 2) = 0, (4, 3) = x5, (4, 4) = 0, (4, 5) = x3, (5, 1) = cos(x1), (5, 2) = 0, (5, 3) = x4, (5, 4) = x3, (5, 5) = 0})

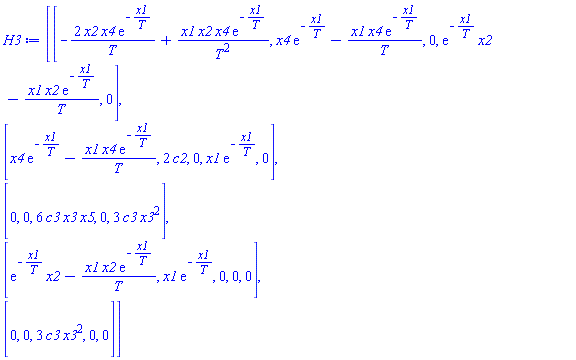

H3 := Matrix(5, 5, {(1, 1) = -2*x2*x4*exp(-x1/T)/T+x1*x2*x4*exp(-x1/T)/T^2, (1, 2) = x4*exp(-x1/T)-x1*x4*exp(-x1/T)/T, (1, 3) = 0, (1, 4) = exp(-x1/T)*x2-x1*x2*exp(-x1/T)/T, (1, 5) = 0, (2, 1) = x4*exp(-x1/T)-x1*x4*exp(-x1/T)/T, (2, 2) = 2*c2, (2, 3) = 0, (2, 4) = x1*exp(-x1/T), (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 6*c3*x3*x5, (3, 4) = 0, (3, 5) = 3*c3*x3^2, (4, 1) = exp(-x1/T)*x2-x1*x2*exp(-x1/T)/T, (4, 2) = x1*exp(-x1/T), (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 3*c3*x3^2, (5, 4) = 0, (5, 5) = 0})

>

CodeGeneration:-C(Jac, optimize);

t1 = 0.1e1 / T;

t2 = x1 * t1;
t3 = exp(-t2);
t4 = (int) (x3 * x3);
cg[0][0] = -t1 * t3 * x2;
cg[0][1] = t3;
cg[0][2] = 0.1e1 / x3 * (double) x4;
cg[0][3] = log(x3);
cg[0][4] = 2 * x5;
cg[1][0] = cos(x1) * (double) x5;
cg[1][1] = 0;
cg[1][2] = x4 * x5;
cg[1][3] = x3 * (double) x5;
cg[1][4] = sin(x1) + x3 * (double) x4;
cg[2][0] = -x2 * (double) x4 * t3 * (-0.1e1 + t2) + c1;
cg[2][1] = x1 * (double) x4 * t3 + 0.2e1 * c2 * x2;
cg[2][2] = 3 * c3 * t4 * x5;
cg[2][3] = x1 * x2 * t3;
cg[2][4] = (double) c3 * x3 * (double) t4;

>

CodeGeneration:-C(codegen[makeproc]([
                     seq(seq('Jac'[i,j]=Jac[i,j],j=1..5),i=1..3)
                     , 'NULL'],[]), optimize);

#include <math.h>

void cg0 (void)
{
  double t1;
  double t12;
  double t20;
  double t3;
  double t7;
  double t8;
  t1 = 0.1e1 / T;
  t3 = exp(-x1 * t1);
  Jac[0][0] = -t1 * t3 * x2;
  Jac[0][1] = t3;
  Jac[0][2] = 0.1e1 / x3 * x4;
  Jac[0][3] = log(x3);
  Jac[0][4] = (double) (2 * x5);
  t7 = cos(x1);
  Jac[1][0] = t7 * (double) x5;
  Jac[1][1] = 0.0e0;
  Jac[1][2] = x4 * (double) x5;
  Jac[1][3] = x3 * (double) x5;
  t8 = sin(x1);
  Jac[1][4] = x3 * x4 + t8;
  t12 = x1 * x2;
  Jac[2][0] = -t1 * t12 * x4 * Jac[0][1] + x2 * x4 * Jac[0][1] + c1;
  Jac[2][1] = x1 * x4 * Jac[0][1] + 0.2e1 * c2 * x2;
  t20 = x3 * x3;
  Jac[2][2] = 0.3e1 * c3 * t20 * (double) x5;
  Jac[2][3] = t12 * Jac[0][1];
  Jac[2][4] = c3 * t20 * x3;
  ;
}

>

CodeGeneration:-C(codegen[makeproc]([
                     seq(seq('Jac'[i,j]=Jac[i,j],j=1..5),i=1..3)
                     , seq(seq('H1'[i,j]=H1[i,j],j=1..5),i=1..5)
                     , seq(seq('H2'[i,j]=H2[i,j],j=1..5),i=1..5)
                     , seq(seq('H3'[i,j]=H3[i,j],j=1..5),i=1..5)
                     ],[]));

#include <math.h>

double cg1 (void)
{
  Jac[0][0] = -0.1e1 / T * exp(-x1 / T) * x2;
  Jac[0][1] = exp(-x1 / T);
  Jac[0][2] = 0.1e1 / x3 * x4;
  Jac[0][3] = log(x3);
  Jac[0][4] = (double) (2 * x5);
  Jac[1][0] = cos(x1) * (double) x5;
  Jac[1][1] = 0.0e0;
  Jac[1][2] = x4 * (double) x5;
  Jac[1][3] = x3 * (double) x5;
  Jac[1][4] = sin(x1) + x3 * x4;
  Jac[2][0] = c1 + x2 * x4 * exp(-x1 / T) - x1 * x2 * x4 / T * exp(-x1 / T);
  Jac[2][1] = 0.2e1 * c2 * x2 + x1 * x4 * exp(-x1 / T);
  Jac[2][2] = 0.3e1 * c3 * x3 * x3 * (double) x5;
  Jac[2][3] = x1 * x2 * exp(-x1 / T);
  Jac[2][4] = c3 * pow(x3, 0.3e1);
  H1[0][0] = pow(T, -0.2e1) * exp(-x1 / T) * x2;
  H1[0][1] = -0.1e1 / T * exp(-x1 / T);
  H1[0][2] = 0.0e0;
  H1[0][3] = 0.0e0;
  H1[0][4] = 0.0e0;
  H1[1][0] = -0.1e1 / T * exp(-x1 / T);
  H1[1][1] = 0.0e0;
  H1[1][2] = 0.0e0;
  H1[1][3] = 0.0e0;
  H1[1][4] = 0.0e0;
  H1[2][0] = 0.0e0;
  H1[2][1] = 0.0e0;
  H1[2][2] = -pow(x3, -0.2e1) * x4;
  H1[2][3] = 0.1e1 / x3;
  H1[2][4] = 0.0e0;
  H1[3][0] = 0.0e0;
  H1[3][1] = 0.0e0;
  H1[3][2] = 0.1e1 / x3;
  H1[3][3] = 0.0e0;
  H1[3][4] = 0.0e0;
  H1[4][0] = 0.0e0;
  H1[4][1] = 0.0e0;
  H1[4][2] = 0.0e0;
  H1[4][3] = 0.0e0;
  H1[4][4] = 0.2e1;
  H2[0][0] = -sin(x1) * (double) x5;
  H2[0][1] = 0.0e0;
  H2[0][2] = 0.0e0;
  H2[0][3] = 0.0e0;
  H2[0][4] = cos(x1);
  H2[1][0] = 0.0e0;
  H2[1][1] = 0.0e0;
  H2[1][2] = 0.0e0;
  H2[1][3] = 0.0e0;
  H2[1][4] = 0.0e0;
  H2[2][0] = 0.0e0;
  H2[2][1] = 0.0e0;
  H2[2][2] = 0.0e0;
  H2[2][3] = (double) x5;
  H2[2][4] = x4;
  H2[3][0] = 0.0e0;
  H2[3][1] = 0.0e0;
  H2[3][2] = (double) x5;
  H2[3][3] = 0.0e0;
  H2[3][4] = x3;
  H2[4][0] = cos(x1);
  H2[4][1] = 0.0e0;
  H2[4][2] = x4;
  H2[4][3] = x3;
  H2[4][4] = 0.0e0;
  H3[0][0] = -0.2e1 * x2 * x4 / T * exp(-x1 / T) + x1 * x2 * x4 * pow(T, -0.2e1) * exp(-x1 / T);
  H3[0][1] = x4 * exp(-x1 / T) - x1 * x4 / T * exp(-x1 / T);
  H3[0][2] = 0.0e0;
  H3[0][3] = exp(-x1 / T) * x2 - x1 * x2 / T * exp(-x1 / T);
  H3[0][4] = 0.0e0;
  H3[1][0] = x4 * exp(-x1 / T) - x1 * x4 / T * exp(-x1 / T);
  H3[1][1] = 0.2e1 * c2;
  H3[1][2] = 0.0e0;
  H3[1][3] = x1 * exp(-x1 / T);
  H3[1][4] = 0.0e0;
  H3[2][0] = 0.0e0;
  H3[2][1] = 0.0e0;
  H3[2][2] = 0.6e1 * c3 * x3 * (double) x5;
  H3[2][3] = 0.0e0;
  H3[2][4] = 0.3e1 * c3 * x3 * x3;
  H3[3][0] = exp(-x1 / T) * x2 - x1 * x2 / T * exp(-x1 / T);
  H3[3][1] = x1 * exp(-x1 / T);
  H3[3][2] = 0.0e0;
  H3[3][3] = 0.0e0;
  H3[3][4] = 0.0e0;
  H3[4][0] = 0.0e0;
  H3[4][1] = 0.0e0;
  H3[4][2] = 0.3e1 * c3 * x3 * x3;
  H3[4][3] = 0.0e0;
  H3[4][4] = 0.0e0;
  return(H3[4][4]);
}

>

CodeGeneration:-C(codegen[makeproc]([
                     seq(seq('Jac'[i,j]=Jac[i,j],j=1..5),i=1..3)
                     , seq(seq('H1'[i,j]=H1[i,j],j=1..5),i=1..5)
                     , seq(seq('H2'[i,j]=H2[i,j],j=1..5),i=1..5)
                     , seq(seq('H3'[i,j]=H3[i,j],j=1..5),i=1..5)
                     ,'NULL'],[]), optimize);

#include <math.h>

void cg2 (void)
{
  double t1;
  double t10;
  double t12;
  double t18;
  double t20;
  double t21;
  double t24;
  double t25;
  double t27;
  double t3;
  double t6;
  double t7;
  double t8;
  t1 = 0.1e1 / T;
  t3 = exp(-x1 * t1);
  Jac[0][0] = -t1 * t3 * x2;
  Jac[0][1] = t3;
  t6 = 0.1e1 / x3;
  Jac[0][2] = t6 * x4;
  Jac[0][3] = log(x3);
  Jac[0][4] = (double) (2 * x5);
  t7 = cos(x1);
  Jac[1][0] = t7 * (double) x5;
  Jac[1][1] = 0.0e0;
  Jac[1][2] = x4 * (double) x5;
  Jac[1][3] = x3 * (double) x5;
  t8 = sin(x1);
  Jac[1][4] = x3 * x4 + t8;
  t10 = x2 * x4;
  t12 = x1 * x2;
  Jac[2][0] = -t1 * t12 * x4 * Jac[0][1] + t10 * Jac[0][1] + c1;
  t18 = x1 * x4;
  Jac[2][1] = 0.2e1 * c2 * x2 + t18 * Jac[0][1];
  t20 = x3 * x3;
  t21 = c3 * t20;
  Jac[2][2] = 0.3e1 * t21 * (double) x5;
  Jac[2][3] = t12 * Jac[0][1];
  Jac[2][4] = c3 * t20 * x3;
  t24 = T * T;
  t25 = 0.1e1 / t24;
  H1[0][0] = t25 * Jac[0][1] * x2;
  t27 = t1 * Jac[0][1];
  H1[0][1] = -t27;
  H1[0][2] = 0.0e0;
  H1[0][3] = 0.0e0;
  H1[0][4] = 0.0e0;
  H1[1][0] = H1[0][1];
  H1[1][1] = 0.0e0;
  H1[1][2] = 0.0e0;
  H1[1][3] = 0.0e0;
  H1[1][4] = 0.0e0;
  H1[2][0] = 0.0e0;
  H1[2][1] = 0.0e0;
  H1[2][2] = -0.1e1 / t20 * x4;
  H1[2][3] = t6;
  H1[2][4] = 0.0e0;
  H1[3][0] = 0.0e0;
  H1[3][1] = 0.0e0;
  H1[3][2] = H1[2][3];
  H1[3][3] = 0.0e0;
  H1[3][4] = 0.0e0;
  H1[4][0] = 0.0e0;
  H1[4][1] = 0.0e0;
  H1[4][2] = 0.0e0;
  H1[4][3] = 0.0e0;
  H1[4][4] = 0.2e1;
  H2[0][0] = -t8 * (double) x5;
  H2[0][1] = 0.0e0;
  H2[0][2] = 0.0e0;
  H2[0][3] = 0.0e0;
  H2[0][4] = t7;
  H2[1][0] = 0.0e0;
  H2[1][1] = 0.0e0;
  H2[1][2] = 0.0e0;
  H2[1][3] = 0.0e0;
  H2[1][4] = 0.0e0;
  H2[2][0] = 0.0e0;
  H2[2][1] = 0.0e0;
  H2[2][2] = 0.0e0;
  H2[2][3] = (double) x5;
  H2[2][4] = x4;
  H2[3][0] = 0.0e0;
  H2[3][1] = 0.0e0;
  H2[3][2] = (double) x5;
  H2[3][3] = 0.0e0;
  H2[3][4] = x3;
  H2[4][0] = H2[0][4];
  H2[4][1] = 0.0e0;
  H2[4][2] = x4;
  H2[4][3] = x3;
  H2[4][4] = 0.0e0;
  H3[0][0] = t12 * t25 * x4 * Jac[0][1] - 0.2e1 * t10 * t27;
  H3[0][1] = -t18 * t27 + x4 * Jac[0][1];
  H3[0][2] = 0.0e0;
  H3[0][3] = -t12 * t27 + Jac[0][1] * x2;
  H3[0][4] = 0.0e0;
  H3[1][0] = H3[0][1];
  H3[1][1] = 0.2e1 * c2;
  H3[1][2] = 0.0e0;
  H3[1][3] = x1 * Jac[0][1];
  H3[1][4] = 0.0e0;
  H3[2][0] = 0.0e0;
  H3[2][1] = 0.0e0;
  H3[2][2] = 0.6e1 * c3 * x3 * (double) x5;
  H3[2][3] = 0.0e0;
  H3[2][4] = 0.3e1 * t21;
  H3[3][0] = H3[0][3];
  H3[3][1] = H3[1][3];
  H3[3][2] = 0.0e0;
  H3[3][3] = 0.0e0;
  H3[3][4] = 0.0e0;
  H3[4][0] = 0.0e0;
  H3[4][1] = 0.0e0;
  H3[4][2] = H3[2][4];
  H3[4][3] = 0.0e0;
  H3[4][4] = 0.0e0;
  ;
}

>



Download Jacobian_Hessian_CG_1.mw

printing...

acer 32400
May 30 2017
0 7

This seems harder that I would have guessed at first, for a few esoteric reasons.

I'm supposing that what you want is a specific order of the derivatives in the pretty-printing of the differential equation, and that you don't actually want the expression's internal representation to be altered necessarily. (The latter would affect how the op command pulls out the terms.)

While I suppose that your D^4 in your Question is just a convenient shorthand (to illustrate your point quickly), it's not completely clear to me whether you mean a call to diff or Diff or D.

So here is a procedure that can print differential equations in a sorted manner.

>

restart;
>

`print/pre`:=proc(expr::{scalar,scalar=scalar})
  local T,TT;
  uses PDEtools;
  if type(expr,`=`) then return map(procname,expr); end if;
  if type(expr,`+`) then
    T:=sort([op(expr)],(a,b)->difforder(a)>difforder(b));
    if interface(':-typesetting')=':-standard' then
      TT:=subs([:-diff=`tools/gensym`(:-diff),
                :-Diff=`tools/gensym`(:-Diff),
                :-D=`tools/gensym`(:-D)],T);
      `+`(op(TT));
    else
      `+`(op(subs([:-diff=:-%diff,
                   :-Diff=:-%Diff,
                   :-D=`tools/gensym`(:-D)],T)));
    end if
  else
    expr;
  end if;
end proc:
>

ee1:=diff(f(x),x)+diff(f(x),$(x,4))+diff(f(x),$(x,6))+7=f(t):
ee2:=Diff(f(x),x)+Diff(f(x),$(x,4))+Diff(f(x),$(x,6))+7=f(t):
ee3:=D(f)(x)+(D@@4)(f)(x)+(D@@6)(f)(x)+7=f(t):
ff1:=diff(x(t),t)+diff(x(t),$(t,4))+diff(x(t),$(t,6))+7=f(t):
>

interface(typesetting=standard):
>

ee1;

diff(f(x), x)+diff(diff(diff(diff(f(x), x), x), x), x)+diff(diff(diff(diff(diff(diff(f(x), x), x), x), x), x), x)+7 = f(t)

>

pre(ee1);

pre(diff(f(x), x)+diff(diff(diff(diff(f(x), x), x), x), x)+diff(diff(diff(diff(diff(diff(f(x), x), x), x), x), x), x)+7 = f(t))

>

ee2;

Diff(f(x), x)+Diff(f(x), x, x, x, x)+Diff(f(x), x, x, x, x, x, x)+7 = f(t)

>

pre(ee2);

pre(Diff(f(x), x)+Diff(f(x), x, x, x, x)+Diff(f(x), x, x, x, x, x, x)+7 = f(t))

>

ee3;

(D(f))(x)+((D@@4)(f))(x)+((D@@6)(f))(x)+7 = f(t)

>

pre(ee3);

pre((D(f))(x)+((D@@4)(f))(x)+((D@@6)(f))(x)+7 = f(t))

>

interface(typesetting=extended):
>

ee1;

diff(f(x), x)+diff(diff(diff(diff(f(x), x), x), x), x)+diff(diff(diff(diff(diff(diff(f(x), x), x), x), x), x), x)+7 = f(t)

>

pre(ee1);

pre(diff(f(x), x)+diff(diff(diff(diff(f(x), x), x), x), x)+diff(diff(diff(diff(diff(diff(f(x), x), x), x), x), x), x)+7 = f(t))

>

ff1;

diff(x(t), t)+diff(diff(diff(diff(x(t), t), t), t), t)+diff(diff(diff(diff(diff(diff(x(t), t), t), t), t), t), t)+7 = f(t)

>

pre(ff1);

pre(diff(x(t), t)+diff(diff(diff(diff(x(t), t), t), t), t)+diff(diff(diff(diff(diff(diff(x(t), t), t), t), t), t), t)+7 = f(t))

>

ee2;

Diff(f(x), x)+Diff(f(x), x, x, x, x)+Diff(f(x), x, x, x, x, x, x)+7 = f(t)

>

pre(ee2);

pre(Diff(f(x), x)+Diff(f(x), x, x, x, x)+Diff(f(x), x, x, x, x, x, x)+7 = f(t))

>

ee3;

(D(f))(x)+((D@@4)(f))(x)+((D@@6)(f))(x)+7 = f(t)

>

pre(ee3);

pre((D(f))(x)+((D@@4)(f))(x)+((D@@6)(f))(x)+7 = f(t))

>



Download sortdiff.mw

The above also seems to work in Maple 2017.0, with the default typesetting level of extended, with the prime and dot derivative notations for diff toggled on. Eg, after say,

Typesetting:-Settings(typesetprime=true):
Typesetting:-Settings(typesetdot=true):

something...

acer 32400
May 29 2017
2 0

We've seen requests along these lines before. Here's one idea (from here).

>

restart;
>

twostep:=proc(expr::uneval)
  uses Typesetting;
  (Typeset(expr) =
   subsindets(expr,
     And(name,
         satisfies(t->type(eval(t),
           {constant,
            '`*`'({constant,
                   'specfunc'(anything,
                              Units:-Unit)})}))),
     z->Typeset(EV(z))))
   = combine(eval(expr),':-units');
end proc:
>

v:=2.256*10^8*Unit(m/s);

225600000.0*Units:-Unit(('m')/('s'))

>

f:=4.74*10^14*Unit(1/s);

0.4740000000e15*Units:-Unit(1/('s'))

>

lambda:=twostep(v/f);

(Typesetting:-mfrac(Typesetting:-mi("v"), Typesetting:-mi("f")) = Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mn("2.256000000"), Typesetting:-mo("&InvisibleTimes;"), Typesetting:-msup(Typesetting:-mn("10"), Typesetting:-mn("8"), Typesetting:-msemantics = "^")), Typesetting:-mo("&InvisibleTimes;"), Typesetting:-mfenced(Typesetting:-mfrac(Typesetting:-mi("m"), Typesetting:-mi("s")), open = "&lobrk;", close = "&robrk;", Typesetting:-msemantics = "Unit"))/Typesetting:-mrow(Typesetting:-mrow(Typesetting:-mn("4.740000000"), Typesetting:-mo("&InvisibleTimes;"), Typesetting:-msup(Typesetting:-mn("10"), Typesetting:-mn("14"), Typesetting:-msemantics = "^")), Typesetting:-mo("&InvisibleTimes;"), Typesetting:-mfenced(Typesetting:-mfrac(Typesetting:-mn("1"), Typesetting:-mi("s")), open = "&lobrk;", close = "&robrk;", Typesetting:-msemantics = "Unit"))) = 0.4759493671e-6*Units:-Unit('m')

>




Download 2step.mw

normal...

acer 32400
May 27 2017
0 1

For your examples, how about just,

not ( evalb( normal( expr ) = expr ) )

And of course you could replace that `normal` with something stronger if necessary. Like `simplify `.

typesetting=extended in Maple 2016...

acer 32400
May 26 2017
0 6

In Maple 2016 (or earlier, mostly) a number of special functions are typeset tersely like that, if interface(typesetting) has been set to extended. But, while that setting can be set by the user, that does not cover all the pre-formed Help pages.

For example, using Maple 2016,

>

interface(typesetting=standard):
>

LerchPhi(3,4,5);

LerchPhi(3, 4, 5)

>

interface(typesetting=extended):
>

LerchPhi(3,4,5);

LerchPhi(3, 4, 5)

>



LerchPhi_2016.mw

In Maple 2017.0, such terse (and obscure, IMHO) pretty-printing of special functions has been turned off, even with the new default of interface(typesetting) as extended . It can, however, be reinstated even on a function-by-function basis, using commands from the Typesetting package. For example,

>

interface(typesetting=standard):
>

LerchPhi(3,4,5);

LerchPhi(3, 4, 5)

>

interface(typesetting=extended):
>

LerchPhi(3,4,5);

LerchPhi(3, 4, 5)

>

Typesetting:-QueryTypesetRule("LerchPhi");

{"LerchPhi" = false}

>

Typesetting:-EnableTypesetRule("LerchPhi"):
>

LerchPhi(3,4,5);

LerchPhi(3, 4, 5)

>

Typesetting:-DisableTypesetRule("LerchPhi"):
>

LerchPhi(3,4,5);

LerchPhi(3, 4, 5)

>



LerchPhi_2017.mw

First 196 197 198 199 200 201 202 Last Page 198 of 336
