Download cotrule.mw

Now, did you also prefer to have cos(N*h)+cot(N*q+A)*sin(N*h) instead of sin(N*h+N*q+A)/sin(N*q+A) ?

acer

This is a very common mistake. The formal parameters A, omega, and k of your original procedure SW are not the same as the (in this example, global) A, omega, and k in the expressions W1, W2, and W.

Here are two ways to make it work.

restart;
with(plots):

W1:=A*cos(omega*t-k*x):
W2:=A*cos(omega*t+k*x):
W:=W1+W2:

SW:=(A,omega,k)->animate(plot,[eval([W1,W2,W],[:-A=A,:-omega=omega,:-k=k]),
                               x=-4..4,color=[red,green,blue],
                               scaling=constrained],t=0..5,frames=10):

display(SW(2,2*Pi,5),insequence);

AltSW:=unapply('animate'(plot,[[W1,W2,W],
                               x=-4..4,color=[red,green,blue],
                               scaling=constrained],t=0..5,frames=10),
               [A,omega,k]):

display(AltSW(2,2*Pi,5),insequence);

acer

If you have your heart set on using a RealRange, then you can test the condition using the is command. Note that if...then will utilize evalb in your original, which is insufficient.

evalb( 0.5 in RealRange(0,1) );

                                                0.5  in  RealRange(0, 1)

is( 0.5 in RealRange(0,1) );

                                                          true

If you don't need to mess about with Open() end-points then you might find it simpler to do it as follows,

0.5>=0 and 0.5<=1;

                                                          true

If the RealRange is being passed to you as a result of another computation you could also try it like so. Again, this doesn't account yet for the Open endpoints cases -- if you have such then using is might be simpler,

r := RealRange(0,1):  # given elsewhere...

0.5>=op(1,r) and 0.5<=op(2,r);

                                                           true

acer

Download megawatts.mw

acer

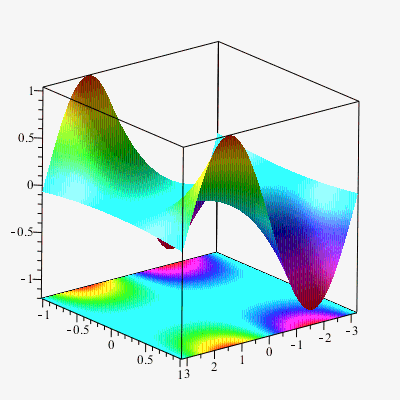

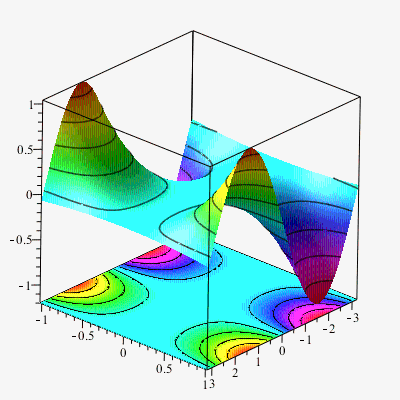

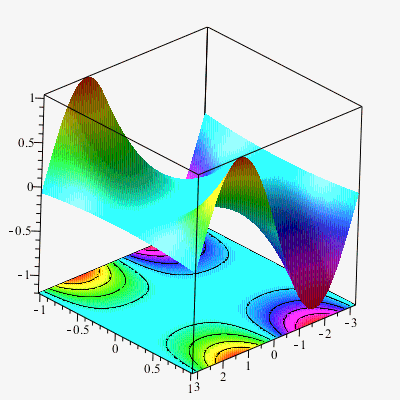

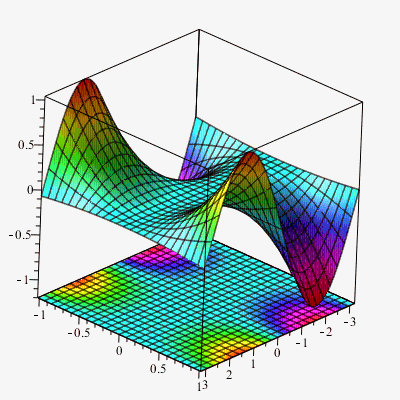

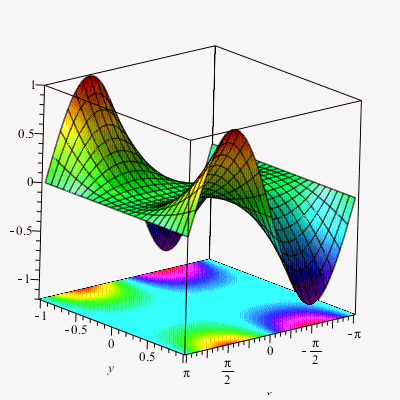

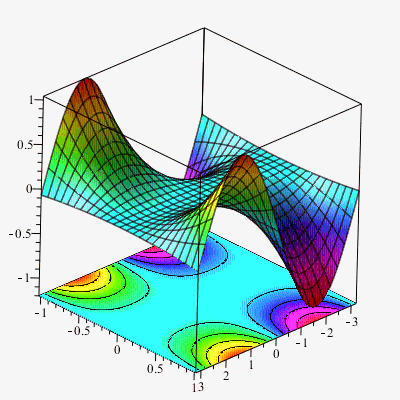

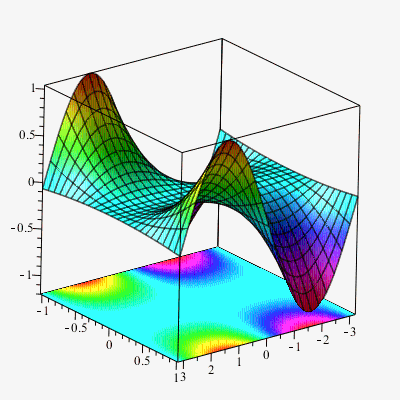

I chose the height for the 2D part to be minz+(minz-maxz)*0.1 using the min and max of the 3D part. It has not meaning, in terms of the expression `ee` that is plotted as the surface. Change that if you wish.

Download surfcont.mw

acer

Inside your procedure which calls Color(), try either replacing that with ColorTools:-Color() , or add the line uses ColorTools; at the start of the procedure, or put that use...end use inside your procedure.

Does your procedure color_my_rgb call Color?

restart;

f:=proc(nm)
  local c;
  c:=Color(nm);
  c[];
end proc:

# This does not work.
use ColorTools in
  f("Orange");
end use;
                              Color("Orange")[]

restart;

f:=proc(nm)
  local c;
  use ColorTools in
    c:=Color(nm);
  end use;
  c[];
end proc:

f("Orange");
                         1.00000000, 0.64705882, 0.

restart;

f:=proc(nm)
  local c;
    c:=ColorTools:-Color(nm);
  c[];
end proc:

f("Orange");
                         1.00000000, 0.64705882, 0.

restart;

f:=proc(nm)
  uses ColorTools;
  local c;
    c:=Color(nm);
  c[];
end proc:

f("Orange");
                         1.00000000, 0.64705882, 0.

acer

The ImportMatrix command should be able to handle this.

acer

There are several ways to do this. Here are two.

restart:

f:=RandomTools:-Generate(list(integer(range=-30..50), 5), makeproc):

seq( f(), i=1..4 );

    [14, -25, 28, 13, 7], [38, -4, -14, 3, -13], [21, 25, 12, -6, 29],

    [-17, 19, 16, -23, 15]

restart:

f:=rand(-30..50):

seq( [seq(f(),j=1..5)], i=1..4 );

    [14, -25, 28, 13, 7], [38, -4, -14, 3, -13], [21, 25, 12, -6, 29],

    [-17, 19, 16, -23, 15]

I expect that there are several faster ways.

I expect that you could also use Statistics:-Sample and a discrete distribution.

Here's another one,

restart:

f:=(n,k)->convert(LinearAlgebra:-RandomMatrix(k,n,generator=-30..50),
                  listlist)[]:

f(5,4);

    [38, 43, 9, 23, 36], [-4, -18, -5, -9, -12], [-22, -24, -5, 14, 21],

    [28, 21, 46, -11, 15]

Do you need it very, very fast? Do you need to create a large number of these lists? Do you need to create them all up front, before you work on them?

acer

Change that last line to this,

plots:-display(p1,p2);

The display comamnd you're trying to use is part of the plots package. Either reference it as plots:-display or first load the package using the command with(plots): and then call it as just display.

acer

Perhaps I don't understand what your trying to accomplish. But why not use exact values for x?

for x from -1 by 0.5 to 1 do print(x, evalf(0^(x^2), 20)) end do;

                                    -1, 0.

                                   -0.5, 0.

                             0., Float(undefined)

                                    0.5, 0.

                                    1.0, 0.

for x from -1 by 1/2 to 1 do print(x, evalf(0^(x^2), 20)) end do;

                                    -1, 0.

                                   -1/2, 0.

                                     0, 1.

                                    1/2, 0.

                                     1, 0.

for x from -1 by 1/2 to 1 do print(x, evalf(0.0^(x^2), 20)) end do;

                                    -1, 0.

                                   -1/2, 0.

                                     0, 1.

                                    1/2, 0.

                                     1, 0.

And of course there are lots of ways that you can make the behavior conditional upon the value of x. Examples include,

for x from -1 by 0.5 to 1 do
  print(x,`if`(x=0,1.0,evalf(0^(x^2), 20)));
end do;

                                    -1, 0.

                                   -0.5, 0.

                                    0., 1.0

                                    0.5, 0.

                                    1.0, 0.

for x from -1 by 0.5 to 1 do
  print(x,evalf(0^(`if`(x=0,0,x^2)), 20));
end do;

                                    -1, 0.

                                   -0.5, 0.

                                    0., 1.

                                    0.5, 0.

                                    1.0, 0.

acer

Change the square brackets in the assignment to Eqns (inside plotsol1s) to round brackets.

Round brackets are expression delimiters. Square brackets create a list.

acer

restart:

eq1 :=  x^2-y^2 = a*z^2:
eq2 := x-y = a*z:

normal(eq1/eq2);

                                   x + y = z

acer

See this help-page on Maple initialization files.

That file should be a plaintext file (but without .txt as filename extension). It should contain Maple commands in 1D Maple Notation (plaintext).

In this case it should contain a line which redefines the Maple variable libname. For example.

libname:= `c:/maple12/advisor`, libname:

and of course edit that to be the place you actually install it.

acer

Your line of code,

   SetVariables = proc( vars:: list, time )

should be

   SetVariables := proc( vars:: list, time )

so that it is an assignment statement.

Also, the line

   for i from 1 to var N do

in the body of the SetVariables procedure is not valid syntax. It might have been intended as,

   for i from 1 to varN do

acer

restart;

`&as`:=proc(a::uneval) eval(`assuming`([a],[args[2..-1]])); end:

sqrt(x^2) &as (x>0);

                               x

sqrt(x^2) &as (x<0);

                               -x

(sqrt(x^2)*sqrt(y^2)) &as (x>0, y>0);

                              x y

(sqrt(x^2)*sqrt(y^2)) &as (x<0, y>0);

                              -x y

(sqrt(x^2)*sqrt(y^2)) &as (x>0 and y>0);

                              x y

(sqrt(x^2)*sqrt(y^2)) &as (x>0 and y<0);

                              -x y

acer
