Did you read the Help page for that command?

If so, then which specific parts of did you not understand?

Could you provide your complete example?

@OliverB It's always a good idea to inform us up front if you're using an older version, thanks. I've now adjusted the Product field of this Question.

In Maple 2021 the contourplot command didn't recognize an appliable module (as returned by Interpolate, say) as something it could accept for its operator form calling sequence.

You could try either of these, instead,

plots:-contourplot((x,y)->f(x,y),
                   min(data[..,1])..max(data[..,1]),
                   min(data[..,2])..max(data[..,2]),
                   contours=[seq(100 .. 1000, 100)]);

plots:-contourplot(f(x,y),
                   x=min(data[..,1])..max(data[..,1]),
                   y=min(data[..,2])..max(data[..,2]),
                   contours=[seq(100 .. 1000, 100)]);

interp_cont_data_2021.mw

If that still doesn't work then please upload and attach either as .mw file, or a zip-file of the .maple workbook. Your .maple file attachment is not accessible (a problem of this site, I think).

@MaPal93 The idea was that you could use the instance that contains the placeholder names. You could apply coeff to that.

collect_complete_ac_coeffissue_ac.mw

(friendly ps. I'm reminded of this old jest.)

If you have followup queries for this problem then please add that here instead of spawning wholly separate new Question threads.

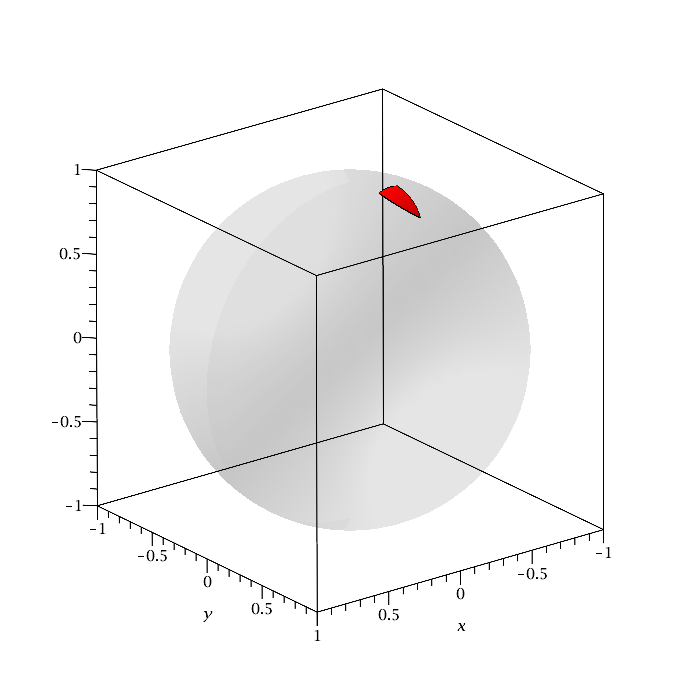

The filled implicitplot red region in the plots above is composed of many POLYGONS plotting structures, and errant gaps can appear when transforming onto the sphere. Those can appear as open chinks between the polygon edges, especially apparent upon manual rotation.

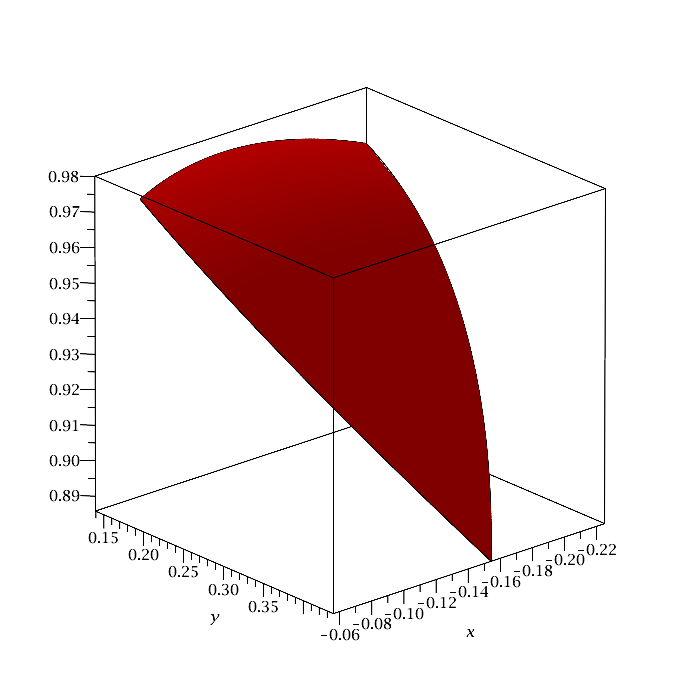

Using plot3d directly, instead of implicitplot with filledregions, a smoother surface without gaps can be obtained.

I include the transformed black outline, still made with implicitplot. Remove if desired.

Download Projection_accc.mw

Lastly, I'll point out that I deliberately did not resort to using implicitplot3d, which (even with option style=surface) produces a clunky surface as a collection of 3D polygons. The result doesn't appear smooth unless the grid resolution is so high that the GUI gets very sluggish when rendering/rotating it.

@MaPal93 Your attached worksheet's last collect call works for me.

Download collect_M_ac.mw

I notice that your attached worksheet did not begin with a restart. I wonder whether there were some earlier computations performed before it was saved.

I don't see how what you've written explains what you mean by the complicated term with which you were trying to "collect" in the line that assigned to `Omega__*`.

The link that Samir gave here is no longer working, and while the wayback machine has a cached version of it, its link to the zip file seems to be not archived by them.

@Vortex Is there a reason why you cannot show us the complete set of commands that you've used, and the version?

@lcz There are various ways to handle your followup query.

with(StringTools):
S := "124e34e243e45e56e76f34e45e23ea12e98e34e43":

parse~([seq(Select(IsDigit,S))]);

   [1, 2, 4, 3, 4, 2, 4, 3, 4, 5, 5, 6, 7, 6, 3, 4,
    4, 5, 2, 3, 1, 2, 9, 8, 3, 4, 4, 3]

parse~([seq(RegSubs("[A-z]"="",S))]);

   [1, 2, 4, 3, 4, 2, 4, 3, 4, 5, 5, 6, 7, 6, 3, 4,
    4, 5, 2, 3, 1, 2, 9, 8, 3, 4, 4, 3]

We don't know whether you'd always need your original operation as well as the first (in which case it might be more efficient to simply split an earlier result). Eg.

with(StringTools):
S := "124e34e243e45e56e76f34e45e23ea12e98e34e43":
T := Split(S,cat(seq("A".."z"))):

parse~(T);

     [124, 34, 243, 45, 56, 76, 34, 45, 23, 12, 98, 34, 43]

parse~(seq~(T));

   [1, 2, 4, 3, 4, 2, 4, 3, 4, 5, 5, 6, 7, 6, 3, 4,
    4, 5, 2, 3, 1, 2, 9, 8, 3, 4, 4, 3]

We don't know whether your actual examples might be very large, or what over efficiency you'd need.

You also haven't stated your general case (ie. what non-numeric characters might be present).

Your question is sparse in important details.

Where does Sx come from?

If Sx comes from dsolve(...,numeric) then you might be able to use that command's events facilities. (For example, you might make it halt when the derivative falls under a target value, has a discontinuous drop, etc.)

Why not provide the details?

@Carl Love No problem, I wasn't complaining. I was on my own phone and couldn't remember or check.

ps. There's another form for elementwise -- a prefix form I suppose it could be called, with an indexed name. Eg, for the OP's list of Vectors, fasteners,

    `~`[`~`[convert]](fasteners, unit_free)

Now I'm wondering how that nested `~`[`~`[convert]] might be programmatically folded together for a specified depth (here, two) -- even if in an ugly manner using `?[]` .

@Carl Love Did I forget to mention that one? (I thought that I had...)

Please upload and attach either a file with the data or a worksheet that can generate it.

@Pi Where else but the name c[i] do w or t_pe depend upon i?

What aspect do you think would change, by varying the value of i?
