I am a retired professor of chemistry at the University of Victoria, BC, Canada. My research areas are electrochemistry and surface science. I have been a user of Maple since about 1990.

MaplePrimes Activity


These are replies submitted by dharr

@Nadeem_Malik Perhaps our responses got out of sequence, but you still haven't assigned the result of Infinitesimals to a variable and then used it for InfinitesimalGenerator. See worksheet Wsheet3.mw in my earlier response.

@Nadeem_Malik You didn't assign the infinitesimal output to the variable infies before using it. Here there is only one output so you don't need indexing. But this gives a new technical error, which I don't understand because I don't know much about Lie Algebra.

Wsheet3.mw

@Nadeem_Malik use variables or ctrl-L



restart;

with(PDEtools):

declare(u(x,t));
U:=diff_table(u(x,t));

u(x, t)*`will now be displayed as`*u



table( [(  ) = u(x, t) ] )

(1)

PDE := U[x,x]-U[t];

diff(diff(u(x, t), x), x)-(diff(u(x, t), t))

(2)

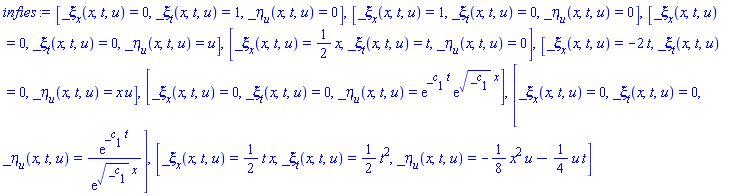

infies:=Infinitesimals(PDE);  #put the sequence of answers in a variable

[_xi[x](x, t, u) = 0, _xi[t](x, t, u) = 1, _eta[u](x, t, u) = 0], [_xi[x](x, t, u) = 1, _xi[t](x, t, u) = 0, _eta[u](x, t, u) = 0], [_xi[x](x, t, u) = 0, _xi[t](x, t, u) = 0, _eta[u](x, t, u) = u], [_xi[x](x, t, u) = (1/2)*x, _xi[t](x, t, u) = t, _eta[u](x, t, u) = 0], [_xi[x](x, t, u) = -2*t, _xi[t](x, t, u) = 0, _eta[u](x, t, u) = x*u], [_xi[x](x, t, u) = 0, _xi[t](x, t, u) = 0, _eta[u](x, t, u) = exp(_c[1]*t)*exp(_c[1]^(1/2)*x)], [_xi[x](x, t, u) = 0, _xi[t](x, t, u) = 0, _eta[u](x, t, u) = exp(_c[1]*t)/exp(_c[1]^(1/2)*x)], [_xi[x](x, t, u) = (1/2)*t*x, _xi[t](x, t, u) = (1/2)*t^2, _eta[u](x, t, u) = -(1/8)*x^2*u-(1/4)*u*t]

(3)

infies[-1];  #the last one

[_xi[x](x, t, u) = (1/2)*t*x, _xi[t](x, t, u) = (1/2)*t^2, _eta[u](x, t, u) = -(1/8)*x^2*u-(1/4)*u*t]

(4)

InfinitesimalGenerator(infies[-1],u(x,t)); # use it

proc (f) options operator, arrow; (1/2)*t*x*(diff(f, x))+(1/2)*t^2*(diff(f, t))+(-(1/8)*x^2*u-(1/4)*u*t)*(diff(f, u)) end proc

(5)

InfinitesimalGenerator((3)[-1],u(x,t)); # or use ctrl-L to get the equation number

proc (f) options operator, arrow; (1/2)*t*x*(diff(f, x))+(1/2)*t^2*(diff(f, t))+(-(1/8)*x^2*u-(1/4)*u*t)*(diff(f, u)) end proc

(6)






Download Infinitesimals2.mw



@ahmadtalaei  These cannot be converted to LegendreP because the first two arguments are not in the form [-a,a+1] for any a, as required for LegendreP. So these hypergeometric functions come from a differential equation that is not equivalent to the LegnedreP one.

restart

sol[1] := hypergeom([3/4+(1/4)*sqrt(1+4*_c[1]), 3/4-(1/4)*sqrt(1+4*_c[1])], [1/2], cos(phi)^2)+hypergeom([5/4+(1/4)*sqrt(1+4*_c[1]), 5/4-(1/4)*sqrt(1+4*_c[1])], [3/2], cos(phi)^2)

hypergeom([3/4+(1/4)*(1+4*_c[1])^(1/2), 3/4-(1/4)*(1+4*_c[1])^(1/2)], [1/2], cos(phi)^2)+hypergeom([5/4+(1/4)*(1+4*_c[1])^(1/2), 5/4-(1/4)*(1+4*_c[1])^(1/2)], [3/2], cos(phi)^2)

X1 := op(op(1, sol[1]))[1]; Equate(%, [-a, a+1]); solve(%, allsolutions)

[3/4+(1/4)*(1+4*_c[1])^(1/2), 3/4-(1/4)*(1+4*_c[1])^(1/2)]

[3/4+(1/4)*(1+4*_c[1])^(1/2) = -a, 3/4-(1/4)*(1+4*_c[1])^(1/2) = a+1]

X2 := op(op(2, sol[1]))[1]; Equate(%, [-a, a+1]); solve(%, allsolutions)

[5/4+(1/4)*(1+4*_c[1])^(1/2), 5/4-(1/4)*(1+4*_c[1])^(1/2)]

[5/4+(1/4)*(1+4*_c[1])^(1/2) = -a, 5/4-(1/4)*(1+4*_c[1])^(1/2) = a+1]

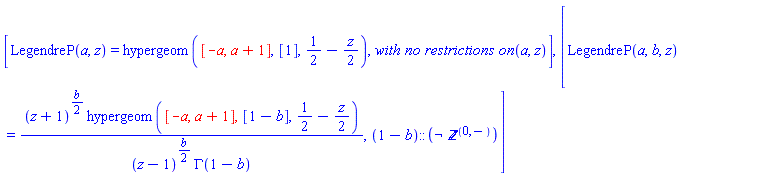

FunctionAdvisor(definition, LegendreP)

[LegendreP(a, z) = hypergeom([-a, a+1], [1], 1/2-(1/2)*z), MathematicalFunctions:-`with no restrictions on `(a, z)], [LegendreP(a, b, z) = (z+1)^((1/2)*b)*hypergeom([-a, a+1], [1-b], 1/2-(1/2)*z)/((z-1)^((1/2)*b)*GAMMA(1-b)), (1-b)::(Not(nonposint))]






Download nosolutions.mw

@ahmadtalaei  Your last expression can be converted back to LegendreP in version 2017.3 using convert(expr,LegendreP)

convert-Legendre-v2.mw

You need to upload your worksheet using the green up-arrow. At the moment, I can't reproduce the solution of the differential equation shown in the link, and odeadvisor doesn't suggest Legendre. So maybe there is a typing error, which is why the others are suggesting you definitely need to be clear about what expression you want converted. In principle, convert(expr,StandardFunctions) with assumptions on n should do what you want.

You have numpoints 100000 for the plots, which is probably why I had upload issues. This is only for making more points in the plots to make it look nice, so surely you don't need more that about 200, and probably the default 49 is OK.

Use the green up arrow to load your worksheet

@Preben Alsholm If you open a new worksheet, create code and then run, currentdir() still points to mapledir. But if you save the worksheet and then reopen it, it will point to the same directory as the worksheet, worksheetdir. I guess I have the habit of keeping/creating files where the worksheet is.

Of course the OP can replace the whole filename with whatever they want.

If you upload your worksheet with the green up arrow, then someone can take a look at it without clicking on a strange website.

Note that D has special meaning in Maple, use "local D;" to redefine it as just a variable or (better) use a different name.

But on the face of it the solution looks OK - what makes you think it is wrong?

please upload your worksheet using the fat green up arrow, then someone can check it.

@zia I haven't heard about that method but it sounds like that is outside the scope of a Maple question unless you have started a Maple worksheet you need assistance with.

@acer  Fair enough. It just seemed to me that the effort to work out many terms of the sequence exceeded the work to figure out the (mixed) recurrence, which somehow was a more logical way to approach the problem.

@Ramakrishnan The 621 points is "pixels" in the documentation for DocumentTools,Tabulate - see also DocumentTools,Table. If you make a table that extends over a page, then page break none seems to just kill the rest of the table at the end of the page, allow within cells allows half a cell to be on one page and half on the next, as you see and don't want, and allow between rows (in 2017.3) finishes a row nicely and then starts the next row on the next page, which is probably what you want.

In general , .pdf output, not just with Tables is never quite what you want, and I haven't spent too much time tryng to control it.

@mmcdara  I also played around a bit and got frustrated before I found the help page. I didn't think too closely about the example other than the fact that you have to prevent full evaluation in both Explore and odeplot, and still be able to change the parameter in the solver.
