Reviewing the matter (v.321)...

ecterrab 14540
March 05 2019
1 0

I understand that the issues you mentioned regarding differentiating tetrads, and also the spacetime metric, with respect to tetrads are all resolved in the Maplesoft Physics Updates v.321 or higher.  This worksheet is a review of that matter.



>

with(Physics)



Load a non-flat metric to be sure that no automatic simplifications related to flat spacetimes interfere with the results, or to check then using TensorArray.

>

g_[tol]

_______________________________________________________



`Systems of spacetime coordinates are:`*{X = (r, theta, phi, t)}



`Default differentiation variables for d_, D_ and dAlembertian are:`*{X = (r, theta, phi, t)}



`The Tolman metric in coordinates `*[r, theta, phi, t]



`Parameters: `[R(t, r), E(r)]



_______________________________________________________

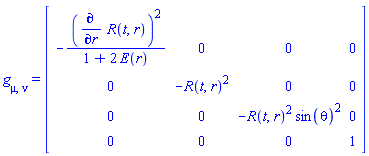

Physics:-g_[mu, nu] = Matrix(%id = 18446744078247743230)

 (1)
>

CompactDisplay(%)

` E`(r)*`will now be displayed as`*E



` R`(t, r)*`will now be displayed as`*R

 (2)

Load Tetrads

>

with(Tetrads)

_______________________________________________________



`Setting `*lowercaselatin_ah*` letters to represent `*tetrad*` indices`



((`Defined as tetrad tensors `(`see ?Physics,tetrads`)*`, `*`𝔢`[a, mu]*`, `)*eta[a, b]*`, `*gamma[a, b, c]*`, `)*lambda[a, b, c]



((`Defined as spacetime tensors representing the NP null vectors of the tetrad formalism `(`see ?Physics,tetrads`)*`: `(`see ?Physics,tetrads`)*`, `*l[mu]*`, `)*n[mu]*`, `*m[mu]*`, `)*conjugate(m[mu])



_______________________________________________________

 (3)

The idea is to depart from these two definitions and reproduce the results differentiating with respect to a tetrad "`𝔢`[a]^(nu)" that you showed in private emails in LaTeX.
The two departure expressions are

>

e_[definition]

Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-e_[b, `~mu`] = Physics:-Tetrads:-eta_[a, b]

 (4)
>

g_[alpha, beta] = e_[`~b`, alpha]*e_[`~b`, beta]

Physics:-g_[alpha, beta] = Physics:-Tetrads:-e_[b, alpha]*Physics:-Tetrads:-e_[`~b`, beta]

 (5)

The first thing to note is that eta[a, b] is a constant, it is the Minkowski metric in a local system of references (orthonormal or null frame), so

>

"(`%diff` = diff)(eta_[b,c], e_[a,~nu])"

%diff(Physics:-Tetrads:-eta_[b, c], Physics:-Tetrads:-e_[a, `~nu`]) = 0

 (6)

Regarding derivatives tetrads with respect to tetrads, the relevant thing is whether their indices, the first one tetradic the other spacetime, are equally covariant or equally contravariant, that is, whether we have "`𝔢`[a]^(mu)" and "`𝔢`[c]^(nu)" , or " `𝔢`[mu]^(a)"and "`𝔢`[c]^(nu)", and then there are the mixed cases `𝔢`[b, alpha]and "`𝔢`[a]^(nu)", or  "`𝔢`[]^(b,alpha)" and "`𝔢`[a]^(nu)".

The following is a derivation of results step by step, using inert functions, following mostly your LaTeX but using Maple. First the case where the indices match, this result is naturally correct

>

"(`%diff` = diff)(e_[b,~alpha], e_[a,~nu])"

%diff(Physics:-Tetrads:-e_[b, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = Physics:-Tetrads:-eta_[b, `~a`]*Physics:-g_[nu, `~alpha`]

 (7)

Next there is the case where the indices mismatch, that you reported. After v.315 we have

>

"(`%diff` = diff)(e_[~b,alpha], e_[a,~nu])"

%diff(Physics:-Tetrads:-e_[`~b`, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[`~b`, nu]

 (8)

The verification of the above can be done with a computer using different ways of computing the same thing. The following is as close as I can do to the steps shown in your LaTeX.



What we want to compute is

>

"`%diff`(Physics:-Tetrads:-e_[a,mu]*Physics:-Tetrads:-e_[b,~mu] = Physics:-Tetrads:-eta_[a,b],e_[c,~nu])"

%diff(Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-e_[b, `~mu`] = Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, `~nu`])

 (9)

Since we are using inert functions, we can proceed with their properties but at the end not executing the operation

>

expand(%diff(Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-e_[b, `~mu`] = Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, `~nu`]))

%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, `~nu`])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, `~nu`]) = %diff(Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, `~nu`])

 (10)

The second term on the left-hand side (operand [1, 2]) is the natural case (7), and the right-hand side actually is (6), so

>

subsop(2 = value(op(2, %diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, `~nu`])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, `~nu`]) = %diff(Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, `~nu`]))), [1, 2] = value(op([1, 2], %diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, `~nu`])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, `~nu`]) = %diff(Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, `~nu`]))), %diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, `~nu`])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, `~nu`]) = %diff(Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, `~nu`]))

%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, `~nu`])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-eta_[b, `~c`]*Physics:-g_[nu, `~mu`] = 0

 (11)

To remove the factor "`𝔢`[b]^(mu)" multiply by another tetrad such that we get a constant "g_[nu]^(mu)" object that can go inside the inert derivation operation and contract indices with the derivand

>

(%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, `~nu`])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-eta_[b, `~c`]*Physics[g_][nu, `~mu`] = 0)*e_[`~b`, rho]

(%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, `~nu`])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-eta_[b, `~c`]*Physics:-g_[nu, `~mu`])*Physics:-Tetrads:-e_[`~b`, rho] = 0

 (12)
>

Simplify((%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, `~nu`])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-eta_[b, `~c`]*Physics[g_][nu, `~mu`])*Physics:-Tetrads:-e_[`~b`, rho] = 0)

Physics:-Tetrads:-e_[a, nu]*Physics:-Tetrads:-e_[`~c`, rho]+%diff(Physics:-Tetrads:-e_[a, rho], Physics:-Tetrads:-e_[c, `~nu`]) = 0

 (13)

and this is already the result we were looking for, (8).



Regarding the two mixed cases, %diff(e_[b, alpha], e_[a, `~nu`]) and %diff(e_[`~b`, `~alpha`], e_[a, `~nu`]), we have

>

"`%diff`(e_[b,alpha],eta_[a,~nu])"

%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`])

 (14)

The idea is to transform the derivand into one of the previous cases, for instance

>

e_[b, alpha] = eta_[b, c]*e_[`~c`, alpha]

Physics:-Tetrads:-e_[b, alpha] = Physics:-Tetrads:-eta_[b, c]*Physics:-Tetrads:-e_[`~c`, alpha]

 (15)
>

Check(%)

`The repeated and free indices in the given expression check ok.`

 (16)

Substituting and expanding

>

%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = subs(Physics:-Tetrads:-e_[b, alpha] = Physics:-Tetrads:-eta_[b, c]*Physics:-Tetrads:-e_[`~c`, alpha], %diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]))

%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[b, c]*Physics:-Tetrads:-e_[`~c`, alpha], Physics:-Tetrads:-e_[a, `~nu`])

 (17)
>

expand(%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[b, c]*Physics:-Tetrads:-e_[`~c`, alpha], Physics:-Tetrads:-e_[a, `~nu`]))

%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[b, c], Physics:-Tetrads:-e_[a, `~nu`])*Physics:-Tetrads:-e_[`~c`, alpha]+Physics:-Tetrads:-eta_[b, c]*%diff(Physics:-Tetrads:-e_[`~c`, alpha], Physics:-Tetrads:-e_[a, `~nu`])

 (18)

The two derivatives on the right-hand side are of the forms (6) and (8), and these are already implemented in v.315, so we have

>

lhs(%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[b, c], Physics:-Tetrads:-e_[a, `~nu`])*Physics:-Tetrads:-e_[`~c`, alpha]+Physics:-Tetrads:-eta_[b, c]*%diff(Physics:-Tetrads:-e_[`~c`, alpha], Physics:-Tetrads:-e_[a, `~nu`])) = value(rhs(%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[b, c], Physics:-Tetrads:-e_[a, `~nu`])*Physics:-Tetrads:-e_[`~c`, alpha]+Physics:-Tetrads:-eta_[b, c]*%diff(Physics:-Tetrads:-e_[`~c`, alpha], Physics:-Tetrads:-e_[a, `~nu`])))

%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = -Physics:-Tetrads:-eta_[b, c]*Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[`~c`, nu]

 (19)
>

Simplify(%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = -Physics:-Tetrads:-eta_[b, c]*Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[`~c`, nu])

%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[b, nu]

 (20)

And that is the result for the first mixed case, also implemented, so here is the code computing it without guiding it

>

value(%diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`]) = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[b, nu])

-Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[b, nu] = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[b, nu]

 (21)

For the other mixed case,

>

%diff(e_[`~b`, `~alpha`], e_[a, `~nu`])

%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`])

 (22)

In this case, the substitution mapping into one of the previous cases (6), (8) or (14) is

>

"e_[~b,~alpha] = eta_[~b,~c] eta_[c,~alpha]"

Physics:-Tetrads:-e_[`~b`, `~alpha`] = Physics:-Tetrads:-eta_[`~b`, `~c`]*Physics:-Tetrads:-e_[c, `~alpha`]

 (23)
>

Check(%)

`The repeated and free indices in the given expression check ok.`

 (24)

Substitute and expand

>

%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = subs(Physics:-Tetrads:-e_[`~b`, `~alpha`] = Physics:-Tetrads:-eta_[`~b`, `~c`]*Physics:-Tetrads:-e_[c, `~alpha`], %diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]))

%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[`~b`, `~c`]*Physics:-Tetrads:-e_[c, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`])

 (25)
>

expand(%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[`~b`, `~c`]*Physics:-Tetrads:-e_[c, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]))

%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[`~b`, `~c`], Physics:-Tetrads:-e_[a, `~nu`])*Physics:-Tetrads:-e_[c, `~alpha`]+Physics:-Tetrads:-eta_[`~b`, `~c`]*%diff(Physics:-Tetrads:-e_[c, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`])

 (26)

and from (6) and (7),

>

lhs(%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[`~b`, `~c`], Physics:-Tetrads:-e_[a, `~nu`])*Physics:-Tetrads:-e_[c, `~alpha`]+Physics:-Tetrads:-eta_[`~b`, `~c`]*%diff(Physics:-Tetrads:-e_[c, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`])) = value(rhs(%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-eta_[`~b`, `~c`], Physics:-Tetrads:-e_[a, `~nu`])*Physics:-Tetrads:-e_[c, `~alpha`]+Physics:-Tetrads:-eta_[`~b`, `~c`]*%diff(Physics:-Tetrads:-e_[c, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`])))

%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = Physics:-Tetrads:-eta_[`~b`, `~c`]*Physics:-Tetrads:-eta_[c, `~a`]*Physics:-g_[nu, `~alpha`]

 (27)
>

Simplify(%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = Physics:-Tetrads:-eta_[`~b`, `~c`]*Physics:-Tetrads:-eta_[c, `~a`]*Physics[g_][nu, `~alpha`])

%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = Physics:-g_[nu, `~alpha`]*Physics:-Tetrads:-eta_[`~a`, `~b`]

 (28)

This second mixed case is also implemented

>

value(%diff(Physics:-Tetrads:-e_[`~b`, `~alpha`], Physics:-Tetrads:-e_[a, `~nu`]) = Physics[g_][nu, `~alpha`]*Physics:-Tetrads:-eta_[`~a`, `~b`])

Physics:-g_[nu, `~alpha`]*Physics:-Tetrads:-eta_[`~a`, `~b`] = Physics:-g_[nu, `~alpha`]*Physics:-Tetrads:-eta_[`~a`, `~b`]

 (29)

Finally, regarding differentiating the spacetime metric with respect to a tetrad, implemented in v.321 of the Physics Updates, you have

>

Physics[g_][alpha, beta] = Physics:-Tetrads:-e_[b, alpha]*Physics:-Tetrads:-e_[`~b`, beta]

Physics:-g_[alpha, beta] = Physics:-Tetrads:-e_[b, alpha]*Physics:-Tetrads:-e_[`~b`, beta]

 (30)
>

"`%diff`(Physics:-g_[alpha,beta] = Physics:-Tetrads:-e_[b,alpha]*Physics:-Tetrads:-e_[~b,beta], e_[a,~nu])"

%diff(Physics:-g_[alpha, beta] = Physics:-Tetrads:-e_[b, alpha]*Physics:-Tetrads:-e_[`~b`, beta], Physics:-Tetrads:-e_[a, `~nu`])

 (31)
>

expand(%diff(Physics[g_][alpha, beta] = Physics:-Tetrads:-e_[b, alpha]*Physics:-Tetrads:-e_[`~b`, beta], Physics:-Tetrads:-e_[a, `~nu`]))

%diff(Physics:-g_[alpha, beta], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`])*Physics:-Tetrads:-e_[`~b`, beta]+Physics:-Tetrads:-e_[b, alpha]*%diff(Physics:-Tetrads:-e_[`~b`, beta], Physics:-Tetrads:-e_[a, `~nu`])

 (32)

From (20) and (8), the value of the right-hand side is

>

lhs(%diff(Physics[g_][alpha, beta], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`])*Physics:-Tetrads:-e_[`~b`, beta]+Physics:-Tetrads:-e_[b, alpha]*%diff(Physics:-Tetrads:-e_[`~b`, beta], Physics:-Tetrads:-e_[a, `~nu`])) = value(rhs(%diff(Physics[g_][alpha, beta], Physics:-Tetrads:-e_[a, `~nu`]) = %diff(Physics:-Tetrads:-e_[b, alpha], Physics:-Tetrads:-e_[a, `~nu`])*Physics:-Tetrads:-e_[`~b`, beta]+Physics:-Tetrads:-e_[b, alpha]*%diff(Physics:-Tetrads:-e_[`~b`, beta], Physics:-Tetrads:-e_[a, `~nu`])))

%diff(Physics:-g_[alpha, beta], Physics:-Tetrads:-e_[a, `~nu`]) = -Physics:-Tetrads:-e_[b, alpha]*Physics:-Tetrads:-e_[`~a`, beta]*Physics:-Tetrads:-e_[`~b`, nu]-Physics:-Tetrads:-e_[b, nu]*Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[`~b`, beta]

 (33)
>

Simplify(%diff(Physics[g_][alpha, beta], Physics:-Tetrads:-e_[a, `~nu`]) = -Physics:-Tetrads:-e_[b, alpha]*Physics:-Tetrads:-e_[`~a`, beta]*Physics:-Tetrads:-e_[`~b`, nu]-Physics:-Tetrads:-e_[b, nu]*Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[`~b`, beta])

%diff(Physics:-g_[alpha, beta], Physics:-Tetrads:-e_[a, `~nu`]) = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-g_[beta, nu]-Physics:-Tetrads:-e_[`~a`, beta]*Physics:-g_[alpha, nu]

 (34)

Activating the left-hand side whe have the code doing this computation without being guided

>

value(%diff(Physics[g_][alpha, beta], Physics:-Tetrads:-e_[a, `~nu`]) = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics[g_][beta, nu]-Physics:-Tetrads:-e_[`~a`, beta]*Physics[g_][alpha, nu])

-Physics:-Tetrads:-e_[b, alpha]*Physics:-Tetrads:-e_[`~a`, beta]*Physics:-Tetrads:-e_[`~b`, nu]-Physics:-Tetrads:-e_[b, nu]*Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[`~b`, beta] = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-g_[beta, nu]-Physics:-Tetrads:-e_[`~a`, beta]*Physics:-g_[alpha, nu]

 (35)
>

Simplify(-Physics:-Tetrads:-e_[b, alpha]*Physics:-Tetrads:-e_[`~a`, beta]*Physics:-Tetrads:-e_[`~b`, nu]-Physics:-Tetrads:-e_[b, nu]*Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-Tetrads:-e_[`~b`, beta] = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics[g_][beta, nu]-Physics:-Tetrads:-e_[`~a`, beta]*Physics[g_][alpha, nu])

-Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-g_[beta, nu]-Physics:-Tetrads:-e_[`~a`, beta]*Physics:-g_[alpha, nu] = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics:-g_[beta, nu]-Physics:-Tetrads:-e_[`~a`, beta]*Physics:-g_[alpha, nu]

 (36)
>

evalb(-Physics:-Tetrads:-e_[`~a`, alpha]*Physics[g_][beta, nu]-Physics:-Tetrads:-e_[`~a`, beta]*Physics[g_][alpha, nu] = -Physics:-Tetrads:-e_[`~a`, alpha]*Physics[g_][beta, nu]-Physics:-Tetrads:-e_[`~a`, beta]*Physics[g_][alpha, nu])

true

 (37)

Finally, derivatives with respect to the all-covariant `𝔢`[a, mu] or all contravaariant "`𝔢`[]^(a,mu)"can be derived in the same way, and are also implemented. Here I show only one case. Departing from

>

e_[definition]

Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-e_[b, `~mu`] = Physics:-Tetrads:-eta_[a, b]

 (38)
>

%diff(e_[definition], e_[c, nu])

%diff(Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-e_[b, `~mu`] = Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, nu])

 (39)
>

expand(%diff(Physics:-Tetrads:-e_[a, mu]*Physics:-Tetrads:-e_[b, `~mu`] = Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, nu]))

%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, nu])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, nu]) = %diff(Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, nu])

 (40)

From (6)

>

lhs(%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, nu])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, nu]) = %diff(Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, nu])) = value(rhs(%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, nu])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, nu]) = %diff(Physics:-Tetrads:-eta_[a, b], Physics:-Tetrads:-e_[c, nu])))

%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, nu])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, nu]) = 0

 (41)

The second derivative is in natural form, so

>

%diff(e_[a, mu], e_[c, nu]); % = value(%)

%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, nu]) = Physics:-Tetrads:-eta_[a, `~c`]*Physics:-g_[mu, `~nu`]

 (42)
>

subs(%diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, nu]) = Physics:-Tetrads:-eta_[a, `~c`]*Physics[g_][mu, `~nu`], %diff(Physics:-Tetrads:-e_[a, mu], Physics:-Tetrads:-e_[c, nu])*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, nu]) = 0)

Physics:-Tetrads:-eta_[a, `~c`]*Physics:-g_[mu, `~nu`]*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, nu]) = 0

 (43)

Transform the factor `𝔢`[a, mu] multiplying the derivative into a "g_[mu]^(rho)" by multiplying the whole expression by "`𝔢`[]^(a,rho)"

>

"e_[~a,~rho]* Physics:-Tetrads:-eta_[a,~c]*Physics:-g_[mu,~nu]*Physics:-Tetrads:-e_[b,~mu]+Physics:-Tetrads:-e_[a,mu]*%diff(Physics:-Tetrads:-e_[b,~mu],Physics:-Tetrads:-e_[c,nu]) = 0"

Physics:-Tetrads:-e_[`~a`, `~rho`]*(Physics:-Tetrads:-eta_[a, `~c`]*Physics:-g_[mu, `~nu`]*Physics:-Tetrads:-e_[b, `~mu`]+Physics:-Tetrads:-e_[a, mu]*%diff(Physics:-Tetrads:-e_[b, `~mu`], Physics:-Tetrads:-e_[c, nu])) = 0

 (44)
>

Simplify(%)

Physics:-Tetrads:-e_[`~c`, `~rho`]*Physics:-Tetrads:-e_[b, `~nu`]+%diff(Physics:-Tetrads:-e_[b, `~rho`], Physics:-Tetrads:-e_[c, nu]) = 0

 (45)

and this is already the result we were looking for, also implemented

>

value(Physics:-Tetrads:-e_[`~c`, `~rho`]*Physics:-Tetrads:-e_[b, `~nu`]+%diff(Physics:-Tetrads:-e_[b, `~rho`], Physics:-Tetrads:-e_[c, nu]) = 0)

0 = 0

 (46)






Download differentiating_tetrads_with_respect_to_tetrads.mw



Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

restart...

ecterrab 14540
March 04 2019
1 1

So, according to your update of your post, there is no problem. Still, on your original post, when you thought there was a problem, I read "...

version installed in this
    computer: the "Physics Updates" is not  installed.

So something was wrong there. Maybe you installed the updated but didn't restart?

Regarding Tom Leslie comment on the 'ugly' aspect: use simplify and the results are not ugly. Assuming sin(lambda*x) > 0 also helps.

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Fixed in v.316...

ecterrab 14540
March 02 2019
5 0

Hi

This one is fixed and the fix distributed within the Physics Updates v.316 or higher. It took some days, Juergen, we are finishing a new release, there is little time for everything else. Regarding the other issue you mentioned to me a few days ago, in private email together with this one now fixed, the relationship between the metric and the tetrad, or for the case between one tensor in GR and another one, is not automatically taken into account when differentiating - that is in the plans for the updates of this year.

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Fixed in the Physics Updates v.315 or hi...

ecterrab 14540
February 24 2019
5 0

Hi nm

Good catch and thanks for reporting - it is fixed and the fix distributed within the Maplesoft Physics Updates v.315 or higher.

This PDE problem is solved for some values of k and not for others, in connection with the ability of Maple's solve command to solve for the eigenvalue an algebraic expression involving Bessel functions and return that solution in terms of an arbitrary integer (that can then be related to the summation index). For k = 1/25 the resulting expression in terms of Bessel functions happens to be within the scope of the algorithms implemented in solve, but not for k = 1.

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Fixed in the Physics Updates v. 302 or h...

ecterrab 14540
February 13 2019
3 2

Hi struckmeier

Thanks, I received your LaTeX, and you are right. This is now corrected and the correction uploaded for everybody within the Physics Updates v.302 or higher (requires Maple 2018.2)

Best

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Fixed in "Physics Updates" version 293 o...

ecterrab 14540
February 04 2019
4 0

Hi nm,

Good catch. The problem is fixed in the Physics Updates version 293 (or higher). The equation is however out of reach of what is implemented in pdsolve, therefore not solved.

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Linear PDE: general solution is a linear...

ecterrab 14540
February 02 2019
6 1

Hi Mmcdara

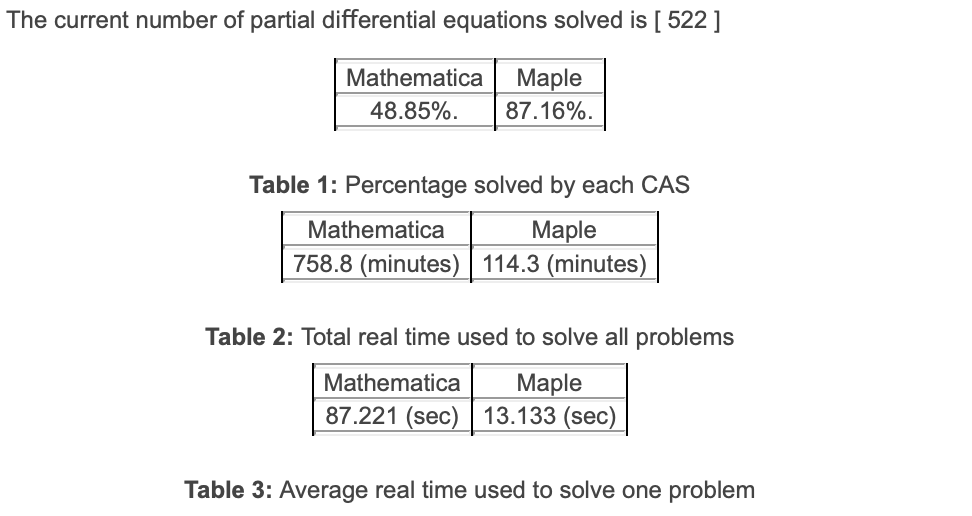

The work by Nasser Abbasi, concerning the solution of PDE benchmarks with Maple and Mathematica, is indeed impressive. Clicking "previous" in the page you linked, I read the following comparison of performances in solving 522 examples of PDE mostly with Boundary Conditions:

This is a nice result. I was aware that Maple's performance, with ODE and PDE in general, is concretely better, but wasn't aware of this difference in performance regarding exact solving of PDE with Boundary Conditions. That difference may be related to the work described in Exact solutions for PDE and Boundary / Initial Conditions (2018).

On the problem you brought today: linear PDEs, like the one you show, you know, have for general solution a linear combination of (what I'd call) a core solution, as the one that pdsolve returns when passing the option build. To express a general formal solution it then suffices to write sum(core(_C[n]), n = 0..infinity).

Although in some contexts it may be desired to have that formal infinite sum form of the solution constructed by pdsolve automatically, in other cases the core solution is what is actually of use. Not less important is the understanding of how this solution got computed, for instance, if by separation of variables, and if so whether by product or sum, the former relevant in, e.g. electrodynamics and quantum mechanics, the latter in the Hamilton-Jacobi formulation of classical mechanics. The pdsolve command returns that information when not passing the option build.

Being myself a physicist, all that was in mind when coding the first version of pdsolve. The design you see implemented intentionally follows those considerations. Many years have passed since that first version, and today I think that design - although unusual in computer algebra - was a good idea, I haven't seen people complaining about this. People seem to find this design natural. Some things may still change, but for now, most of that original design will remain as you see it today.

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Physics:-Vectors and simplify with respe...

ecterrab 14540
January 30 2019
3 0

Hi Bryan,



It sometimes helps considering the inverse problem: depart from where you want to arrive and think on ways to go back, reverse the operation. In this case that solves the problem well, as follows.



Start loading some useful packages for performing these operations and representing them in inert form (something so valuable in the Maple system, not entirely noticed)

>

with(Physics); with(Vectors)

Consider now two vectors. I will do this in polar coordinates, just 2D for the purpose of passing the idea, that clearly extends to 3D vectors. Using your notation, we have

>

a_ := cos(`θa`)*_i+sin(`θa`)*_j

cos(`θa`)*_i+sin(`θa`)*_j

 (1)
>

b_ := cos(`φa`)*_i+sin(`φa`)*_j

cos(`φa`)*_i+sin(`φa`)*_j

 (2)

Take their scalar product, and on the right-hand side represent it in inert form (unfortunately we still have to use the `%.` functional form to represent inert products, this may change in a future version of Maple)

>

e__1 := a_.b_ = `%.`(%a_, %b_)

cos(`θa`)*cos(`φa`)+sin(`θa`)*sin(`φa`) = `%.`(%a_, %b_)

 (3)

What do you want now? To reverse the operation. Spell it: "depart from the lhs, and simplify quadratic expressions in trig functions such that the left-hand side becomes the right-hand side"



That is possible. You need to have the trig functions expanded (not combined), as you see in the left-hand side above. How? using simplify, with respect to side relations  a very powerful command also not entirely noticed. it works like this: simplify(expression, {equations}, {objects_to_be_removed}) The third argument can frequently be omitted, but if what gets removed is not what you wanted then pass that third argument.


In this case, the simplest possible, the left-hand side of e__1 is already, exactly, the equation to be used to perform elimination, you get right away

>

simplify(e__1, {e__1})

`%.`(%a_, %b_) = `%.`(%a_, %b_)

 (4)

This is now not so obvious:

>

expand(lhs(e__1)^2+3*lhs(e__1)+1)

cos(`φa`)^2*cos(`θa`)^2+2*sin(`θa`)*sin(`φa`)*cos(`φa`)*cos(`θa`)+sin(`θa`)^2*sin(`φa`)^2+3*cos(`θa`)*cos(`φa`)+3*sin(`θa`)*sin(`φa`)+1

 (5)
>

simplify(cos(`φa`)^2*cos(`θa`)^2+2*sin(`θa`)*sin(`φa`)*cos(`φa`)*cos(`θa`)+sin(`θa`)^2*sin(`φa`)^2+3*cos(`θa`)*cos(`φa`)+3*sin(`θa`)*sin(`φa`)+1, {e__1})

`%.`(%a_, %b_)^2+3*`%.`(%a_, %b_)+1

 (6)

Introduce the cross product

>

e__2 := `&x`(a_, b_) = `%&x`(%a_, %b_)

(cos(`θa`)*sin(`φa`)-sin(`θa`)*cos(`φa`))*_k = `%&x`(%a_, %b_)

 (7)
>

expand(e__2)

cos(`θa`)*sin(`φa`)*_k-sin(`θa`)*cos(`φa`)*_k = Physics:-Vectors:-`&x`(%a_, %b_)

 (8)
>

simplify(cos(`θa`)*sin(`φa`)*_k-sin(`θa`)*cos(`φa`)*_k = Physics[Vectors][`&x`](%a_, %b_), {(cos(`θa`)*sin(`φa`)-sin(`θa`)*cos(`φa`))*_k = `%&x`(%a_, %b_)})

`%&x`(%a_, %b_) = Physics:-Vectors:-`&x`(%a_, %b_)

 (9)

Important: in e__2 you see the unit vector `#mover(mi("k"),mo("∧"))`, and simplify w.r.t side relations doesn't know about "vectors", e.g., that you cannot divide by `#mover(mi("k"),mo("∧"))`, so either the expression to be simplified is linear in `#mover(mi("k"),mo("∧"))` or you need to introduce another simplification equation, e.g. the scalar product of e__2 with itself,

>

e__3 := (`@`(expand, lhs) = rhs)(e__2.e__2)

cos(`θa`)^2*sin(`φa`)^2-2*sin(`θa`)*sin(`φa`)*cos(`φa`)*cos(`θa`)+sin(`θa`)^2*cos(`φa`)^2 = `%&x`(%a_, %b_)^2

 (10)
>

simplify(e__3, {e__3})

`%&x`(%a_, %b_)^2 = `%&x`(%a_, %b_)^2

 (11)

This would be a good testing example:

>

e__1*(e__2.e__2)+e__1^2

(cos(`θa`)*cos(`φa`)+sin(`θa`)*sin(`φa`))*(cos(`θa`)*sin(`φa`)-sin(`θa`)*cos(`φa`))^2+(cos(`θa`)*cos(`φa`)+sin(`θa`)*sin(`φa`))^2 = `%.`(%a_, %b_)*`%&x`(%a_, %b_)^2+`%.`(%a_, %b_)^2

 (12)

You want the left-hand side

>

expand(lhs((cos(`θa`)*cos(`φa`)+sin(`θa`)*sin(`φa`))*(cos(`θa`)*sin(`φa`)-sin(`θa`)*cos(`φa`))^2+(cos(`θa`)*cos(`φa`)+sin(`θa`)*sin(`φa`))^2 = `%.`(%a_, %b_)*`%&x`(%a_, %b_)^2+`%.`(%a_, %b_)^2))

sin(`θa`)^3*sin(`φa`)*cos(`φa`)^2-2*sin(`θa`)^2*sin(`φa`)^2*cos(`φa`)*cos(`θa`)+sin(`θa`)^2*cos(`φa`)^3*cos(`θa`)+sin(`θa`)*sin(`φa`)^3*cos(`θa`)^2-2*sin(`θa`)*sin(`φa`)*cos(`φa`)^2*cos(`θa`)^2+sin(`φa`)^2*cos(`φa`)*cos(`θa`)^3+cos(`φa`)^2*cos(`θa`)^2+2*sin(`θa`)*sin(`φa`)*cos(`φa`)*cos(`θa`)+sin(`θa`)^2*sin(`φa`)^2

 (13)

to be mapped into the right-hand side of (12). This is how you accomplish such a task (would be titanic if done by hand ...)

>

simplify(sin(`θa`)^3*sin(`φa`)*cos(`φa`)^2-2*sin(`θa`)^2*sin(`φa`)^2*cos(`φa`)*cos(`θa`)+sin(`θa`)^2*cos(`φa`)^3*cos(`θa`)+sin(`θa`)*sin(`φa`)^3*cos(`θa`)^2-2*sin(`θa`)*sin(`φa`)*cos(`φa`)^2*cos(`θa`)^2+sin(`φa`)^2*cos(`φa`)*cos(`θa`)^3+cos(`φa`)^2*cos(`θa`)^2+2*sin(`θa`)*sin(`φa`)*cos(`φa`)*cos(`θa`)+sin(`θa`)^2*sin(`φa`)^2, {e__1, e__3})

`%.`(%a_, %b_)*(`%&x`(%a_, %b_)^2+`%.`(%a_, %b_))

 (14)

And so on. If you explore this strategy, a command that may help you formulating inverse problems is Physics:-Vectors:-ChangeBasis.

>

NULL




Download simplifying_vectorial_trigonometric_expressions.mw

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

PDEtools:-declare...

ecterrab 14540
January 17 2019
2 0

PDEtools:-declare is the most thorough command for accomplishing that. It will also display derivatives indexed, or with prime.

Edgardo S. Cheb-Terrab
Physics, DifferentialEquations and Mathematical Functions, Maplesoft

Plug in sum the multi-index summation f...

ecterrab 14540
January 16 2019
2 4

Hi Kitonum,



For that purpose you can redefine sum to enhance it with the advanced multi-index functionality provided within the Physics package. For details on that, see Physics:-Library:-Add .



>

Physics:-Setup(redefinesum = true)



With multi-index in place, the multinomial theorem can be represented straightforwardly:

>

(a+b+c)^n = sum(factorial(n)*a^p*b^q*c^r/(factorial(p)*factorial(q)*factorial(r)), p+q+r = n)

(a+b+c)^n = sum(factorial(n)*a^p*b^q*c^r/(factorial(p)*factorial(q)*factorial(r)), p+q+r = n)

 (1)

For example:

>

eval((a+b+c)^n = sum(factorial(n)*a^p*b^q*c^r/(factorial(p)*factorial(q)*factorial(r)), p+q+r = n), n = 3)

(a+b+c)^3 = a^3+3*a^2*b+3*a^2*c+3*a*b^2+6*a*b*c+3*a*c^2+b^3+3*b^2*c+3*b*c^2+c^3

 (2)

Verify taking one minus the other one

>

expand((lhs-rhs)((a+b+c)^3 = a^3+3*a^2*b+3*a^2*c+3*a*b^2+6*a*b*c+3*a*c^2+b^3+3*b^2*c+3*b*c^2+c^3))

0

 (3)

Alternatively, if you prefer to not have this functionality plugged in sum - for instance because it also frees sum from all of its premature evaluation problems, which is a relevant good feature, but perhaps you have code that relies on those problems - you can use Physics:-Library:-Add  directly:



>

restart
>

(a+b+c)^n = Physics:-Library:-Add(factorial(n)*a^p*b^q*c^r/(factorial(p)*factorial(q)*factorial(r)), p+q+r = n)

(a+b+c)^n = Physics:-Library:-Add(factorial(n)*a^p*b^q*c^r/(factorial(p)*factorial(q)*factorial(r)), p+q+r = n)

 (4)
>

eval((a+b+c)^n = Physics:-Library:-Add(factorial(n)*a^p*b^q*c^r/(factorial(p)*factorial(q)*factorial(r)), p+q+r = n), n = 3)

(a+b+c)^3 = a^3+3*a^2*b+3*a^2*c+3*a*b^2+6*a*b*c+3*a*c^2+b^3+3*b^2*c+3*b*c^2+c^3

 (5)
>

NULL




Download Sum_multi-index.mw

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Workaround....

ecterrab 14540
January 06 2019
4 3

Hi mistel

There are two issues:

  1. (5) is not as (4)
  2. (6) is not 0

Issue 1. is a weakness in new routines - I'll fix that this week. Workaround: after (5), insert an input line and type eval((5), `*` = `.`);

Issue 2. is somewhat expected: when you defined proj2, you used i as summation index in both sums. Replace i by j in the one for B. Then after (6) input combine(%) or Simplify(%) and both return 0.

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Physics and DifferentialGeometry outputs...

ecterrab 14540
January 05 2019
6 1




Hi deniscr

Physics and DifferentialGeometry outputs are correct, and you seem to have made a typographical mistake in the input of the line element: the one you sent to Physics is not the same as the one you sent to DifferentialGeometry.



Below I first verify that the Killing vectors returned using the Physics are correct for the line element (metric) you indicated. After that I am pointing at what seems to me a typographical mistake you've done in your input for DifferentialGeometry in your other worksheet "killing_test2.mw" (or the other way around, a typo in the metric you indicated to Physics in this worksheet ). Then I verify that the Killing vectors for the metric you sent to DifferentialGeometry, either computed with Physics or DifferentialGeometry, are correct too.



In summary: everything looks correct but for your typographical mistake sending different metrics to Physics and DifferentialGeometry. This is anyway an interesting example on "verification", a key component in the use of computer algebra.



>

restart; with(Physics)
>

Setup(dimension = 5, mathematicalnotation = true)

`The dimension and signature of the tensor space are set to `[5, `- - - - +`]



[dimension = 5, mathematicalnotation = true]

 (1)
>

Coordinates(X = [phi, f, chi, u, v])

`Default differentiation variables for d_, D_ and dAlembertian are:`*{X = (phi, f, chi, u, v)}



`Systems of spacetime Coordinates are:`*{X = (phi, f, chi, u, v)}



{X}

 (2)
>

2*dphi^2+(df^2+(du*v-dv*u+dchi)^2)/(2*f^2)-(du^2+dv^2)/f

2*dphi^2+(1/2)*(df^2+(du*v-dv*u+dchi)^2)/f^2-(du^2+dv^2)/f

 (3)
>

Setup(metric = 2*dphi^2+(1/2)*(df^2+(du*v-dv*u+dchi)^2)/f^2-(du^2+dv^2)/f)

[metric = {(1, 1) = 2, (2, 2) = (1/2)/f^2, (3, 3) = (1/2)/f^2, (3, 4) = (1/2)*v/f^2, (3, 5) = -(1/2)*u/f^2, (4, 4) = (1/2)*v^2/f^2-1/f, (4, 5) = -(1/2)*v*u/f^2, (5, 5) = (1/2)*u^2/f^2-1/f}]

 (4)
>

g_[]

Physics:-g_[mu, nu] = Matrix(%id = 18446744078434619014)

 (5)
>

Define(V, quiet)
>

KillingVectors(V)

[V[`~mu`] = [1, 0, 0, 0, 0], V[`~mu`] = [0, u*f, (1/4)*v^3+(1/4)*(u^2-2*f)*v+(1/2)*chi*u, (1/2)*f+(1/4)*u^2-(3/4)*v^2, -(1/2)*chi+v*u], V[`~mu`] = [0, v*f, -(1/4)*u^3+(1/4)*(-v^2+2*f)*u+(1/2)*chi*v, v*u+(1/2)*chi, -(3/4)*u^2+(1/4)*v^2+(1/2)*f], V[`~mu`] = [0, chi*f, (1/2)*chi^2-(1/8)*(-u^2-v^2+2*f)^2, (1/4)*v^3+(1/4)*(u^2-2*f)*v+(1/2)*chi*u, -(1/4)*u^3+(1/4)*(-v^2+2*f)*u+(1/2)*chi*v], V[`~mu`] = [0, f, chi, (1/2)*u, (1/2)*v], V[`~mu`] = [0, 0, 0, v, -u], V[`~mu`] = [0, 0, v, 1, 0], V[`~mu`] = [0, 0, -u, 0, 1], V[`~mu`] = [0, 0, 1, 0, 0]]

 (6)

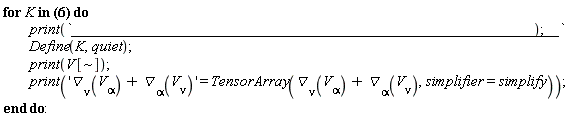

First: verify that all of (6) are indeed Killing vectors. For that purpose, use the definition, shown in the help page. You can use `▿`[nu](V[alpha])+`▿`[alpha](V[nu]) = 0 or `ℒ`[V](g[mu, nu]) = 0.



>

"for K in [V[~mu] = [1, 0, 0, 0, 0], V[~mu] = [0, u*f, 1/4*v^3+1/4*(u^2-2*f)*v+1/2*chi*u, 1/2*f+1/4*u^2-3/4*v^2, -1/2*chi+v*u], V[~mu] = [0, v*f, -1/4*u^3+1/4*(-v^2+2*f)*u+1/2*chi*v, v*u+1/2*chi, -3/4*u^2+1/4*v^2+1/2*f], V[~mu] = [0, chi*f, 1/2*chi^2-1/8*(-u^2-v^2+2*f)^2, 1/4*v^3+1/4*(u^2-2*f)*v+1/2*chi*u, -1/4*u^3+1/4*(-v^2+2*f)*u+1/2*chi*v], V[~mu] = [0, f, chi, 1/2*u, 1/2*v], V[~mu] = [0, 0, 0, v, -u], V[~mu] = [0, 0, v, 1, 0], V[~mu] = [0, 0, -u, 0, 1], V[~mu] = [0, 0, 1, 0, 0]] do print(`_____________________________________________________________`); Define(K,quiet); print(V[~]); print('`▿`[nu](V[alpha])+`▿`[alpha](V[nu])' = TensorArray(`▿`[nu](V[alpha])+`▿`[alpha](V[nu]),simplifier=simplify)); end do:"

_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 1, (2) = 1, (3) = 1, (4) = 1, (5) = 1}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



Physics:-D_[nu](V[alpha])+Physics:-D_[alpha](V[nu]) = Matrix(%id = 18446744078356038230)

 (7)

As mentioned you can try the same loop with the LieDerivative. For example, the last Killing vector defined in the loop above is

>

"V[~]"

V[`~mu`] = Array(%id = 18446744078356094118)

 (8)

This is the unevaluated LieDerivative

>

'LieDerivative[V](g_[alpha, beta])' = 0

Physics:-LieDerivative[V](Physics:-g_[alpha, beta]) = 0

 (9)

Release the unevaluation

>

Physics[LieDerivative][V](Physics[g_][alpha, beta]) = 0

Physics:-g_[mu, beta]*Physics:-D_[alpha](V[`~mu`], [X])+Physics:-g_[alpha, mu]*Physics:-D_[beta](V[`~mu`], [X]) = 0

 (10)
>

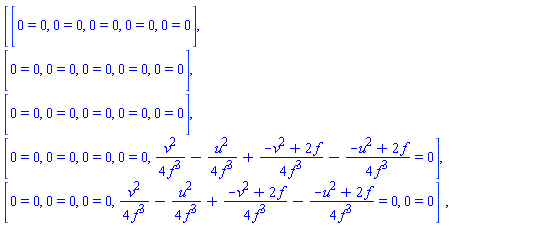

TensorArray(Physics[g_][mu, beta]*Physics[D_][alpha](V[`~mu`], [X])+Physics[g_][alpha, mu]*Physics[D_][beta](V[`~mu`], [X]) = 0)

Matrix(%id = 18446744078441914110)

 (11)
>

"simplify(?)"

Matrix(%id = 18446744078437083966)

 (12)

Now on what seems to me a typographical mistake you made in the input you used for DifferentialGeometry: in killing_test_2.mw you show this input line (that I am not executing):

>

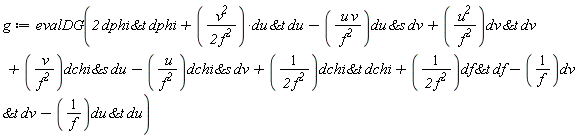

g := evalDG(2*`&t`(dphi, dphi)+v^2*`&t`(du, du)/(2*f^2)-u*v*`&s`(du, dv)/f^2+u^2*`&t`(dv, dv)/f^2+v*`&s`(dchi, du)/f^2-u*`&s`(dchi, dv)/f^2+`&t`(dchi, dchi)/(2*f^2)+`&t`(df, df)/(2*f^2)-`&t`(dv, dv)/f-`&t`(du, du)/f)

You are using &t for the square of the differentials and &s - the symmetric product - for their (crossed) products. Since in Physics you don't need to be concerned with whether in the product of two differentials they are or not the same, try this:

1.

Assign both &t and &s to `*`

2.

Copy your line-element input to evalDG from the other worksheet and paste it here
3.

Set this other line-element as a metric using Physics and compare the metric you get with the one shown above as (5)
4.

Compute, using Physics, the Killing vectors using this metric you sent to DifferentialGeometry
5.

Compare the Killling vectors returned by DifferentialGeometry with those you got using Physics



You will see (below) that they are the same, indicating there is no bug and the problem seems indeed to be your typographial miskate in the input to DG.



So,

>

`&t` := `*`; `&s` := `*`

Physics:-`*`



Physics:-`*`

 (13)
>

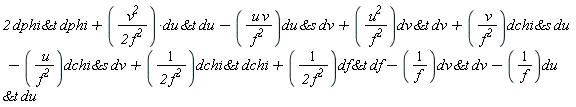

2*`&t`(dphi, dphi)+v^2*`&t`(du, du)/(2*f^2)-u*v*`&s`(du, dv)/f^2+u^2*`&t`(dv, dv)/f^2+v*`&s`(dchi, du)/f^2-u*`&s`(dchi, dv)/f^2+`&t`(dchi, dchi)/(2*f^2)+`&t`(df, df)/(2*f^2)-`&t`(dv, dv)/f-`&t`(du, du)/f

2*dphi^2+(1/2)*v^2*du^2/f^2-u*v*du*dv/f^2+u^2*dv^2/f^2+v*dchi*du/f^2-u*dchi*dv/f^2+(1/2)*dchi^2/f^2+(1/2)*df^2/f^2-dv^2/f-du^2/f

 (14)
>

Setup(g_ = 2*dphi^2+(1/2)*v^2*du^2/f^2-u*v*du*dv/f^2+u^2*dv^2/f^2+v*dchi*du/f^2-u*dchi*dv/f^2+(1/2)*dchi^2/f^2+(1/2)*df^2/f^2-dv^2/f-du^2/f)

[metric = {(1, 1) = 2, (2, 2) = (1/2)/f^2, (3, 3) = (1/2)/f^2, (3, 4) = (1/2)*v/f^2, (3, 5) = -(1/2)*u/f^2, (4, 4) = (1/2)*(v^2-2*f)/f^2, (4, 5) = -(1/2)*v*u/f^2, (5, 5) = (u^2-f)/f^2}]

 (15)
>

g_[]

Physics:-g_[mu, nu] = Matrix(%id = 18446744078694639966)

 (16)

By eye there is (only) one difference, g_[4,4] in (5) is equal to (u^2-2*f)/(2*f^2) while in (16) you have (u^2-f)/f^2 and that, I think, is the answer to your question. Anyway, verify that the Killing vectors obtained using DifferentialGeometry are correct by computing them using Physics and comparing

>

Define(redo, V, quiet)



These are the Killling vectors for this other metric using Physics,

>

KillingVectors(V)

[V[`~mu`] = [1, 0, 0, 0, 0], V[`~mu`] = [0, f, chi, (1/2)*u, (1/2)*v], V[`~mu`] = [0, 0, u, 0, -1], V[`~mu`] = [0, 0, 1, 0, 0]]

 (17)

they are correct too

>

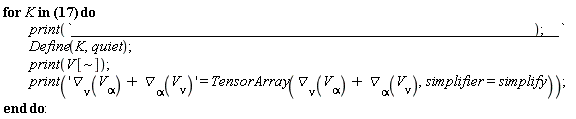

"for K in [V[~mu] = [1, 0, 0, 0, 0], V[~mu] = [0, f, chi, 1/2*u, 1/2*v], V[~mu] = [0, 0, u, 0, -1], V[~mu] = [0, 0, 1, 0, 0]] do print(`_____________________________________________________________`); Define(K,quiet); print(V[~]); print('`▿`[nu](V[alpha])+`▿`[alpha](V[nu])' = TensorArray(`▿`[nu](V[alpha])+`▿`[alpha](V[nu]),simplifier=simplify)); end do:"

_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 1, (2) = 1, (3) = 1, (4) = 1, (5) = 1}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



D_[nu](V[alpha])+D_[alpha](V[nu]) = (Matrix(5, 5, {(1, 1) = 0, (1, 2) = 0, (1, 3) = 0, (1, 4) = 0, (1, 5) = 0, (2, 1) = 0, (2, 2) = 0, (2, 3) = 0, (2, 4) = 0, (2, 5) = 0, (3, 1) = 0, (3, 2) = 0, (3, 3) = 0, (3, 4) = 0, (3, 5) = 0, (4, 1) = 0, (4, 2) = 0, (4, 3) = 0, (4, 4) = 0, (4, 5) = 0, (5, 1) = 0, (5, 2) = 0, (5, 3) = 0, (5, 4) = 0, (5, 5) = 0}))



_____________________________________________________________



V[`~mu`] = (Vector[row](5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}))



Physics:-D_[nu](V[alpha])+Physics:-D_[alpha](V[nu]) = Matrix(%id = 18446744078567592894)

 (18)

Comparing these Killing vectors (17) computed for this other metric using Physics

>

[V[`~mu`] = [1, 0, 0, 0, 0], V[`~mu`] = [0, f, chi, (1/2)*u, (1/2)*v], V[`~mu`] = [0, 0, u, 0, -1], V[`~mu`] = [0, 0, 1, 0, 0]]

[V[`~mu`] = [1, 0, 0, 0, 0], V[`~mu`] = [0, f, chi, (1/2)*u, (1/2)*v], V[`~mu`] = [0, 0, u, 0, -1], V[`~mu`] = [0, 0, 1, 0, 0]]

 (19)

with those returned by DifferentialGeometry (I'm basically translating them to a readable input form from your worksheet),

>

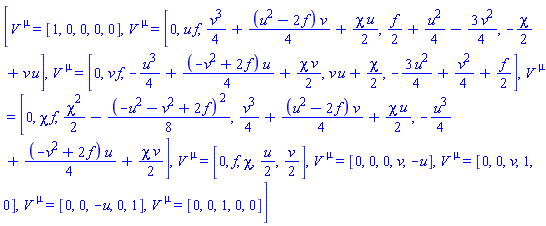

[V[`~mu`] = [1/2, 0, 0, 0, 0], V[`~mu`] = [0, 2*f, 2*chi, u, v], V[`~mu`] = [0, 0, u, 0, -1], V[`~mu`] = [0, 0, 2, 0, 0]]

[V[`~mu`] = [1/2, 0, 0, 0, 0], V[`~mu`] = [0, 2*f, 2*chi, u, v], V[`~mu`] = [0, 0, u, 0, -1], V[`~mu`] = [0, 0, 2, 0, 0]]

 (20)

you see by eye they are equivalent: some of those by DifferentialGeometry are divided by two and, you know, a constant times a Killing vector is also a Killing vector (they satisfy linear differential equations), so all these returned by DifferentialGeometry are also correct.




Download killing_test1_(reviewed).mw

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Unable to reproduce your errors`...

ecterrab 14540
January 05 2019
4 0

Hi Wolfgang

I did this:

  1. Went to the post and download the worksheet linked at the end of it.
  2. Removed my initialization file (if you don't have one, this step is not necessary)
  3. Added some input lines at the beginning to check that
    1. On restart, no names are assigned but for some few shown by the anames() command
    2. The libname shows the Physics Updates first, then the main library of Maple 2018.2.1
    3. The version() command shows the number 1362973 for all of Interface, Kernel and Library
    4. The Physics:-Version()[2] shows version installed = 276

Then clicked the `!!!` icon you see on the toolbar to execute the whole worksheet. Everything performed as expected, no errors and all the equations resolved, as shown in the post. Then closed Maple, opened Maple, and this time executed one input line at a time pressing Enter, and got the same result, no errors, and all equations solved as shown in the post.

Attached is the worksheet I downloaded today, with the added input lines mentioned so that you could try executing it in your machine. The 1,2,3,4 items above are relevant to assure there is not something interferring with your Maple setup.

PDE_and_BC_during_2018_(reviewed) - no errors.mw

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Physics:-SortProducts...

ecterrab 14540
January 03 2019
2 1

Hi Bryan

SortProducts is a new Physics command; it is within the latest Maplesoft Physics Updates . Formerly, it was Physics:-Library:-SortProducts; it got rewritten and attached is a help page. This command is particularly useful if you want to reorder not commutative factors in a product taking algebra or commutation rules into account, but it also sorts these factors when they are commutative; in this simpler case, the Maple command sort can also do the job (it is explained in its help page).

Best wishes for 2019

Physics-SortProducts.mw

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

Fixed....

ecterrab 14540
December 29 2018
3 3

Hi vv,

Good catch, all of seq, add and mul have special evaluation rules. The value issue is fixed and the fix uploaded for everybody as usual within the Maplesoft Physics Updates version 271 or higher.

All the best for new year's eve.

Edgardo S. Cheb-Terrab
Physics, Differential Equations and Mathematical Functions, Maplesoft

First 27 28 29 30 31 32 33 Last Page 29 of 59
