@raj2018

You have four equations and seven unknowns - see the attached.

You want to solve for three of the unknowns (ie  phi[d0], u[i10], u[i20] ) which means that you have to supply numerical values for the other four unknowns (ie alpha, delta[d], delta[e], delta[i] ).

The first line of your worksheet states (emphasis added)

How to solve the following set of nonlinear equations and plot variation of u[i01],u[i02] and phi[d0] versus delta[d] for alpha=0.01,delta[d]=1e-4?

Two obvious questions

1. What values should be used for the variables delta[e], delta[i] ?
2. How do you plan to produce a plot "versus delta[d]" for a fixed value of delta[d] (ie delta[d]=1e-4)? It doesn't make sense!

Download nonL.mw

@sk04

Obvious question - should Maple produce an 'Error'?  Obvious answer, No!

Less obvious question - why does this happen? I'm not really sure, but I think it probably has something to do with the fact that you do not *really* have a system of PDEs - you actually have a system of ODEs, which are "disuguised" ro look like PDEs.

In the system

  sys:= [ diff(y(t), t) = k*y(t),
          diff(x(r, t), t) = y(t) * exp(r^2/2*sigma^2)
        ];
  ibc:= [ y(0) = 0,
          x(r, 0) = 0
        ];

it is obvious that the first equation in 'sys' is an ODE. One could also argue that the second equation is also an ode, since nothing in the system changes if I simply rewrite it as

  sys:= [ diff(y(t), t) = k*y(t),
          diff(x(t), t) = y(t) * exp(r^2/2*sigma^2)
        ];
  ibc:= [ y(0) = 0,
          x(0) = 0
        ];

The attached shows to to solve both of the above cases. The answer is always {x(r, t) = 0, y(t) = 0}.

Whether Maple's difficulty arises from the fact that the solution is identically zero, or the fact that the system is actually ODE rather than PDE is not obvious to me

Download oddPDE.mw

@sk04

see the attached

Download pdsol.mw

@Muhammad Usman

1. using sum() commands rather than add(). Please read the help to understand why the latter would be faster.
2. computing NN^9 triple integrals - thus it runs in polynomial time, in fact O(NN⁹) Hence NN=3 will take 38X the time for NN=2, and NN=4 will take 512X the time for NN=2 .and so on........

https://www.mapleprimes.com/questions/230841-Problem-In-Execution-Of-Summation-Symbol-

????

@jalal

Download frame2.mw

@Anthrazit

the attached

Download trycat4.mw

@aoakindele

I suggest that you think very carefully about your first boundary condition, ie

F(0)=((-eta^2)/2)*d*Ma

In your system F() is a function of 'eta', and F(0) means compute F() when eta=0 - so what exactly does the right-hand-side of this boundary condition mean? You want it to evaluate to zero (because eta=0), or you want something else? It confuses the hell out of me, and I suspect that Maple isn't going to like it either!

@tomleslie

If my interpretation of the requirement is correct then the attached does the same thing but is (probably?) marginally more efficient

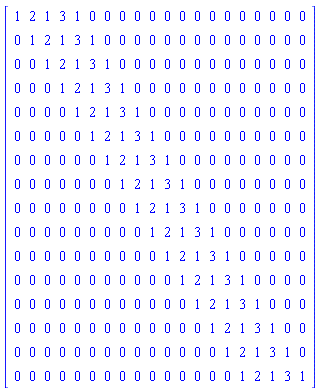

Download genMat3.mw

@coopersj

Within the VectorCalculus package a "vector" is interpreted as a quantity which represents magnitude and direction in some "space". So an obvious(?) thing you might want to know is the length/magnitude of this "vector", because in ths context, length/magnitude means something

Within the LinearAlgebra package a "vector" is a 1-dimensional data container, which could represent (say) the number of cabbages you manage to produce in your garden in successive years. Do you really want to know the"length/magnitude" of this particular "vector"? What would it mean?

@Muhammad Usman

This prblem scales very badly.

Just because you want a calculation to be performed more quickly does not mean that it can be performed more quickly. You can't always get what you want!!

Essentially you have two choices

1. Come up with a much better algorithm for your calculation - this will require you to think!
2. Since the calculations of the integrals appear to be independent, you can rewrite the code to parallelize the problem. Although the number of processors (eg say 8) on a single machine is probably not going to gain you enough to make your problem tractable. The only solution is then to purchase the Maple 'Grid' toolbox and spread the problem over a "gazillion" processors. Various cloud computing companies will provide the 'gazillion processors" - for a fee

@dim____

As you can see from the worksheet I originally posted - everythng works perfectly

So what exactly are you doing?

Two suggestions

1. Specify precise Maple version
2. Upload the "failing" Maple worksheet using the big green up-arrow in the Mapleprimes toolbae

this time (I think?!)

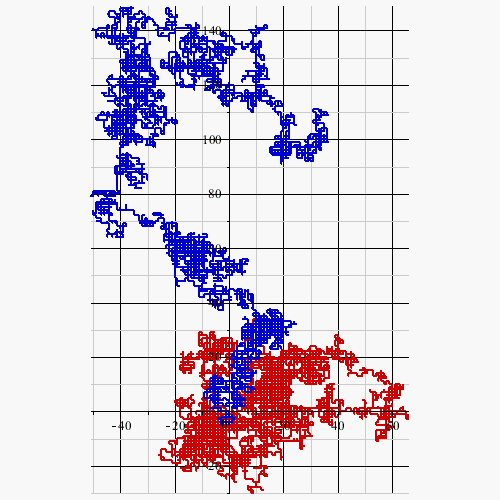

Download rWalk2.mw

@tomleslie

For a bonus point, spot the logical error in the above!!

@Felipe_123

Nothing wrong with prevoiusly supplied methods, but I'd probably use the 'combinat' package to generate the original list of vectors, rather than  the 'StringTools' approach. - as in the attached


Download cv2.mw
