Huh?...

tomleslie 13876
June 12 2020
0 0

@janhardo

In your reply to CarlLove's procedure you stated

This is a procedure you made, but that's not needed in this task ( even before the procedure is introduced in the book )
Its too difficult for me now in the learning process to understand the procedure.

So I deliberately tried to avoid using a procedure!!

It is pretty simple to modify my original worksheet to produce a pretty straightforward procedure with no "bells and whistles".

See the attached

>

  myRS:= proc(f, a, b, N, meth)
              local p0:= plot(f, a..b),
                    X:= Array(0..N, [seq(j, j=a..b, (b-a)/N)]),
                    Y:= Array(0..N, f~(X)),
                    Ymid:=f~(X+~(b-a)/(2*N)),
                    stair,
                    str:=cat( "Approximate integral using ",
                              meth,
                              " values is %1"
                            ),
                    ans:
              uses plots:
              if   meth = left
              then ans:= evalf((b-a)/N*add(Y[0..N-1])):
                   stair:= plot( [ [ a, 0 ],
                                   [ X[0] ,Y[0] ],
                                   seq
                                   ( [ [ X[i+1], Y[i]   ],
                                       [ X[i+1], Y[i+1] ]
                                     ][],
                                     i=0..N-1
                                   ),
                                   [ b,0 ]
                                 ]
                               ):
              elif meth = right
              then ans:= evalf((b-a)/N*add(Y[1..N])):
                   stair:= plot( [ [ a,0 ],
                                    seq
                                    ( [ [ X[i],   Y[i+1] ],
                                        [ X[i+1], Y[i+1] ]
                                      ][],
                                      i=0..N-1
                                    ),
                                    [ X[N], Y[N] ],
                                    [ b, 0 ]
                                  ]
                                ):
              elif meth=midpoint
              then ans:= evalf((b-a)/N*add(Ymid[0..N-1]));
                   stair:= plot( [ [ a, 0 ],
                                   [ X[0] ,Ymid[0] ],
                                   seq
                                   ( [ [ X[i+1], Ymid[i]   ],
                                       [ X[i+1], Ymid[i+1] ]
                                     ][],
                                     i=0..N-1
                                   ),
                                   [ b,0 ]
                                 ]
                               ):
              fi;
              return display( [ p0, stair ],
                                color= [red, black],
                                axes= none,
                                caption= typeset
                                         ( str,
                                           ans
                                         ),
                                captionfont= [times, bold, 20]
                            );
         end proc:
>

#
# A few examples of usage
#

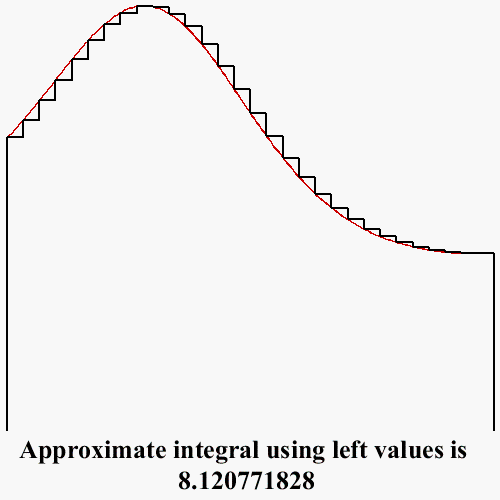

  myRS(x->1+x^sin(x), 1, 5, 30, left);

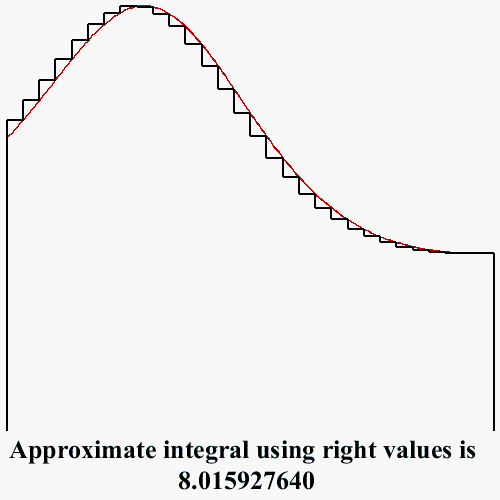

  myRS(x->1+x^sin(x), 1, 5, 30, right);

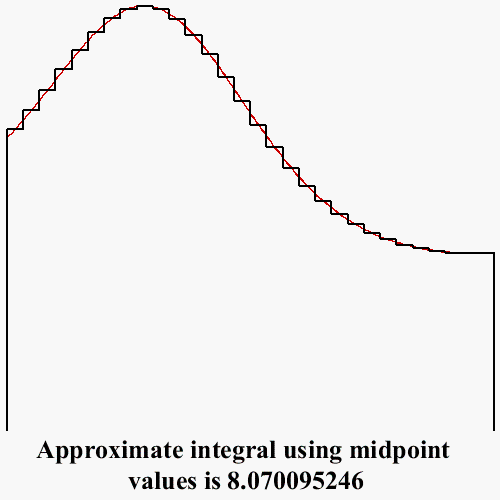

  myRS(x->1+x^sin(x), 1, 5, 30, midpoint);

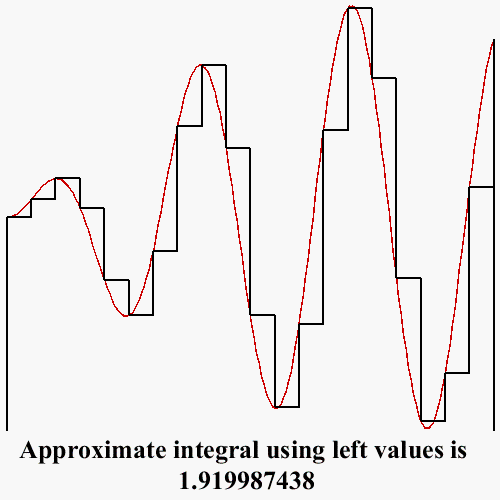

  myRS(x->1+sin(10*x)*sin(x), 0, 2, 20, left);

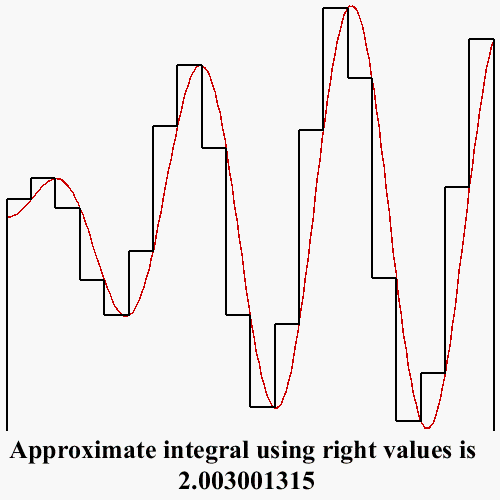

  myRS(x->1+sin(10*x)*sin(x), 0, 2, 20, right);

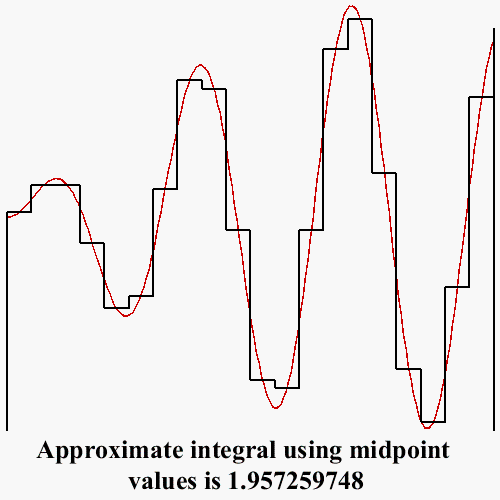

  myRS(x->1+sin(10*x)*sin(x), 0, 2, 20, midpoint);












>

#
# Using Maple's in-built commands for the same
# calculation.
#

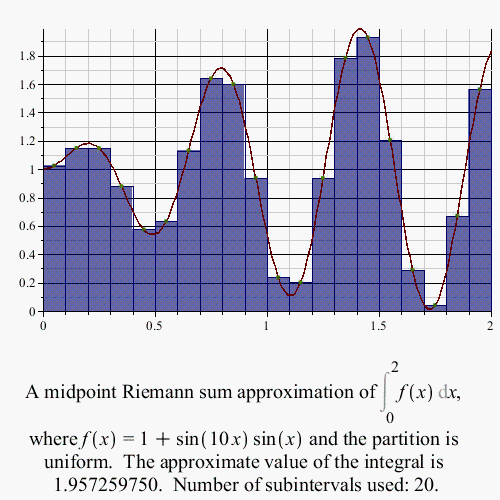

  with( Student[Calculus1]):
  RiemannSum( 1+sin(10*x)*sin(x),
              x=0..2,
              partition=20,
              method='midpoint',
              output=plot
            );


>






Download rsum2.mw

Submitted an SCR...

tomleslie 13876
June 09 2020
0 0

I really didn't get anywhere trying to do further debug myself, so I submitted an SCR for this one referencing this thread

I think Acer is (partially) correct...

tomleslie 13876
June 09 2020
0 0

@dharr

  1. The undesirable behaviour *seems* to occur only when the package command is defined using the 'overload()' construct
  2. It doesn't *seem* to happen for every package command which utilises the 'overload()' construct
  3. A quick check shows that relatively few package commands actually use the 'overload()' construct. (For example there are no such commands in the combinat() package.)

Related - but not "guaranteed"?...

tomleslie 13876
June 09 2020
0 0

@acer

As far as I can tell, the LinearAlgebra() package contains five commands which are defined using the 'overload()'  approach, ie are of the general form

LinearAlgebra:-SomeCommand:=overload( proc(pars), proc(pars)....)

The relevant commands are Add(), CompanionMatrix(), MatrixInverse(), Multiply(), and Norm(). A simple test (see the attached) shows that three of these [ CompanionMatrix(), MatrixInverse(), Norm() ] exhibit the questionable behaviour, ie return unevaluated - the other two do not.

Just reading the showstat() output for each of these commands (not a great way to debug!), I don't see any "obvious" differences in the general structure of the associated overload( proc(pars), proc(pars)....) command.

>

  restart;
  interface(version);
  with(LinearAlgebra):
  test1:= proc(A,B)
               uses LinearAlgebra:
               return Multiply(A,B)
         end proc:
  test1( RandomMatrix(2,2), RandomMatrix(2,2));
  test2:= proc(A)
               uses LinearAlgebra:
               return MatrixInverse(A)
          end proc:
  test2( RandomMatrix(2,2) );
  test3:= proc(A,B)
               uses LinearAlgebra:
               return Add(A,B)
          end proc:
  test3( RandomMatrix(2,2), RandomMatrix(2,2));
  test4:= proc(A)
               uses LinearAlgebra:
               return Norm(A)
          end proc:
  test4( RandomMatrix(2,2) );
  test5:= proc(A)
               uses LinearAlgebra:
               return CompanionMatrix(A)
          end proc:
  test5( RandomMatrix(2,2) );

`Standard Worksheet Interface, Maple 2020.0, Windows 7, March 4 2020 Build ID 1455132`



Matrix(2, 2, {(1, 1) = -1787, (1, 2) = 3457, (2, 1) = 5359, (2, 2) = 11051})



MatrixInverse(Matrix(2, 2, {(1, 1) = -32, (1, 2) = -4, (2, 1) = -74, (2, 2) = 27}))



Matrix(2, 2, {(1, 1) = -191, (1, 2) = -15, (2, 1) = -153, (2, 2) = 25})



Norm(Matrix(2, 2, {(1, 1) = -38, (1, 2) = 87, (2, 1) = -18, (2, 2) = 33}))



CompanionMatrix(Matrix(%id = 18446744074379881278))

 (1)
>



>



>



Download usewith2.mw



Yeah...

tomleslie 13876
June 08 2020
0 0

@Carl Love

Like I said, I know several "workarounds" - but that isn;t the point.

For me this is something which really, really, REALLY,  shouldn't need to be "worked around"

Further to my earlier response...

tomleslie 13876
June 06 2020
0 0

I think(?) I got the Notepad++ Maple customisation file from here

https://www.mapleprimes.com/posts/129552-Maple-In-All-Colours-Of-Rainbow-

Although I'm pretty sure that over the years I have changed a lot of stuff in this customisation file - just to make it work the way I want

Something like the attached...

tomleslie 13876
June 02 2020
0 0

@FFz

whihc adds a simple execution group to my previus post.

NB there are many ways to "color" the requested 2D plot - the attached just shows one possibility

>

  restart;
  eq1 := diff(c(x, t), t) - 1.5*diff(c(x, t), x, x) + 0.05/(x + 0.001) = 0;
  ics := c(x, 0) = 0, c(0, t) = 10, D[1](c)(20, t) = 0;
  #sol := rhs(dsolve({eq1, ics}, c(x, t)));
  sol := pdsolve(eq1, {ics}, numeric);

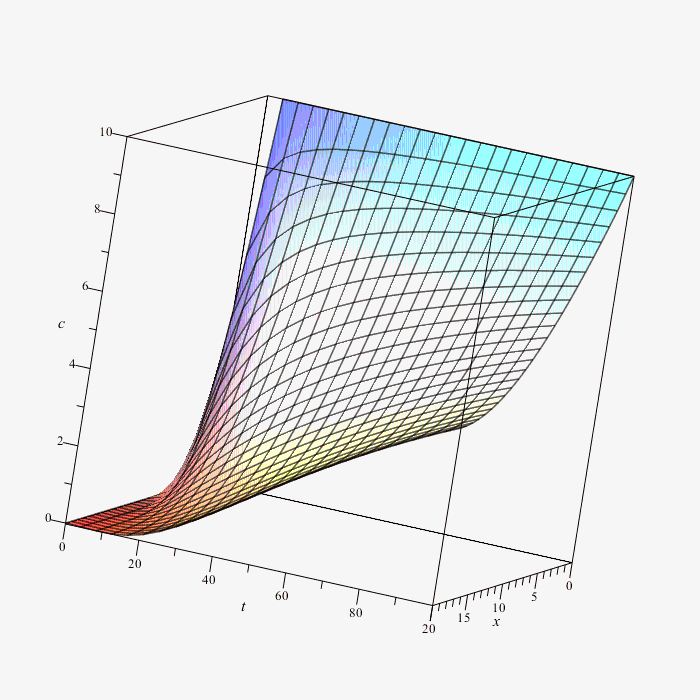

  sol:-plot3d( c(x,t), x=0..20, t=0..100, labels=[x,t,c]);

diff(c(x, t), t)-1.5*(diff(diff(c(x, t), x), x))+0.5e-1/(x+0.1e-2) = 0



c(x, 0) = 0, c(0, t) = 10, (D[1](c))(20, t) = 0



_m714060160




>

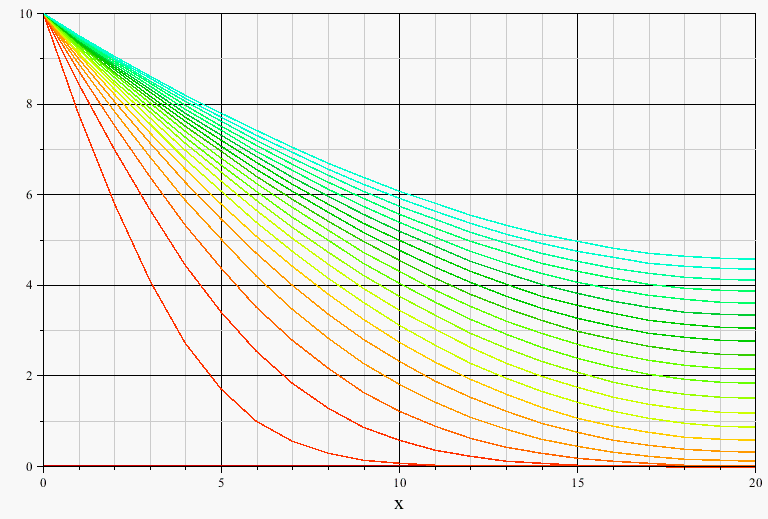

  plots:-display
         ( [ seq
             ( sol:-plot
               ( c(x,t),
                 t=j,
                 x=0..20,
                 color=ColorTools:-Color
                                   ( "HSV",
                                     [ j/200, 1.0, 0.9 ]
                                   )
               ),
               j=0..100,5
             )
           ]
         );


>



>



Download pdsol2.mw

Idle curiosity...

tomleslie 13876
May 30 2020
0 0

the expression

eq:= -w*z^2/(2*E*MI*alpha^2)+w*H*sinh(alpha*H)*cosh(alpha*z)/(alpha^3*E*MI*cosh(alpha*H))-w*H*sinh(alpha*H)/(alpha^3*E*MI*cosh(alpha*H))+w*cosh(alpha*z)/(alpha^4*E*MI*cosh(alpha*H))-w/(alpha^4*E*MI*cosh(alpha*H))+w*H*z/(E*MI*alpha^2)-w*H*sinh(alpha*z)/(E*MI*alpha^3):

contains the variable 'MI' which does not exist in the target  "phrase". What happened to it?

Some typos...

tomleslie 13876
May 27 2020
0 0

@Hnx

which I fixed - and you supplied no value for the quantity 'g', so I used g=1: you might want to change this!!

restart; with(plots)

deq := diff(phi1(t), t, t)-g*(r3*m3*cos(phi1(t))+r1*m2*sin(phi1(t)+arcsin((h+r1*sin(phi1(t)))/r2))/sin(-phi1(t)-arcsin((h+r1*sin(phi1(t)))/r2)+phi1(t)))/theta3 = 0

diff(diff(phi1(t), t), t)-g*(r3*m3*cos(phi1(t))-r1*m2*sin(phi1(t)+arcsin((h+r1*sin(phi1(t)))/r2))*r2/(h+r1*sin(phi1(t))))/theta3 = 0

 (1)

deq_numeric := subs(r1 = 8, r2 = 8, r3 = 1, h = 5, m2 = 1, m3 = 20, theta3 = 20, g = 1, deq)

diff(diff(phi1(t), t), t)-cos(phi1(t))+(16/5)*sin(phi1(t)+arcsin(5/8+sin(phi1(t))))/(5+8*sin(phi1(t))) = 0

 (2)

ics_numeric := phi1(0) = 0, (D(phi1))(0) = -.63

phi1(0) = 0, (D(phi1))(0) = -.63

 (3)

hz1 := dsolve({deq_numeric, ics_numeric}, phi1(t), numeric)

proc (x_rkf45) local _res, _dat, _vars, _solnproc, _xout, _ndsol, _pars, _n, _i; option `Copyright (c) 2000 by Waterloo Maple Inc. All rights reserved.`; if 1 < nargs then error "invalid input: too many arguments" end if; _EnvDSNumericSaveDigits := Digits; Digits := 15; if _EnvInFsolve = true then _xout := evalf[_EnvDSNumericSaveDigits](x_rkf45) else _xout := evalf(x_rkf45) end if; _dat := Array(1..4, {(1) = proc (_xin) local _xout, _dtbl, _dat, _vmap, _x0, _y0, _val, _dig, _n, _ne, _nd, _nv, _pars, _ini, _par, _i, _j, _k, _src; option `Copyright (c) 2002 by Waterloo Maple Inc. All rights reserved.`; table( [( "complex" ) = false ] ) _xout := _xin; _pars := []; _dtbl := array( 1 .. 4, [( 1 ) = (array( 1 .. 26, [( 1 ) = (datatype = float[8], order = C_order, storage = rectangular), ( 2 ) = (datatype = float[8], order = C_order, storage = rectangular), ( 3 ) = ([0, 0, 0, Array(1..0, 1..2, {}, datatype = float[8], order = C_order)]), ( 4 ) = (Array(1..63, {(1) = 2, (2) = 2, (3) = 0, (4) = 0, (5) = 0, (6) = 0, (7) = 1, (8) = 0, (9) = 0, (10) = 0, (11) = 0, (12) = 0, (13) = 0, (14) = 0, (15) = 0, (16) = 0, (17) = 0, (18) = 1, (19) = 30000, (20) = 0, (21) = 0, (22) = 1, (23) = 4, (24) = 0, (25) = 1, (26) = 15, (27) = 1, (28) = 0, (29) = 1, (30) = 3, (31) = 3, (32) = 0, (33) = 1, (34) = 0, (35) = 0, (36) = 0, (37) = 0, (38) = 0, (39) = 0, (40) = 0, (41) = 0, (42) = 0, (43) = 1, (44) = 0, (45) = 0, (46) = 0, (47) = 0, (48) = 0, (49) = 0, (50) = 50, (51) = 1, (52) = 0, (53) = 0, (54) = 0, (55) = 0, (56) = 0, (57) = 0, (58) = 0, (59) = 10000, (60) = 0, (61) = 1000, (62) = 0, (63) = 0}, datatype = integer[8])), ( 5 ) = (Array(1..28, {(1) = .0, (2) = 0.10e-5, (3) = .0, (4) = 0.500001e-14, (5) = .0, (6) = 0.8012156755304041e-2, (7) = .0, (8) = 0.10e-5, (9) = .0, (10) = .0, (11) = .0, (12) = .0, (13) = 1.0, (14) = .0, (15) = .49999999999999, (16) = .0, (17) = 1.0, (18) = 1.0, (19) = .0, (20) = .0, (21) = 1.0, (22) = 1.0, (23) = .0, (24) = .0, (25) = 0.10e-14, (26) = .0, (27) = .0, (28) = .0}, datatype = float[8], order = C_order)), ( 6 ) = (Array(1..2, {(1) = .0, (2) = -.63}, datatype = float[8], order = C_order)), ( 7 ) = ([Array(1..4, 1..7, {(1, 1) = .0, (1, 2) = .203125, (1, 3) = .3046875, (1, 4) = .75, (1, 5) = .8125, (1, 6) = .40625, (1, 7) = .8125, (2, 1) = 0.6378173828125e-1, (2, 2) = .0, (2, 3) = .279296875, (2, 4) = .27237892150878906, (2, 5) = -0.9686851501464844e-1, (2, 6) = 0.1956939697265625e-1, (2, 7) = .5381584167480469, (3, 1) = 0.31890869140625e-1, (3, 2) = .0, (3, 3) = -.34375, (3, 4) = -.335235595703125, (3, 5) = .2296142578125, (3, 6) = .41748046875, (3, 7) = 11.480712890625, (4, 1) = 0.9710520505905151e-1, (4, 2) = .0, (4, 3) = .40350341796875, (4, 4) = 0.20297467708587646e-1, (4, 5) = -0.6054282188415527e-2, (4, 6) = -0.4770040512084961e-1, (4, 7) = .77858567237854}, datatype = float[8], order = C_order), Array(1..6, 1..6, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (1, 6) = 1.0, (2, 1) = .25, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (2, 6) = 1.0, (3, 1) = .1875, (3, 2) = .5625, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (3, 6) = 2.0, (4, 1) = .23583984375, (4, 2) = -.87890625, (4, 3) = .890625, (4, 4) = .0, (4, 5) = .0, (4, 6) = .2681884765625, (5, 1) = .1272735595703125, (5, 2) = -.5009765625, (5, 3) = .44921875, (5, 4) = -0.128936767578125e-1, (5, 5) = .0, (5, 6) = 0.626220703125e-1, (6, 1) = -0.927734375e-1, (6, 2) = .626220703125, (6, 3) = -.4326171875, (6, 4) = .1418304443359375, (6, 5) = -0.861053466796875e-1, (6, 6) = .3131103515625}, datatype = float[8], order = C_order), Array(1..6, {(1) = .0, (2) = .386, (3) = .21, (4) = .63, (5) = 1.0, (6) = 1.0}, datatype = float[8], order = C_order), Array(1..6, {(1) = .25, (2) = -.1043, (3) = .1035, (4) = -0.362e-1, (5) = .0, (6) = .0}, datatype = float[8], order = C_order), Array(1..6, 1..5, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (2, 1) = 1.544, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (3, 1) = .9466785280815533, (3, 2) = .25570116989825814, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (4, 1) = 3.3148251870684886, (4, 2) = 2.896124015972123, (4, 3) = .9986419139977808, (4, 4) = .0, (4, 5) = .0, (5, 1) = 1.2212245092262748, (5, 2) = 6.019134481287752, (5, 3) = 12.537083329320874, (5, 4) = -.687886036105895, (5, 5) = .0, (6, 1) = 1.2212245092262748, (6, 2) = 6.019134481287752, (6, 3) = 12.537083329320874, (6, 4) = -.687886036105895, (6, 5) = 1.0}, datatype = float[8], order = C_order), Array(1..6, 1..5, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (2, 1) = -5.6688, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (3, 1) = -2.4300933568337584, (3, 2) = -.20635991570891224, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (4, 1) = -.10735290581452621, (4, 2) = -9.594562251021896, (4, 3) = -20.470286148096154, (4, 4) = .0, (4, 5) = .0, (5, 1) = 7.496443313968615, (5, 2) = -10.246804314641219, (5, 3) = -33.99990352819906, (5, 4) = 11.708908932061595, (5, 5) = .0, (6, 1) = 8.083246795922411, (6, 2) = -7.981132988062785, (6, 3) = -31.52159432874373, (6, 4) = 16.319305431231363, (6, 5) = -6.0588182388340535}, datatype = float[8], order = C_order), Array(1..3, 1..5, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (2, 1) = 10.126235083446911, (2, 2) = -7.487995877607633, (2, 3) = -34.800918615557414, (2, 4) = -7.9927717075687275, (2, 5) = 1.0251377232956207, (3, 1) = -.6762803392806898, (3, 2) = 6.087714651678606, (3, 3) = 16.43084320892463, (3, 4) = 24.767225114183653, (3, 5) = -6.5943891257167815}, datatype = float[8], order = C_order)]), ( 9 ) = ([Array(1..2, {(1) = .1, (2) = .1}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, 1..2, {(1, 1) = .0, (1, 2) = .0, (2, 1) = .0, (2, 2) = .0}, datatype = float[8], order = C_order), Array(1..2, 1..2, {(1, 1) = .0, (1, 2) = .0, (2, 1) = .0, (2, 2) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, 1..2, {(1, 1) = .0, (1, 2) = .0, (2, 1) = .0, (2, 2) = .0}, datatype = float[8], order = C_order), Array(1..2, 1..6, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (1, 6) = .0, (2, 1) = .0, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (2, 6) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = 0, (2) = 0}, datatype = integer[8]), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..4, {(1) = .0, (2) = .0, (3) = .0, (4) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = 0, (2) = 0}, datatype = integer[8])]), ( 8 ) = ([Array(1..2, {(1) = .0, (2) = -.63}, datatype = float[8], order = C_order), Array(1..2, {(1) = .0, (2) = .0}, datatype = float[8], order = C_order), Array(1..2, {(1) = -.63, (2) = .6}, datatype = float[8], order = C_order), 0, 0]), ( 11 ) = (Array(1..6, 0..2, {(1, 1) = .0, (1, 2) = .0, (2, 0) = .0, (2, 1) = .0, (2, 2) = .0, (3, 0) = .0, (3, 1) = .0, (3, 2) = .0, (4, 0) = .0, (4, 1) = .0, (4, 2) = .0, (5, 0) = .0, (5, 1) = .0, (5, 2) = .0, (6, 0) = .0, (6, 1) = .0, (6, 2) = .0}, datatype = float[8], order = C_order)), ( 10 ) = ([proc (N, X, Y, YP) option `[Y[1] = phi1(t), Y[2] = diff(phi1(t),t)]`; YP[2] := cos(Y[1])-(16/5)*sin(Y[1]+arcsin(5/8+sin(Y[1])))/(5+8*sin(Y[1])); YP[1] := Y[2]; 0 end proc, -1, 0, 0, 0, 0, 0, 0, 0, 0]), ( 13 ) = (), ( 12 ) = (), ( 15 ) = ("rkf45"), ( 14 ) = ([0, 0]), ( 18 ) = ([]), ( 19 ) = (0), ( 16 ) = ([0, 0, 0, 0, 0, []]), ( 17 ) = ([proc (N, X, Y, YP) option `[Y[1] = phi1(t), Y[2] = diff(phi1(t),t)]`; YP[2] := cos(Y[1])-(16/5)*sin(Y[1]+arcsin(5/8+sin(Y[1])))/(5+8*sin(Y[1])); YP[1] := Y[2]; 0 end proc, -1, 0, 0, 0, 0, 0, 0, 0, 0]), ( 22 ) = (0), ( 23 ) = (0), ( 20 ) = ([]), ( 21 ) = (0), ( 26 ) = (Array(1..0, {})), ( 25 ) = (Array(1..0, {})), ( 24 ) = (0) ] )) ] ); _y0 := Array(0..2, {(1) = 0., (2) = 0.}); _vmap := array( 1 .. 2, [( 1 ) = (1), ( 2 ) = (2) ] ); _x0 := _dtbl[1][5][5]; _n := _dtbl[1][4][1]; _ne := _dtbl[1][4][3]; _nd := _dtbl[1][4][4]; _nv := _dtbl[1][4][16]; if not type(_xout, 'numeric') then if member(_xout, ["start", "left", "right"]) then if _Env_smart_dsolve_numeric = true or _dtbl[1][4][10] = 1 then if _xout = "left" then if type(_dtbl[2], 'table') then return _dtbl[2][5][1] end if elif _xout = "right" then if type(_dtbl[3], 'table') then return _dtbl[3][5][1] end if end if end if; return _dtbl[1][5][5] elif _xout = "method" then return _dtbl[1][15] elif _xout = "storage" then return evalb(_dtbl[1][4][10] = 1) elif _xout = "leftdata" then if not type(_dtbl[2], 'array') then return NULL else return eval(_dtbl[2]) end if elif _xout = "rightdata" then if not type(_dtbl[3], 'array') then return NULL else return eval(_dtbl[3]) end if elif _xout = "enginedata" then return eval(_dtbl[1]) elif _xout = "enginereset" then _dtbl[2] := evaln(_dtbl[2]); _dtbl[3] := evaln(_dtbl[3]); return NULL elif _xout = "initial" then return procname(_y0[0]) elif _xout = "laxtol" then return _dtbl[`if`(member(_dtbl[4], {2, 3}), _dtbl[4], 1)][5][18] elif _xout = "numfun" then return `if`(member(_dtbl[4], {2, 3}), _dtbl[_dtbl[4]][4][18], 0) elif _xout = "parameters" then return [seq(_y0[_n+_i], _i = 1 .. nops(_pars))] elif _xout = "initial_and_parameters" then return procname(_y0[0]), [seq(_y0[_n+_i], _i = 1 .. nops(_pars))] elif _xout = "last" then if _dtbl[4] <> 2 and _dtbl[4] <> 3 or _x0-_dtbl[_dtbl[4]][5][1] = 0. then error "no information is available on last computed point" else _xout := _dtbl[_dtbl[4]][5][1] end if elif _xout = "function" then if _dtbl[1][4][33]-2. = 0 then return eval(_dtbl[1][10], 1) else return eval(_dtbl[1][10][1], 1) end if elif _xout = "map" then return copy(_vmap) elif type(_xin, `=`) and type(rhs(_xin), 'list') and member(lhs(_xin), {"initial", "parameters", "initial_and_parameters"}) then _ini, _par := [], []; if lhs(_xin) = "initial" then _ini := rhs(_xin) elif lhs(_xin) = "parameters" then _par := rhs(_xin) elif select(type, rhs(_xin), `=`) <> [] then _par, _ini := selectremove(type, rhs(_xin), `=`) elif nops(rhs(_xin)) < nops(_pars)+1 then error "insufficient data for specification of initial and parameters" else _par := rhs(_xin)[-nops(_pars) .. -1]; _ini := rhs(_xin)[1 .. -nops(_pars)-1] end if; _xout := lhs(_xout); _i := false; if _par <> [] then _i := `dsolve/numeric/process_parameters`(_n, _pars, _par, _y0) end if; if _ini <> [] then _i := `dsolve/numeric/process_initial`(_n-_ne, _ini, _y0, _pars, _vmap) or _i end if; if _i then `dsolve/numeric/SC/reinitialize`(_dtbl, _y0, _n, procname, _pars); if _Env_smart_dsolve_numeric = true and type(_y0[0], 'numeric') and _dtbl[1][4][10] <> 1 then procname("right") := _y0[0]; procname("left") := _y0[0] end if end if; if _xout = "initial" then return [_y0[0], seq(_y0[_vmap[_i]], _i = 1 .. _n-_ne)] elif _xout = "parameters" then return [seq(_y0[_n+_i], _i = 1 .. nops(_pars))] else return [_y0[0], seq(_y0[_vmap[_i]], _i = 1 .. _n-_ne)], [seq(_y0[_n+_i], _i = 1 .. nops(_pars))] end if elif _xin = "eventstop" then if _nv = 0 then error "this solution has no events" end if; _i := _dtbl[4]; if _i <> 2 and _i <> 3 then return 0 end if; if _dtbl[_i][4][10] = 1 and assigned(_dtbl[5-_i]) and _dtbl[_i][4][9] < 100 and 100 <= _dtbl[5-_i][4][9] then _i := 5-_i; _dtbl[4] := _i; _j := round(_dtbl[_i][4][17]); return round(_dtbl[_i][3][1][_j, 1]) elif 100 <= _dtbl[_i][4][9] then _j := round(_dtbl[_i][4][17]); return round(_dtbl[_i][3][1][_j, 1]) else return 0 end if elif _xin = "eventstatus" then if _nv = 0 then error "this solution has no events" end if; _i := [selectremove(proc (a) options operator, arrow; _dtbl[1][3][1][a, 7] = 1 end proc, {seq(_j, _j = 1 .. round(_dtbl[1][3][1][_nv+1, 1]))})]; return ':-enabled' = _i[1], ':-disabled' = _i[2] elif _xin = "eventclear" then if _nv = 0 then error "this solution has no events" end if; _i := _dtbl[4]; if _i <> 2 and _i <> 3 then error "no events to clear" end if; if _dtbl[_i][4][10] = 1 and assigned(_dtbl[5-_i]) and _dtbl[_i][4][9] < 100 and 100 < _dtbl[5-_i][4][9] then _dtbl[4] := 5-_i; _i := 5-_i end if; if _dtbl[_i][4][9] < 100 then error "no events to clear" elif _nv < _dtbl[_i][4][9]-100 then error "event error condition cannot be cleared" else _j := _dtbl[_i][4][9]-100; if irem(round(_dtbl[_i][3][1][_j, 4]), 2) = 1 then error "retriggerable events cannot be cleared" end if; _j := round(_dtbl[_i][3][1][_j, 1]); for _k to _nv do if _dtbl[_i][3][1][_k, 1] = _j then if _dtbl[_i][3][1][_k, 2] = 3 then error "range events cannot be cleared" end if; _dtbl[_i][3][1][_k, 8] := _dtbl[_i][3][1][_nv+1, 8] end if end do; _dtbl[_i][4][17] := 0; _dtbl[_i][4][9] := 0; if _dtbl[1][4][10] = 1 then if _i = 2 then try procname(procname("left")) catch: end try else try procname(procname("right")) catch: end try end if end if end if; return elif type(_xin, `=`) and member(lhs(_xin), {"eventdisable", "eventenable"}) then if _nv = 0 then error "this solution has no events" end if; if type(rhs(_xin), {('list')('posint'), ('set')('posint')}) then _i := {op(rhs(_xin))} elif type(rhs(_xin), 'posint') then _i := {rhs(_xin)} else error "event identifiers must be integers in the range 1..%1", round(_dtbl[1][3][1][_nv+1, 1]) end if; if select(proc (a) options operator, arrow; _nv < a end proc, _i) <> {} then error "event identifiers must be integers in the range 1..%1", round(_dtbl[1][3][1][_nv+1, 1]) end if; _k := {}; for _j to _nv do if member(round(_dtbl[1][3][1][_j, 1]), _i) then _k := `union`(_k, {_j}) end if end do; _i := _k; if lhs(_xin) = "eventdisable" then _dtbl[4] := 0; _j := [evalb(assigned(_dtbl[2]) and member(_dtbl[2][4][17], _i)), evalb(assigned(_dtbl[3]) and member(_dtbl[3][4][17], _i))]; for _k in _i do _dtbl[1][3][1][_k, 7] := 0; if assigned(_dtbl[2]) then _dtbl[2][3][1][_k, 7] := 0 end if; if assigned(_dtbl[3]) then _dtbl[3][3][1][_k, 7] := 0 end if end do; if _j[1] then for _k to _nv+1 do if _k <= _nv and not type(_dtbl[2][3][4][_k, 1], 'undefined') then userinfo(3, {'events', 'eventreset'}, `reinit #2, event code `, _k, ` to defined init `, _dtbl[2][3][4][_k, 1]); _dtbl[2][3][1][_k, 8] := _dtbl[2][3][4][_k, 1] elif _dtbl[2][3][1][_k, 2] = 0 and irem(iquo(round(_dtbl[2][3][1][_k, 4]), 32), 2) = 1 then userinfo(3, {'events', 'eventreset'}, `reinit #2, event code `, _k, ` to rate hysteresis init `, _dtbl[2][5][24]); _dtbl[2][3][1][_k, 8] := _dtbl[2][5][24] elif _dtbl[2][3][1][_k, 2] = 0 and irem(iquo(round(_dtbl[2][3][1][_k, 4]), 2), 2) = 0 then userinfo(3, {'events', 'eventreset'}, `reinit #2, event code `, _k, ` to initial init `, _x0); _dtbl[2][3][1][_k, 8] := _x0 else userinfo(3, {'events', 'eventreset'}, `reinit #2, event code `, _k, ` to fireinitial init `, _x0-1); _dtbl[2][3][1][_k, 8] := _x0-1 end if end do; _dtbl[2][4][17] := 0; _dtbl[2][4][9] := 0; if _dtbl[1][4][10] = 1 then procname(procname("left")) end if end if; if _j[2] then for _k to _nv+1 do if _k <= _nv and not type(_dtbl[3][3][4][_k, 2], 'undefined') then userinfo(3, {'events', 'eventreset'}, `reinit #3, event code `, _k, ` to defined init `, _dtbl[3][3][4][_k, 2]); _dtbl[3][3][1][_k, 8] := _dtbl[3][3][4][_k, 2] elif _dtbl[3][3][1][_k, 2] = 0 and irem(iquo(round(_dtbl[3][3][1][_k, 4]), 32), 2) = 1 then userinfo(3, {'events', 'eventreset'}, `reinit #3, event code `, _k, ` to rate hysteresis init `, _dtbl[3][5][24]); _dtbl[3][3][1][_k, 8] := _dtbl[3][5][24] elif _dtbl[3][3][1][_k, 2] = 0 and irem(iquo(round(_dtbl[3][3][1][_k, 4]), 2), 2) = 0 then userinfo(3, {'events', 'eventreset'}, `reinit #3, event code `, _k, ` to initial init `, _x0); _dtbl[3][3][1][_k, 8] := _x0 else userinfo(3, {'events', 'eventreset'}, `reinit #3, event code `, _k, ` to fireinitial init `, _x0+1); _dtbl[3][3][1][_k, 8] := _x0+1 end if end do; _dtbl[3][4][17] := 0; _dtbl[3][4][9] := 0; if _dtbl[1][4][10] = 1 then procname(procname("right")) end if end if else for _k in _i do _dtbl[1][3][1][_k, 7] := 1 end do; _dtbl[2] := evaln(_dtbl[2]); _dtbl[3] := evaln(_dtbl[3]); _dtbl[4] := 0; if _dtbl[1][4][10] = 1 then if _x0 <= procname("right") then try procname(procname("right")) catch: end try end if; if procname("left") <= _x0 then try procname(procname("left")) catch: end try end if end if end if; return elif type(_xin, `=`) and lhs(_xin) = "eventfired" then if not type(rhs(_xin), 'list') then error "'eventfired' must be specified as a list" end if; if _nv = 0 then error "this solution has no events" end if; if _dtbl[4] <> 2 and _dtbl[4] <> 3 then error "'direction' must be set prior to calling/setting 'eventfired'" end if; _i := _dtbl[4]; _val := NULL; if not assigned(_EnvEventRetriggerWarned) then _EnvEventRetriggerWarned := false end if; for _k in rhs(_xin) do if type(_k, 'integer') then _src := _k elif type(_k, 'integer' = 'anything') and type(evalf(rhs(_k)), 'numeric') then _k := lhs(_k) = evalf[max(Digits, 18)](rhs(_k)); _src := lhs(_k) else error "'eventfired' entry is not valid: %1", _k end if; if _src < 1 or round(_dtbl[1][3][1][_nv+1, 1]) < _src then error "event identifiers must be integers in the range 1..%1", round(_dtbl[1][3][1][_nv+1, 1]) end if; _src := {seq(`if`(_dtbl[1][3][1][_j, 1]-_src = 0., _j, NULL), _j = 1 .. _nv)}; if nops(_src) <> 1 then error "'eventfired' can only be set/queried for root-finding events and time/interval events" end if; _src := _src[1]; if _dtbl[1][3][1][_src, 2] <> 0. and _dtbl[1][3][1][_src, 2]-2. <> 0. then error "'eventfired' can only be set/queried for root-finding events and time/interval events" elif irem(round(_dtbl[1][3][1][_src, 4]), 2) = 1 then if _EnvEventRetriggerWarned = false then WARNING(`'eventfired' has no effect on events that retrigger`) end if; _EnvEventRetriggerWarned := true end if; if _dtbl[_i][3][1][_src, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_src, 4]), 32), 2) = 1 then _val := _val, undefined elif type(_dtbl[_i][3][4][_src, _i-1], 'undefined') or _i = 2 and _dtbl[2][3][1][_src, 8] < _dtbl[2][3][4][_src, 1] or _i = 3 and _dtbl[3][3][4][_src, 2] < _dtbl[3][3][1][_src, 8] then _val := _val, _dtbl[_i][3][1][_src, 8] else _val := _val, _dtbl[_i][3][4][_src, _i-1] end if; if type(_k, `=`) then if _dtbl[_i][3][1][_src, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_src, 4]), 32), 2) = 1 then error "cannot set event code for a rate hysteresis event" end if; userinfo(3, {'events', 'eventreset'}, `manual set event code `, _src, ` to value `, rhs(_k)); _dtbl[_i][3][1][_src, 8] := rhs(_k); _dtbl[_i][3][4][_src, _i-1] := rhs(_k) end if end do; return [_val] elif type(_xin, `=`) and lhs(_xin) = "direction" then if not member(rhs(_xin), {-1, 1, ':-left', ':-right'}) then error "'direction' must be specified as either '1' or 'right' (positive) or '-1' or 'left' (negative)" end if; _src := `if`(_dtbl[4] = 2, -1, `if`(_dtbl[4] = 3, 1, undefined)); _i := `if`(member(rhs(_xin), {1, ':-right'}), 3, 2); _dtbl[4] := _i; _dtbl[_i] := `dsolve/numeric/SC/IVPdcopy`(_dtbl[1], `if`(assigned(_dtbl[_i]), _dtbl[_i], NULL)); if 0 < _nv then for _j to _nv+1 do if _j <= _nv and not type(_dtbl[_i][3][4][_j, _i-1], 'undefined') then userinfo(3, {'events', 'eventreset'}, `reinit #4, event code `, _j, ` to defined init `, _dtbl[_i][3][4][_j, _i-1]); _dtbl[_i][3][1][_j, 8] := _dtbl[_i][3][4][_j, _i-1] elif _dtbl[_i][3][1][_j, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_j, 4]), 32), 2) = 1 then userinfo(3, {'events', 'eventreset'}, `reinit #4, event code `, _j, ` to rate hysteresis init `, _dtbl[_i][5][24]); _dtbl[_i][3][1][_j, 8] := _dtbl[_i][5][24] elif _dtbl[_i][3][1][_j, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_j, 4]), 2), 2) = 0 then userinfo(3, {'events', 'eventreset'}, `reinit #4, event code `, _j, ` to initial init `, _x0); _dtbl[_i][3][1][_j, 8] := _x0 else userinfo(3, {'events', 'eventreset'}, `reinit #4, event code `, _j, ` to fireinitial init `, _x0-2*_i+5.0); _dtbl[_i][3][1][_j, 8] := _x0-2*_i+5.0 end if end do end if; return _src elif _xin = "eventcount" then if _dtbl[1][3][1] = 0 or _dtbl[4] <> 2 and _dtbl[4] <> 3 then return 0 else return round(_dtbl[_dtbl[4]][3][1][_nv+1, 12]) end if else return "procname" end if end if; if _xout = _x0 then return [_x0, seq(evalf(_dtbl[1][6][_vmap[_i]]), _i = 1 .. _n-_ne)] end if; _i := `if`(_x0 <= _xout, 3, 2); if _xin = "last" and 0 < _dtbl[_i][4][9] and _dtbl[_i][4][9] < 100 then _dat := eval(_dtbl[_i], 2); _j := _dat[4][20]; return [_dat[11][_j, 0], seq(_dat[11][_j, _vmap[_i]], _i = 1 .. _n-_ne-_nd), seq(_dat[8][1][_vmap[_i]], _i = _n-_ne-_nd+1 .. _n-_ne)] end if; if not type(_dtbl[_i], 'array') then _dtbl[_i] := `dsolve/numeric/SC/IVPdcopy`(_dtbl[1], `if`(assigned(_dtbl[_i]), _dtbl[_i], NULL)); if 0 < _nv then for _j to _nv+1 do if _j <= _nv and not type(_dtbl[_i][3][4][_j, _i-1], 'undefined') then userinfo(3, {'events', 'eventreset'}, `reinit #5, event code `, _j, ` to defined init `, _dtbl[_i][3][4][_j, _i-1]); _dtbl[_i][3][1][_j, 8] := _dtbl[_i][3][4][_j, _i-1] elif _dtbl[_i][3][1][_j, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_j, 4]), 32), 2) = 1 then userinfo(3, {'events', 'eventreset'}, `reinit #5, event code `, _j, ` to rate hysteresis init `, _dtbl[_i][5][24]); _dtbl[_i][3][1][_j, 8] := _dtbl[_i][5][24] elif _dtbl[_i][3][1][_j, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_j, 4]), 2), 2) = 0 then userinfo(3, {'events', 'eventreset'}, `reinit #5, event code `, _j, ` to initial init `, _x0); _dtbl[_i][3][1][_j, 8] := _x0 else userinfo(3, {'events', 'eventreset'}, `reinit #5, event code `, _j, ` to fireinitial init `, _x0-2*_i+5.0); _dtbl[_i][3][1][_j, 8] := _x0-2*_i+5.0 end if end do end if end if; if _xin <> "last" then if 0 < 0 then if `dsolve/numeric/checkglobals`(op(_dtbl[1][14]), _pars, _n, _y0) then `dsolve/numeric/SC/reinitialize`(_dtbl, _y0, _n, procname, _pars, _i) end if end if; if _dtbl[1][4][7] = 0 then error "parameters must be initialized before solution can be computed" end if end if; _dat := eval(_dtbl[_i], 2); _dtbl[4] := _i; try _src := `dsolve/numeric/SC/IVPrun`(_dat, _xout) catch: userinfo(2, `dsolve/debug`, print(`Exception in solnproc:`, [lastexception][2 .. -1])); error end try; if _dat[17] <> _dtbl[1][17] then _dtbl[1][17] := _dat[17]; _dtbl[1][10] := _dat[10] end if; if _src = 0 and 100 < _dat[4][9] then _val := _dat[3][1][_nv+1, 8] else _val := _dat[11][_dat[4][20], 0] end if; if _src <> 0 or _dat[4][9] <= 0 then _dtbl[1][5][1] := _xout else _dtbl[1][5][1] := _val end if; if _i = 3 and _val < _xout then Rounding := -infinity; if _dat[4][9] = 1 then error "cannot evaluate the solution further right of %1, probably a singularity", evalf[8](_val) elif _dat[4][9] = 2 then error "cannot evaluate the solution further right of %1, maxfun limit exceeded (see ?dsolve,maxfun for details)", evalf[8](_val) elif _dat[4][9] = 3 then if _dat[4][25] = 3 then error "cannot evaluate the solution past the initial point, problem may be initially singular or improperly set up" else error "cannot evaluate the solution past the initial point, problem may be complex, initially singular or improperly set up" end if elif _dat[4][9] = 4 then error "cannot evaluate the solution further right of %1, accuracy goal cannot be achieved with specified 'minstep'", evalf[8](_val) elif _dat[4][9] = 5 then error "cannot evaluate the solution further right of %1, too many step failures, tolerances may be too loose for problem", evalf[8](_val) elif _dat[4][9] = 6 then error "cannot evaluate the solution further right of %1, cannot downgrade delay storage for problems with delay derivative order > 1, try increasing delaypts", evalf[8](_val) elif _dat[4][9] = 10 then error "cannot evaluate the solution further right of %1, interrupt requested", evalf[8](_val) elif 100 < _dat[4][9] then if _dat[4][9]-100 = _nv+1 then error "constraint projection failure on event at t=%1", evalf[8](_val) elif _dat[4][9]-100 = _nv+2 then error "index-1 and derivative evaluation failure on event at t=%1", evalf[8](_val) elif _dat[4][9]-100 = _nv+3 then error "maximum number of event iterations reached (%1) at t=%2", round(_dat[3][1][_nv+1, 3]), evalf[8](_val) else if _Env_dsolve_nowarnstop <> true then `dsolve/numeric/warning`(StringTools:-FormatMessage("cannot evaluate the solution further right of %1, event #%2 triggered a halt", evalf[8](_val), round(_dat[3][1][_dat[4][9]-100, 1]))) end if; Rounding := 'nearest'; _xout := _val end if else error "cannot evaluate the solution further right of %1", evalf[8](_val) end if elif _i = 2 and _xout < _val then Rounding := infinity; if _dat[4][9] = 1 then error "cannot evaluate the solution further left of %1, probably a singularity", evalf[8](_val) elif _dat[4][9] = 2 then error "cannot evaluate the solution further left of %1, maxfun limit exceeded (see ?dsolve,maxfun for details)", evalf[8](_val) elif _dat[4][9] = 3 then if _dat[4][25] = 3 then error "cannot evaluate the solution past the initial point, problem may be initially singular or improperly set up" else error "cannot evaluate the solution past the initial point, problem may be complex, initially singular or improperly set up" end if elif _dat[4][9] = 4 then error "cannot evaluate the solution further left of %1, accuracy goal cannot be achieved with specified 'minstep'", evalf[8](_val) elif _dat[4][9] = 5 then error "cannot evaluate the solution further left of %1, too many step failures, tolerances may be too loose for problem", evalf[8](_val) elif _dat[4][9] = 6 then error "cannot evaluate the solution further left of %1, cannot downgrade delay storage for problems with delay derivative order > 1, try increasing delaypts", evalf[8](_val) elif _dat[4][9] = 10 then error "cannot evaluate the solution further right of %1, interrupt requested", evalf[8](_val) elif 100 < _dat[4][9] then if _dat[4][9]-100 = _nv+1 then error "constraint projection failure on event at t=%1", evalf[8](_val) elif _dat[4][9]-100 = _nv+2 then error "index-1 and derivative evaluation failure on event at t=%1", evalf[8](_val) elif _dat[4][9]-100 = _nv+3 then error "maximum number of event iterations reached (%1) at t=%2", round(_dat[3][1][_nv+1, 3]), evalf[8](_val) else if _Env_dsolve_nowarnstop <> true then `dsolve/numeric/warning`(StringTools:-FormatMessage("cannot evaluate the solution further left of %1, event #%2 triggered a halt", evalf[8](_val), round(_dat[3][1][_dat[4][9]-100, 1]))) end if; Rounding := 'nearest'; _xout := _val end if else error "cannot evaluate the solution further left of %1", evalf[8](_val) end if end if; if _EnvInFsolve = true then _dig := _dat[4][26]; if type(_EnvDSNumericSaveDigits, 'posint') then _dat[4][26] := _EnvDSNumericSaveDigits else _dat[4][26] := Digits end if; _Env_dsolve_SC_native := true; if _dat[4][25] = 1 then _i := 1; _dat[4][25] := 2 else _i := _dat[4][25] end if; _val := `dsolve/numeric/SC/IVPval`(_dat, _xout, _src); _dat[4][25] := _i; _dat[4][26] := _dig; [_xout, seq(_val[_vmap[_i]], _i = 1 .. _n-_ne)] else Digits := _dat[4][26]; _val := `dsolve/numeric/SC/IVPval`(eval(_dat, 2), _xout, _src); [_xout, seq(_val[_vmap[_i]], _i = 1 .. _n-_ne)] end if end proc, (2) = Array(0..0, {}), (3) = [t, phi1(t), diff(phi1(t), t)], (4) = []}); _vars := _dat[3]; _pars := map(rhs, _dat[4]); _n := nops(_vars)-1; _solnproc := _dat[1]; if not type(_xout, 'numeric') then if member(x_rkf45, ["start", 'start', "method", 'method', "left", 'left', "right", 'right', "leftdata", "rightdata", "enginedata", "eventstop", 'eventstop', "eventclear", 'eventclear', "eventstatus", 'eventstatus', "eventcount", 'eventcount', "laxtol", 'laxtol', "numfun", 'numfun', NULL]) then _res := _solnproc(convert(x_rkf45, 'string')); if 1 < nops([_res]) then return _res elif type(_res, 'array') then return eval(_res, 1) elif _res <> "procname" then return _res end if elif member(x_rkf45, ["last", 'last', "initial", 'initial', "parameters", 'parameters', "initial_and_parameters", 'initial_and_parameters', NULL]) then _xout := convert(x_rkf45, 'string'); _res := _solnproc(_xout); if _xout = "parameters" then return [seq(_pars[_i] = _res[_i], _i = 1 .. nops(_pars))] elif _xout = "initial_and_parameters" then return [seq(_vars[_i+1] = [_res][1][_i+1], _i = 0 .. _n), seq(_pars[_i] = [_res][2][_i], _i = 1 .. nops(_pars))] else return [seq(_vars[_i+1] = _res[_i+1], _i = 0 .. _n)] end if elif type(_xout, `=`) and member(lhs(_xout), ["initial", 'initial', "parameters", 'parameters', "initial_and_parameters", 'initial_and_parameters', NULL]) then _xout := convert(lhs(x_rkf45), 'string') = rhs(x_rkf45); if type(rhs(_xout), 'list') then _res := _solnproc(_xout) else error "initial and/or parameter values must be specified in a list" end if; if lhs(_xout) = "initial" then return [seq(_vars[_i+1] = _res[_i+1], _i = 0 .. _n)] elif lhs(_xout) = "parameters" then return [seq(_pars[_i] = _res[_i], _i = 1 .. nops(_pars))] else return [seq(_vars[_i+1] = [_res][1][_i+1], _i = 0 .. _n), seq(_pars[_i] = [_res][2][_i], _i = 1 .. nops(_pars))] end if elif type(_xout, `=`) and member(lhs(_xout), ["eventdisable", 'eventdisable', "eventenable", 'eventenable', "eventfired", 'eventfired', "direction", 'direction', NULL]) then return _solnproc(convert(lhs(x_rkf45), 'string') = rhs(x_rkf45)) elif _xout = "solnprocedure" then return eval(_solnproc) elif _xout = "sysvars" then return _vars end if; if procname <> unknown then return ('procname')(x_rkf45) else _ndsol := 1; _ndsol := _ndsol; _ndsol := pointto(_dat[2][0]); return ('_ndsol')(x_rkf45) end if end if; try _res := _solnproc(_xout); [seq(_vars[_i+1] = _res[_i+1], _i = 0 .. _n)] catch: error end try end proc

 (4)

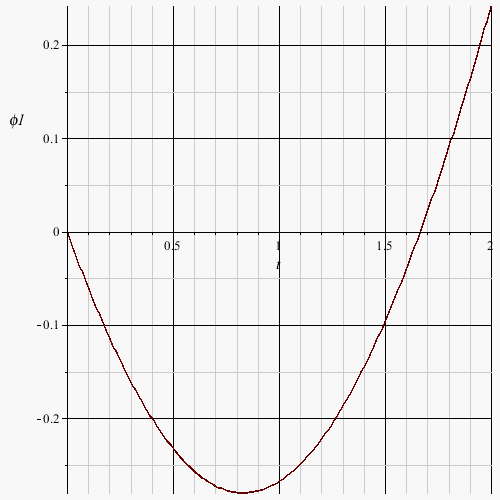

plots:-odeplot(hz1, [t, phi1(t)], t = 0 .. 2)



``




Download solveODE2.mw

High Risk...

tomleslie 13876
May 26 2020
0 0

@dharr

OP has previously provided "code" in text form in the file  proce.txt, which you can dump into an editor of your choice.

I would advise against even trying to run any of this code because

  1. it contains multiple "system()" calls which manipulate some files outside the Maple session!
  2. it will probably only work on a unix system since some of these system calls are using tools such as sed(),  which is a pretty ancient (unix-only?) editor, and grep(), which is a (unix-only?) "regular exression" tool



Another $0.02...

tomleslie 13876
May 25 2020
0 0

@janhardo

This time with a revised definition of your original function, and tangents drawn throught eh inflection points of this "revised" function

You shoul be aware that there is nothing more annoying than a poster who is completely asking an accurate question!

>

  restart:
  with(plots):
  fprime_expr:=x^sin(x):
  getRoots:=proc( g::procedure)
                  local x__old:=0,
                        x__new:=[],
                        rt:
                  while true do
                        rt:= RootFinding:-NextZero(g, x__old):
                        if   rt <16
                        then x__new:=[x__new[], rt];
                             x__old:=x__new[-1];
                        else break;
                        fi;
                  od:
                  return x__new
            end proc:
>

#

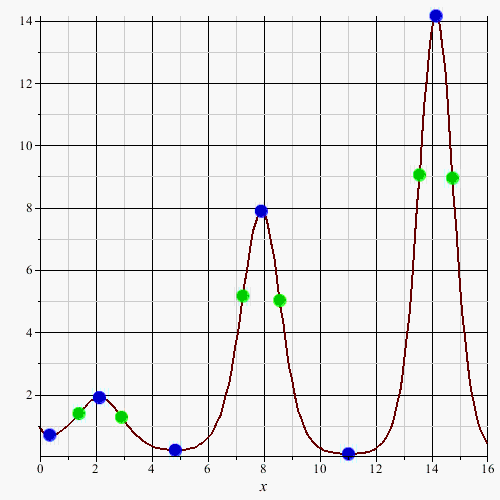

# Plot the curve given by fprime_expr
#
  p1:= plot(fprime_expr, x=0..16, thickness=2):

#
# Plot the "extrema" of the function fprime_expr
# ie the points where diff( fprime_expr, x) = 0
#
  p3:= pointplot( [ seq( [j, eval(fprime_expr, x=j)],
                         j in getRoots( unapply(diff(fprime_expr,x),x))
                       )
                  ],
                  symbol=solidcircle,
                  symbolsize=20,
                  color=blue
                ):
#
# Plot the "inflection" of the function fprime_expr
# ie the points where diff( fprime_expr, x,x) = 0
#
  p4:= pointplot( [ seq( [j, eval(fprime_expr, x=j)],
                         j in getRoots( unapply(diff(fprime_expr,x,x),x))
                       )
                  ],
                  symbol=solidcircle,
                  symbolsize=20,
                  color=green                ):
  display([p1,p3,p4]);


>

#

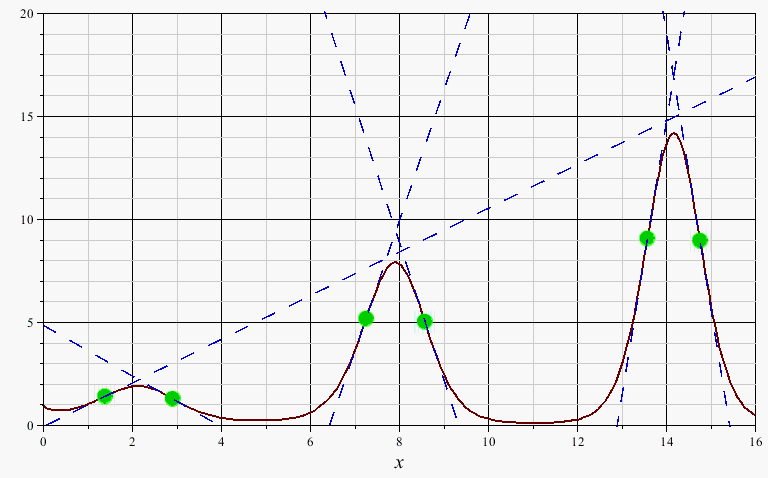

# Now draw tangents through the "inflection" points
#
  with(Student[Calculus1]):
  p5:= plot
       ( [ seq
           ( Tangent
             ( fprime_expr,
               j
             ),
             j in getRoots
                  ( unapply(diff(fprime_expr,x,x),x))
           )
         ],
         x=0..16,
         color=blue,
         linestyle=spacedash
       ):
  display([p1,p4,p5],view=[0..16,0..20]);


>



Download inftan.mw

I'm having a bad day...

tomleslie 13876
May 24 2020
0 0

@acer

Simple fix - see attached




>

  restart:
  with(plots):
  fprime_expr:=x^sin(x)*(cos(x)*ln(x)+sin(x)/x):
  getRoots:=proc( g::procedure)
                  local x__old:=0,
                        x__new:=[],
                        rt:
                  while true do
                        rt:= RootFinding:-NextZero(g, x__old):
                        if   rt <10
                        then x__new:=[x__new[], rt];
                             x__old:=x__new[-1];
                        else break;
                        fi;
                  od:
                  return x__new
            end proc:
>

#

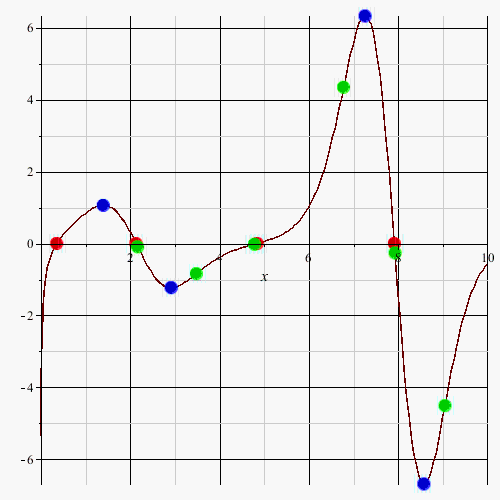

# Plot the curve given by fprime_expr
#
  p1:= plot(fprime_expr, x=0..10):
#
# Plot the "roots" of the function fprime_expr
# ie the points where fprime_expr=0
#
  p2:= pointplot( [ seq( [j, eval(fprime_expr, x=j)],
                        j in getRoots( unapply(fprime_expr,x))
                      )
                  ],
                  symbol=solidcircle,
                  symbolsize=20,
                  color=red
                ):

#
# Plot the "extrema" of the function fprime_expr
# ie the points where diff( fprime_expr, x) = 0
#
  p3:= pointplot( [ seq( [j, eval(fprime_expr, x=j)],
                         j in getRoots( unapply(diff(fprime_expr,x),x))
                       )
                  ],
                  symbol=solidcircle,
                  symbolsize=20,
                  color=blue
                ):
#
# Plot the "inflection pointd" of the function fprime_expr
# ie the points where diff( fprime_expr, x,x) = 0
#
  p4:= pointplot( [ seq( [j, eval(fprime_expr, x=j)],
                         j in getRoots( unapply(diff(fprime_expr,x,x),x))
                       )
                  ],
                  symbol=solidcircle,
                  symbolsize=20,
                  color=green                ):
  display([p1,p2, p3,p4]);


>






Download rootInf2.mw

Read the original error message!!!...

tomleslie 13876
May 24 2020
0 0

@Lisa6

which says (emphasis added)

"Error, (in monspt) invalid input: ArrayTools:-Reverse expects its 1st argument, A, to be of type rtable, but received [[0, 4], [1, 3], [2, 2], [3, 1], [4, 0], [0, 3], [1, 2], [2, 1], [3, 0], [0, 2], [1, 1], [2, 0], [0, 1], [1, 0], [0, 0]]"

Now look at the code for the procedure 'monspt' in the file proce.txt, reproduced below

monspt := proc(n,d)
          return Reverse(revmons(n,d)):
end;

Think really hard - which 'Reverse' command in the procedure 'monspt' do you imagine is causing the problem????

Why might this happen?? Well the first line in the file proce.txt, is

with(combinat):with(ListTools): with(ArrayTools): with(LinearAlgebra):with(convex):

Both the Listtools() package and the ArrayTools() package contain a 'Reverse()' command. Since ArrayTools occurs after ListTools in the above statement, all subsequent code will use the ArrayTools:-Reverse() command rather than the ListTools:-Reverse() command.

The Reverse() command was only added to the ArrayTools package in Maple 2019, and maybe the code you are using for proce.txt, is "older" and intended ListTools:-Reverse to be used in the procedure monspt(). Quick and dirty way to check is to change the definition of the procedure monspt given above to

monspt := proc(n,d)
          return ListTools:-Reverse(revmons(n,d)):
end;

and see what happens

"Partial" reverse...

tomleslie 13876
May 24 2020
0 0

@Kitonum

By default ListTools:-Reverse() reverses entries in a list - it does not reverse the entries in the sublists.

Note that in the "toy" example I gave, the Array is 3*2. Consider the numbering as 1..6: ArrayTools:-Reverse changes this to 6..1. So for example the entry at [3,2], becomes [1,1]

From the Export() help page...

tomleslie 13876
May 24 2020
0 0

@swickram

supported formats are

BMP             BSON           BYU        CNF       CSV         DGML
DIF             Digraph6     DIMACS     DOT       DXF         FASTA
FASTQ       GenBank       GEXF       GIF      Graph6      Graphlet
GraphML        GXL           GZIP        INI         JGF          JPEG
JSON             JVX           LEDA     MathML    MAT    MatrixMarket
MetaPost       MLA           MPL        MW         OBJ           ODS
OFF              Pajek          PLY      SMTLIB   Sparse6       STL
SXC              Text            TGF        TSV         Text       UBJSON
VTK              WMF          XLS        XLSX        XML         YAML
ZIP                ZLIB

'SVG' is not on this list

In addition, the help page at ?plottools:-exportplot() supports the following formats

GIF, JPEG, TIFF
BYU, DXF, COLLADA, JVX, OBJ, OFF, PLY, POV, STL, VTK, WMF

again, no SVG

The help page at ?Formats, does list SVG as "supported" - but also contains the phrase (my highlighting)

The Import and Export commands can be used for programmatically reading from and writing to many of these formats.

Noter - it says "many", not all.

After a quick trawl through the Maple 'help' pages - the only method I can find for exporting to SVG, is the one I used in my original post. It may be (ought to be?) possible to do this programmatically, but I can't figure out how - sorry:-(









First 49 50 51 52 53 54 55 Last Page 51 of 207
