## Animating Pacman

Maple
This post in reply to the Post, Plotting Pacman

I've received a suggestion offline saying that I should animate the Pacman. There are two items to animate: Pacman's mouth and pac-dots. To review how pacman's mouth moves, please have a quick look at Google Pacman doodle.

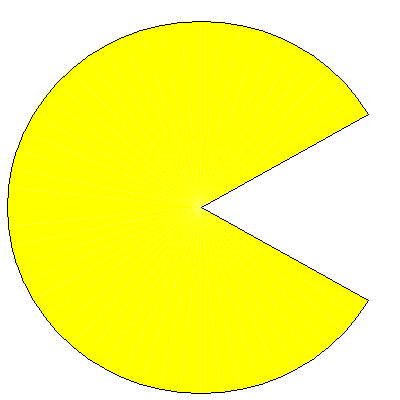

Pacman's mouth only has three stages: open, half open and close. Let's take the pacman that I created in the previous post. Each frame of the animation is done by adjusting the radian values of the "pie" (aka Pacman's body and mouth).

`body := proc(n)     plots[display](        plottools[pieslice]([0, 0], 5, (1/6)*Pi-(1/12)*n*Pi .. (11/6)*Pi+(1/12)*n*Pi,             color = yellow)    ) end proc;plots[animate](body, [n], n = [0, 1, 2, 1], title = "", axes=none);`

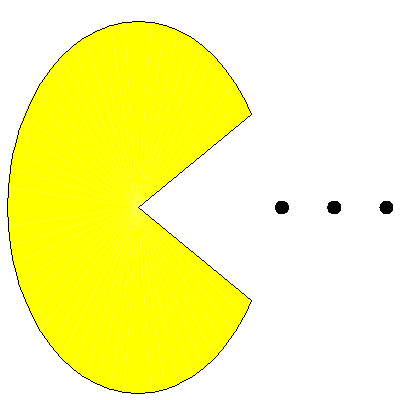

Let's put some Pac-dots on Pacman's way.

`frame := proc(n)     plots[display](        [ plots[pointplot]([[5.5-(mod(n, 2)), 0], [7.5-(mod(n, 2)), 0], [9.5-(mod(n, 2)), 0]],              color = black, symbol = solidcircle, symbolsize = 30),           plottools[pieslice]([0, 0], 5, (1/6)*Pi-(1/12)*n*Pi .. (11/6)*Pi+(1/12)*n*Pi,              color = yellow)        ]    ) end proc;plots[animate](frame, [n], n = [0, 1, 2, 1], title = "", axes = none);`

(Easy) Challenge problem: Animate how Pacman disintegrates when one life is lost.

It would be lovely if someone can plot a 3D Pacman! :)

﻿
