# Question:Iterative method in 3 dimensions

## Question:Iterative method in 3 dimensions

Maple

Hi Everyone:)

I'm doing a mini project at the moment and I'm pretty stuck with how to go about something on Maple...

My aim is to get the catenoid from an initial cylinder by use of an iterative method.

To find the minimal surface r=g(θ,z) - the catenoid - I want to minimise the Dirichlet integral (in cylindrical polar coordinates)

so that for ,

and

I have the initial points on the cylinder (mostly thanks to people on this website)

Numerical Approximation of Minimal Surfaces:

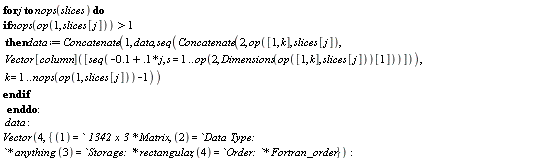

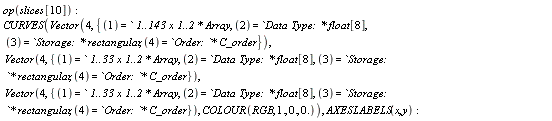

Getting the points of the cylinder to be moved:

Convert the points in to cylindrical coordinates:

The Matrices R[i,j], θ[i,j] and Z[i,j] for using in the iteration:

I have the relaxation methods

and

where a[i] are all of the coordinates of the surface, λ[i] is the maximum eigenvalue of the Hessian and w is the relaxation parameter.

When I differentiated G with respect to a[i], it ended up with 0 in the RHS of the first method already due to the radius values all being the same (cylinder).  The paper I've been looking at agrees with this being zero, so they suggest to use the second relaxation method... Calculating the hessian was fine but the eigenvalues took so long to get out I stopped the calculation because it seemed unlikely to need that long.

If anyone has any ideas on how to do this I'll be eternally grateful!

Thanks,

Rach

﻿
