Question: intersecting planes

Hello everybody. My lovely Dutch math book is progressing. Last week ive been scanning a copy of Advanced Engineering Mathematics from the library, a grueling task which took me 24 full hours to complete. But ive got a book that should be able to teach it with the right mindset and social contract (this Dutch book is too distracting, i cant even think). I will finish it though.. The sturdy that stands i guess.

Any way the problem here is that the side from which a line interfaces with a shape in the 3D plane only has an x component and is lacking a y and z component. So the calculations are impossilbe, because you cant devide through 0. I suspect its something simple, but like said the repertoire is so terrible it feels like im scrambled eggs if i even remotely think about solving the problem. The facade makes the man right? Feels more like one of these spagetti westerns with only a frontage without anything behind it.

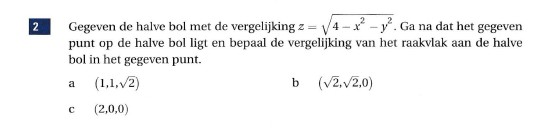

The Question is as follows (translated from Dutch): "Given is the half ball with the equation z=sqrt(4-x^2-y^2). Check that the given point lays on the half ball and determin the eqation of the interface with the half ball in the given point."

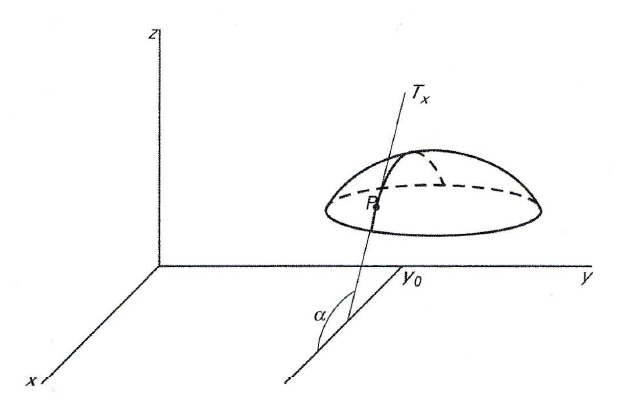

So basically have a vector from that given point that will hit the surface of the half ball.


#Opdracht 2

#a.

restart

z := sqrt(-x^2-y^2+4)

(-x^2-y^2+4)^(1/2)

(1)

"f(x,y):=sqrt(4-x^2-y^2)"

proc (x, y) options operator, arrow, function_assign; sqrt(-x^2-y^2+4) end proc

(2)

a := f(1, 1, sqrt(2))

2^(1/2)

(3)

partafgx := D[1](f)

proc (x, y) options operator, arrow, function_assign; -x/(-x^2-y^2+4)^(1/2) end proc

(4)

b := partafgx(1, 1, sqrt(2))

-(1/2)*2^(1/2)

(5)

c := (D[2](f))(1, 1, sqrt(2))

-(1/2)*2^(1/2)

(6)

raakvlak := z-a = b*(x-1)+c*(y-1)

z-2^(1/2) = -(1/2)*2^(1/2)*(x-1)-(1/2)*2^(1/2)*(y-1)

(7)

evalc(%)

z-2^(1/2) = -(1/2)*2^(1/2)*x+2^(1/2)-(1/2)*2^(1/2)*y

(8)

z = solve(raakvlak, z)

z = -(1/2)*2^(1/2)*x+2*2^(1/2)-(1/2)*2^(1/2)*y

(9)

#b.

restart

"f(x,y):=sqrt(4-x^2-y^2)"

proc (x, y) options operator, arrow, function_assign; sqrt(4-x^2-y^2) end proc

(10)

a := f(2, 0, 0)

0

(11)

partafgx := D[1](f)

proc (x, y) options operator, arrow, function_assign; -x/(4-x^2-y^2)^(1/2) end proc

(12)

b := partafgx(2, 0, 0)

Error, (in partafgx) numeric exception: division by zero



c := (D[2](f))(2, 0, 0)

Error, (in unknown) numeric exception: division by zero



raakvlak := z-a = b*(x-2)+c*y

z = b*(x-2)+c*y

(13)

z = solve(raakvlak, z)

z = b*x+c*y-2*b

(14)

#ik krijg er niets uit wat ergens op lijkt

#c.

restart

"f(x,y):=sqrt(4-x^2-y^2)"

proc (x, y) options operator, arrow, function_assign; sqrt(4-x^2-y^2) end proc

(15)

a := f(sqrt(2), sqrt(2), 0)

0

(16)

partafgx := D[1](f)

proc (x, y) options operator, arrow, function_assign; -x/(4-x^2-y^2)^(1/2) end proc

(17)

b := partafgx(sqrt(2), sqrt(2), 0)

Error, (in partafgx) numeric exception: division by zero



c := (D[2](f))(sqrt(2), sqrt(2), 0)

Error, (in unknown) numeric exception: division by zero



raakvlak := z-a = b*(x-sqrt(2))+c*sqrt(2)

z = b*(x-2^(1/2))+c*2^(1/2)

(18)

z = solve(raakvlak, z)

z = -b*2^(1/2)+c*2^(1/2)+b*x

(19)

``

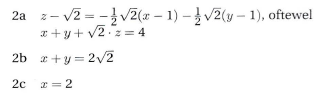

Thank you very much. The first answer "a" was right, but for the other ones, this method they gave does not work.

Greetings,

The Function

Download Mapleprimes_Question_Book_2_Paragraph_5.5_Question_2b_2c.mw
