How do I create a product of list elemen...

Honigmelone 102 Maple
August 28 2023
1 1

Hello,

I want to create an product expression from all list elements,

e.g.

expr := createproduct([a,b,c,d,1]);

expr:= a*b*c*d

Context; I'd like to apply a function on all factos of a polynomial. I can easily map(fun,factors(apolynomial)) which will output a list. However I do not know how to get back.

Thanks for your comments!

How to optimize with an interpolated fun...

Honigmelone 102 Maple 2018
interpolation optimization
February 05 2020
2 4

Hi,

I want to optimize a function f(g(e(x),x))  where g(x) is interpolated and e(x) is not known when the interpolation object is created. I found the intpolation Methods of Maple 2018 very helpful to quickly change the inpterpolation method.

Unfotunately the optimization fails when the interpolation object receives an expression as input.

It works if I just use x. Do you know my the first approach fails?

Is there maybe a way to convert the interpolation object to a piecewise function?



Thank you for your help


>

# Optimize with Interpolation Object
>


points :=  <<0.4000|  10.0000>,
            <0.7000|   10.0000>,
            <1.0000|   10.0000>,
            <0.3000|   30.0000>,
            <0.4000|   30.0000>,
            <0.5000|   30.0000>>;

Data := <0617,0767,0220,0444,0692,0789>*0.001;

intmethod := LinearInterpolation;

g := Interpolation[intmethod](points(1..-1,1),Data):

Matrix(6, 2, {(1, 1) = .4000, (1, 2) = 10.0000, (2, 1) = .7000, (2, 2) = 10.0000, (3, 1) = 1.0000, (3, 2) = 10.0000, (4, 1) = .3000, (4, 2) = 30.0000, (5, 1) = .4000, (5, 2) = 30.0000, (6, 1) = .5000, (6, 2) = 30.0000})



Vector[column](%id = 18446884324022199230)



LinearInterpolation

 (1)
>

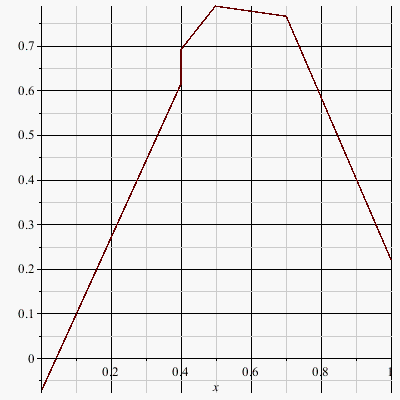

plot(g(x),x=0..1)


>

e := x/sqrt(2);

(1/2)*x*2^(1/2)

 (2)
>

f := 5+g(e)*x^2

"5+(module() ... end module)(module() ... end module,1/2 x sqrt(2)) x^2"

 (3)
>

f_simple := 5+g(x)*x^2

"f_simple:=5+[[["a linear interpolation object"],["with 6 points in 1-D"]]](x) x^2"

 (4)
>

op_f := Optimization[Minimize](f(x),x=0 .. 1);

Error, (in Optimization:-NLPSolve) non-numeric result encountered


>

op_f_simple := Optimization[Minimize](f_simple(x),x=0 .. 1);

[HFloat(4.999979117244145), [x = HFloat(0.028901647183245588)]]

 (5)
>



NULL




Download convert_interpolation_object.mw





Remove Assumptions for Code Generation...

Honigmelone 102 Maple
codegeneration assuming codegen
July 27 2018
0 3

Hi,

this has been asked before but none of the other answers worked for me. I want to generate code from expressions that were simplified using some assumptions. I the assumptions remain on the variables Maple replaces variable names wich I don't understand.

Here is my script where I tried to remove the assumptions based on the answers of previous questions. Unfortunately, even though assumptions are removed in the end, Code generation still replaces the variables.

Thank you in advance!

Here is my minimal exaple Code:

>



>

restart:
>



>

# test removing assumptions
>

funa:=x+y

x+y

 (1)
>

 Maple_proc := codegen[makeproc](funa,(ListTools[Flatten]([eval(alist,1)])));

proc (alist) x+y end proc

 (2)
>

# make some assumptions
>

assume(x,real);assume(y,real);
>

x,y

x, y

 (3)
>

#place variables in a list
>

alist:=[x,y];

[x, y]

 (4)
>

# make cool interferences with assumptions...
>

# clear assumptions

>

# try 1 from https://www.mapleprimes.com/questions/207601-Remove-Assumptions-
>

nms:=convert(indets(alist,name),list);
nmsS:=convert~(nms,string);
L:=StringTools:-Substitute~(nmsS,"~",""); #Removing "~"
L1:=parse~(L);
S:=nms=~L1;
Expr:=subs(S,expr);

[x, y]



["x~", "y~"]



["x", "y"]



[x, y]



[x = x, y = y]



expr

 (5)
>

hasassumptions(x)

true

 (6)
>

# try 2

>

nops(alist)

2

 (7)
>

for i from 1 to nops(alist) do
parse(cat(StringTools[Substitute]~(alist[i],"~",""),":='",StringTools[Substitute]~(alist[i],"~",""),"'"));
end do;

'x'



'y'

 (8)
>

# check if assumtions are there
>

hasassumptions(x)

true

 (9)
>

#try 3 https://www.mapleprimes.com/questions/39555-Unassume
>

for u in alist do
`property/object`[u]:=evaln(`property/object`[u]);
`property/OrigName`[u]:=evaln(`property/OrigName`[u]);
end do;

`property/object`[x]



`property/OrigName`[x]



`property/object`[y]



`property/OrigName`[y]

 (10)
>

hasassumptions(x)

false

 (11)
>

hasassumptions(y)

false

 (12)
>

alist

[x, y]

 (13)
>

funb:=x+y

x+y

 (14)
>

 Maple_proc := codegen[makeproc](funb,(ListTools[Flatten]([eval(alist,1)])));

proc (x, y) x+y end proc

 (15)
>

 Maple_proc := codegen[makeproc](funa,(ListTools[Flatten]([eval(alist,1)])));

proc (x, y) x+y end proc

 (16)
>



>

 CodeGeneration[C](Maple_proc, optimize, declare=[x::float,y::float], defaulttype=float, deducetypes=false, coercetypes=false, output="fun.c");

Warning, the following variable name replacements were made: x~ -> cg, y~ -> cg1


>



>


>



>



>



>



>



>



>




Download testunassuming.mw

How to handle piecewise defined matrix v...

Honigmelone 102 Maple
matrix overload diff
September 18 2017
2 0

Hi,

I have some matrix valued functions that that I can only define piecewise. Unfortunately I have some problems to manipulate those functions. Piecewise sees to do the job for  scalar valued functions. There I can easily differentiale and add results. For Matrix valued functions however, those features seem to not be availible.


I can work around these limitations by manually applying all operations to the operands of the piecewise function. Like I show here:




>

restart:
>

# a piecewise function
>

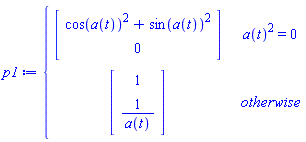

p1:=piecewise(a(t)^2=0,<cos(a(t))^2+sin(a(t))^2,0>,<1,1/a(t)>)

p1 := piecewise(a(t)^2 = 0, Vector(2, {(1) = cos(a(t))^2+sin(a(t))^2, (2) = 0}), Vector(2, {(1) = 1, (2) = 1/a(t)}))

 (1)
>

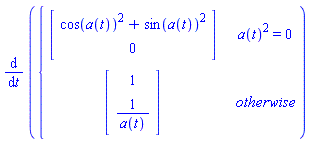

# differentiation does not work
>

diff(p1,t)

diff(piecewise(a(t)^2 = 0, Vector(2, {(1) = cos(a(t))^2+sin(a(t))^2, (2) = 0}), Vector(2, {(1) = 1, (2) = 1/a(t)})), t)

 (2)
>

# selecting individual entries does not work
>

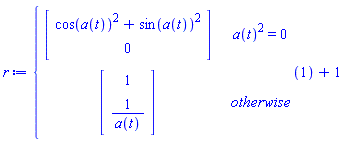

r:=p1(1)+1

r := (piecewise(a(t)^2 = 0, Vector(2, {(1) = cos(a(t))^2+sin(a(t))^2, (2) = 0}), Vector(2, {(1) = 1, (2) = 1/a(t)})))(1)+1

 (3)
>

# strange simplification behaviour
>

simplify(p1)

piecewise(t = RootOf(a(_Z)), _z1(RootOf(a(_Z))), Vector(2, {(1) = 1, (2) = 1/a(t)}))

 (4)
>

# current workaround, define new piecewise function by using op
>

r:=piecewise(op(1,p1),op(2,p1)(1)+1,op(3,p1)(1)+1)

r := piecewise(a(t)^2 = 0, cos(a(t))^2+sin(a(t))^2+1, 2)

 (5)
>






Download Scratch.mw



I think my workaround is very cumbersome and error prone. Is there a better way to tackle this probem? Or should I try to overload all needed operations, and is this even possible?

Thanks for all suggestions!

Honigmelone

Problem with codegen applied to a rectan...

Honigmelone 102 Maple 2017
matrix codegen export
June 19 2017
1 0

Hey,

I am using codegen to generate code from Maple expressions. More specifically I want to export non quadratic matix. The export works for matrices that have more columns than rows, but not for matrices with more rows than columns. There I receive the error:

Error, (in codegen/array/entry) 2nd index, 3, larger than upper array bound 2

A workaround would be to transpose the matrix before the export, and to transpose on the import (in Matlab) but I don't want to overcomplicate my code. Thanks for your help!

I have attached a demonstration worksheet below.



>

## test codegen non quadratic returnarray
>

## works
#Myfun := Matrix(3,3)
>

## works
#Myfun := Matrix(2,3):Myfun(2,3):= 3*b;
>

## does not work
Myfun := Matrix(3,2):Myfun(3,2):= 3*b;

Myfun := Matrix(3, 2, {(1, 1) = 0, (1, 2) = 0, (2, 1) = 0, (2, 2) = 0, (3, 1) = 0, (3, 2) = 3*b})

 (1)
>

Myfun(1):= 7*a;

Myfun := Matrix(3, 2, {(1, 1) = 7*a, (1, 2) = 0, (2, 1) = 0, (2, 2) = 0, (3, 1) = 0, (3, 2) = 3*b})

 (2)
>

## codegen works best with arraybased matrices, and call by reference becomes possible
>

returnArray:= convert(Myfun,matrix)

returnArray := Matrix(3, 2, {(1, 1) = 7*a, (1, 2) = 0, (2, 1) = 0, (2, 2) = 0, (3, 1) = 0, (3, 2) = 3*b})

 (3)
>

codegen[makeproc](Myfun,[a,b])

Error, (in codegen/array/entry) 2nd index, 3, larger than upper array bound 2


>

codegen[makeproc](returnArray,[returnArray,a,b])

Error, (in codegen/array/entry) 2nd index, 3, larger than upper array bound 2


>

codegen[makeproc](returnArray,[a,b])

Error, (in codegen/array/entry) 2nd index, 3, larger than upper array bound 2


>






Download codegen_rectangular_matrix.mw
