definite integral?...

J4James 355
November 26 2013
0 1

Its a definite integral, how we are suppose to plot it?

restart:

a:=1:

f:=(a*cos(u*x)+u*sin(u*x))/a^2+u^2;

1/Pi*int(f,x=-1..3,u=0...20);

evalf(%);

             3396.626292

or you want to just plot the function

f(u,x)=(a*cos(u*x)+u*sin(u*x))/a^2+u^2 ?

or you want to plot the  1/Pi*int(f,u=0..20)?

If this is the case then

1/Pi*int(f,u=0..20);

f1:=evalf(%);

plot(f1,x=-1..3,color=green);

plot...

J4James 355
November 25 2013
1 0

restart:with(plots):
a:=1: k:=10^(-6):
U:=1-1/2*erf((x+a)/(2*sqrt(k*t)))+1/2*erf((x-a)/(2*sqrt(k*t)));

plot([subs(t=10^(5),U),subs(t=10^(6),U)],x=-5..5,color=[red,green]);

white hand button...

J4James 355
November 23 2013
1 6



When there is an operation going on you will see a white hand button on the tool/taskbar which can be used to stop the current operations/calculations.

Thanks

syntax error...

J4James 355
November 22 2013
1 4

restart:

u:=integrate(q[i],i=0..M); # this is wrong

I made a mistake, My bad!

Edit:

u:=int(q(i),i=0..M);

q(i) is an unknow function, how can we int or diff?

dsolve/numeric/classical...

J4James 355
November 16 2013
0 3

What @Carl Love  is trying to say is that there are variety of numerical build in methods available in maple LAB.

For Runge Kutta 4th order method, you need to convert your ode to a system of first order equations then you can try to solve it numerically. So, to avoid that much work, @Carl Love is suggesting that you should use a buildin numerical method for IVPs. (@Carl Love, If my interpretation is wrong then please feel free to correct me?)

Anyway, here is what I think you are looking for,



restart:with(plots):

k_1:=1:sigma:=1: # @Carl Love correctly mentioned that we need values for k_1 and sigma.

dsys1 := {diff(theta(eta), eta, eta)+sigma*sqrt(1+k_1)*(1-exp(-eta/sqrt(1+k_1)))*

(diff(theta(eta), eta)) = 0, theta(0) = 1, (D(theta))(0) = 0}:



p:=dsolve(dsys1, numeric, method=classical[rk4], output=listprocedure): # I have updated the method as was suggested by Carl (dsolve/numeric/classical)



odeplot(p, [eta,theta(eta)], 0..10, numpoints=250); The plotting result of your ode.

Thanks





syntax issues...

J4James 355
November 13 2012
0 0

FIrst of all you need to type in the correct synatx for a system of ODE or just ODE.

Which should be

restart:with(plots):

Eq1:=diff(x(t),t)+.01(.1*x(t)+.1)^2*a+.01*.03*y(t)*(1+x(t))*b+.02*.01*c*(z(t)+5)*(x(t)+1)=0;

Eq2:=diff(y(t),t)+.01*.03*y(t)*(1+x(t))*a+.01*.09*y(t)^2+.01*.06*y(t)*(z(t)+5)*c=0;

Eq3:=diff(z(t),t)+.02*.01*a*(z(t)+5)*(x(t)+1)+.01*.06*y(t)*(z(t)+5)*b+.01*.04*(z(t)+5)^2*c=0;

I was unable to find the analytical solution, so tried numerical.

For which I took bcs of this type

bc:=x(0)=0,y(0)=0,z(0)=0;

assumed the constant to be

a:=1:b:=1:c:=1:

sol:=dsolve([Eq1,Eq2,Eq3,bc],numeric,output = array([seq(0.1e-1*i, i = 0 .. 110)]));

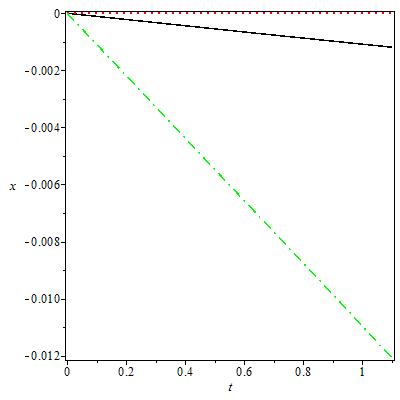

p1 := odeplot(sol, [t, x(t)], linestyle = 1, color = black ):

p2 := odeplot(sol, [t, y(t)], linestyle = 2, color = red):

p3 := odeplot(sol, [t, z(t)], linestyle = 4, color = green):

plots[display]({p1, p2, p3});

some thing like this?...

J4James 355
November 02 2012
0 1

Is this what you are looking for?

Testing_2...mw

f0(x) and q0(x)??...

J4James 355
October 29 2012
1 0

You need to specify what is f0(x) and q0(x).

some thing like this?...

J4James 355
October 20 2012
0 0


``

>

restart:
>

with(plots):Digits:=30:
>

eq1:=diff(x1(t),t)+x1(t)+0.03*x2(t)+0.01*y1(t)+0.02499*y2(t)+.009*y3(t)=0:
>

eq2:=diff(x2(t),t)+0.833*x1(t)+0.69985*x2(t)+0.13745*x3(t)+0.02499*y1(t)+
0.06245*y2(t)+.00227159*y3(t)=0:
>

eq3:=diff(x3(t),t)+0.109073*x2(t)+0.195455*x3(t)+0.00909*y1(t)+0.02271591*y2(t)+
.00826281*y3(t)=0:
>

eq4:=diff(y1(t),t)=0:
>

eq5:=diff(y2(t),t)=0:
>

eq6:=diff(y3(t),t)=0:
>

ics:=x1(0)=0,x2(0)=.83,x3(0)=-4.54,x1(100)=0,x2(100)=0,x3(100)=0:
>

A:=dsolve({eq1,eq2,eq3,eq4,eq5,eq6,ics},numeric,abserr=10^(0.1)):
>

p1 := odeplot(A, [t, x1(t)], linestyle = 1, color = black,legend=["x1(t)"] ):
>

p2 := odeplot(A, [t, x2(t)], linestyle = 2, color = red,legend=["x2(t)"] ):
>

p3 := odeplot(A, [t, x3(t)], linestyle = 3, color = green,legend=["x3(t)"] ):
>

plots[display]({p1, p2, p3},axes=boxed,thickness=2,labels=[t,"X's"]);


>



``


Download sysodemp.mw

Graphical approach...

J4James 355
October 18 2012
1 0



NULL

>

restart:with(LinearAlgebra):with(plots):
>

eq1:=a*x + y +z +u =  1;
>



a*x+y+z+u = 1

 (1)
>

eq2:=x  -y  -z +u  = -a;
>



x-y-z+u = -a

 (2)
>

eq3:=y +z -a*u = b;
>



y+z-a*u = b

 (3)
>



>

eq4:=x- y +b*z +u =-2*a;
>



x-y+b*z+u = -2*a

 (4)
>

sol:=solve({eq1,eq2,eq3,eq4},{x,y,z,u});

{u = (-b*a-b+a^2+1)/(a^2+1), x = -(-2*b+a^2+1)/(a^2+1), y = (-b^2*a+b*a^3+b^2+b+2*a^3+2*a)/((a^2+1)*(b+1)), z = -a/(b+1)}

 (5)
>

sol[1];

u = (-b*a-b+a^2+1)/(a^2+1)

 (6)
>

u1:=(-b*a-b+a^2+1)/(a^2+1);

(-b*a-b+a^2+1)/(a^2+1)

 (7)
>

x1:=-(-2*b+a^2+1)/(a^2+1);

-(-2*b+a^2+1)/(a^2+1)

 (8)
>

y1:=(-b^2*a+b*a^3+b^2+b+2*a^3+2*a)/((a^2+1)*(b+1));

(-b^2*a+b*a^3+b^2+b+2*a^3+2*a)/((a^2+1)*(b+1))

 (9)
>

z1:=-a/(b+1);

-a/(b+1)

 (10)
>

implicitplot([u1,x1,y1,z1],a=-10..10,b=-20..30,gridrefine = 2, resolution = 1000, crossingrefine = 3, color=["green", "Teal","black","red"],thickness=2,legend=["u","x","y","z"],axes=boxed);


>



>

eqs:={eq1, eq2,eq3,eq4};

{y+z-a*u = b, x-y-z+u = -a, x-y+b*z+u = -2*a, a*x+y+z+u = 1}

 (11)
>

#If you want to write it in a matrix form then use "GenerateMatrix"
>

A,B:=GenerateMatrix(eqs,[x,y,z,u]);

A, B := Matrix(4, 4, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 1, (1, 4) = -a, (2, 1) = 1, (2, 2) = -1, (2, 3) = -1, (2, 4) = 1, (3, 1) = 1, (3, 2) = -1, (3, 3) = b, (3, 4) = 1, (4, 1) = a, (4, 2) = 1, (4, 3) = 1, (4, 4) = 1}), Vector(4, {(1) = b, (2) = -a, (3) = -2*a, (4) = 1})

 (12)
>

#To combine A and B use "" as suggested by @Adri vanderMeer van der Meer
>

M := ;

M := Matrix(4, 5, {(1, 1) = 0, (1, 2) = 1, (1, 3) = 1, (1, 4) = -a, (1, 5) = b, (2, 1) = 1, (2, 2) = -1, (2, 3) = -1, (2, 4) = 1, (2, 5) = -a, (3, 1) = 1, (3, 2) = -1, (3, 3) = b, (3, 4) = 1, (3, 5) = -2*a, (4, 1) = a, (4, 2) = 1, (4, 3) = 1, (4, 4) = 1, (4, 5) = 1})

 (13)
>

#Infinite solutions (As suggested by @rlopez)
>

ReducedRowEchelonForm(subs(a=0,b=-1,M));

Matrix([[1, 0, 0, 0, -3], [0, 1, 1, 0, -1], [0, 0, 0, 1, 2], [0, 0, 0, 0, 0]])

 (14)
>

#No solutions (As suggested by @rlopez)
>

ReducedRowEchelonForm(subs(a=1,b=-1,M));

Matrix([[1, 0, 0, 0, 0], [0, 1, 1, 0, 0], [0, 0, 0, 1, 0], [0, 0, 0, 0, 1]])

 (15)
>

#Unique solution (As suggested by @rlopez)
>

ReducedRowEchelonForm(subs(a=1,b=2,M));

Matrix([[1, 0, 0, 0, 1], [0, 1, 0, 0, 4/3], [0, 0, 1, 0, -1/3], [0, 0, 0, 1, -1]])

 (16)
>



NULL



Download LSMP.mw

proc...

J4James 355
October 17 2012
0 0

  restart:

g:=proc(a,b) local s;
s:=a/b;
end proc;
g(1,2);
  1/2

Examples...

J4James 355
October 13 2012
2 1

Example 1 (From Maple help)

Find the sum of all two-digit odd numbers from 11 to 99.

tot := 0:
for i from 11 by 2 while i < 100 do
   tot := tot + i
end do:
tot;
For further details see ?do(while) and
http://www.mapleprimes.com/questions/36926-Is-There-A-do-While-Loop-In-Maple
http://www.mapleprimes.com/questions/127845-How-Do-I-Create-while-Loops-In-Maple

Example 2 (http://www.math.tamu.edu/~sottile/conferences/Summer_IMA07/maple_tutorial/
introduction-maple/node5.html)

collatz := proc(n)
  local m,count;
  count := 0;
  m := n;
  while ( m > 1 ) do
    if ( modp(m,2) = 0 ) then
     m := m/2;
    else
     m := 3*m+1;
    end;
    count := count + 1;
  end;
return(count);
end;

Thanks

syntax error...

J4James 355
October 10 2012
0 1
restart:
with(plots):
R:=1:
ode1 := diff(f(eta), [`$`(eta, 4)])+R*(eta*(diff(f(eta), [`$`(eta, 3)]))+3*(diff(f(eta),
 [`$`(eta, 2)]))-f(eta)*(diff(f(eta), [`$`(eta, 3)]))+(diff(f(eta), eta))*(diff(f(eta),
 [`$`(eta, 2)]))) = 0:
soln := dsolve({ode1, f(0) = 0, f(1) = 1, (D(f))(0) = 0, (D(f))(1) = 0}, f(eta), numeric):

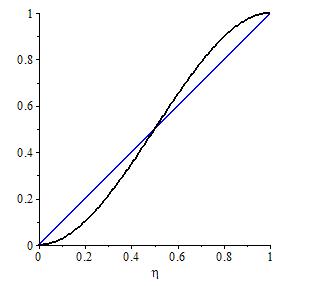

p1 := odeplot(soln, [eta, f(eta)], 0 .. 1, color = black, thickness = 2, scaling = constrained):
g:=eta:#say
p2 := plot(g,eta=0..1, color = blue, scaling = constrained):
display({p1,p2});

Thanks

syntax issues...

J4James 355
October 06 2012
0 0



``

>

restart; with(plots): with(LinearAlgebra): with(linalg):
>

m1 := 2280: m2 := 2243: m3 := 2220: k1 := 300: k2 := 200: k3 := 100: F0 := 4.1: omega1 :=evalf( sqrt(abs((k1+k2)/m1))); omega2 := evalf(sqrt(abs((k2+k3)/m2))); omega3 := evalf(sqrt(abs(k3/m3)));

.4682929057



.3657177090



.2122381800

 (1)
>

eq1:=m1*(diff(u1(t), t$1))+(k1+k2)*u1(t)-k2*u2(t) = F0*cos(omega1*t);

2280*(diff(u1(t), t))+500*u1(t)-200*u2(t) = 4.1*cos(.4682929057*t)

 (2)
>

eq2:=m2*(diff(u2(t), t$2))-k2*u1(t)+(k2+k3)*u2(t)-k3*u3(t) = F0*cos(omega2*t);

2243*(diff(diff(u2(t), t), t))-200*u1(t)+300*u2(t)-100*u3(t) = 4.1*cos(.3657177090*t)

 (3)
>

 eq3:=m3*(diff(u3(t), t$2))-k3*u2(t)+k3*u3(t) = F0*cos(omega3*t);

2220*(diff(diff(u3(t), t), t))-100*u2(t)+100*u3(t) = 4.1*cos(.2122381800*t)

 (4)
>

sys:={eq1,eq2,eq3};

{2280*(diff(u1(t), t))+500*u1(t)-200*u2(t) = 4.1*cos(.4682929057*t), 2220*(diff(diff(u3(t), t), t))-100*u2(t)+100*u3(t) = 4.1*cos(.2122381800*t), 2243*(diff(diff(u2(t), t), t))-200*u1(t)+300*u2(t)-100*u3(t) = 4.1*cos(.3657177090*t)}

 (5)
>

ics:= u1(0) = 0, u2(0) = 0, u3(0) = 0, D(u2)(0) = 0, D(u3)(0) = 0;

u1(0) = 0, u2(0) = 0, u3(0) = 0, (D(u2))(0) = 0, (D(u3))(0) = 0

 (6)
>

csol := dsolve(sys union {ics}, type=numeric);

proc (x_rkf45) local _res, _dat, _vars, _solnproc, _xout, _ndsol, _pars, _n, _i; option `Copyright (c) 2000 by Waterloo Maple Inc. All rights reserved.`; if 1 < nargs then error "invalid input: too many arguments" end if; _EnvDSNumericSaveDigits := Digits; Digits := 15; if _EnvInFsolve = true then _xout := evalf[_EnvDSNumericSaveDigits](x_rkf45) else _xout := evalf(x_rkf45) end if; _dat := Array(1..4, {(1) = proc (_xin) local _xout, _dtbl, _dat, _vmap, _x0, _y0, _val, _dig, _n, _ne, _nd, _nv, _pars, _ini, _par, _i, _j, _k, _src; option `Copyright (c) 2002 by Waterloo Maple Inc. All rights reserved.`; table( [( "complex" ) = false ] ) _xout := _xin; _pars := []; _dtbl := array( 1 .. 4, [( 1 ) = (array( 1 .. 19, [( 1 ) = (datatype = float[8], order = C_order, storage = rectangular), ( 2 ) = (datatype = float[8], order = C_order, storage = rectangular), ( 3 ) = ([0, 0, 0, Array(1..0, 1..2, {}, datatype = float[8], order = C_order)]), ( 5 ) = (Array(1..28, {(1) = .0, (2) = 0.10e-5, (3) = .0, (4) = 0.500001e-14, (5) = .0, (6) = 0.495806824168463e-7, (7) = .0, (8) = 0.10e-5, (9) = .0, (10) = .0, (11) = .0, (12) = .0, (13) = 1.0, (14) = .0, (15) = .49999999999999, (16) = .0, (17) = 1.0, (18) = 1.0, (19) = .0, (20) = .0, (21) = 1.0, (22) = 1.0, (23) = .0, (24) = .0, (25) = 0.10e-14, (26) = .0, (27) = .0, (28) = .0}, datatype = float[8], order = C_order)), ( 4 ) = (Array(1..53, {(1) = 5, (2) = 5, (3) = 0, (4) = 0, (5) = 0, (6) = 0, (7) = 1, (8) = 0, (9) = 0, (10) = 0, (11) = 0, (12) = 0, (13) = 0, (14) = 0, (15) = 0, (16) = 0, (17) = 0, (18) = 57, (19) = 30000, (20) = 0, (21) = 0, (22) = 1, (23) = 4, (24) = 0, (25) = 1, (26) = 15, (27) = 1, (28) = 0, (29) = 1, (30) = 3, (31) = 3, (32) = 0, (33) = 1, (34) = 0, (35) = 0, (36) = 0, (37) = 0, (38) = 0, (39) = 0, (40) = 0, (41) = 0, (42) = 0, (43) = 1, (44) = 0, (45) = 0, (46) = 0, (47) = 0, (48) = 0, (49) = 0, (50) = 50, (51) = 0, (52) = 0, (53) = 0}, datatype = integer[4])), ( 7 ) = ([Array(1..4, 1..7, {(1, 1) = .0, (1, 2) = .203125, (1, 3) = .3046875, (1, 4) = .75, (1, 5) = .8125, (1, 6) = .40625, (1, 7) = .8125, (2, 1) = 0.6378173828125e-1, (2, 2) = .0, (2, 3) = .279296875, (2, 4) = .27237892150878906, (2, 5) = -0.9686851501464844e-1, (2, 6) = 0.1956939697265625e-1, (2, 7) = .5381584167480469, (3, 1) = 0.31890869140625e-1, (3, 2) = .0, (3, 3) = -.34375, (3, 4) = -.335235595703125, (3, 5) = .2296142578125, (3, 6) = .41748046875, (3, 7) = 11.480712890625, (4, 1) = 0.9710520505905151e-1, (4, 2) = .0, (4, 3) = .40350341796875, (4, 4) = 0.20297467708587646e-1, (4, 5) = -0.6054282188415527e-2, (4, 6) = -0.4770040512084961e-1, (4, 7) = .77858567237854}, datatype = float[8], order = C_order), Array(1..6, 1..6, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (1, 6) = 1.0, (2, 1) = .25, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (2, 6) = 1.0, (3, 1) = .1875, (3, 2) = .5625, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (3, 6) = 2.0, (4, 1) = .23583984375, (4, 2) = -.87890625, (4, 3) = .890625, (4, 4) = .0, (4, 5) = .0, (4, 6) = .2681884765625, (5, 1) = .1272735595703125, (5, 2) = -.5009765625, (5, 3) = .44921875, (5, 4) = -0.128936767578125e-1, (5, 5) = .0, (5, 6) = 0.626220703125e-1, (6, 1) = -0.927734375e-1, (6, 2) = .626220703125, (6, 3) = -.4326171875, (6, 4) = .1418304443359375, (6, 5) = -0.861053466796875e-1, (6, 6) = .3131103515625}, datatype = float[8], order = C_order), Array(1..6, {(1) = .0, (2) = .386, (3) = .21, (4) = .63, (5) = 1.0, (6) = 1.0}, datatype = float[8], order = C_order), Array(1..6, {(1) = .25, (2) = -.1043, (3) = .1035, (4) = -0.362e-1, (5) = .0, (6) = .0}, datatype = float[8], order = C_order), Array(1..6, 1..5, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (2, 1) = 1.544, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (3, 1) = .9466785280815533, (3, 2) = .25570116989825814, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (4, 1) = 3.3148251870684886, (4, 2) = 2.896124015972123, (4, 3) = .9986419139977808, (4, 4) = .0, (4, 5) = .0, (5, 1) = 1.2212245092262748, (5, 2) = 6.019134481287752, (5, 3) = 12.537083329320874, (5, 4) = -.687886036105895, (5, 5) = .0, (6, 1) = 1.2212245092262748, (6, 2) = 6.019134481287752, (6, 3) = 12.537083329320874, (6, 4) = -.687886036105895, (6, 5) = 1.0}, datatype = float[8], order = C_order), Array(1..6, 1..5, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (2, 1) = -5.6688, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (3, 1) = -2.4300933568337584, (3, 2) = -.20635991570891224, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (4, 1) = -.10735290581452621, (4, 2) = -9.594562251021896, (4, 3) = -20.470286148096154, (4, 4) = .0, (4, 5) = .0, (5, 1) = 7.496443313968615, (5, 2) = -10.246804314641219, (5, 3) = -33.99990352819906, (5, 4) = 11.708908932061595, (5, 5) = .0, (6, 1) = 8.083246795922411, (6, 2) = -7.981132988062785, (6, 3) = -31.52159432874373, (6, 4) = 16.319305431231363, (6, 5) = -6.0588182388340535}, datatype = float[8], order = C_order), Array(1..3, 1..5, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (2, 1) = 10.126235083446911, (2, 2) = -7.487995877607633, (2, 3) = -34.800918615557414, (2, 4) = -7.9927717075687275, (2, 5) = 1.0251377232956207, (3, 1) = -.6762803392806898, (3, 2) = 6.087714651678606, (3, 3) = 16.43084320892463, (3, 4) = 24.767225114183653, (3, 5) = -6.5943891257167815}, datatype = float[8], order = C_order)]), ( 6 ) = (Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order)), ( 10 ) = ([proc (N, X, Y, YP) option `[Y[1] = u1(t), Y[2] = u2(t), Y[3] = diff(u2(t),t), Y[4] = u3(t), Y[5] = diff(u3(t),t)]`; YP[1] := 0.17982456140350877193e-2*cos(.4682929057*X)-(25/114)*Y[1]+(5/57)*Y[2]; YP[3] := 0.18279090503789567543e-2*cos(.3657177090*X)+(200/2243)*Y[1]-(300/2243)*Y[2]+(100/2243)*Y[4]; YP[5] := 0.18468468468468468468e-2*cos(.2122381800*X)+(5/111)*Y[2]-(5/111)*Y[4]; YP[2] := Y[3]; YP[4] := Y[5]; 0 end proc, -1, 0, 0, 0, 0]), ( 11 ) = (Array(1..6, 0..5, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (2, 0) = .0, (2, 1) = .0, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (3, 0) = .0, (3, 1) = .0, (3, 2) = .0, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (4, 0) = .0, (4, 1) = .0, (4, 2) = .0, (4, 3) = .0, (4, 4) = .0, (4, 5) = .0, (5, 0) = .0, (5, 1) = .0, (5, 2) = .0, (5, 3) = .0, (5, 4) = .0, (5, 5) = .0, (6, 0) = .0, (6, 1) = .0, (6, 2) = .0, (6, 3) = .0, (6, 4) = .0, (6, 5) = .0}, datatype = float[8], order = C_order)), ( 8 ) = ([Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order), Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order), Array(1..5, {(1) = 0.17982456140350877e-2, (2) = .0, (3) = 0.18279090503789568e-2, (4) = .0, (5) = 0.18468468468468468e-2}, datatype = float[8], order = C_order)]), ( 9 ) = ([Array(1..5, {(1) = .1, (2) = .1, (3) = .1, (4) = .1, (5) = .1}, datatype = float[8], order = C_order), Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order), Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order), Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order), Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order), Array(1..5, 1..5, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (2, 1) = .0, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (3, 1) = .0, (3, 2) = .0, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (4, 1) = .0, (4, 2) = .0, (4, 3) = .0, (4, 4) = .0, (4, 5) = .0, (5, 1) = .0, (5, 2) = .0, (5, 3) = .0, (5, 4) = .0, (5, 5) = .0}, datatype = float[8], order = C_order), Array(1..5, 1..5, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (2, 1) = .0, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (3, 1) = .0, (3, 2) = .0, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (4, 1) = .0, (4, 2) = .0, (4, 3) = .0, (4, 4) = .0, (4, 5) = .0, (5, 1) = .0, (5, 2) = .0, (5, 3) = .0, (5, 4) = .0, (5, 5) = .0}, datatype = float[8], order = C_order), Array(1..5, 1..6, {(1, 1) = .0, (1, 2) = .0, (1, 3) = .0, (1, 4) = .0, (1, 5) = .0, (1, 6) = .0, (2, 1) = .0, (2, 2) = .0, (2, 3) = .0, (2, 4) = .0, (2, 5) = .0, (2, 6) = .0, (3, 1) = .0, (3, 2) = .0, (3, 3) = .0, (3, 4) = .0, (3, 5) = .0, (3, 6) = .0, (4, 1) = .0, (4, 2) = .0, (4, 3) = .0, (4, 4) = .0, (4, 5) = .0, (4, 6) = .0, (5, 1) = .0, (5, 2) = .0, (5, 3) = .0, (5, 4) = .0, (5, 5) = .0, (5, 6) = .0}, datatype = float[8], order = C_order), Array(1..5, {(1) = 0, (2) = 0, (3) = 0, (4) = 0, (5) = 0}, datatype = integer[4]), Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order), Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order), Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order), Array(1..5, {(1) = .0, (2) = .0, (3) = .0, (4) = .0, (5) = .0}, datatype = float[8], order = C_order)]), ( 15 ) = ("rkf45"), ( 14 ) = ([0, 0]), ( 13 ) = (), ( 12 ) = (), ( 16 ) = ([0, 0, 0, []]), ( 17 ) = ([proc (N, X, Y, YP) option `[Y[1] = u1(t), Y[2] = u2(t), Y[3] = diff(u2(t),t), Y[4] = u3(t), Y[5] = diff(u3(t),t)]`; YP[1] := 0.17982456140350877193e-2*cos(.4682929057*X)-(25/114)*Y[1]+(5/57)*Y[2]; YP[3] := 0.18279090503789567543e-2*cos(.3657177090*X)+(200/2243)*Y[1]-(300/2243)*Y[2]+(100/2243)*Y[4]; YP[5] := 0.18468468468468468468e-2*cos(.2122381800*X)+(5/111)*Y[2]-(5/111)*Y[4]; YP[2] := Y[3]; YP[4] := Y[5]; 0 end proc, -1, 0, 0, 0, 0]), ( 18 ) = ([]), ( 19 ) = (0) ] )) ] ); _y0 := Array(0..5, {(1) = 0., (2) = 0., (3) = 0., (4) = 0., (5) = 0.}); _vmap := array( 1 .. 5, [( 1 ) = (1), ( 2 ) = (2), ( 3 ) = (3), ( 5 ) = (5), ( 4 ) = (4) ] ); _x0 := _dtbl[1][5][5]; _n := _dtbl[1][4][1]; _ne := _dtbl[1][4][3]; _nd := _dtbl[1][4][4]; _nv := _dtbl[1][4][16]; if not type(_xout, 'numeric') then if member(_xout, ["start", "left", "right"]) then if _Env_smart_dsolve_numeric = true or _dtbl[1][4][10] = 1 then if _xout = "left" then if type(_dtbl[2], 'table') then return _dtbl[2][5][1] end if elif _xout = "right" then if type(_dtbl[3], 'table') then return _dtbl[3][5][1] end if end if end if; return _dtbl[1][5][5] elif _xout = "method" then return _dtbl[1][15] elif _xout = "storage" then return evalb(_dtbl[1][4][10] = 1) elif _xout = "leftdata" then if not type(_dtbl[2], 'array') then return NULL else return eval(_dtbl[2]) end if elif _xout = "rightdata" then if not type(_dtbl[3], 'array') then return NULL else return eval(_dtbl[3]) end if elif _xout = "enginedata" then return eval(_dtbl[1]) elif _xout = "enginereset" then _dtbl[2] := evaln(_dtbl[2]); _dtbl[3] := evaln(_dtbl[3]); return NULL elif _xout = "initial" then return procname(_y0[0]) elif _xout = "laxtol" then return _dtbl[`if`(member(_dtbl[4], {2, 3}), _dtbl[4], 1)][5][18] elif _xout = "numfun" then return `if`(member(_dtbl[4], {2, 3}), _dtbl[_dtbl[4]][4][18], 0) elif _xout = "parameters" then return [seq(_y0[_n+_i], _i = 1 .. nops(_pars))] elif _xout = "initial_and_parameters" then return procname(_y0[0]), [seq(_y0[_n+_i], _i = 1 .. nops(_pars))] elif _xout = "last" then if _dtbl[4] <> 2 and _dtbl[4] <> 3 or _x0-_dtbl[_dtbl[4]][5][1] = 0. then error "no information is available on last computed point" else _xout := _dtbl[_dtbl[4]][5][1] end if elif _xout = "function" then if _dtbl[1][4][33]-2. = 0 then return eval(_dtbl[1][10], 1) else return eval(_dtbl[1][10][1], 1) end if elif _xout = "map" then return copy(_vmap) elif type(_xin, `=`) and type(rhs(_xin), 'list') and member(lhs(_xin), {"initial", "parameters", "initial_and_parameters"}) then _ini, _par := [], []; if lhs(_xin) = "initial" then _ini := rhs(_xin) elif lhs(_xin) = "parameters" then _par := rhs(_xin) elif select(type, rhs(_xin), `=`) <> [] then _par, _ini := selectremove(type, rhs(_xin), `=`) elif nops(rhs(_xin)) < nops(_pars)+1 then error "insufficient data for specification of initial and parameters" else _par := rhs(_xin)[-nops(_pars) .. -1]; _ini := rhs(_xin)[1 .. -nops(_pars)-1] end if; _xout := lhs(_xout); if _par <> [] then `dsolve/numeric/process_parameters`(_n, _pars, _par, _y0) end if; if _ini <> [] then `dsolve/numeric/process_initial`(_n-_ne, _ini, _y0, _pars, _vmap) end if; `dsolve/numeric/SC/reinitialize`(_dtbl, _y0, _n, procname, _pars); if _Env_smart_dsolve_numeric = true and type(_y0[0], 'numeric') and _dtbl[1][4][10] <> 1 then procname("right") := _y0[0]; procname("left") := _y0[0] end if; if _xout = "initial" then return [_y0[0], seq(_y0[_vmap[_i]], _i = 1 .. _n-_ne)] elif _xout = "parameters" then return [seq(_y0[_n+_i], _i = 1 .. nops(_pars))] else return [_y0[0], seq(_y0[_vmap[_i]], _i = 1 .. _n-_ne)], [seq(_y0[_n+_i], _i = 1 .. nops(_pars))] end if elif _xin = "eventstop" then if _nv = 0 then error "this solution has no events" end if; _i := _dtbl[4]; if _i <> 2 and _i <> 3 then return 0 end if; if _dtbl[_i][4][10] = 1 and assigned(_dtbl[5-_i]) and _dtbl[_i][4][9] < 10 and 10 <= _dtbl[5-_i][4][9] then _i := 5-_i; _dtbl[4] := _i; _j := round(_dtbl[_i][4][17]); return round(_dtbl[_i][3][1][_j, 1]) elif 10 <= _dtbl[_i][4][9] then _j := round(_dtbl[_i][4][17]); return round(_dtbl[_i][3][1][_j, 1]) else return 0 end if elif _xin = "eventstatus" then if _nv = 0 then error "this solution has no events" end if; _i := [selectremove(proc (a) options operator, arrow; _dtbl[1][3][1][a, 7] = 1 end proc, {seq(_j, _j = 1 .. round(_dtbl[1][3][1][_nv+1, 1]))})]; return ':-enabled' = _i[1], ':-disabled' = _i[2] elif _xin = "eventclear" then if _nv = 0 then error "this solution has no events" end if; _i := _dtbl[4]; if _i <> 2 and _i <> 3 then error "no events to clear" end if; if _dtbl[_i][4][10] = 1 and assigned(_dtbl[5-_i]) and _dtbl[_i][4][9] < 10 and 10 < _dtbl[5-_i][4][9] then _dtbl[4] := 5-_i; _i := 5-_i end if; if _dtbl[_i][4][9] < 10 then error "no events to clear" elif _nv < _dtbl[_i][4][9]-10 then error "event error condition cannot be cleared" else _j := _dtbl[_i][4][9]-10; if irem(round(_dtbl[_i][3][1][_j, 4]), 2) = 1 then error "retriggerable events cannot be cleared" end if; _j := round(_dtbl[_i][3][1][_j, 1]); for _k to _nv do if _dtbl[_i][3][1][_k, 1] = _j then if _dtbl[_i][3][1][_k, 2] = 3 then error "range events cannot be cleared" end if; _dtbl[_i][3][1][_k, 8] := _dtbl[_i][3][1][_nv+1, 8] end if end do; _dtbl[_i][4][17] := 0; _dtbl[_i][4][9] := 0; if _dtbl[1][4][10] = 1 then if _i = 2 then try procname(procname("left")) catch: end try else try procname(procname("right")) catch: end try end if end if end if; return elif type(_xin, `=`) and member(lhs(_xin), {"eventenable", "eventdisable"}) then if _nv = 0 then error "this solution has no events" end if; if type(rhs(_xin), {('set')('posint'), ('list')('posint')}) then _i := {op(rhs(_xin))} elif type(rhs(_xin), 'posint') then _i := {rhs(_xin)} else error "event identifiers must be integers in the range 1..%1", round(_dtbl[1][3][1][_nv+1, 1]) end if; if select(proc (a) options operator, arrow; _nv < a end proc, _i) <> {} then error "event identifiers must be integers in the range 1..%1", round(_dtbl[1][3][1][_nv+1, 1]) end if; _k := {}; for _j to _nv do if member(round(_dtbl[1][3][1][_j, 1]), _i) then _k := `union`(_k, {_j}) end if end do; _i := _k; if lhs(_xin) = "eventdisable" then _dtbl[4] := 0; _j := [evalb(assigned(_dtbl[2]) and member(_dtbl[2][4][17], _i)), evalb(assigned(_dtbl[3]) and member(_dtbl[3][4][17], _i))]; for _k in _i do _dtbl[1][3][1][_k, 7] := 0; if assigned(_dtbl[2]) then _dtbl[2][3][1][_k, 7] := 0 end if; if assigned(_dtbl[3]) then _dtbl[3][3][1][_k, 7] := 0 end if end do; if _j[1] then for _k to _nv+1 do if _k <= _nv and not type(_dtbl[2][3][4][_k, 1], 'undefined') then userinfo(3, {'events', 'eventreset'}, `reinit #2, event code `, _k, ` to defined init `, _dtbl[2][3][4][_k, 1]); _dtbl[2][3][1][_k, 8] := _dtbl[2][3][4][_k, 1] elif _dtbl[2][3][1][_k, 2] = 0 and irem(iquo(round(_dtbl[2][3][1][_k, 4]), 32), 2) = 1 then userinfo(3, {'events', 'eventreset'}, `reinit #2, event code `, _k, ` to rate hysteresis init `, _dtbl[2][5][24]); _dtbl[2][3][1][_k, 8] := _dtbl[2][5][24] elif _dtbl[2][3][1][_k, 2] = 0 and irem(iquo(round(_dtbl[2][3][1][_k, 4]), 2), 2) = 0 then userinfo(3, {'events', 'eventreset'}, `reinit #2, event code `, _k, ` to initial init `, _x0); _dtbl[2][3][1][_k, 8] := _x0 else userinfo(3, {'events', 'eventreset'}, `reinit #2, event code `, _k, ` to fireinitial init `, _x0-1); _dtbl[2][3][1][_k, 8] := _x0-1 end if end do; _dtbl[2][4][17] := 0; _dtbl[2][4][9] := 0; if _dtbl[1][4][10] = 1 then procname(procname("left")) end if end if; if _j[2] then for _k to _nv+1 do if _k <= _nv and not type(_dtbl[3][3][4][_k, 2], 'undefined') then userinfo(3, {'events', 'eventreset'}, `reinit #3, event code `, _k, ` to defined init `, _dtbl[3][3][4][_k, 2]); _dtbl[3][3][1][_k, 8] := _dtbl[3][3][4][_k, 2] elif _dtbl[3][3][1][_k, 2] = 0 and irem(iquo(round(_dtbl[3][3][1][_k, 4]), 32), 2) = 1 then userinfo(3, {'events', 'eventreset'}, `reinit #3, event code `, _k, ` to rate hysteresis init `, _dtbl[3][5][24]); _dtbl[3][3][1][_k, 8] := _dtbl[3][5][24] elif _dtbl[3][3][1][_k, 2] = 0 and irem(iquo(round(_dtbl[3][3][1][_k, 4]), 2), 2) = 0 then userinfo(3, {'events', 'eventreset'}, `reinit #3, event code `, _k, ` to initial init `, _x0); _dtbl[3][3][1][_k, 8] := _x0 else userinfo(3, {'events', 'eventreset'}, `reinit #3, event code `, _k, ` to fireinitial init `, _x0+1); _dtbl[3][3][1][_k, 8] := _x0+1 end if end do; _dtbl[3][4][17] := 0; _dtbl[3][4][9] := 0; if _dtbl[1][4][10] = 1 then procname(procname("right")) end if end if else for _k in _i do _dtbl[1][3][1][_k, 7] := 1 end do; _dtbl[2] := evaln(_dtbl[2]); _dtbl[3] := evaln(_dtbl[3]); _dtbl[4] := 0; if _dtbl[1][4][10] = 1 then if _x0 <= procname("right") then try procname(procname("right")) catch: end try end if; if procname("left") <= _x0 then try procname(procname("left")) catch: end try end if end if end if; return elif type(_xin, `=`) and lhs(_xin) = "eventfired" then if not type(rhs(_xin), 'list') then error "'eventfired' must be specified as a list" end if; if _nv = 0 then error "this solution has no events" end if; if _dtbl[4] <> 2 and _dtbl[4] <> 3 then error "'direction' must be set prior to calling/setting 'eventfired'" end if; _i := _dtbl[4]; _val := NULL; if not assigned(_EnvEventRetriggerWarned) then _EnvEventRetriggerWarned := false end if; for _k in rhs(_xin) do if type(_k, 'integer') then _src := _k elif type(_k, 'integer' = 'anything') and type(evalf(rhs(_k)), 'numeric') then _k := lhs(_k) = evalf[max(Digits, 18)](rhs(_k)); _src := lhs(_k) else error "'eventfired' entry is not valid: %1", _k end if; if _src < 1 or round(_dtbl[1][3][1][_nv+1, 1]) < _src then error "event identifiers must be integers in the range 1..%1", round(_dtbl[1][3][1][_nv+1, 1]) end if; _src := {seq(`if`(_dtbl[1][3][1][_j, 1]-_src = 0., _j, NULL), _j = 1 .. _nv)}; if nops(_src) <> 1 then error "'eventfired' can only be set/queried for root-finding events and time/interval events" end if; _src := _src[1]; if _dtbl[1][3][1][_src, 2] <> 0. and _dtbl[1][3][1][_src, 2]-2. <> 0. then error "'eventfired' can only be set/queried for root-finding events and time/interval events" elif irem(round(_dtbl[1][3][1][_src, 4]), 2) = 1 then if _EnvEventRetriggerWarned = false then WARNING(`'eventfired' has no effect on events that retrigger`) end if; _EnvEventRetriggerWarned := true end if; if _dtbl[_i][3][1][_src, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_src, 4]), 32), 2) = 1 then _val := _val, undefined elif type(_dtbl[_i][3][4][_src, _i-1], 'undefined') or _i = 2 and _dtbl[2][3][1][_src, 8] < _dtbl[2][3][4][_src, 1] or _i = 3 and _dtbl[3][3][4][_src, 2] < _dtbl[3][3][1][_src, 8] then _val := _val, _dtbl[_i][3][1][_src, 8] else _val := _val, _dtbl[_i][3][4][_src, _i-1] end if; if type(_k, `=`) then if _dtbl[_i][3][1][_src, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_src, 4]), 32), 2) = 1 then error "cannot set event code for a rate hysteresis event" end if; userinfo(3, {'events', 'eventreset'}, `manual set event code `, _src, ` to value `, rhs(_k)); _dtbl[_i][3][1][_src, 8] := rhs(_k); _dtbl[_i][3][4][_src, _i-1] := rhs(_k) end if end do; return [_val] elif type(_xin, `=`) and lhs(_xin) = "direction" then if not member(rhs(_xin), {-1, 1, ':-left', ':-right'}) then error "'direction' must be specified as either '1' or 'right' (positive) or '-1' or 'left' (negative)" end if; _src := `if`(_dtbl[4] = 2, -1, `if`(_dtbl[4] = 3, 1, undefined)); _i := `if`(member(rhs(_xin), {1, ':-right'}), 3, 2); _dtbl[4] := _i; _dtbl[_i] := `dsolve/numeric/SC/IVPdcopy`(_dtbl[1], `if`(assigned(_dtbl[_i]), _dtbl[_i], NULL)); if 0 < _nv then for _j to _nv+1 do if _j <= _nv and not type(_dtbl[_i][3][4][_j, _i-1], 'undefined') then userinfo(3, {'events', 'eventreset'}, `reinit #4, event code `, _j, ` to defined init `, _dtbl[_i][3][4][_j, _i-1]); _dtbl[_i][3][1][_j, 8] := _dtbl[_i][3][4][_j, _i-1] elif _dtbl[_i][3][1][_j, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_j, 4]), 32), 2) = 1 then userinfo(3, {'events', 'eventreset'}, `reinit #4, event code `, _j, ` to rate hysteresis init `, _dtbl[_i][5][24]); _dtbl[_i][3][1][_j, 8] := _dtbl[_i][5][24] elif _dtbl[_i][3][1][_j, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_j, 4]), 2), 2) = 0 then userinfo(3, {'events', 'eventreset'}, `reinit #4, event code `, _j, ` to initial init `, _x0); _dtbl[_i][3][1][_j, 8] := _x0 else userinfo(3, {'events', 'eventreset'}, `reinit #4, event code `, _j, ` to fireinitial init `, _x0-2*_i+5.0); _dtbl[_i][3][1][_j, 8] := _x0-2*_i+5.0 end if end do end if; return _src elif _xin = "eventcount" then if _dtbl[1][3][1] = 0 or _dtbl[4] <> 2 and _dtbl[4] <> 3 then return 0 else return round(_dtbl[_dtbl[4]][3][1][_nv+1, 12]) end if else return "procname" end if end if; if _xout = _x0 then return [_x0, seq(evalf(_dtbl[1][6][_vmap[_i]]), _i = 1 .. _n-_ne)] end if; _i := `if`(_x0 <= _xout, 3, 2); if _xin = "last" and 0 < _dtbl[_i][4][9] and _dtbl[_i][4][9] < 10 then _dat := eval(_dtbl[_i], 2); _j := _dat[4][20]; return [_dat[11][_j, 0], seq(_dat[11][_j, _vmap[_i]], _i = 1 .. _n-_ne-_nd), seq(_dat[8][1][_vmap[_i]], _i = _n-_ne-_nd+1 .. _n-_ne)] end if; if not type(_dtbl[_i], 'array') then _dtbl[_i] := `dsolve/numeric/SC/IVPdcopy`(_dtbl[1], `if`(assigned(_dtbl[_i]), _dtbl[_i], NULL)); if 0 < _nv then for _j to _nv+1 do if _j <= _nv and not type(_dtbl[_i][3][4][_j, _i-1], 'undefined') then userinfo(3, {'events', 'eventreset'}, `reinit #5, event code `, _j, ` to defined init `, _dtbl[_i][3][4][_j, _i-1]); _dtbl[_i][3][1][_j, 8] := _dtbl[_i][3][4][_j, _i-1] elif _dtbl[_i][3][1][_j, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_j, 4]), 32), 2) = 1 then userinfo(3, {'events', 'eventreset'}, `reinit #5, event code `, _j, ` to rate hysteresis init `, _dtbl[_i][5][24]); _dtbl[_i][3][1][_j, 8] := _dtbl[_i][5][24] elif _dtbl[_i][3][1][_j, 2] = 0 and irem(iquo(round(_dtbl[_i][3][1][_j, 4]), 2), 2) = 0 then userinfo(3, {'events', 'eventreset'}, `reinit #5, event code `, _j, ` to initial init `, _x0); _dtbl[_i][3][1][_j, 8] := _x0 else userinfo(3, {'events', 'eventreset'}, `reinit #5, event code `, _j, ` to fireinitial init `, _x0-2*_i+5.0); _dtbl[_i][3][1][_j, 8] := _x0-2*_i+5.0 end if end do end if end if; if _xin <> "last" then if 0 < 0 then if `dsolve/numeric/checkglobals`(op(_dtbl[1][14]), _pars, _n, _y0) then `dsolve/numeric/SC/reinitialize`(_dtbl, _y0, _n, procname, _pars, _i) end if end if; if _dtbl[1][4][7] = 0 then error "parameters must be initialized before solution can be computed" end if end if; _dat := eval(_dtbl[_i], 2); _dtbl[4] := _i; try _src := `dsolve/numeric/SC/IVPrun`(_dat, _xout) catch: userinfo(2, `dsolve/debug`, print(`Exception in solnproc:`, [lastexception][2 .. -1])); error end try; if _src = 0 and 10 < _dat[4][9] then _val := _dat[3][1][_nv+1, 8] else _val := _dat[11][_dat[4][20], 0] end if; if _src <> 0 or _dat[4][9] <= 0 then _dtbl[1][5][1] := _xout else _dtbl[1][5][1] := _val end if; if _i = 3 and _val < _xout then Rounding := -infinity; if _dat[4][9] = 1 then error "cannot evaluate the solution further right of %1, probably a singularity", evalf[8](_val) elif _dat[4][9] = 2 then error "cannot evaluate the solution further right of %1, maxfun limit exceeded (see <a href='http://www.maplesoft.com/support/help/search.aspx?term=dsolve,maxfun' target='_new'>?dsolve,maxfun</a> for details)", evalf[8](_val) elif _dat[4][9] = 3 then if _dat[4][25] = 3 then error "cannot evaluate the solution past the initial point, problem may be initially singular or improperly set up" else error "cannot evaluate the solution past the initial point, problem may be complex, initially singular or improperly set up" end if elif _dat[4][9] = 4 then error "cannot evaluate the solution further right of %1, accuracy goal cannot be achieved with specified 'minstep'", evalf[8](_val) elif _dat[4][9] = 5 then error "cannot evaluate the solution further right of %1, too many step failures, tolerances may be too loose for problem", evalf[8](_val) elif 10 < _dat[4][9] then if _dat[4][9]-10 = _nv+1 then error "constraint projection failure on event at t=%1", evalf[8](_val) elif _dat[4][9]-10 = _nv+2 then error "index-1 and derivative evaluation failure on event at t=%1", evalf[8](_val) elif _dat[4][9]-10 = _nv+3 then error "maximum number of event iterations reached (%1) at t=%2", round(_dat[3][1][_nv+1, 3]), evalf[8](_val) else if _Env_dsolve_nowarnstop <> true then `dsolve/numeric/warning`(StringTools:-FormatMessage("cannot evaluate the solution further right of %1, event #%2 triggered a halt", evalf[8](_val), round(_dat[3][1][_dat[4][9]-10, 1]))) end if; Rounding := 'nearest'; _xout := _val end if else error "cannot evaluate the solution further right of %1", evalf[8](_val) end if elif _i = 2 and _xout < _val then Rounding := infinity; if _dat[4][9] = 1 then error "cannot evaluate the solution further left of %1, probably a singularity", evalf[8](_val) elif _dat[4][9] = 2 then error "cannot evaluate the solution further left of %1, maxfun limit exceeded (see <a href='http://www.maplesoft.com/support/help/search.aspx?term=dsolve,maxfun' target='_new'>?dsolve,maxfun</a> for details)", evalf[8](_val) elif _dat[4][9] = 3 then if _dat[4][25] = 3 then error "cannot evaluate the solution past the initial point, problem may be initially singular or improperly set up" else error "cannot evaluate the solution past the initial point, problem may be complex, initially singular or improperly set up" end if elif _dat[4][9] = 4 then error "cannot evaluate the solution further left of %1, accuracy goal cannot be achieved with specified 'minstep'", evalf[8](_val) elif _dat[4][9] = 5 then error "cannot evaluate the solution further left of %1, too many step failures, tolerances may be too loose for problem", evalf[8](_val) elif 10 < _dat[4][9] then if _dat[4][9]-10 = _nv+1 then error "constraint projection failure on event at t=%1", evalf[8](_val) elif _dat[4][9]-10 = _nv+2 then error "index-1 and derivative evaluation failure on event at t=%1", evalf[8](_val) elif _dat[4][9]-10 = _nv+3 then error "maximum number of event iterations reached (%1) at t=%2", round(_dat[3][1][_nv+1, 3]), evalf[8](_val) else if _Env_dsolve_nowarnstop <> true then `dsolve/numeric/warning`(StringTools:-FormatMessage("cannot evaluate the solution further left of %1, event #%2 triggered a halt", evalf[8](_val), round(_dat[3][1][_dat[4][9]-10, 1]))) end if; Rounding := 'nearest'; _xout := _val end if else error "cannot evaluate the solution further left of %1", evalf[8](_val) end if end if; if _EnvInFsolve = true then _dig := _dat[4][26]; _dat[4][26] := _EnvDSNumericSaveDigits; _Env_dsolve_SC_native := true; if _dat[4][25] = 1 then _i := 1; _dat[4][25] := 2 else _i := _dat[4][25] end if; _val := `dsolve/numeric/SC/IVPval`(_dat, _xout, _src); _dat[4][25] := _i; _dat[4][26] := _dig; [_xout, seq(_val[_vmap[_i]], _i = 1 .. _n-_ne)] else Digits := _dat[4][26]; _val := `dsolve/numeric/SC/IVPval`(eval(_dat, 2), _xout, _src); [_xout, seq(_val[_vmap[_i]], _i = 1 .. _n-_ne)] end if end proc, (2) = Array(0..0, {}), (3) = [t, u1(t), u2(t), diff(u2(t), t), u3(t), diff(u3(t), t)], (4) = []}); _vars := _dat[3]; _pars := map(rhs, _dat[4]); _n := nops(_vars)-1; _solnproc := _dat[1]; if not type(_xout, 'numeric') then if member(x_rkf45, ["start", 'start', "method", 'method', "left", 'left', "right", 'right', "leftdata", "rightdata", "enginedata", "eventstop", 'eventstop', "eventclear", 'eventclear', "eventstatus", 'eventstatus', "eventcount", 'eventcount', "laxtol", 'laxtol', "numfun", 'numfun', NULL]) then _res := _solnproc(convert(x_rkf45, 'string')); if 1 < nops([_res]) then return _res elif type(_res, 'array') then return eval(_res, 1) elif _res <> "procname" then return _res end if elif member(x_rkf45, ["last", 'last', "initial", 'initial', "parameters", 'parameters', "initial_and_parameters", 'initial_and_parameters', NULL]) then _xout := convert(x_rkf45, 'string'); _res := _solnproc(_xout); if _xout = "parameters" then return [seq(_pars[_i] = _res[_i], _i = 1 .. nops(_pars))] elif _xout = "initial_and_parameters" then return [seq(_vars[_i+1] = [_res][1][_i+1], _i = 0 .. _n), seq(_pars[_i] = [_res][2][_i], _i = 1 .. nops(_pars))] else return [seq(_vars[_i+1] = _res[_i+1], _i = 0 .. _n)] end if elif type(_xout, `=`) and member(lhs(_xout), ["initial", 'initial', "parameters", 'parameters', "initial_and_parameters", 'initial_and_parameters', NULL]) then _xout := convert(lhs(x_rkf45), 'string') = rhs(x_rkf45); if type(rhs(_xout), 'list') then _res := _solnproc(_xout) else error "initial and/or parameter values must be specified in a list" end if; if lhs(_xout) = "initial" then return [seq(_vars[_i+1] = _res[_i+1], _i = 0 .. _n)] elif lhs(_xout) = "parameters" then return [seq(_pars[_i] = _res[_i], _i = 1 .. nops(_pars))] else return [seq(_vars[_i+1] = [_res][1][_i+1], _i = 0 .. _n), seq(_pars[_i] = [_res][2][_i], _i = 1 .. nops(_pars))] end if elif type(_xout, `=`) and member(lhs(_xout), ["eventdisable", 'eventdisable', "eventenable", 'eventenable', "eventfired", 'eventfired', "direction", 'direction', NULL]) then return _solnproc(convert(lhs(x_rkf45), 'string') = rhs(x_rkf45)) elif _xout = "solnprocedure" then return eval(_solnproc) elif _xout = "sysvars" then return _vars end if; if procname <> unknown then return ('procname')(x_rkf45) else _ndsol; _ndsol := pointto(_dat[2][0]); return ('_ndsol')(x_rkf45) end if end if; try _res := _solnproc(_xout); [seq(_vars[_i+1] = _res[_i+1], _i = 0 .. _n)] catch: error end try end proc

 (7)
>

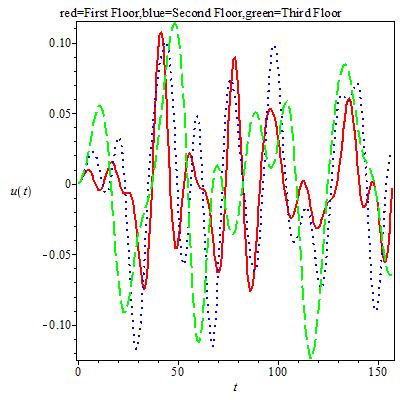

p1:=odeplot(csol, [[t,u1(t), color=red,style=point]]):
>

p2:=odeplot(csol, [[t,u2(t), color=blue,style=line]]):
>

p3:=odeplot(csol, [[t,u3(t), color=green,style=point]]):
>

display(p1, p2, p3,axes=boxed,labels=['t','u'],title = "red=First Floor,blue=Second Floor,green=Third Floor");








Download Testing_2...mw

solve...

J4James 355
October 03 2012
0 3
restart:
eq1:=(4-(3/2)*q+(1/2)*sqrt(28-24*q+5*q^2))*(1/2-(1/2)*q);

eq2:=(3-q+(1/4)*sqrt(84-58*q+10*q^2)+(1/4)*sqrt((4-2*q)*(3-q)))*(1/2-(1/2)*q);

solve( {eq1<1, eq2<1}, {q} );
evalf(%);
                     {q <= 2., .6040681398 < q}, {3. <= q, q < 4.744826078}
