Sorry again!...

J4James 355
February 21 2016
0 0

@Markiyan Hirnyk

I didn't got you at first.

Maple 18...

J4James 355
February 21 2016
0 0

@Markiyan Hirnyk

Sorry for the issue with the header. I am using Maple 18.



Where is the ode?...

J4James 355
December 29 2015
0 0

Could you please post your ode?  Otherwise, It's a guessing game.

seq in contour...

J4James 355
December 25 2015
0 0

@Rouben Rostamian

What's the main purpose of seq in the contour command here?

My Bad!...

J4James 355
December 20 2015
0 1

@tejolson I totally miss understood the question.

dsolve...

J4James 355
December 19 2015
0 2

Same type of question has been answered here using FDM.

your try?...

J4James 355
December 17 2015
0 0

Could you please show us your try?

Missing stuff...

J4James 355
December 12 2015
0 0

You need to specify the missing 8 ics and value for N.

I = sqrt(-1)...

J4James 355
August 26 2015
0 0

@Carl Love

You are right. I is equal to sqrt(-1). And I need to know whhether, Maple can simplify this expression or not.

S!...

J4James 355
August 24 2015
0 0

"S" is the end point of y ( y is [0, S]), being just another numerical constant.

For example, We take S = 0.5 then f0(S=0.5)=1 having f0(0)=0.

Hope this make sense.

P.S. we need ''S'' to be symbolica as mentioned by @Preben Alsholm answering this question.

Thank You @Axel Vogt and @Preben Alsholm

Worked...

J4James 355
August 23 2015
0 0

@tomleslie

Thanks dear. It worked the way I wanted.

Diffusion equation...

J4James 355
July 17 2015
0 0

@Axel Vogt

I already uploaded the complete sheet, where I'm tring to solve the diffusion equation.



>

restart;
>

with(PDEtools):with(plots):
>

with(linalg):with(inttrans):
>



>

eq:=diff(u(x,t),t)=phi*diff(u(x,t),x$2);

diff(u(x, t), t) = phi*(diff(diff(u(x, t), x), x))

 (1)
>

u(x,0):=0;

0

 (2)
>

bc1:=u(0,t)=sin(t);

u(0, t) = sin(t)

 (3)
>

bc2:=u(infinity,t)=0;

u(infinity, t) = 0

 (4)
>

eqs:=laplace(eq,t,s);

s*laplace(u(x, t), t, s) = phi*(diff(diff(laplace(u(x, t), t, s), x), x))

 (5)
>

eqs:=subs(laplace(u(x,t),t,s)=U(x),eqs);

s*U(x) = phi*(diff(diff(U(x), x), x))

 (6)
>

bc1:=laplace(bc1,t,s);

laplace(u(0, t), t, s) = 1/(s^2+1)

 (7)
>

bc1:=subs(laplace(u(0,t),t,s)=U(0),bc1);

U(0) = 1/(s^2+1)

 (8)
>

U(x):=rhs(dsolve({eqs,bc1},U(x)));

-(_C2*s^2+_C2-1)*exp(s^(1/2)*x/phi^(1/2))/(s^2+1)+_C2*exp(-s^(1/2)*x/phi^(1/2))

 (9)
>

eqc:=coeff(U(x),exp(sqrt(s)*x/sqrt(phi)));

-(_C2*s^2+_C2-1)/(s^2+1)

 (10)
>

_C2:=solve(eqc,_C2);

1/(s^2+1)

 (11)
>

U(x):=eval(U(x));

-(s^2/(s^2+1)+1/(s^2+1)-1)*exp(s^(1/2)*x/phi^(1/2))/(s^2+1)+exp(-s^(1/2)*x/phi^(1/2))/(s^2+1)

 (12)
>

u:=invlaplace(U(x),s,t);

invlaplace(exp(-s^(1/2)*x/phi^(1/2))/(s^2+1), s, t)

 (13)
>

 U(x):=subs(x=x1,phi=phi1,U(x));

-(s^2/(s^2+1)+1/(s^2+1)-1)*exp(s^(1/2)*x1/phi1^(1/2))/(s^2+1)+exp(-s^(1/2)*x1/phi1^(1/2))/(s^2+1)

 (14)
>

assume(x1>0,phi1>0);

>

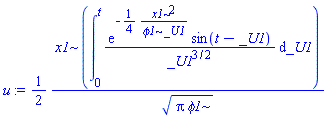

 u:=invlaplace(U(x),s,t);

(1/2)*x1*(int(exp(-(1/4)*x1^2/(phi1*_U1))*sin(t-_U1)/_U1^(3/2), _U1 = 0 .. t))/(Pi*phi1)^(1/2)

 (15)
>

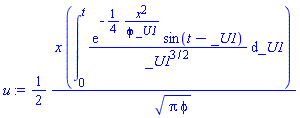

u:=subs(x1=x,phi1=phi,u);

(1/2)*x*(int(exp(-(1/4)*x^2/(phi*_U1))*sin(t-_U1)/_U1^(3/2), _U1 = 0 .. t))/(Pi*phi)^(1/2)

 (16)
>





Download ss.mwss.mw

Thanks

My comp output...

J4James 355
July 16 2015
0 0

@Markiyan Hirnyk

M vs M...

J4James 355
July 16 2015
0 0

As was pointed out by @tomleslie, I used the simplified version and tried to find the invlapalce using both Maple and Mathemaica.

Maple is able to give numerical results but no analytical expression.

u := invlaplace(exp(-sqrt(s)*x/sqrt(phi))/(s^2+1), s, t);

plot([subs(phi=1,t=Pi,u)],x=0..10,axes=boxed);

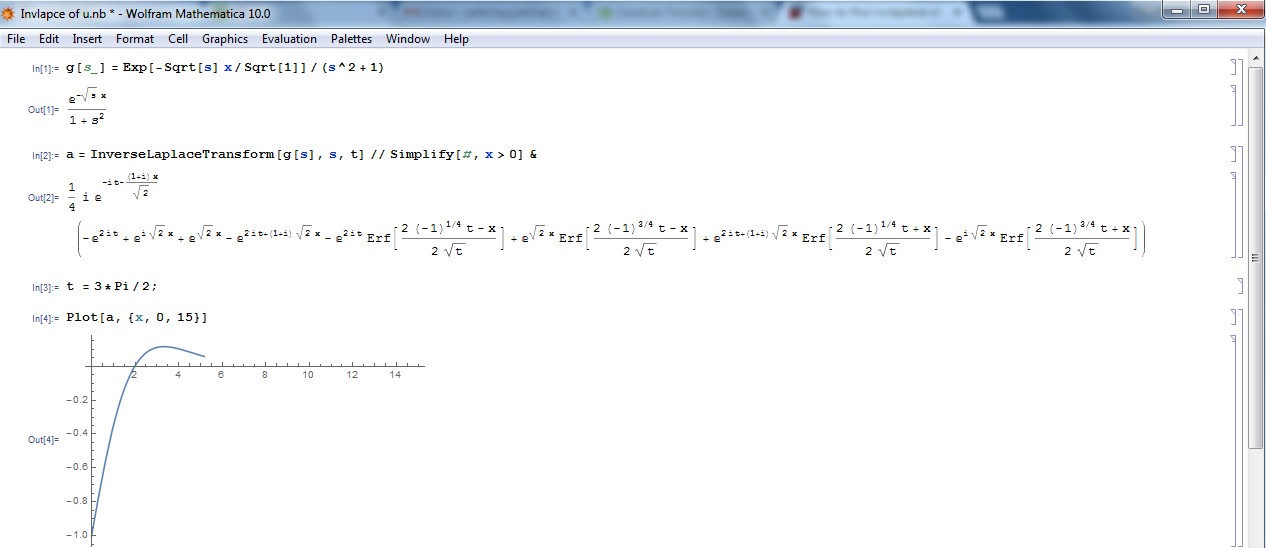

Mathematica gives me an analytical expression

g[s_] = Exp[-Sqrt[s] x/Sqrt[1]]/(s^2 + 1)

a = InverseLaplaceTransform[g[s], s, t] // Simplify[#, x > 0] &

t = 3*Pi/2;

Plot[a, {x, 0, 15}]





Background of U(x)...

J4James 355
July 15 2015
0 0

@Preben Alsholm @tomleslie@Markiyan Hirnyk

Thanks all for your valuable comments. Here is the backgroud of the function U(x).

ss.mw

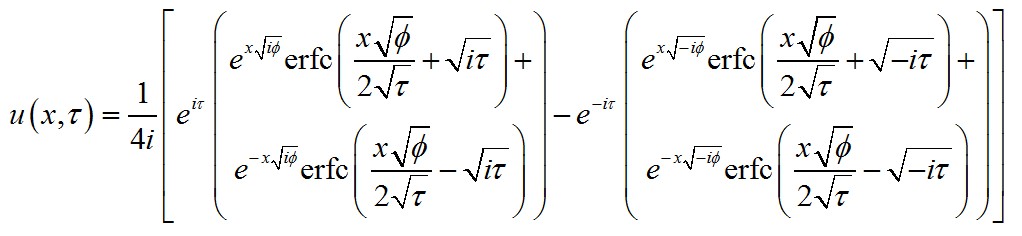

Hand calculations gives me (tau=t)
