## To exchange drawing coordinates ......

just replace

DrawGraph(subs(DrawRule(M), M), style=tree, root="World") ;

by
DrawGraph(subs(DrawRule(M), M), style=tree, root="World") :
PXY := GetVertexPositions(M, style=tree, root="World"):
PYX := map(u -> [-u[2], u[1]], PXY):
SetVertexPositions(M, PYX):
print(DrawGraph(subs(DrawRule(M), M), scaling=unconstrained))

A last problem remains : the yellow boxes that contain the labels are not large enough for these labels to appear.
I do not see how to fix this in a simple way ... maybe you will find some way on your side ?

## I did something better...

@Les

Here is a code that generates the permutation graph for any number of elements to permute.
If this number is large, it would be better to swap the X and Y coordinates before drawing the graph (the graph would extend from left to right, not from top to down)

The code is rather simple and still based on Robert Israel's trick.
I use here a "second trick" to avoid the complex management of the numbered vertices the original trick seems to impose : each vertex (a single letter) is extended by a random integer number.
For instance "a" becomes cat("a", rand()).
It works perfectly well ... while the same extended name is not generated twice !

One solution (as suggested before) is to construct recursively the permutation graph: but I'm not familiar with recursivity and it is always a pain for me to write recursive procedures.
So the code begins by constructing the trivial "order 1" permutation graph "World"--"a", and progressively augment it until all the elements ("b", "c", ...) are included.
I don't know if this  strategy icompares to a recursive one in terms of performances but, I believe it is simpler to read and maintain.

PermutationGraphs.mw

## Good view !...

@Joe Riel

Here is a copy paste from the Maple worksheet
X . Vector[column](3, [1, 1, -1]) ;Â
X . Vector[column](3, [-1, 2, 0]) ;

By the way, does it exist a way to vizualize extra characters in a worksheet ?

## @tomleslie  I'm sorry : two o...

@tomleslie

I'm sorry :

two options :

1. You have read the description of the physical problem I gave to JhonS
1. I misspoke and you misunderstood the problem: it's normal that you provide me a solution which does not correspond to the one I'm expected for.
If it is so, my apologies for my poor explanations
2. My explanations are correct but did not understand the problem and you keep going on your first idea  that I shouldn't have put the problem the way I did.
In this case, with all due respect, I don't see any good reason to keep talking about it
2. You did not
In this case I don't care about the solution you give in eventsProb.mw : it is not the solution of the problem I'm concerned with.

Thank you, however, for the yime you have devoted to me

@tomleslie
Please look to my answer to JohnS, maybe it will enlighten you.

I just have two events.
The first one one [[x(t)=0, v(t)<0], [x(t)=0, v(t)=0]] plays the same role than the event described in the help pages for the bouncing ball test case. Excepted I do not reverse the velocity here, but just force it to be 0 (think not to a boucing ball but o an egg crashing on the floor).

The events are correctly specified: see help pages, example 1 :
dsn := dsolve({diff(y(t),t,t)+y(t)=0,y(0)=0,D(y)(0)=1}, numeric, events=[[[y(t),diff(y(t),t)>0],halt], [[y(t),diff(y(t),t)<0],halt]]);

You write "If I replace your 'events' option with the simpler events=[[x(t)=0, v(t)=0], [x(t)-CMAX, halt]] ..."  ... I will not solve correctly the problem (my reply to JohnS).
Why ? Because the event [x(t)=0, v(t)=0] :

1. will preclude any initial movement of the mass as it is trivially verified by the initial condition
2. ... and even if you use some trick to "pass" this pathological case, the equation dv(t)/dt = f will make the velocity v(t) to evolve and then x(t) to become negative

You can also look also to this more complete mw file
ErrorWithDsolve-2.mw

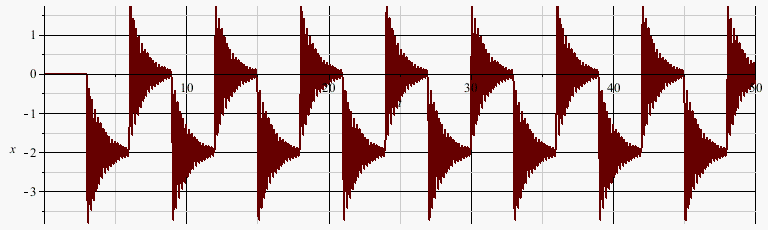

The acceleration is a see-saw function.
The first pattern ranges from 0 to 4 with maximum amplitude 1.
The second pattern ranges from 4 to 8 with maximum amplitude 2

Given c and k, depending on the value of CMAX  :

1. x(t) = CMAX before t=2: the solution stops because of the event [x(t)-CMAX, halt]
2. x(t=2) < CMAX : the mass moves backward up to its wall position x=0 and stays still until the acceleration acc(t) (t>4) is large enough for the piston to move forward again
Then :
1. either it reaches CMAX before the acceleration reverses and forces it to return to its wall position
2. either it reaches CMAX and the solution stops because of the event [x(t)-CMAX, halt]

## @JohnS  Good remarks. In the ex...

@JohnS

Good remarks.

1. In the expression of f, there are only two effects : the acceleration, as you obeserved, and a linear spring of length L0 and mounting length Lm < L0. Given the stiffness k the spring develops a resustive force k(Lm-L0) I just wrote c
So c is not some dampind coefficient.
Note that in the problem of interest I also have a damping term

2. Why do you expect the condition x = v = 0 to occur ?These equations model the behaviour of a mass (here with value 1) contained in a box submitted toa given acceleration..
At time 0 the mass is pushed against the bottom of the box by the spring (force of modulus c).
If the acceleration is high enough to balance this force the mass begins to move to the opposite side of the box.
This happens at some time Tdec__1 (at this time x(t) is obviously null)
Two events can happen :
1. the displacement of the mass equals CMAX and the system locks itself
2. the acceleration diminishes and the spring forces the mass to return to its initial rest position x(t)=0
in this case the system is no longer governed by an ODE and its state is trivialy x(t)=v(t)=0.
This static equilibrium lasts until the acceleration increases again to balance the prestressing c.
​​​

So it is necessary to use events to monitor the differents situations the mass can face.

## I understand very well...

@acer
I just thought it could have been a rather common situation, not case specific, and that the code/data was not necessary.

I'm sorry

## @acer thanks for the advice.(I will...

@acer
(I will give you the answer here in a few days : the system team is responsible of this kind of operation)

... hum ... without imposing, would you have any suggestion about quesstion 2 ?
I have observed that the garbage collector function (gc) only "cleans" unneccessary informations but doesn't free the memory.
Can I do this with some Maple command or should I look to system/ssystem commands ?

## @Carl Love  You're right, the p...

@Carl Love
You're right, the problem essentially appears when P is very small (maybe also when N is very large ?)

## with a slight lag ......

@_Maxim_

Thank you for the "method=custom" tip.

## @Carl Love  @Kitonum  Ve...

@Carl Love  @Kitonum

Very simple indeed.

Great thanks to both of you !

## @acer  I am sure too. If there was...

@acer

I am sure too.
If there was any offence taken, it certainly was not intended.

## The Fourier transform of a function f im...

The Fourier transform of a function f imposes f to have some properties to exist.

f must be in the space S of tempered functions, made of indefinetly derivable functions decreasing more rapidly than any power of (1/x) when |x| tends to infinity.
Suppose it is the case for y(t).
Then limit(y(t), t=_infinity) should be 0 and diff(y(t), t\$n) should be 0 too for any positive integer n.
The asymptotic equation y(t) verifies then should be m*sin(omega*t+..) = 0.
This being not true, the Fourier transform of y(t) does not exist.

As a general rule, the Fourier transform is used for solving ordinary differential equations only if these ODEs are linear ; yours being obviously highly non linear, hopping to solve it through a Fourier transofmation is a waste of time

Last point, the term arccos(y(t)) is defined only if abs(y(t)) <= 1 and it is not even sure that a solution exist for all t values !
(look Preben Alsholm in a previous answer)

## correction...

@John Fredsted

Heaviside distribution is defined by H(x) = piecewise(x < 0, 0, x > 1, 1, 1/2).
Then the correct result of your first  <HD, f> is f(0)/2

For <HD, f> = <H, Df> = int(....) = 1/2 f(0) too

which can be obtained from the fact that D is the derivative (in the distributional sense) of H ; then DH = HD = 1/2(H^2)' = 1/2(H)' = D and so <HD, f> = <DH, f> = (1/2 D, f> = f(0)/2

Of course f must be an C-infinite function with bounded support

## true...

@vv

but as the piece of code I gave,  it is just a roundabout way to solve the "Quantile issue".
It is still unfortunate that Quantile returns a wrong answer
