Is there a way to reassign the arcsecant function "arcsec()" as "asec()" so that "arcsec" can be assigned to the arcsecond unit "Unit(arcsec)"?

Ideally, I would like all of the inverse trigonometric functions to use the shorter notation "asec()" instead of "arcsec()".  I usually do this as aliases, i.e. "alias(asin = arcsin) : alias(asec = arcsec) :" but this won't allow reusing "arcsec" for a unit instead.

Example error for Maple 2023:

alias(asec = arcsec) :
AddUnit(astronomical_unit, context = astronomy, default = true, prefix = SI, conversion = 149597870700*m) : # https://en.wikipedia.org/wiki/astronomical_unit
AddUnit(second, context = angle, spelling = arcsecond, plural = arcseconds, symbol = arcsec, prefix = SI_negative) :

AddUnit(parsec, context = astronomy, default = true, prefix = SI, conversion = AU/tan(arcsec)) ; # https://en.wikipedia.org/wiki/Parsec#Calculating_the_value_of_a_parsec

"Pi/648000" has to be used instead of "arcsec" here when defining the parsec since "arcsec" is already reserved for the arcsecant function, even with "alias(asec = arcsec) ;".

Correction: it looks like the parsec was redefined by the IAU in 2012 as exactly "648000*AU/Pi" without any tangents (or sines) in the definition (so the angle subtended by 1 AU at 1 PC is actually 0.999999999992" not 1").  Both "astronomical_unit" and "parsec" have the wrong values in Maple 2023 which need to be corrected manually.  But the conflict between arcseconds and arcsecants remains the same.

https://iau.org/static/resolutions/IAU2015_English.pdf

https://iopscience.iop.org/article/10.3847/0004-6256/152/2/41

I have a thirder order ODE with non polynomial coefficients and I naively thought to try dsolve for fun to see what happens and Maple returned DESol with a second order differential equation and an arbitrary coefficient. I know Maple outputs DESol when it cannot find a solution similar to RootOf but the arbitrary constant is what is throwing me off.

I am unsure how to interpret this, if a particular solution is found I could reduce the order and see how I could get with the second order ODE but maple doesn't produce a particular solution when I run that command.

DESol_Question.mw

I am trying to install Syrup in my home computer (I have it installed in my work computer).  I followed the instructions in the Readme file:

From Standard Maple:
    Open the file Syrup-Installer.mla.
    To do so, use File -> Open, choose file type
    "Maple Library Archive (.mla)", select the file, and
    click "Open".

Everything seemed to work and the help page opened up:  But, it is not the syrup help page.  furthermore, when I type ?Syrup, it doesn't open it either.

When I try to run a worksheet that uses Syrup (that works on my work computer), I get these errors:

I"m going to reboot now and try again.

Jorge

Hi all,

I'm new to this software, I've started using it to build myself a spacemouse, and figuring out the "inverse kinematics" involved in its working. I've done a little research on how Maple works, I'm fortunate enough to have a student license, but maybe this problem is above my capacity.

Essentially, I want to control a 6-DOF platform by measuring six distances (with magnetic sensors, but that's not relevant, I believe), from three points forming an equiliateral triangle on the top platform, to six points on the bottom platform. So far I've been able to calculate the effect that each of the degrees of freedom has on the platform and on each of this distances that I want to measure.

But that's where the problem lies. Now I have a system of six equations with six variables and a few parameters, a system that's heavily nonlinear, involving a lot of trig functions and multiplications between them. I've tried to "brute force" a symbolic solution by simply typing in: solve(equations, variables) (note that both equations and variables were properly defined) but Maple just ran for a couple of hours without providing an answer. I don't know if this particular application reaches this software's limits, or if it's me who is doing something wrong.
I'll try to provide the maple Worksheet, I'm still not familiar with this site's formatting, sorry in advance:

restart;
L := Matrix(3, 3, [[cos(theta)*cos(psi), cos(theta)*sin(psi), -sin(theta)], [sin(phi)*sin(theta)*cos(psi) - cos(phi)*sin(psi), sin(phi)*sin(theta)*sin(psi) + cos(phi)*cos(psi), sin(phi)*cos(theta)], [cos(phi)*sin(theta)*cos(psi) + sin(psi)*sin(phi), cos(phi)*sin(theta)*sin(psi) - sin(phi)*cos(psi), cos(phi)*cos(theta)]]);
T := Matrix(3, 3, [[1, psi, -theta], [phi*theta - psi, phi*psi*theta + 1, phi], [phi*psi + theta, psi*theta - phi, 1]]);
p[ni] := Typesetting[delayDotProduct](R, Vector[column](3, [cos(theta[n]), -sin(theta[n]), 0]), true)

p__n := (T . (p[ni])) + Vector[column](3, [u, v, w])

m[m] := R*Vector[column](3, [cos(phi__m), -sin(phi__m), h/R])

`Δp` := p__n - m[m]

with(VectorCalculus)

s[n] := sqrt(`Δp` . `Δp`)

theta[1] := -Pi/12;
theta[2] := Pi/12;
theta[3] := (2*Pi)/3 - Pi/12;
theta[4] := Pi/12 + (2*Pi)/3;
theta[5] := (4*Pi)/3 - Pi/12;
theta[6] := (4*Pi)/3 + Pi/12;

phi[1] := 0;
phi[2] := (2*Pi)/3;
phi[3] := (4*Pi)/3;

s[1] := eval(s[n], {phi__m = phi[1], theta[n] = theta[1]})

s[2] := eval(s[n], {phi__m = phi[1], theta[n] = theta[2]})

s[3] := eval(s[n], {phi__m = phi[2], theta[n] = theta[3]})

s[4] := eval(s[n], {phi__m = phi[2], theta[n] = theta[4]})

s[5] := eval(s[n], {phi__m = phi[3], theta[n] = theta[5]})

s[6] := eval(s[n], {phi__m = phi[3], theta[n] = theta[6]})

equations := [-d[1]^2 + s[1]^2 = 0, -d[2]^2 + s[2]^2 = 0, -d[3]^2 + s[3]^2 = 0, -d[4]^2 + s[4]^2 = 0, -d[5]^2 + s[5]^2 = 0, -d[6]^2 + s[6]^2 = 0]

variables := [u, v, w, psi, theta, phi]

solve(equations, variables)

So far this is what I've got, thanks in advance for the help.

EDIT: In the beginning of the worksheet two rotation matrices are declared, L and T. T is a "linearized" version of L, assuming small angles, and I'm using it to simplify the expressions. Still there is no luck.

Hello. I am trying to create a procedure that calculates the properties of a triangle (such as the sides, angles, area, and centroid) and then plots it. However, when I try to run my code, I keep getting the error:

Here is the code I am using:

What am I doing wrong, and how can I fix this error? Thanks!

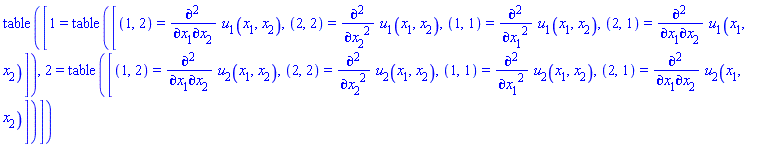

When executing the attached work sheet, the output

changes to

Why is that (local seetings maybe?) and how to reproduce the former, more compact output?

Download Output_formated_with_rational_factor_.mw

Hello,

do you have an idea how could be filtered several values from dataframe?
I have a dataframe called "TestData". I need to select rows from data frame which are equal to the list called "SelectionList".

Thank you for a comment.


Data:=<"LC1", "LC2", "LC3", "LC4", "LC5", "LC6", "LC7", "LC8", "LC9", "LC10", "LC11", "LC12", "LC13", "LC14", "LC15", "LC16", "LC17", "LC18", "LC19", "LC20">;
LoadValue2:=<10,15,100,82,18,89,25,84,46,18,79,12,0,28,147,15,86,444,18,65>;

TestData:=DataFrame(<Data|LoadValue2>,columns=[Case,Load]);

SelectionList:={"LC3", "LC4", "LC5", "LC6", "LC7", "LC8", "LC9"};

As Maple is not equipped to handle numerical solutions of elliptic PDEs, can anyone help top solve PDEs by finite differences or any other numerical solver?

pde.mw

I have two surfaces crossing the z=0 plane for some ranges of x and y values.

For the first surface, x=Gamma is bounded between 0 and 10 and y=rho between -1 and +1. For the second surface, x=Gamma_1 is bounded between 0 and 10 and y=Gamma_2 between 0 and 10 as well. I want to clearly identify (parametric):

1. For which Gamma and rho ranges of values the first surface is positive (and for which negative)
2. For which Gamma_1 and Gamma_2 ranges of values the second surface is positive (and for which negative)

Worksheet: sign_regions.mw (highlighted in yellow my two failed attempts)

how to solve this using integration by parts?

Download 1111.mw

weibull_damage.mw
i have weibull plot...and i want to get size and shpae parametr...how can i get ...parameters .i don't know how to perform linear regression to get these parameters in maple..please help

I am using fsolve() to solve a highly nonlinear system of 6 equations in 6 variables: lambda_d1, lambda_i1, lambda_d2, lambda_i2, lambda_d3, lambda_i3.

fsolve() doesn't "solve"! I usually help fsolve() with some initial conditions and with the expected signs of the solution but in this case it's not enough. I noticed that if I comment out the expected signs line (that is, if I don't impose my 6 lambdas to be strictly positive), the fsolve() works.
How do I help fsolve() to pin down only positive solutions at each iteration? I have no reasons to believe that there aren't any positive solutions for all 6 lambdas...

Worksheet: fsolve_help.mw

thank you.

what is the mathematics behind isolve? How can one selct special solutions?

Dear Colleague.

I am trying to improve the results of abs(res[i] - exy) in the following codes.

restart;
Digits := 30:

# Define the function
f := proc(n)
    -0.5*y[n] + 0.5*sin(x[n] - Pi)
end proc:

# Define equations
e1 := y[n+2] = 2*h*delta[n] + y[n] - h^2*(-2*sin(u)*f(n)*u^2 - 2*sin(u)*f(n+2)*u^2 + 2*sin(2*u)*f(n+1)*u^2 + 2*cos(u)*f(n)*u - 2*cos(u)*f(n+2)*u + 2*cos(2*u)*f(n+1)*u - 2*cos(2*u)*f(n)*u - 2*sin(u)*f(n) + 2*sin(u)*f(n+2) + sin(2*u)*f(n) - sin(2*u)*f(n+2) - 2*f(n+1)*u + 2*f(n+2)*u)/((2*sin(u) - sin(2*u))*u^2):
e2 := y[n+1] = h*delta[n] + y[n] - (1/2)*h^2*(-sin(u)*f(n)*u^2 - sin(u)*f(n+2)*u^2 + sin(2*u)*f(n+1)*u^2 + 2*cos(u)*f(n)*u - 2*cos(u)*f(n+2)*u + 2*cos(2*u)*f(n+1)*u - 2*cos(2*u)*f(n)*u + 4*sin(u)*f(n+1) - 4*sin(u)*f(n) - 2*sin(2*u)*f(n+1) + 2*sin(2*u)*f(n) - 2*f(n+1)*u + 2*f(n+2)*u)/((2*sin(u) - sin(2*u))*u^2):
e3 := h*delta[n+2] = h*delta[n] + h^2*(2*sin(u)*f(n)*u + 2*sin(u)*f(n+2)*u - 2*sin(2*u)*f(n+1)*u - 2*cos(2*u)*f(n+1) + cos(2*u)*f(n) + cos(2*u)*f(n+2) + 2*f(n+1) - f(n) - f(n+2))/(u*(2*sin(u) - sin(2*u))):

with(LinearAlgebra):
epsilon := 10^(-10):
inx := 0:
ind := 1:
iny := 0:
h := 0.01:
n := 0:
omega := 1:
u := omega * h:
tol := 1e-4:
N := solve(h * p = 8 * Pi, p):

err := Vector(round(N)):
exy_lst := Vector(round(N)):

c := 1:
for j from 0 to 2 do
    t[j] := inx + j * h:
end do:

vars := y[n+1], y[n+2], delta[n+2]:

step := [seq(eval(x, x = c * h), c = 1 .. N)]:
printf("%6s%15s%15s%16s%15s%15s%15s\n", "h", "Num.y", "Num.z", "Ex.y", "Ex.z", "Error y", "Error z");

st := time():
for k from 1 to N / 2 do
    par1 := x[0] = t[0], x[1] = t[1], x[2] = t[2]:
    par2 := y[n] = iny, delta[n] = ind:

    res := eval(<vars>, fsolve(eval({e1, e2, e3}, [par1, par2]), {vars}));

    for i from 1 to 2 do
        exy := eval(sin(c * h)):
        exz := eval(cos(c * h)):
        printf("%6.5f%17.9f%15.9f%15.9f%15.9f%13.5g%15.5g\n", h * c, res[i], res[i+1], exy, exz, abs(res[i] - exy), abs(res[i+1] - exz));

        err[c] := abs(evalf(res[i] - exy));
        if Norm(err) <= tol then
            h := 0.1 * h * (c + 1) * (tol/Norm(err))^(0.2);
        else
            break
        end if;
        exy_lst[c] := exy;
        numerical_y1[c] := res[i];
        c := c + 1;
    end do;
    iny := res[2];
    ind := res[3];
    inx := t[2];
    for j from 0 to 2 do
        t[j] := inx + j * h;
    end do;
end do:
v := time() - st;
v / 4;
printf("Maximum error is %.13g\n", max(err));
NFE = evalf((N / 4 * 3) + 1);

# Get array of numerical and exact solutions for y1
numerical_array_y1 := [seq(numerical_y1[i], i = 1 .. N)]:
exact_array_y1 := [seq(exy_lst[i], i = 1 .. N)]:

# Get array of time steps
time_t := [seq(step[i], i = 1 .. N)]:

# Display graphs for y1
with(plots):
numerical_plot_y1 := plot(time_t, numerical_array_y1, style = point, symbol = asterisk, color = blue, symbolsize = 20, legend = ["TFIBF"]);
exact_plot_y1 := plot(time_t, exact_array_y1, style = point, symbol = box, color = red, symbolsize = 20, legend = ["EXACT"]);

display({numerical_plot_y1, exact_plot_y1});
Error_plot_y1 := plot(time_t, err, style = line, symbol = box, tickmarks = [piticks, decimalticks], color = navy, labels = [`h=Pi/8`, typeset(`Absolute Errors`)]);

I am suspecting that I didnt update the new h properly (I may be wrong, though). Please kindly help modify the code to allow the values of abs(res[i] - exy) to about 10^(-11). Thank you and best regards.

See attached worksheet in Maple 2023.

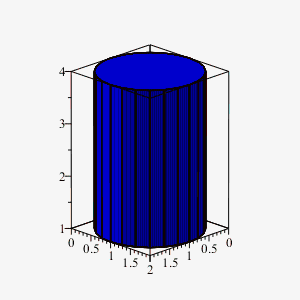

This example is taken from the Maple help page. I want to 'zoom in' on a plot3d object. The only way I have found was from responses [1] on the maple primes forum. It uses InlinePlot and the scale option to perform the 'zoom in'. Since InlinePlot generates the plot in terms of XML there is no graphic out, only a text based output. In order to reconstitute the InlinePlot as a plot object I can view visually I need to use some additional commands from the DocumentTool package. This is all great but the output, which in our case is P3, is not a plot object and therefore cannot be exported as a png. Is there a way to convert the InlinePlot with the scaling applied back to a typical plot object so I can export it as a .png, using Export("output_plot.png",P3,base=worksheetdir)?

can_I_convert_InlinePlot(P3)_back_to_a_regular_plot_object_so_I_can_export_it_as_a_png.mw
