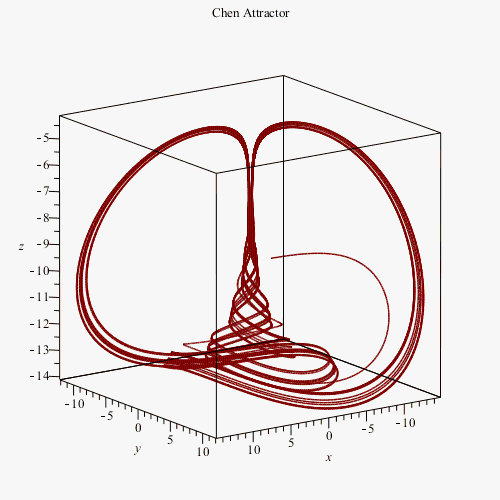

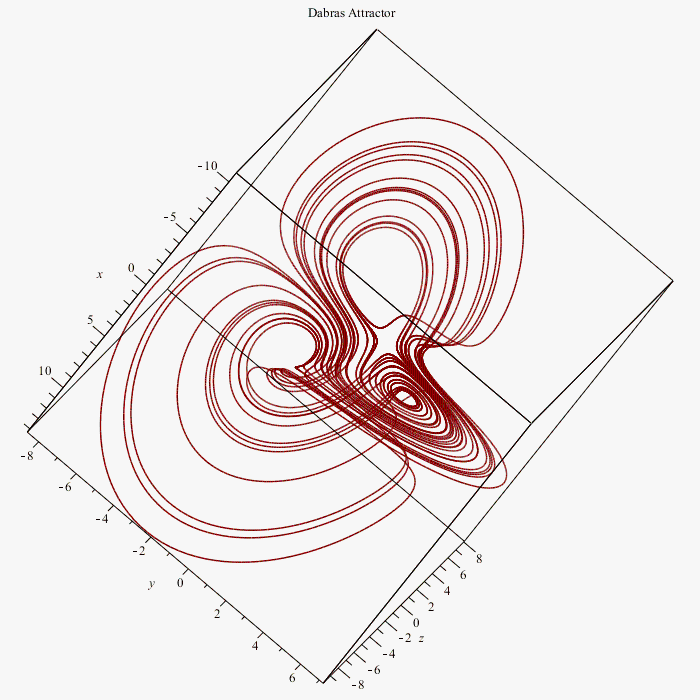

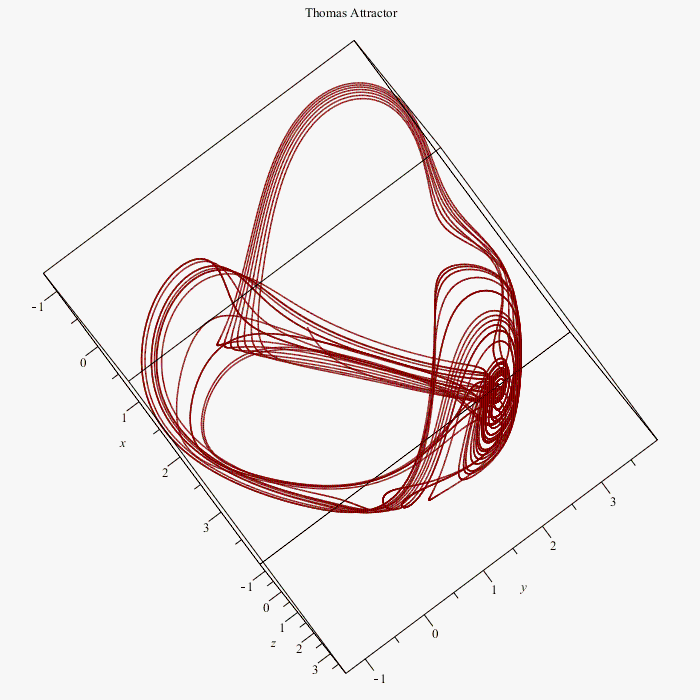

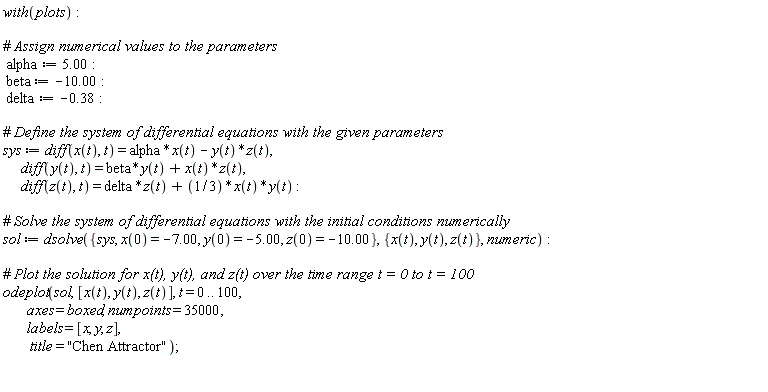

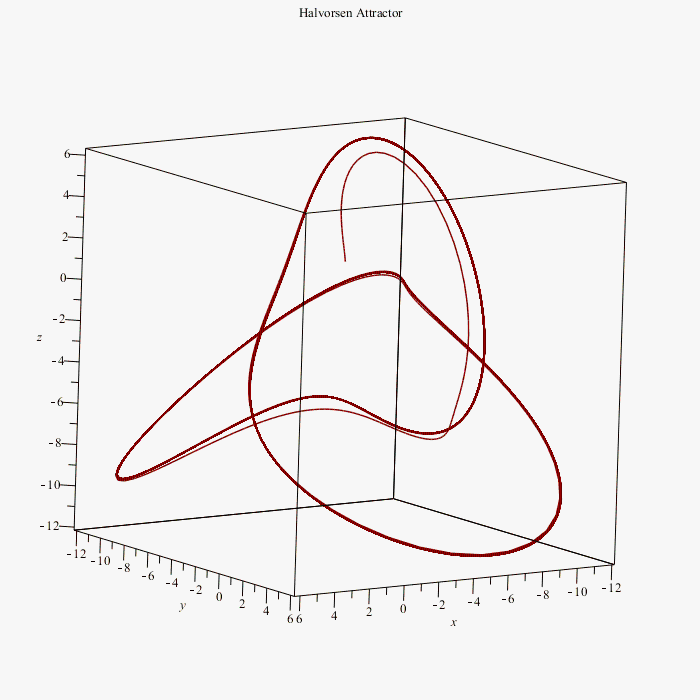

Download Attractors.mw

Hi everyone...

How can I remove the warning (Warning, (in anonymous procedure created in Typesetting:-FI) `m` is implicitly declared local
) from this for command in Maple 2024? I know the warning can be ignored but I want to remove it anyway.

for k from 1 to 4 do
    A[k] := Matrix(k, k, (i, j) -> local m; ifelse(i + j < k + 2, add(Y[i - m + j - 1]*binomial(i - 1, m)*(-1)^m, m = 0 .. i - 1), 0));
end do

tnx...

I do not think I ever saw this warning messages from dsolve. This is _Clairaut first order ode. When adding the option singsol=all in the dsolve call, Maple replies with

I do not have earlier version of Maple to try as my C: drive died and lost all my Maple's installed versions. I need to to try to install older version of Maple sometime and check.

Is this new warning and why does it show? Is this suppose to happen?

Download strange_warning_message_from_dsolve.mw

I also noticed these warning messages show up only the first time dsolve is called on this ode.

Calling it again right after, using the same command, the warning messages no longer show up, which is  even more strange.

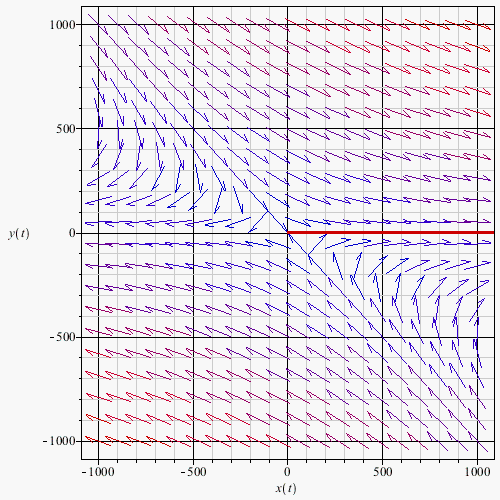

I am plotting phase plot of two first order ode's.

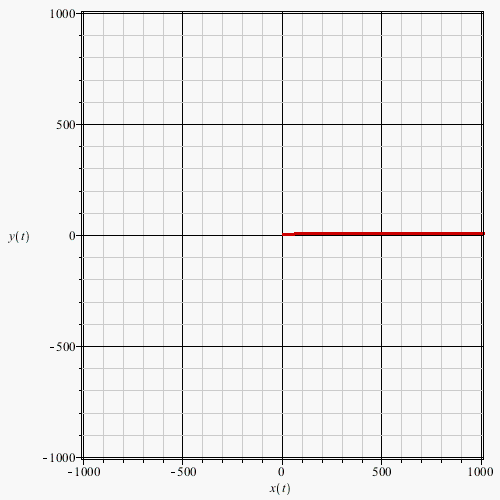

I noticed when added +t to one ode, the plot generated losses all the slope fields. Any one knows why and if this is just limitation of DEplot or if there is a way to workaround it.

THis worksheet has first example showing expected output, then second example where +t was added first ode. Now same code generates plot will all the slope field gone.

Download strange_DEplot.mw

update

if someone is interested, I found Maple has builtin function to check if system of ode's is autonomous or not. So changed my code to check first. Here is how to check:

Download strange_DEplot_V2.mw

I found that  DynamicSystems package uses global variable called s

THis makes zero design sense. Why would a package use a global variable that could have been used by a user?

What is the correct way to prevent this warning message from showing up, as I have no control over what variable can be used in global space.  I also tried to declare s as local to the function that is using the package, but that did not help. Only way was to remove variable from global space before.

Any suggestions?  And why DynamicSystems is even using global symbols in first place?

Download dynamic_systems_uses_gloabl_s.mw

For display of plot axes labels, I prefer to use the Typesseting in place so that diff(y(x),x) display as y'(x) (takes less space and looks better also).

It does that in the worksheet. But when using diff(y(x),x) as the Y axis label, the plot still shows diff(y(x),x) and not y'(x).

Is there a way to make plot and DEtools:-DEplot  use the Typesetting in place?   What is the point of using Typesetting if plots generated do not use it?


Download labels_for_plot_do_not_use_typesetting_maple_2024.mw

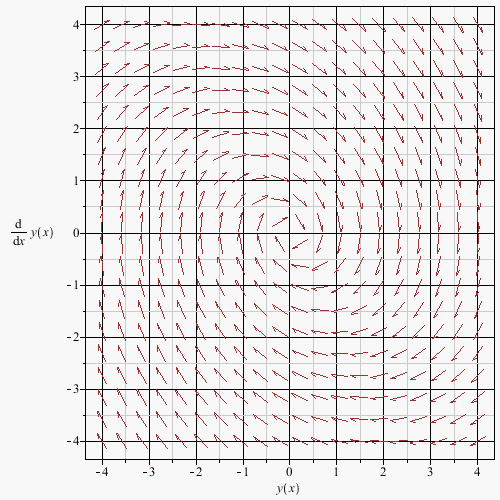

Notice the label on Y axis above. I'd like that to display as y'(x) as it is in the worksheet.

I noticed very serious problem in Maple 2024.1

This is new windows 10  22H2  installation. With Maple 2024.1. I've only seen this using Maple and no other windows applications. I have 2 monitors and NVIDIA GeForce RTX 3060 graphics card.

What happens is that sometimes (may be 2-3 times each day), Maple frontend gets all mangled up. I could not figure what causes it. it could be when I move the window from one terminal to the other. sometimes it happens when I open a debugger window.

Only way to fix this is to close all of Maple and start it again.

Just wondering if anyone seen anything like this and what can cause it. Again, it is only Maple that shows this problem, no other windows application does this. Have 128 GB Ram and PC is only 2 years old.

This is the very first time I see this in Maple and used Maple for long time and on this same PC before and had two terminals also before all the time. I have no idea what causes it.

Could it be Java problem in Maple 2024.1 ?

Any idea why calling solve(eqs,unknowns) gives Error, (in is/internal) type does not exist when the unknowns are in a set, but the error goes away when the unknowns are in a list? Is this expected or is this a bug?

Download is_internal_error_from_solve_maple_2024_1.mw

Update

Reported to Maplesoft support.

Any idea why limit(e,x=0) fail to evaluate but  eval(e,x=0) does in this example?

Download limit_problem_maple_2024_1.mw

I tried the above using some other software, and there both evaluate to same result as expected:

In Maple, I found that by removing the sqrt(2) from inside the tanh, then limit now works

e:=-tanh((a*x+b));
limit(e,x=0)

Is this a bug?

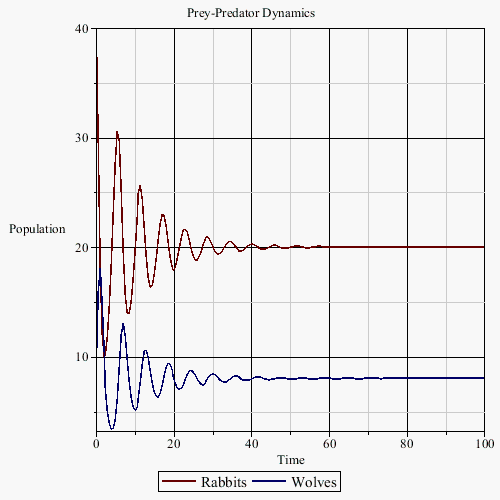

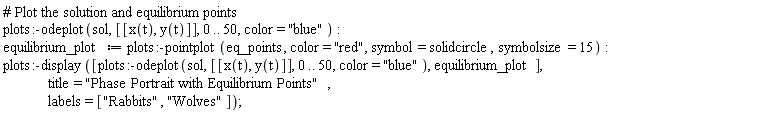

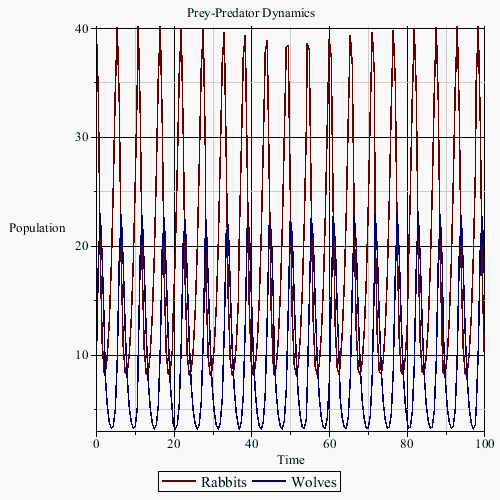

Download predator_prey2.mw

I do not have earlier Maple version to check now. But Maple 2024.1 gives division by zero on this second order ode with missing x. This looks like new problem in Maple. Would someone who have access to earlier version of Maple be able to check if this problem shows there also? I solved this and get y=x+3 as solution which Maple verifies.

Download divide_by_zero_maple_2024_1_august_5_2024.mw

Something seems to have changed.  I do not now have Maple 2024.0 to check or earlier Maple's as I have to reinstall windows since my C:\ drive died.

I installed Maple 2024.1 new on windows 10 home edition.

I noticed now when evaluating the current cell, the cursor automatically jumps to next cell, which is what I want and how Maple always worked.

But now the cursor jumps to the end of the command in the next cell. Before, I could swear that not how it worked and it used to jump to the start of the next cell.

This makes it very confusing, as I keep looking for where the cursor is now.

Why was this changed in 2024.1? I looked at option and see nothing to change this.

Here is worksheet and small movie.

This is my display options

Download cursor_jump_to_end_of_line.mw

Update

I tried to change the cursor size and thickness in windows 10 itself (using settings->Ease of access->Text cursor) and made it much bigger and restarted Maple but this had no effect. Cursor inside Maple remained the same.

I was hoping if there is a way to make the cursor bigger then this will make it easier to see where it jumped to when hitting enter.

It is bad, since the Maple cursor jumps to random places in the next cell. sometimes it jumps to the middle of the code in the next cell when there are more than one line there.

Here is a movie. Notice how it jumped to the start of the second line now in next cell in one case and not to the end of the code.

I can't believe no one at Maplesoft have noticed this and is able to fix it. This is ridiculous behavior. I spend few seconds each time I hit enter looking for where the cursor has landed as I keep looking at start of the next cell and it is not there. I could have 10-20 lines of code in one cell and have too look to find where the cursor is hidden in these 20 lines.

It natural for one to look for where the cursor is when woking and this makes it annoying. Hopefully someone can find a way to tell Maple to bring the old behaviour back where cursor jumps always to the start of the next cell.

I switched to using smart plot in Maple since it makes it easier. Here is an example

sol:=[-1/4*x^2, x];
plot(sol,legend=sol)

But sometimes it gives internal error, like in this example, because some of the list of solutions give complex over some x domain

sol:=[-1/4*x^2, (-1/2-1/2*(-3)^(1/2))^2+(-1/2-1/2*(-3)^(1/2))*x, (-1/2+1/2*(-3)^(1/2))^2+(-1/2+1/2*(-3)^(1/2))*x];
plot(sol,legend=sol)

Luckily I can trap this error and workaround it.

The strange thing is that if I give it explicit x range, then it works. It now can remove the solutions which give complex values automatically

p:=plot(sol,x=-4..4,legend=sol);

question is: Should not smart plot have done this automatically? That is why it is called smart plot.

i.e. remove those solutions that give complex values like the case the above?

Maple 2024.1 on windows 10

I am using the smart plot (i.e plot without giving the x=from..to) since I am generating these plots programmatically and better let Maple figure the best range to use.

But found Maple hangs on some solutions.

Here is an example

restart;
sol:=1/2/cos(x)*(sin(x)^2+(sin(x)^4+36*cos(x))^(1/2));
plot(sol);

I waited for 30 minutes and nothing happened.

If I change the above command to

plot(sol,x=-Pi..Pi);

then it finishes instantly. It looks like Maple is stuck trying to find correct x and y ranges to use.

Is this known limitation  or smart plot or is this a bug?

Maple 2024.1 on windows 10.

What exactly is the difference between the differential operator d_[] from the physics package and diff() ? Why is it not possible for me to differentiate a scalar function g or a coordinate r with the help of the operator? d_[1] should correspond to d/dx (X = (x, y, z, t)) or not?

Download example_d_[].mw
