Adding H-type error bars to a plot of 2d points...

Asked by: Scot Gould 1039
plotting statistics boxplot
July 12 2024
1  3

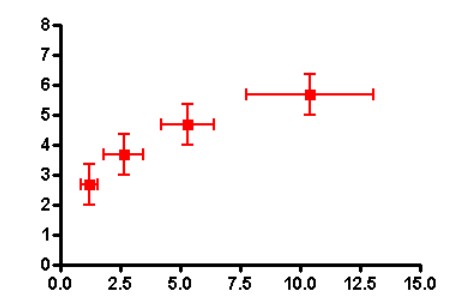

Using ScatterPlot (or ErrorPlot), one can add error bars to a 2d point plot of data. However, the bars are single lines. I wish to create a plot with H-type error bars in both the horizontal and vertical directions.  Below is an example showing how the bars should appear. (This image is taken from a previous question about adding error bars.)

I do not need to reproduce this figure exactly. The location of the data points and the size of the error bars are irrelevant. The closest I have seen is using BoxPlot.

Has this question been asked and answered? If so, I cannot find it.

Help on how to solve (if possible) a PDE. ...

Asked by: emendes 515
pde pdsolve differential-equations
July 10 2024
0  7

Hello,

I need to check if Maple can solve a specific PDE. Since I don't know much about the PDEtools package, I wonder if a user familiar with it and experienced in solving PDEs could help me.

with(PDEtools);
declare(u(x,y,z,w));
PDE1:=alpha*(y+b*(w))*diff(u(x,y,z,w),x)+(x+z-b*(w))*diff(u(x,y,z,w),y)-c*y*diff(u(x,y,z,w),z)+d*(y-x)*diff(u(x,y,z,w),w)=0;
Sol1:=pdsolve(PDE1);

Maple returns NULL as the solution. Any ideas on how to obtain a solution, if possible? In other similar PDEs, u(x,y,w,z) has a quadratic form.

Many thanks,

axis labels on the wrong side of the vertical axis...

Asked by: nmacsai 260
plot label axis
July 10 2024
1  4

When you look at negative horiztonal values on a basic plot, the axis labels can be obscured by gridlines or the plot itself. I have been told many times to keep axis labels and gradation labels outside of the plotting area to avoid adding more information than is neccessary in the actual plotting area. Is there a way to move the label to the other side and rotate it by 180 degree? How do people normally deal with this issue?

See my example of how the axis labels can be obscured by gridlines.

axis_label_on_wrong_side_of_axis.mw

how to improve the typesetting of the gamma's...

Asked by: Ronan 1341
textplot plotting
July 09 2024
2  14

I am trying to improve the positioning of the gammas in the diagram (at bottom) as they are too close to the points and lines. gamma1 and gamma2 have been assigned values. This best I could come up with is shown below.

>

restart;
>

with(plots):with(plottools):
>

with(Typesetting):
>

`gamma2`:=<3|5|2>

Vector[row](3, {(1) = 3, (2) = 5, (3) = 2})

 (1)
>

Pgamma2:=[3/2,5/2]

[3/2, 5/2]

 (2)
>

display(point(Pbeta2,symbol=solidcircle,symbolsize=14),textplot([Pgamma2[],Typeset((`gamma2` )),align={above}]))


>





Download 2024-07-10_Typeset_gamma.mw

How to retrieve the arguments of f_1 , the solutio...

Asked by: emendes 515
July 09 2024
2  2

Hello

I am trying to solve some PDEs using Maple.  In one of them, Maple returns

SolL:= HL(x, y, z) = f__1(1/2*(2*sigma*z - x^2)/sigma, rho^2 - 2*rho*z + y^2 + z^2)

How to retrieve only the arguments of f__1?

Many thanks

c__1 and _C1 do not seem to work the same way....

Asked by: nm 11353
constants ode dsolve
July 09 2024
1  4

The change from _C1 to c__1 is causing me so many problems as I still do not fully understand it.

I have nothing in my Maple ini file.

I was solving from a solution to an ode for the constant of integration, which I know is c__1 inside a proc.

But this was failing to solve for it. When I copy same code to global (worksheet), it works. So it is clearly issue of name space related to c__1 vs. _C1.

So even though the solution now has the subscripted version and not the traditional one (since that is the default now), it does not solve for it when inside a proc.

If instead I solve for _C1, then it works. Even though the solution has c__1. This is bizzar to me.

I also tried adding   global c__1; inside the proc, but this did not help. (did not show this version in the worksheet).

Why is solving for c__1 fail inside a proc but works outside? Clearly the c__1 in the solution of the ode is not the same c__1 I typed in to solve for, even though on the screen they look the same.

So c__1 is not really the same as _C1 in all aspects. Right?

Here is worksheet. Example 1 below shows how it fails inside proc

Maple 2024.1. Does this happen for others on Linux or the Mac?


>

restart;
>

interface(version);

`Standard Worksheet Interface, Maple 2024.1, Windows 10, June 25 2024 Build ID 1835466`

>

Physics:-Version();

`The "Physics Updates" version in the MapleCloud is 1767 and is the same as the version installed in this computer, created 2024, June 28, 12:19 hours Pacific Time.`

Example (1) solving for constant of integration fails inside proc but works outside


>

restart;

>

foo:=proc(ode::`=`)
local sol,the_constant;
   sol:=dsolve(ode);
   print("sol is ",sol);
   the_constant:=solve(sol,c__1);
   print("the constant is ",the_constant);
end proc;

proc (ode::`=`) local sol, the_constant; sol := dsolve(ode); print("sol is ", sol); the_constant := solve(sol, c__1); print("the constant is ", the_constant) end proc

>

#this does not work
ode:=diff(y(x),x) = 3/4*y(x)/x;
foo(ode)

diff(y(x), x) = (3/4)*y(x)/x

"sol is ", y(x) = c__1*x^(3/4)

"the constant is "

>

restart;

>

#this works
ode:=diff(y(x),x) = 3/4*y(x)/x;
sol:=dsolve(ode);
print("sol is ",sol);
the_constant:=solve(sol,c__1);

diff(y(x), x) = (3/4)*y(x)/x

y(x) = c__1*x^(3/4)

"sol is ", y(x) = c__1*x^(3/4)

y(x)/x^(3/4)

>



Example (2). Solving for _C1 works, even though the ode has c__1  , why??


>

restart;

>

foo:=proc(ode::`=`)
local sol,the_constant;
   sol:=dsolve(ode);
   print("sol is ",sol);
   the_constant:=solve(sol,_C1);  #notice solving for _C1 now
   print("the constant is ",the_constant);
end proc;

proc (ode::`=`) local sol, the_constant; sol := dsolve(ode); print("sol is ", sol); the_constant := solve(sol, _C1); print("the constant is ", the_constant) end proc

>

ode:=diff(y(x),x) = 3/4*y(x)/x;
foo(ode)

diff(y(x), x) = (3/4)*y(x)/x

"sol is ", y(x) = c__1*x^(3/4)

"the constant is ", y(x)/x^(3/4)

>

restart;

>

ode:=diff(y(x),x) = 3/4*y(x)/x;
sol:=dsolve(ode);
print("sol is ",sol);
the_constant:=solve(sol,c__1); #these both work OK in global
the_constant:=solve(sol,_C1);  #these both work OK in global

diff(y(x), x) = (3/4)*y(x)/x

y(x) = c__1*x^(3/4)

"sol is ", y(x) = c__1*x^(3/4)

y(x)/x^(3/4)

y(x)/x^(3/4)

>



>



Example (3). Forcing arbitraryconstants = subscripted it still does not work inside proc. Why??


>

restart;

>

foo:=proc(ode::`=`)
local sol,the_constant;
   sol:=dsolve(ode,arbitraryconstants = subscripted);
   print("sol is ",sol);
   the_constant:=solve(sol,c__1);
   print("the constant is ",the_constant);
end proc;

proc (ode::`=`) local sol, the_constant; sol := dsolve(ode, arbitraryconstants = subscripted); print("sol is ", sol); the_constant := solve(sol, c__1); print("the constant is ", the_constant) end proc

>

ode:=diff(y(x),x) = 3/4*y(x)/x;
foo(ode)

diff(y(x), x) = (3/4)*y(x)/x

"sol is ", y(x) = c__1*x^(3/4)

"the constant is "

>






Download constant_of_integration_solving_july_9_2024_maple_2024.mw



Hyperlink Question...

Asked by: Ronan 1341
documentation hyperlink
July 07 2024
1  2

I have a command called Dual in a SubPackage. RationalTrigonometry:-UHG:-Dual(..). I cannot get the hyperlink from the overview page to work.i.e RationalTrigonometry,UHG,Dual If I use Dual on its own it finds another Maple command to do with boolean logic. What syntax should I use here? I have used RationalTrigonometry,Spread without a problem to avoid another Maple command.



Error, (in RootOf) _Z occurs but is not the depend...

Asked by: nm 11353
rootof radnormal
July 07 2024
2  3

I added radnormal(sol) to my solution to workaround bug in solve hanging.

But now new problem showed up. sometimes radnormal gives internal error when there are _Z's in solution.

radnormal(sol);
Error, (in RootOf) _Z occurs but is not the dependent variable


Attached worksheet. Sorry that the solution is very large and has lots of _Zs and RootOf, but this is the first one I can see so far in the log file of my program running, so I left it as is:

Should I check in my code that solution does not contain _Z before calling radnormal on it?  Is this a bug or known limitation?


>

restart;
>

interface(version);

`Standard Worksheet Interface, Maple 2024.1, Windows 10, June 25 2024 Build ID 1835466`

>

Physics:-Version();

`The "Physics Updates" version in the MapleCloud is 1767 and is the same as the version installed in this computer, created 2024, June 28, 12:19 hours Pacific Time.`

>

sol:=1/6*(-a^3 - 3*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)*a^2 + 6*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^2*a + 8*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^3 + 3*sqrt(3)*sqrt(-RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)*(RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)*a^4 + 4*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^2*a^3 + 4*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^3*a^2 + 4*a^3 + 12*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)*a^2 - 24*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^2*a - 32*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^3 - 108*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2))) + 54*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2))^(1/3) + 1/6*(4*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^2 + 2*a*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2) + a^2)/(-a^3 - 3*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)*a^2 + 6*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^2*a + 8*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^3 + 3*sqrt(3)*sqrt(-RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)*(RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)*a^4 + 4*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^2*a^3 + 4*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^3*a^2 + 4*a^3 + 12*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)*a^2 - 24*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^2*a - 32*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2)^3 - 108*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2))) + 54*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2))^(1/3) - 1/6*a + 1/3*RootOf(4*_Z^2 - 4*_Z*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + 2*a*_Z + (8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(2/3) - a*(8*_Z^3 + 6*_Z^2*a - 3*_Z*a^2 - a^3 + 3*sqrt(3)*sqrt(-4*_Z^4*a^2 - 4*_Z^3*a^3 - _Z^2*a^4 + 32*_Z^4 + 24*_Z^3*a - 12*_Z^2*a^2 - 4*_Z*a^3 + 108*_Z^2) + 54*_Z)^(1/3) + a^2):
>

radnormal(sol);

Error, (in RootOf) _Z occurs but is not the dependent variable

>






Download bug_Z.mw

2024.1 freezing or partial lockout...

Asked by: Ronan 1341
July 06 2024
1  12

I have had this a few times this week since updating to 2024.1 on Windows 10.

I get sudden freezes in a worksheet. The !!! button greys out. The ! button is ok, so the worksheet can be run by using ctrl A and click !

Has anyone else experienced this?

two solutions, exactly the same, one hangs and the...

Asked by: nm 11353
ode radical simplification
July 06 2024
1  2

I gave up trying to figure out why Maple sometimes generates solutions from my code that look different, running the same exact code. I know Maple is not deterministic and this can happen sometimes for reasons I will never know.

The following two solutions are the same, it just sometimes Maple shuffles terms a little around. For example SQRT(6) comes out SQRT(2)*SQRT(3).  I have no idea why this happens. It could be how memory inside Maple happened to be at the time and what happened before.

But my question is the following. Here is one ode, and two solutions that are exactly the same. I called one good_sol and one bad_sol.

If I do simplify(bad_sol - good_sol) I get  0 = 0 but here is the problem. When calling odetest on the good_sol, Maple returns 0 instantly,  But on the bad_sol it just hangs.

Even though the two solution are exactly the same. i.e. Mathematically the same.

I'd like to know why does this happen? And if there is a permanent fix I could always use.

The following worksheet shows this problem.

After much trial and error, I found that if I do radnormal(bad_sol) then now odetest returns zero right away and the hang is gone!

I am just trying to understand why. And why odetest then itself does not use radnormal if this makes it work better?

Do I need to call randormal on every solution before calling odetest then? Will calling randormal on the final solution have any bad side effects on other computation after that?  It should not I would think.

This is all done in code without looking at the screen and having to decide. So I would need a solution that will work for all cases. But for now, I will change my code and add randormal to all solutions and see what happens.

Using 2024.1 on windows.   May be Maple behaves different on macOS, I do not know.

>

interface(version);

`Standard Worksheet Interface, Maple 2024.1, Windows 10, June 25 2024 Build ID 1835466`

>

Physics:-Version();

`The "Physics Updates" version in the MapleCloud is 1767 and is the same as the version installed in this computer, created 2024, June 28, 12:19 hours Pacific Time.`

>

restart;
>

ode:=4*x*diff(y(x),x)^2-3*y(x)*diff(y(x),x)+3 = 0;

4*x*(diff(y(x), x))^2-3*y(x)*(diff(y(x), x))+3 = 0

>

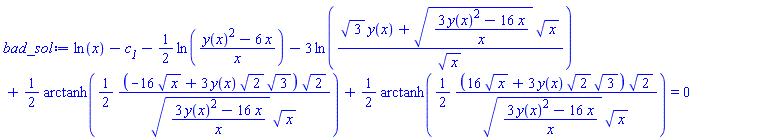

bad_sol:=ln(x) - c__1 - 1/2*ln((y(x)^2 - 6*x)/x) - 3*ln((sqrt(3)*y(x) + sqrt((3*y(x)^2 - 16*x)/x)*sqrt(x))/sqrt(x)) + 1/2*arctanh(1/2*(-16*sqrt(x) + 3*y(x)*sqrt(2)*sqrt(3))*sqrt(2)/(sqrt((3*y(x)^2 - 16*x)/x)*sqrt(x))) + 1/2*arctanh(1/2*(16*sqrt(x) + 3*y(x)*sqrt(2)*sqrt(3))*sqrt(2)/(sqrt((3*y(x)^2 - 16*x)/x)*sqrt(x))) = 0;

ln(x)-c__1-(1/2)*ln((y(x)^2-6*x)/x)-3*ln((3^(1/2)*y(x)+((3*y(x)^2-16*x)/x)^(1/2)*x^(1/2))/x^(1/2))+(1/2)*arctanh((1/2)*(-16*x^(1/2)+3*y(x)*2^(1/2)*3^(1/2))*2^(1/2)/(((3*y(x)^2-16*x)/x)^(1/2)*x^(1/2)))+(1/2)*arctanh((1/2)*(16*x^(1/2)+3*y(x)*2^(1/2)*3^(1/2))*2^(1/2)/(((3*y(x)^2-16*x)/x)^(1/2)*x^(1/2))) = 0

>

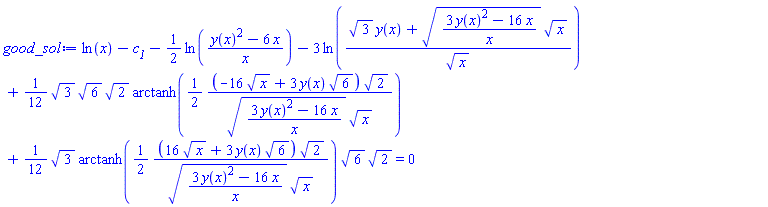

good_sol:=ln(x) - c__1 - 1/2*ln((y(x)^2 - 6*x)/x) - 3*ln((sqrt(3)*y(x) + sqrt(x)*sqrt((3*y(x)^2 - 16*x)/x))/sqrt(x)) + 1/12*sqrt(3)*sqrt(6)*sqrt(2)*arctanh(1/2*(-16*sqrt(x) + 3*y(x)*sqrt(6))*sqrt(2)/(sqrt(x)*sqrt((3*y(x)^2 - 16*x)/x))) + 1/12*sqrt(3)*arctanh(1/2*(16*sqrt(x) + 3*y(x)*sqrt(6))*sqrt(2)/(sqrt(x)*sqrt((3*y(x)^2 - 16*x)/x)))*sqrt(6)*sqrt(2) = 0;


ln(x)-c__1-(1/2)*ln((y(x)^2-6*x)/x)-3*ln((3^(1/2)*y(x)+((3*y(x)^2-16*x)/x)^(1/2)*x^(1/2))/x^(1/2))+(1/12)*3^(1/2)*6^(1/2)*2^(1/2)*arctanh((1/2)*(-16*x^(1/2)+3*y(x)*6^(1/2))*2^(1/2)/(((3*y(x)^2-16*x)/x)^(1/2)*x^(1/2)))+(1/12)*3^(1/2)*arctanh((1/2)*(16*x^(1/2)+3*y(x)*6^(1/2))*2^(1/2)/(((3*y(x)^2-16*x)/x)^(1/2)*x^(1/2)))*6^(1/2)*2^(1/2) = 0

>

simplify(bad_sol-good_sol)

0 = 0

>

odetest(good_sol,ode); #instant answer

0

>

odetest(bad_sol,ode); #hangs

Warning,  computation interrupted

>



>

radnormal(bad_sol)

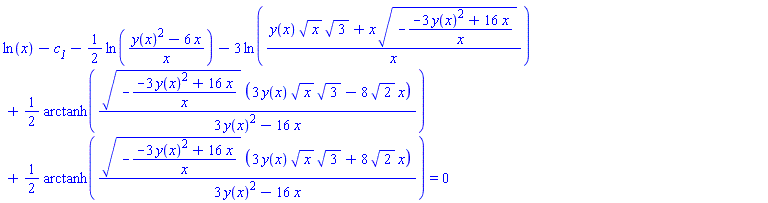

ln(x)-c__1-(1/2)*ln((y(x)^2-6*x)/x)-3*ln((y(x)*x^(1/2)*3^(1/2)+x*(-(-3*y(x)^2+16*x)/x)^(1/2))/x)+(1/2)*arctanh((-(-3*y(x)^2+16*x)/x)^(1/2)*(3*y(x)*x^(1/2)*3^(1/2)-8*2^(1/2)*x)/(3*y(x)^2-16*x))+(1/2)*arctanh((-(-3*y(x)^2+16*x)/x)^(1/2)*(3*y(x)*x^(1/2)*3^(1/2)+8*2^(1/2)*x)/(3*y(x)^2-16*x)) = 0

>

odetest(%,ode); #instant answer

0

>






Download why_same_sol_hangs_july_7_2024.mw



How to use Intc() and Fundiff() in spherical coord...

Asked by: hendriksdf5 65
spherical-coordinates physics euler-lagrange
July 05 2024
1  2

Is there a way to apply Intc() and Fundiff() in spherical coordinates? If I initialize a spherical coordinate system X and then want to calculate the effect with Intc(), r, theta phi and t are integrated from -inf to inf but  thtea:(0, pi) phi:(0, 2Pi). I would also need a second spherical coordinate system Y, if I have understood Fundiff() correctly, but how can I define this Coordinates(X = spherical, Y = spherical) does not work.

I would like to vary my Lagrange density (16) with respect to f_A(r). Where r is the radial coordinate of the spherical coordinate system.

YANG-MILLS-Theorie.mw

How to simplify a compound expressions?...

Asked by: Aixleft math 120
syntax simplify
July 04 2024
1  5

Hi all guys, I don't know how to simplify this easy expression? I have tried simplify command, and expand command, no use. Welcome to answer and thank you!



y1(x) = 2*sin(x)-sin(2*x)+cos(2*x); y2(x) = 4*sin(x)+sin(2*x)-cos(2*x); diff(y1(x), x); diff(y1(x), x); simplify*(1/2*((diff(y1(x), x))^2+(diff(y2(x), x))^2)+1/2*(3*y1(x)^2-y1(x)*y2(x)+y2(x)^2))

simplify*((1/2)*(diff(y1(x), x))^2+(1/2)*(diff(y2(x), x))^2+(3/2)*y1(x)^2-(1/2)*y1(x)*y2(x)+(1/2)*y2(x)^2)

 (1)



Download simplify_expression.mw

Explain the undocumented “Enter triggers completio...

Asked by: sursumCorda 1239
July 04 2024
1  2

There exists a new (?) checkbox  in the Interface tab of the Options dialog:

But I cannot find any find any explanation about it in the corresponding help page. What is the purpose of this feature?

Export Array/Table/Dataframe of data to JPG...

Asked by: Scot Gould 1039
image dataframe export
July 04 2024
0  0

I have a Dataframe of data, although I assume this question applies to any type of rTable-like structure.

What is a simple/elegant way to export the image of the data to a JPG file?  I would be happy to see it in the format when I ask it to print the Dataframe, or when I use DocumentTools:-Tabulate.

Can one install a Maple update and keep earlier ve...

Asked by: nm 11353
update installation
July 04 2024
1  2

Is there a way to install 2024.1 and keep 2024 there also? i.e. install 2024.1 along side 2024? This way if I find a problem and want to check 2024 I still have it?

i.e. install Maple 2024.1 in its own folder, separate from Maple 2024, and have its own icon on desktop.

If I install 2024.1 using Tools->Check for update,  it will overwrite 2024 and not ask me if I want to keep it. At least this is what happened in Maple 2023 and earlier versions. So wanted to ask before I try to do this again, else it will be too late.

If I do not use Tools->Check for updates, and instead download 2024.1 manually from the product web page, will one then be able to install 2024.1 and keep 2024? Or will it also overwrite 2024? I have not tried because I do not know if it will ask me or not.

Maple 2024.
