ODE odetest not returning zero – possible mistake?...

Asked by: salim-barzani 1555
ode assumptions differential-equations
May 01 2025
3  2

Why doesn't this ODE return zero when using odetest? Did I do something wrong?

Would you like help checking the equation or debugging the issue?

>

restart
>

with(PDEtools)
>

declare(P(mu))

P(mu)*`will now be displayed as`*P

 (1)
>

assume(A::real, r::real, rho::real, lambda::real)
>

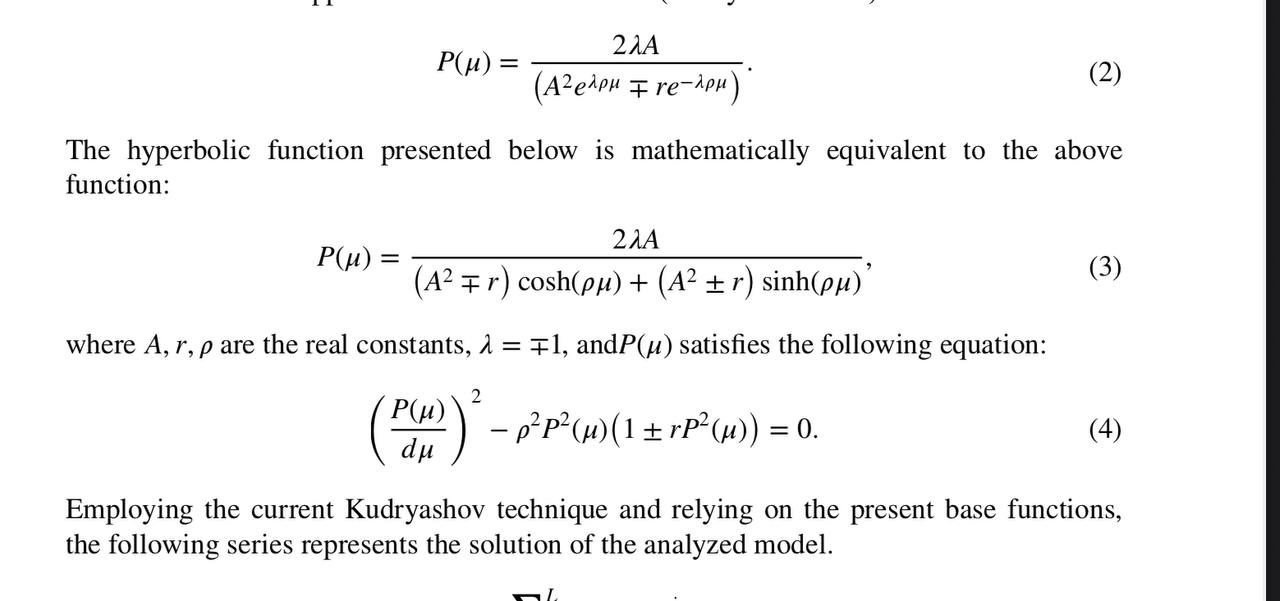

Psol := P(mu) = 2*A*lambda/((A^2+r)*exp(lambda*rho*mu)+r*exp(-lambda*rho*mu))

P(mu) = 2*A*lambda/((A^2+r)*exp(lambda*rho*mu)+r*exp(-lambda*rho*mu))

 (2)
>

ode := (diff(P(mu), mu))^2-rho^2*P(mu)^2*(1+r*P(mu)^2) = 0

(diff(P(mu), mu))^2-rho^2*P(mu)^2*(1+r*P(mu)^2) = 0

 (3)
>

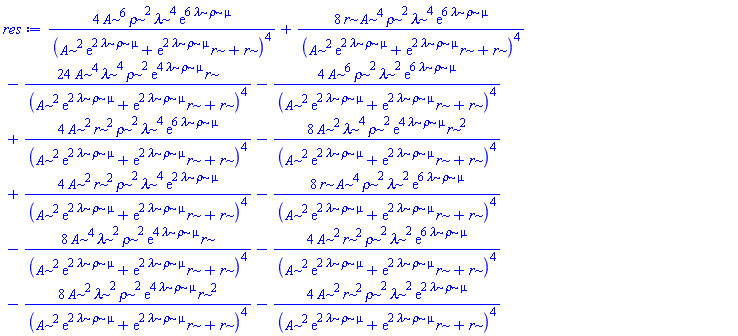

res := odetest(Psol, ode)

4*A^6*rho^2*lambda^4*exp(6*lambda*rho*mu)/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4+8*r*A^4*rho^2*lambda^4*exp(6*lambda*rho*mu)/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4-24*A^4*lambda^4*rho^2*exp(4*lambda*rho*mu)*r/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4-4*A^6*rho^2*lambda^2*exp(6*lambda*rho*mu)/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4+4*A^2*r^2*rho^2*lambda^4*exp(6*lambda*rho*mu)/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4-8*A^2*lambda^4*rho^2*exp(4*lambda*rho*mu)*r^2/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4+4*A^2*r^2*rho^2*lambda^4*exp(2*lambda*rho*mu)/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4-8*r*A^4*rho^2*lambda^2*exp(6*lambda*rho*mu)/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4-8*A^4*lambda^2*rho^2*exp(4*lambda*rho*mu)*r/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4-4*A^2*r^2*rho^2*lambda^2*exp(6*lambda*rho*mu)/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4-8*A^2*lambda^2*rho^2*exp(4*lambda*rho*mu)*r^2/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4-4*A^2*r^2*rho^2*lambda^2*exp(2*lambda*rho*mu)/(A^2*exp(2*lambda*rho*mu)+exp(2*lambda*rho*mu)*r+r)^4

 (4)
>

simplify(res)

4*lambda^2*exp(2*lambda*rho*mu)*(((-2*lambda^2-2)*r^2+(-6*lambda^2-2)*A^2*r)*exp(2*lambda*rho*mu)+(lambda+1)*((A^2+r)^2*exp(4*lambda*rho*mu)+r^2)*(lambda-1))*A^2*rho^2/((A^2+r)*exp(2*lambda*rho*mu)+r)^4

 (5)
>

P_hyper := P(mu) = 2*A*lambda/((A^2+r)*cosh(rho*mu)+(A^2-r)*sinh(rho*mu))

P(mu) = 2*A*lambda/((A^2+r)*cosh(rho*mu)+(A^2-r)*sinh(rho*mu))

 (6)
>

res_hyper := simplify(odetest(P_hyper, ode), symbolic)

-16*A^4*lambda^2*rho^2*r*(lambda^2+1)/((A^2+r)*cosh(rho*mu)+(A^2-r)*sinh(rho*mu))^4

 (7)


NULL

Download ode.mw

Verifying ODE Solution and Issues with Assumptions...

Asked by: salim-barzani 1555
ode assumptions differential-equations
April 30 2025
3  2

I’m trying to test a specific function as a solution to a nonlinear ODE in Maple. The equation is of the Riccati type, and my candidate solution involves parameters A, B, and C.

I've used assuming to specify the condition (4AC−B2)>0 and (4AC - B^2) <0, but when I use odetest to verify the solution, I still get a nonzero result. Additionally, when I apply the assumption, Maple sometimes introduces a negation sign in the output (e.g., changing sqrt(...) into -sqrt(...)), which wasn't part of the original solution.

>

restart
>

with(PDEtools)
>

with(LinearAlgebra)
>

with(Physics)
>

with(SolveTools)
>

undeclare(prime)

`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`

 (1)
>

E := diff(G(xi), xi) = A+B*G(xi)+C*G(xi)^2

diff(G(xi), xi) = A+B*G(xi)+C*G(xi)^2

 (2)
>

>

S1 := G(xi) = (sqrt(4*A*C-B^2)*tan((1/2)*sqrt(4*A*C-B^2)*(d[0]+xi))-B)/(2*C)

G(xi) = (1/2)*((4*A*C-B^2)^(1/2)*tan((1/2)*(4*A*C-B^2)^(1/2)*(d[0]+xi))-B)/C

 (3)
>

odetest(S1, E)

0

 (4)
>

>

S2 := G(xi) = -(sqrt(4*A*C-B^2)*cot((1/2)*sqrt(4*A*C-B^2)*(d[0]+xi))+B)/(2*C)

G(xi) = -(1/2)*((4*A*C-B^2)^(1/2)*cot((1/2)*(4*A*C-B^2)^(1/2)*(d[0]+xi))+B)/C

 (5)
>

odetest(S2, E)

0

 (6)
>

assume(4*A*C-B^2 < 0)
>

S3 := G(xi) = -(sqrt(4*A*C-B^2)*tanh((1/2)*sqrt(4*A*C-B^2)*(d[0]+xi))+B)/(2*C)

G(xi) = -(1/2)*((4*A*C-B^2)^(1/2)*tanh((1/2)*(4*A*C-B^2)^(1/2)*(d[0]+xi))+B)/C

 (7)
>

odetest(S3, E)

-2*A+(1/2)*B^2/C

 (8)

Download A2.mw

Why the subs command not apply ?...

Asked by: salim-barzani 1555
radical substitution subs
April 29 2025
3  9

i did every thing coreectly but nothing happen not apply where is my mistake?

>

``
>

restart
>

with(PDEtools)
>

with(LinearAlgebra)
>

with(Physics)
>

with(SolveTools)
>

undeclare(prime)

`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`

 (1)
>

NULL
>

S := (diff(G(xi), xi))^2-r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2) = 0

(diff(G(xi), xi))^2-r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2) = 0

 (2)
>

SS := diff(G(xi), xi) = sqrt(r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2))

diff(G(xi), xi) = (r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2))^(1/2)

 (3)
>

Se := sqrt(r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2)) = diff(G(xi), xi)

(r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2))^(1/2) = diff(G(xi), xi)

 (4)
>

dub := diff(SS, xi)

diff(diff(G(xi), xi), xi) = (1/2)*(2*r^2*G(xi)*(a+b*G(xi)+l*G(xi)^2)*(diff(G(xi), xi))+r^2*G(xi)^2*(b*(diff(G(xi), xi))+2*l*G(xi)*(diff(G(xi), xi))))/(r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2))^(1/2)

 (5)
>

Dubl2 := simplify(diff(diff(G(xi), xi), xi) = (1/2)*(2*r^2*G(xi)*(a+b*G(xi)+l*G(xi)^2)*(diff(G(xi), xi))+r^2*G(xi)^2*(b*(diff(G(xi), xi))+2*l*G(xi)*(diff(G(xi), xi))))/(r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2))^(1/2))

diff(diff(G(xi), xi), xi) = (1/2)*r^2*G(xi)*(diff(G(xi), xi))*(4*l*G(xi)^2+3*b*G(xi)+2*a)/(r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2))^(1/2)

 (6)
>

subs(SA, Dubl2)

diff((r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2))^(1/2), xi) = (1/2)*r^2*G(xi)*(4*l*G(xi)^2+3*b*G(xi)+2*a)

 (7)
>

subs(Se, Dubl2)

diff(diff(G(xi), xi), xi) = (1/2)*r^2*G(xi)*(diff(G(xi), xi))*(4*l*G(xi)^2+3*b*G(xi)+2*a)/(r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2))^(1/2)

 (8)
>

subs(lhs(Se) = rhs(Se), Dubl2)

diff(diff(G(xi), xi), xi) = (1/2)*r^2*G(xi)*(diff(G(xi), xi))*(4*l*G(xi)^2+3*b*G(xi)+2*a)/(r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2))^(1/2)

 (9)


NULL

Download subs.mw

Help with Solving ODE and Representing ± Sign...

Asked by: salim-barzani 1555
ode dsolve differential-equations
April 29 2025
3  8

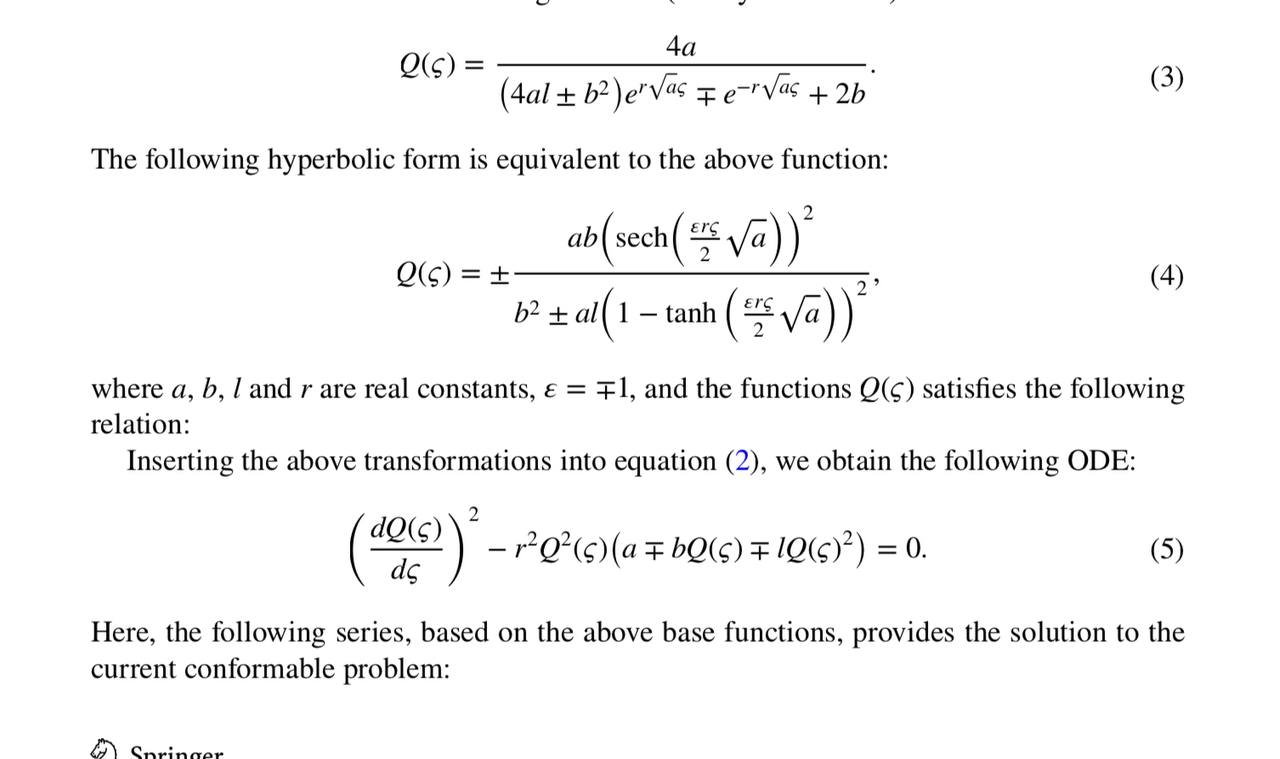

I tried solving this ODE, but my result is very different from the expected one. How can I correctly obtain the solution? Also, is there a way to include both the positive and negative signs (±) in the equation so that the final result reflects both possibilities?

>

restart
>

with(PDEtools)
>

with(LinearAlgebra)
>

with(Physics)
>

with(SolveTools)
>

undeclare(prime)

`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`

 (1)
>

_local(gamma)

Warning, A new binding for the name `gamma` has been created. The global instance of this name is still accessible using the :- prefix, :-`gamma`.  See ?protect for details.


>

declare(Omega(x, t)); declare(U(xi)); declare(u(x, y, z, t)); declare(Q(xi)); declare(V(xi))

Omega(x, t)*`will now be displayed as`*Omega



U(xi)*`will now be displayed as`*U



u(x, y, z, t)*`will now be displayed as`*u



Q(xi)*`will now be displayed as`*Q



V(xi)*`will now be displayed as`*V

 (2)
>

``
>

ode := f*g^3*(diff(diff(U(xi), xi), xi))-4*f*p*U(xi)-6*k*l*U(xi)-f^3*g*(diff(diff(U(xi), xi), xi))+6*f*g*U(xi)^2 = 0

f*g^3*(diff(diff(U(xi), xi), xi))-4*f*p*U(xi)-6*k*l*U(xi)-f^3*g*(diff(diff(U(xi), xi), xi))+6*f*g*U(xi)^2 = 0

 (3)
>

S := (diff(G(xi), xi))^2-r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2) = 0

(diff(G(xi), xi))^2-r^2*G(xi)^2*(a+b*G(xi)+l*G(xi)^2) = 0

 (4)
>

S1 := dsolve(S, G(xi))

G(xi) = (1/2)*(-b+(-4*a*l+b^2)^(1/2))/l, G(xi) = -(1/2)*(b+(-4*a*l+b^2)^(1/2))/l, G(xi) = -4*a*exp(c__1*r*a^(1/2))/(exp(xi*r*a^(1/2))*(4*a*l-b^2+2*b*exp(c__1*r*a^(1/2))/exp(xi*r*a^(1/2))-(exp(c__1*r*a^(1/2)))^2/(exp(xi*r*a^(1/2)))^2)), G(xi) = -4*a*exp(xi*r*a^(1/2))/(exp(c__1*r*a^(1/2))*(4*a*l-b^2+2*b*exp(xi*r*a^(1/2))/exp(c__1*r*a^(1/2))-(exp(xi*r*a^(1/2)))^2/(exp(c__1*r*a^(1/2)))^2))

 (5)
>

S2 := S1[3]

G(xi) = -4*a*exp(c__1*r*a^(1/2))/(exp(xi*r*a^(1/2))*(4*a*l-b^2+2*b*exp(c__1*r*a^(1/2))/exp(xi*r*a^(1/2))-(exp(c__1*r*a^(1/2)))^2/(exp(xi*r*a^(1/2)))^2))

 (6)
>

normal(G(xi) = -4*a*exp(c__1*r*a^(1/2))/(exp(xi*r*a^(1/2))*(4*a*l-b^2+2*b*exp(c__1*r*a^(1/2))/exp(xi*r*a^(1/2))-(exp(c__1*r*a^(1/2)))^2/(exp(xi*r*a^(1/2)))^2)), ':-expanded')

G(xi) = 4*a*exp(c__1*r*a^(1/2))*exp(xi*r*a^(1/2))/(-4*a*l*(exp(xi*r*a^(1/2)))^2+b^2*(exp(xi*r*a^(1/2)))^2-2*b*exp(c__1*r*a^(1/2))*exp(xi*r*a^(1/2))+(exp(c__1*r*a^(1/2)))^2)

 (7)
>

simplify(G(xi) = 4*a*exp(c__1*r*a^(1/2))*exp(xi*r*a^(1/2))/(-4*a*l*(exp(xi*r*a^(1/2)))^2+b^2*(exp(xi*r*a^(1/2)))^2-2*b*exp(c__1*r*a^(1/2))*exp(xi*r*a^(1/2))+(exp(c__1*r*a^(1/2)))^2))

G(xi) = -4*a*exp(a^(1/2)*r*(c__1+xi))/(4*a*l*exp(2*xi*r*a^(1/2))-b^2*exp(2*xi*r*a^(1/2))+2*b*exp(a^(1/2)*r*(c__1+xi))-exp(2*c__1*r*a^(1/2)))

 (8)
>

convert(%, trig)

G(xi) = -4*a*(cosh(a^(1/2)*r*(c__1+xi))+sinh(a^(1/2)*r*(c__1+xi)))/(4*a*l*(cosh(2*xi*r*a^(1/2))+sinh(2*xi*r*a^(1/2)))-b^2*(cosh(2*xi*r*a^(1/2))+sinh(2*xi*r*a^(1/2)))+2*b*(cosh(a^(1/2)*r*(c__1+xi))+sinh(a^(1/2)*r*(c__1+xi)))-cosh(2*c__1*r*a^(1/2))-sinh(2*c__1*r*a^(1/2)))

 (9)
>

convert(S1[3], trig)

G(xi) = -4*a*(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2)))/((cosh(xi*r*a^(1/2))+sinh(xi*r*a^(1/2)))*(4*a*l-b^2+2*b*(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2)))/(cosh(xi*r*a^(1/2))+sinh(xi*r*a^(1/2)))-(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2)))^2/(cosh(xi*r*a^(1/2))+sinh(xi*r*a^(1/2)))^2))

 (10)
>

simplify(G(xi) = -4*a*(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2)))/((cosh(xi*r*a^(1/2))+sinh(xi*r*a^(1/2)))*(4*a*l-b^2+2*b*(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2)))/(cosh(xi*r*a^(1/2))+sinh(xi*r*a^(1/2)))-(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2)))^2/(cosh(xi*r*a^(1/2))+sinh(xi*r*a^(1/2)))^2)))

G(xi) = -4*a*(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2)))*(cosh(xi*r*a^(1/2))+sinh(xi*r*a^(1/2)))/((4*a*l-b^2)*cosh(xi*r*a^(1/2))^2+((8*a*l-2*b^2)*sinh(xi*r*a^(1/2))+2*b*(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2))))*cosh(xi*r*a^(1/2))+(4*a*l-b^2)*sinh(xi*r*a^(1/2))^2+2*b*(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2)))*sinh(xi*r*a^(1/2))-(cosh(c__1*r*a^(1/2))+sinh(c__1*r*a^(1/2)))^2)

 (11)


Download tt.mw

Controlling Variable Distribution in Polynomial Fo...

Asked by: salim-barzani 1555
polynomial expand pde
April 28 2025
2  5

In this work, I do not intend to expand all the variables across the monomials. Instead, I want to restrict the distribution to only the variables x,y,z,tx, y, z, tx,y,z,t, possibly raising them to appropriate powers as needed, until I obtain the desired solution and satisfy the conditions of my PDE tests. However, I am uncertain whether "monomial" is the correct term to use here.

S1.mw

trail-1.mw

Separating solutions based on PDE satisfaction...

Asked by: salim-barzani 1555
pde differential-equations select
April 27 2025
2  6

I have a list of candidate solutions. Some of them satisfy my PDE test (i.e., they make the PDE equal to zero), while others do not. How can I separate the solutions that satisfy the PDE from those that do not?

Trail-pdetest.mw

Modifying an Algorithm for Multiple Variables...

Asked by: salim-barzani 1555
differentiation duplicate-question
April 27 2025
5  9

How to modify the ND procedure to handle derivatives with respect to more than three independent variables for higher-dimensional PDEs, it is work for [x,t] i want  it work for [x,y,z,t] ,

>

restart
>

with(PDEtools)
>

with(LinearAlgebra)
>

NULL
>

with(SolveTools)
>

undeclare(prime)

`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`

 (1)
>

alias(F=F(x, t), G=G(x, t))

F, G

 (2)
>

with(PDEtools):
undeclare(prime):

`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`

 (3)
>

ND := proc(F, G, U)
  local v, w, f, g, a:
  v := op(F):
  if v[1] in U then w := -v[1] else w := v[1] end if:
  if v[2] in U then w := w, -v[2] else w := w, v[2] end if:
  f := op(0, F):
  g := op(0, G):
  a := diff(f(w)*g(v), U);
  convert(subs([w]=~[v], a), diff)
end proc:
>

ND(F, G, [x]);
ND(F, G, [t]);

-(diff(F, x))*G+F*(diff(G, x))



-(diff(F, t))*G+F*(diff(G, t))

 (4)
>

ND(F, F, [x]);
ND(F, F, [x, x]);

0



2*F*(diff(diff(F, x), x))-2*(diff(F, x))^2

 (5)
>

ND(F, G, [x$3]);

-(diff(diff(diff(F, x), x), x))*G+3*(diff(diff(F, x), x))*(diff(G, x))-3*(diff(F, x))*(diff(diff(G, x), x))+F*(diff(diff(diff(G, x), x), x))

 (6)
>

ND(F, F, [x$3, t]);

2*F*(diff(diff(diff(diff(F, t), x), x), x))-2*(diff(diff(diff(F, x), x), x))*(diff(F, t))-6*(diff(diff(diff(F, t), x), x))*(diff(F, x))+6*(diff(diff(F, x), x))*(diff(diff(F, t), x))

 (7)
>

NULL
>

NULL
>

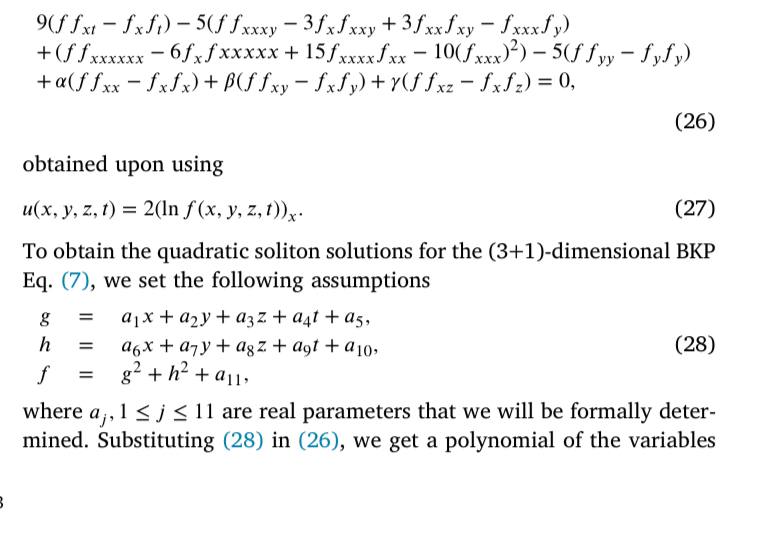

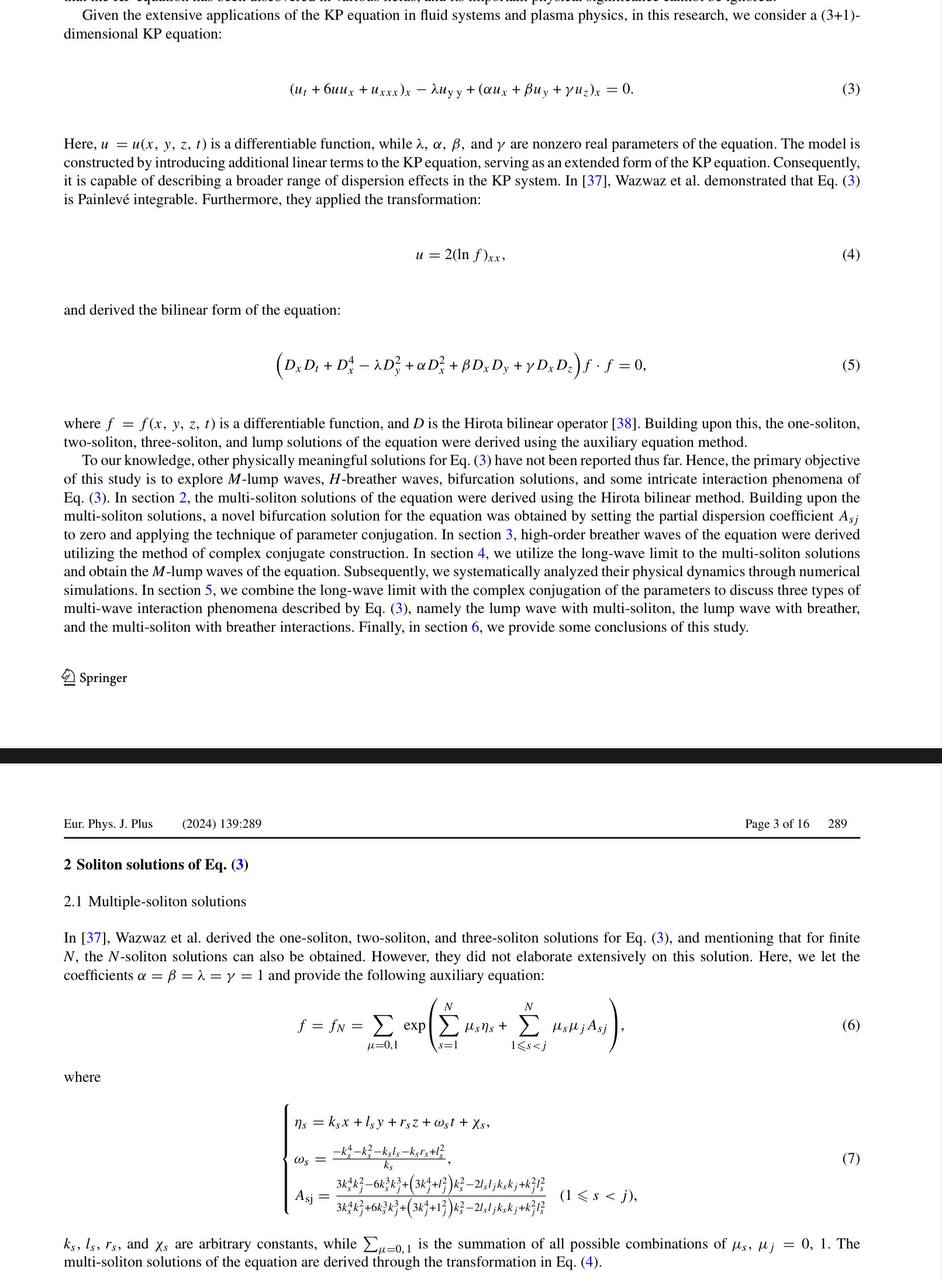

#if i collect P1+P1+...+P7 it must get equation 26 in paper so i want define the up proc to open but is not for (3+1) dimesnion,
>

P1 := 9*ND(F, F, [x, t])

18*F*(diff(diff(F, t), x))-18*(diff(F, x))*(diff(F, t))

 (8)
>

NULL
>

P2 := -5*ND(F, F, [`$`(x, 3), y])

0

 (9)
>

P3 := ND(F, F, [`$`(x, 6)])

2*F*(diff(diff(diff(diff(diff(diff(F, x), x), x), x), x), x))-12*(diff(diff(diff(diff(diff(F, x), x), x), x), x))*(diff(F, x))+30*(diff(diff(diff(diff(F, x), x), x), x))*(diff(diff(F, x), x))-20*(diff(diff(diff(F, x), x), x))^2

 (10)
>

P4 := -5*ND(F, F, [`$`(y, 2)])

0

 (11)
>

P5 := alpha*ND(F, F, [`$`(x, 2)])

alpha*(2*F*(diff(diff(F, x), x))-2*(diff(F, x))^2)

 (12)
>

P6 := beta*ND(F, F, [x, y])

0

 (13)
>

P7 := gamma*ND(F, F, [x, z])

0

 (14)

Download define.mw

How build up a system of equations of the coeffici...

Asked by: salim-barzani 1555
parameters substitution pde
April 26 2025
3  14

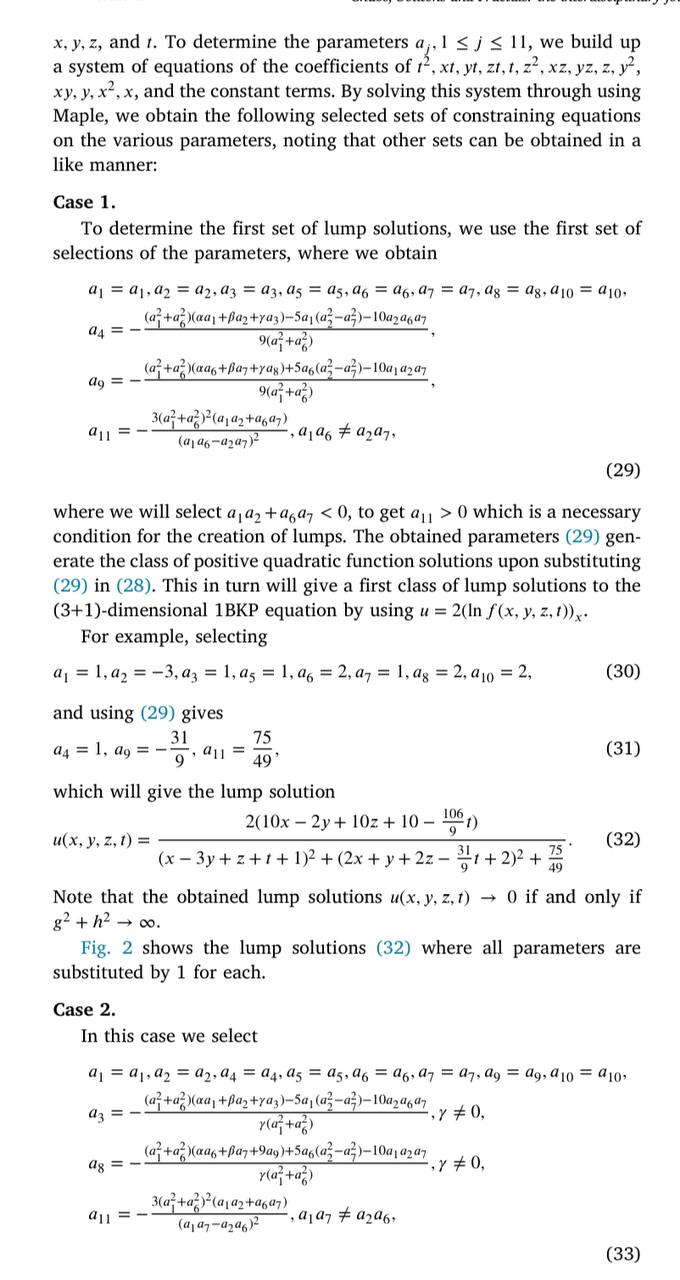

I try to construct a system of coefficient but  i don't know why distribute of them is not working, beside this there is any other way for build this kind of systems

>

restart
>

with(PDEtools)
>

with(LinearAlgebra)
>

NULL
>

with(SolveTools)
>

_local(gamma)
>

``

`There is no more prime differentiation variable; all derivatives will be displayed as indexed functions`

 (1)
>

declare(u(x, y, z, t))

u(x, y, z, t)*`will now be displayed as`*u

 (2)
>

declare(f(x, y, z, t))

f(x, y, z, t)*`will now be displayed as`*f

 (3)
>

pde := 9*(diff(u(x, y, z, t), t, x))+diff(u(x, y, z, t), `$`(x, 6))-5*(diff(u(x, y, z, t), `$`(x, 3), y)+diff(u(x, y, z, t), `$`(y, 2)))+15*((diff(u(x, y, z, t), `$`(x, 2)))*(diff(u(x, y, z, t), `$`(x, 3)))+(diff(u(x, y, z, t), x))*(diff(u(x, y, z, t), `$`(x, 4)))-(diff(u(x, y, z, t), x))*(diff(u(x, y, z, t), x, y))-(diff(u(x, y, z, t), `$`(x, 2)))*(diff(u(x, y, z, t), y)))+45*(diff(u(x, y, z, t), x))^2*(diff(u(x, y, z, t), `$`(x, 2)))+alpha*(diff(u(x, y, z, t), `$`(x, 2)))+beta*(diff(u(x, y, z, t), x, y))+delta*(diff(u(x, y, z, t), x, z))

9*(diff(diff(u(x, y, z, t), t), x))+diff(diff(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x), x), x)-5*(diff(diff(diff(diff(u(x, y, z, t), x), x), x), y))-5*(diff(diff(u(x, y, z, t), y), y))+15*(diff(diff(u(x, y, z, t), x), x))*(diff(diff(diff(u(x, y, z, t), x), x), x))+15*(diff(u(x, y, z, t), x))*(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x))-15*(diff(u(x, y, z, t), x))*(diff(diff(u(x, y, z, t), x), y))-15*(diff(diff(u(x, y, z, t), x), x))*(diff(u(x, y, z, t), y))+45*(diff(u(x, y, z, t), x))^2*(diff(diff(u(x, y, z, t), x), x))+alpha*(diff(diff(u(x, y, z, t), x), x))+beta*(diff(diff(u(x, y, z, t), x), y))+delta*(diff(diff(u(x, y, z, t), x), z))

 (4)
>

``
>

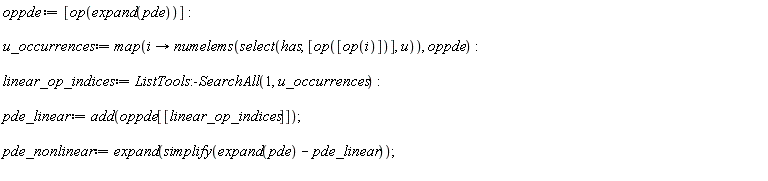

oppde := [op(expand(pde))]; u_occurrences := map(proc (i) options operator, arrow; numelems(select(has, [op([op(i)])], u)) end proc, oppde); linear_op_indices := ListTools:-SearchAll(1, u_occurrences); pde_linear := add(oppde[[linear_op_indices]]); pde_nonlinear := expand(simplify(expand(pde)-pde_linear))

9*(diff(diff(u(x, y, z, t), t), x))+diff(diff(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x), x), x)-5*(diff(diff(diff(diff(u(x, y, z, t), x), x), x), y))-5*(diff(diff(u(x, y, z, t), y), y))+alpha*(diff(diff(u(x, y, z, t), x), x))+beta*(diff(diff(u(x, y, z, t), x), y))+delta*(diff(diff(u(x, y, z, t), x), z))



15*(diff(diff(u(x, y, z, t), x), x))*(diff(diff(diff(u(x, y, z, t), x), x), x))+15*(diff(u(x, y, z, t), x))*(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x))-15*(diff(u(x, y, z, t), x))*(diff(diff(u(x, y, z, t), x), y))-15*(diff(diff(u(x, y, z, t), x), x))*(diff(u(x, y, z, t), y))+45*(diff(u(x, y, z, t), x))^2*(diff(diff(u(x, y, z, t), x), x))

 (5)
>

H := u(x, y, z, t) = 2*(diff(ln(f(x, y, z, t)), x))

u(x, y, z, t) = 2*(diff(f(x, y, z, t), x))/f(x, y, z, t)

 (6)
>

H1 := int(pde_linear, x)

(diff(u(x, y, z, t), z))*delta+alpha*(diff(u(x, y, z, t), x))+beta*(diff(u(x, y, z, t), y))-5*(int(diff(diff(u(x, y, z, t), y), y), x))+9*(diff(u(x, y, z, t), t))+diff(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x), x)-5*(diff(diff(diff(u(x, y, z, t), x), x), y))

 (7)
>

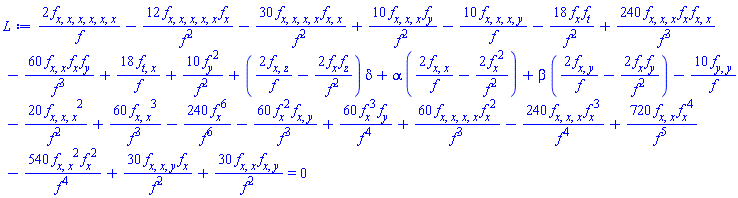

L := eval(H1, H) = 0

-18*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), t))/f(x, y, z, t)^2-12*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2-30*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^2-20*(diff(diff(diff(f(x, y, z, t), x), x), x))^2/f(x, y, z, t)^2+60*(diff(diff(f(x, y, z, t), x), x))^3/f(x, y, z, t)^3-240*(diff(f(x, y, z, t), x))^6/f(x, y, z, t)^6+10*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2+30*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2+30*(diff(diff(f(x, y, z, t), x), x))*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^2-60*(diff(f(x, y, z, t), x))^2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^3+60*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))/f(x, y, z, t)^4+60*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^3-240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))^3/f(x, y, z, t)^4+240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^3+720*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))^4/f(x, y, z, t)^5-540*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^4-60*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^3+(2*(diff(diff(f(x, y, z, t), x), z))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), z))/f(x, y, z, t)^2)*delta+alpha*(2*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^2)+beta*(2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2)-10*(diff(diff(f(x, y, z, t), y), y))/f(x, y, z, t)+10*(diff(f(x, y, z, t), y))^2/f(x, y, z, t)^2+18*(diff(diff(f(x, y, z, t), t), x))/f(x, y, z, t)+2*(diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x))/f(x, y, z, t)-10*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))/f(x, y, z, t) = 0

 (8)
>

numer(lhs(240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^3-60*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^3-18*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), t))/f(x, y, z, t)^2-12*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2-30*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^2+10*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2+30*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2+30*(diff(diff(f(x, y, z, t), x), x))*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^2-60*(diff(f(x, y, z, t), x))^2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^3+60*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))/f(x, y, z, t)^4+60*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^3-240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))^3/f(x, y, z, t)^4+720*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))^4/f(x, y, z, t)^5-540*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^4+beta*(2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2)-20*(diff(diff(diff(f(x, y, z, t), x), x), x))^2/f(x, y, z, t)^2+60*(diff(diff(f(x, y, z, t), x), x))^3/f(x, y, z, t)^3-240*(diff(f(x, y, z, t), x))^6/f(x, y, z, t)^6-10*(diff(diff(f(x, y, z, t), y), y))/f(x, y, z, t)+10*(diff(f(x, y, z, t), y))^2/f(x, y, z, t)^2+18*(diff(diff(f(x, y, z, t), t), x))/f(x, y, z, t)+2*(diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x))/f(x, y, z, t)-10*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))/f(x, y, z, t)+(2*(diff(diff(f(x, y, z, t), x), z))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), z))/f(x, y, z, t)^2)*delta+alpha*(2*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^2) = 0))*denom(rhs(240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^3-60*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^3-18*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), t))/f(x, y, z, t)^2-12*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2-30*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^2+10*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2+30*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2+30*(diff(diff(f(x, y, z, t), x), x))*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^2-60*(diff(f(x, y, z, t), x))^2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^3+60*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))/f(x, y, z, t)^4+60*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^3-240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))^3/f(x, y, z, t)^4+720*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))^4/f(x, y, z, t)^5-540*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^4+beta*(2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2)-20*(diff(diff(diff(f(x, y, z, t), x), x), x))^2/f(x, y, z, t)^2+60*(diff(diff(f(x, y, z, t), x), x))^3/f(x, y, z, t)^3-240*(diff(f(x, y, z, t), x))^6/f(x, y, z, t)^6-10*(diff(diff(f(x, y, z, t), y), y))/f(x, y, z, t)+10*(diff(f(x, y, z, t), y))^2/f(x, y, z, t)^2+18*(diff(diff(f(x, y, z, t), t), x))/f(x, y, z, t)+2*(diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x))/f(x, y, z, t)-10*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))/f(x, y, z, t)+(2*(diff(diff(f(x, y, z, t), x), z))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), z))/f(x, y, z, t)^2)*delta+alpha*(2*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^2) = 0)) = numer(rhs(240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^3-60*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^3-18*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), t))/f(x, y, z, t)^2-12*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2-30*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^2+10*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2+30*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2+30*(diff(diff(f(x, y, z, t), x), x))*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^2-60*(diff(f(x, y, z, t), x))^2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^3+60*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))/f(x, y, z, t)^4+60*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^3-240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))^3/f(x, y, z, t)^4+720*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))^4/f(x, y, z, t)^5-540*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^4+beta*(2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2)-20*(diff(diff(diff(f(x, y, z, t), x), x), x))^2/f(x, y, z, t)^2+60*(diff(diff(f(x, y, z, t), x), x))^3/f(x, y, z, t)^3-240*(diff(f(x, y, z, t), x))^6/f(x, y, z, t)^6-10*(diff(diff(f(x, y, z, t), y), y))/f(x, y, z, t)+10*(diff(f(x, y, z, t), y))^2/f(x, y, z, t)^2+18*(diff(diff(f(x, y, z, t), t), x))/f(x, y, z, t)+2*(diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x))/f(x, y, z, t)-10*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))/f(x, y, z, t)+(2*(diff(diff(f(x, y, z, t), x), z))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), z))/f(x, y, z, t)^2)*delta+alpha*(2*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^2) = 0))*denom(lhs(240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^3-60*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^3-18*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), t))/f(x, y, z, t)^2-12*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2-30*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)^2+10*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2+30*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))/f(x, y, z, t)^2+30*(diff(diff(f(x, y, z, t), x), x))*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^2-60*(diff(f(x, y, z, t), x))^2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)^3+60*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))/f(x, y, z, t)^4+60*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^3-240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))^3/f(x, y, z, t)^4+720*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))^4/f(x, y, z, t)^5-540*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^4+beta*(2*(diff(diff(f(x, y, z, t), x), y))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))/f(x, y, z, t)^2)-20*(diff(diff(diff(f(x, y, z, t), x), x), x))^2/f(x, y, z, t)^2+60*(diff(diff(f(x, y, z, t), x), x))^3/f(x, y, z, t)^3-240*(diff(f(x, y, z, t), x))^6/f(x, y, z, t)^6-10*(diff(diff(f(x, y, z, t), y), y))/f(x, y, z, t)+10*(diff(f(x, y, z, t), y))^2/f(x, y, z, t)^2+18*(diff(diff(f(x, y, z, t), t), x))/f(x, y, z, t)+2*(diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x))/f(x, y, z, t)-10*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))/f(x, y, z, t)+(2*(diff(diff(f(x, y, z, t), x), z))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), z))/f(x, y, z, t)^2)*delta+alpha*(2*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^2) = 0))

2*f(x, y, z, t)^5*(diff(diff(f(x, y, z, t), x), x))*alpha+2*f(x, y, z, t)^5*(diff(diff(f(x, y, z, t), x), y))*beta+720*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))^4*f(x, y, z, t)-240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))^3*f(x, y, z, t)^2+60*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^3-60*(diff(f(x, y, z, t), x))^2*(diff(diff(f(x, y, z, t), x), y))*f(x, y, z, t)^3-540*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^2-18*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), t))*f(x, y, z, t)^4-12*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4+30*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4-30*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(diff(f(x, y, z, t), x), x))*f(x, y, z, t)^4+30*(diff(diff(f(x, y, z, t), x), x))*(diff(diff(f(x, y, z, t), x), y))*f(x, y, z, t)^4+10*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), y))*f(x, y, z, t)^4+2*(diff(diff(f(x, y, z, t), x), z))*delta*f(x, y, z, t)^5+60*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))*f(x, y, z, t)^2-2*(diff(f(x, y, z, t), x))^2*alpha*f(x, y, z, t)^4-240*(diff(f(x, y, z, t), x))^6-2*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4*(diff(f(x, y, z, t), y))*beta-2*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4*(diff(f(x, y, z, t), z))*delta+240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))*(diff(diff(f(x, y, z, t), x), x))*f(x, y, z, t)^3-60*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))*f(x, y, z, t)^3+2*(diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x))*f(x, y, z, t)^5-10*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))*f(x, y, z, t)^5-20*(diff(diff(diff(f(x, y, z, t), x), x), x))^2*f(x, y, z, t)^4+60*(diff(diff(f(x, y, z, t), x), x))^3*f(x, y, z, t)^3+18*(diff(diff(f(x, y, z, t), t), x))*f(x, y, z, t)^5-10*(diff(diff(f(x, y, z, t), y), y))*f(x, y, z, t)^5+10*(diff(f(x, y, z, t), y))^2*f(x, y, z, t)^4 = 0

 (9)
>

simplify(2*(diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x))*f(x, y, z, t)^5-10*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))*f(x, y, z, t)^5-20*(diff(diff(diff(f(x, y, z, t), x), x), x))^2*f(x, y, z, t)^4+60*(diff(diff(f(x, y, z, t), x), x))^3*f(x, y, z, t)^3+18*(diff(diff(f(x, y, z, t), t), x))*f(x, y, z, t)^5-10*(diff(diff(f(x, y, z, t), y), y))*f(x, y, z, t)^5+10*(diff(f(x, y, z, t), y))^2*f(x, y, z, t)^4+2*f(x, y, z, t)^5*(diff(diff(f(x, y, z, t), x), y))*beta+720*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))^4*f(x, y, z, t)-240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))^3*f(x, y, z, t)^2+60*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^3-60*(diff(f(x, y, z, t), x))^2*(diff(diff(f(x, y, z, t), x), y))*f(x, y, z, t)^3-540*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^2-18*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), t))*f(x, y, z, t)^4-12*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4+30*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4-30*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))*(diff(diff(f(x, y, z, t), x), x))*f(x, y, z, t)^4+30*(diff(diff(f(x, y, z, t), x), x))*(diff(diff(f(x, y, z, t), x), y))*f(x, y, z, t)^4+10*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), y))*f(x, y, z, t)^4+2*(diff(diff(f(x, y, z, t), x), z))*delta*f(x, y, z, t)^5+60*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))*f(x, y, z, t)^2-2*(diff(f(x, y, z, t), x))^2*alpha*f(x, y, z, t)^4+2*f(x, y, z, t)^5*(diff(diff(f(x, y, z, t), x), x))*alpha-240*(diff(f(x, y, z, t), x))^6-2*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4*(diff(f(x, y, z, t), y))*beta-2*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4*(diff(f(x, y, z, t), z))*delta+240*(diff(diff(diff(f(x, y, z, t), x), x), x))*(diff(f(x, y, z, t), x))*(diff(diff(f(x, y, z, t), x), x))*f(x, y, z, t)^3-60*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))*f(x, y, z, t)^3 = 0)

2*(diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x))*f(x, y, z, t)^5-12*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4+30*(2*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^3-f(x, y, z, t)^4*(diff(diff(f(x, y, z, t), x), x)))*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))-10*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))*f(x, y, z, t)^5-20*(diff(diff(diff(f(x, y, z, t), x), x), x))^2*f(x, y, z, t)^4+10*(-24*(diff(f(x, y, z, t), x))^3*f(x, y, z, t)^2+24*(diff(f(x, y, z, t), x))*f(x, y, z, t)^3*(diff(diff(f(x, y, z, t), x), x))+(diff(f(x, y, z, t), y))*f(x, y, z, t)^4)*(diff(diff(diff(f(x, y, z, t), x), x), x))+30*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4+60*(diff(diff(f(x, y, z, t), x), x))^3*f(x, y, z, t)^3-540*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^2+2*(alpha*f(x, y, z, t)^5+360*(diff(f(x, y, z, t), x))^4*f(x, y, z, t)-30*(diff(f(x, y, z, t), y))*f(x, y, z, t)^3*(diff(f(x, y, z, t), x))+15*f(x, y, z, t)^4*(diff(diff(f(x, y, z, t), x), y)))*(diff(diff(f(x, y, z, t), x), x))+2*(beta*f(x, y, z, t)^5-30*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^3)*(diff(diff(f(x, y, z, t), x), y))+18*(diff(diff(f(x, y, z, t), t), x))*f(x, y, z, t)^5+2*(diff(diff(f(x, y, z, t), x), z))*delta*f(x, y, z, t)^5-10*(diff(diff(f(x, y, z, t), y), y))*f(x, y, z, t)^5-240*(diff(f(x, y, z, t), x))^6+60*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))*f(x, y, z, t)^2-2*(diff(f(x, y, z, t), x))^2*alpha*f(x, y, z, t)^4-2*f(x, y, z, t)^4*(beta*(diff(f(x, y, z, t), y))+(diff(f(x, y, z, t), z))*delta+9*(diff(f(x, y, z, t), t)))*(diff(f(x, y, z, t), x))+10*(diff(f(x, y, z, t), y))^2*f(x, y, z, t)^4 = 0

 (10)
>

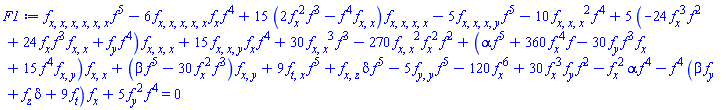

F1 := %*(1/2)

(diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x))*f(x, y, z, t)^5-6*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4+15*(2*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^3-f(x, y, z, t)^4*(diff(diff(f(x, y, z, t), x), x)))*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))-5*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))*f(x, y, z, t)^5-10*(diff(diff(diff(f(x, y, z, t), x), x), x))^2*f(x, y, z, t)^4+5*(-24*(diff(f(x, y, z, t), x))^3*f(x, y, z, t)^2+24*(diff(f(x, y, z, t), x))*f(x, y, z, t)^3*(diff(diff(f(x, y, z, t), x), x))+(diff(f(x, y, z, t), y))*f(x, y, z, t)^4)*(diff(diff(diff(f(x, y, z, t), x), x), x))+15*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))*f(x, y, z, t)^4+30*(diff(diff(f(x, y, z, t), x), x))^3*f(x, y, z, t)^3-270*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^2+(alpha*f(x, y, z, t)^5+360*(diff(f(x, y, z, t), x))^4*f(x, y, z, t)-30*(diff(f(x, y, z, t), y))*f(x, y, z, t)^3*(diff(f(x, y, z, t), x))+15*f(x, y, z, t)^4*(diff(diff(f(x, y, z, t), x), y)))*(diff(diff(f(x, y, z, t), x), x))+(beta*f(x, y, z, t)^5-30*(diff(f(x, y, z, t), x))^2*f(x, y, z, t)^3)*(diff(diff(f(x, y, z, t), x), y))+9*(diff(diff(f(x, y, z, t), t), x))*f(x, y, z, t)^5+(diff(diff(f(x, y, z, t), x), z))*delta*f(x, y, z, t)^5-5*(diff(diff(f(x, y, z, t), y), y))*f(x, y, z, t)^5-120*(diff(f(x, y, z, t), x))^6+30*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))*f(x, y, z, t)^2-(diff(f(x, y, z, t), x))^2*alpha*f(x, y, z, t)^4-f(x, y, z, t)^4*(beta*(diff(f(x, y, z, t), y))+(diff(f(x, y, z, t), z))*delta+9*(diff(f(x, y, z, t), t)))*(diff(f(x, y, z, t), x))+5*(diff(f(x, y, z, t), y))^2*f(x, y, z, t)^4 = 0

 (11)
>

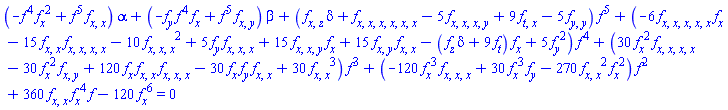

collect(F1, {alpha, beta, f(x, y, z, t)})

(-f(x, y, z, t)^4*(diff(f(x, y, z, t), x))^2+f(x, y, z, t)^5*(diff(diff(f(x, y, z, t), x), x)))*alpha+(-(diff(f(x, y, z, t), y))*f(x, y, z, t)^4*(diff(f(x, y, z, t), x))+f(x, y, z, t)^5*(diff(diff(f(x, y, z, t), x), y)))*beta+((diff(diff(f(x, y, z, t), x), z))*delta+diff(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x), x)-5*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), y))+9*(diff(diff(f(x, y, z, t), t), x))-5*(diff(diff(f(x, y, z, t), y), y)))*f(x, y, z, t)^5+(-6*(diff(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x), x))*(diff(f(x, y, z, t), x))-15*(diff(diff(f(x, y, z, t), x), x))*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))-10*(diff(diff(diff(f(x, y, z, t), x), x), x))^2+5*(diff(f(x, y, z, t), y))*(diff(diff(diff(f(x, y, z, t), x), x), x))+15*(diff(diff(diff(f(x, y, z, t), x), x), y))*(diff(f(x, y, z, t), x))+15*(diff(diff(f(x, y, z, t), x), y))*(diff(diff(f(x, y, z, t), x), x))-((diff(f(x, y, z, t), z))*delta+9*(diff(f(x, y, z, t), t)))*(diff(f(x, y, z, t), x))+5*(diff(f(x, y, z, t), y))^2)*f(x, y, z, t)^4+(30*(diff(f(x, y, z, t), x))^2*(diff(diff(diff(diff(f(x, y, z, t), x), x), x), x))-30*(diff(f(x, y, z, t), x))^2*(diff(diff(f(x, y, z, t), x), y))+120*(diff(f(x, y, z, t), x))*(diff(diff(f(x, y, z, t), x), x))*(diff(diff(diff(f(x, y, z, t), x), x), x))-30*(diff(f(x, y, z, t), x))*(diff(f(x, y, z, t), y))*(diff(diff(f(x, y, z, t), x), x))+30*(diff(diff(f(x, y, z, t), x), x))^3)*f(x, y, z, t)^3+(-120*(diff(f(x, y, z, t), x))^3*(diff(diff(diff(f(x, y, z, t), x), x), x))+30*(diff(f(x, y, z, t), x))^3*(diff(f(x, y, z, t), y))-270*(diff(diff(f(x, y, z, t), x), x))^2*(diff(f(x, y, z, t), x))^2)*f(x, y, z, t)^2+360*(diff(diff(f(x, y, z, t), x), x))*(diff(f(x, y, z, t), x))^4*f(x, y, z, t)-120*(diff(f(x, y, z, t), x))^6 = 0

 (12)
>

NULL
>

T := f(x, y, z, t) = g(x, y, z, t)^2+h(x, y, z, t)^2+a[11]
>

T1 := g(x, y, z, t) = t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5]
>

T2 := h(x, y, z, t) = t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10]
>

L2 := subs({T1, T2}, T)

f(x, y, z, t) = (t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11]

 (13)
>

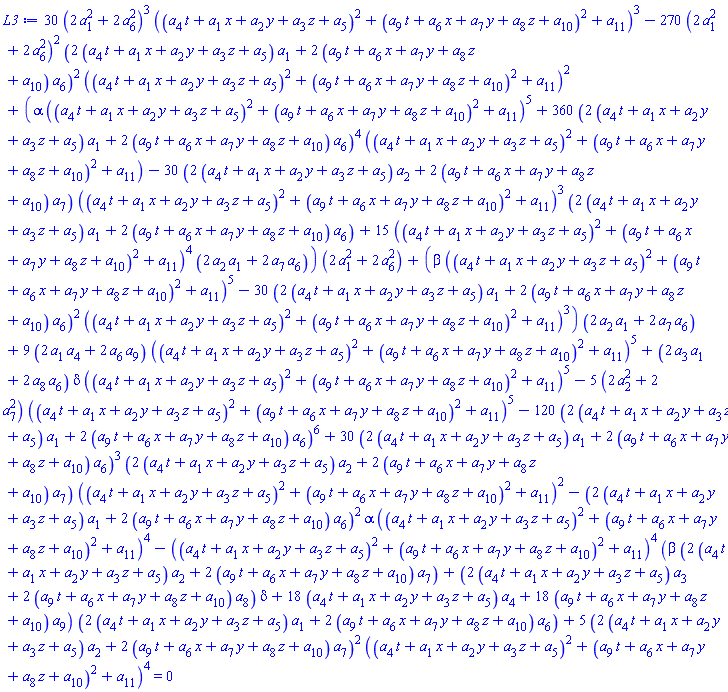

L3 := eval(F1, L2)

30*(2*a[1]^2+2*a[6]^2)^3*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^3-270*(2*a[1]^2+2*a[6]^2)^2*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[1]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[6])^2*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^2+(alpha*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^5+360*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[1]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[6])^4*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])-30*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[2]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[7])*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^3*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[1]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[6])+15*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^4*(2*a[1]*a[2]+2*a[6]*a[7]))*(2*a[1]^2+2*a[6]^2)+(beta*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^5-30*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[1]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[6])^2*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^3)*(2*a[1]*a[2]+2*a[6]*a[7])+9*(2*a[1]*a[4]+2*a[6]*a[9])*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^5+(2*a[1]*a[3]+2*a[6]*a[8])*delta*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^5-5*(2*a[2]^2+2*a[7]^2)*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^5-120*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[1]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[6])^6+30*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[1]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[6])^3*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[2]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[7])*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^2-(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[1]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[6])^2*alpha*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^4-((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^4*(beta*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[2]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[7])+(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[3]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[8])*delta+18*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[4]+18*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[9])*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[1]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[6])+5*(2*(t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])*a[2]+2*(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])*a[7])^2*((t*a[4]+x*a[1]+y*a[2]+z*a[3]+a[5])^2+(t*a[9]+x*a[6]+y*a[7]+z*a[8]+a[10])^2+a[11])^4 = 0

 (14)
>

L4 := collect(L3, [x, y, z, t], 'distributed')

Warning,  computation interrupted



` `

 (15)

Download systems.mw

maple2024 worksheet suddenly outputs typesetting...

Asked by: segfault 145
worksheet gui prettyprint
April 25 2025
0  5

This never happened to me before.

Without any changes made in the worksheet, and just executing it again, suddenly Maple 24 gives me all output that starts with

typesetting:-mprintslash

etc

What the heck is this ? and where has the normal output suddenly gone to ?

Before this change Maple did not want to stop an execution on a limit. I had to kill the mserver which then allowed me to save the docuemnt. After that the document has all this unusable typeset nonsense as output.

I opened a new page and pasted the commands into that document. Problem remains the same, so it seems to be something in the system wide config that was changed.

Here is what is causing the problem:

What I noticed  is that my output is now "Line Printer" as default. How did that happen ? I never did that. It must be a consequence of the infinite limit calculation that could not be interrupted (whish Maple will fix their break and interrupt commands).

So how do I set all output to Maple Output. I see no such ability in config. It states there that "Output Display" is set to "Maple Output" , but every new document has line printer as output !!!

Totally unusable now.

No way to configure default Font and color....

Asked by: segfault 145
April 22 2025
0  6

The Maple 2024 default Document is largely unreadable to me. the multiplication sign is a minute dot that I miss most of the time on very high resolution monitors.

What really works well for me is Maple Input as was used in Maple 9.5. A Pleasure to work with. Using Maple 2024 it is a real pain to "go figure" all the time.

I tried the Global Config, but there is no way to set the default font and the defualt color so I can get the exact same text and color as Maple 9.5.
After I set the colors to bright red, and change to Monospace 12 font and use mapleinput, all is well.
However there is no way to save this setup as the configuration has no way to set font and color. It does set mapleinput at least.

So how do I fix this GLOBALLY so I dont have to run into Maple2024's microscopic math.

The Old Simplification problem....

Asked by: segfault 145
radical simplification trig
April 19 2025
1  7

I am just wondering why something that has been bothering me since Maple V up to including Maple 2024 has never been resolved properly.

Why is it so difficult for maple to solve a dead obvious and simple expression e.g.

sqrt(cos(gamma)^(5/3)/sin(2*gamma)^(5/3));

You can use algsubs to tell maple to use an elementary identity to substitute the double angle away, but even then it refuses to simplify the remaining fraction which is elementary at most.

So, when will e.g. this simple multiple generational issue be addressed  so maple can do the obvious simplifications.

There are much more severe examples concerning trigonometric functions under square roots, which was left out in this case to show just one issue.

How i can find the parameter in PDE ?...

Asked by: salim-barzani 1555
parameters substitution pde
April 19 2025
3  6

How i can get this special parameter i try to do substitution in another mw file but stilli can't reach this parameter and without this parameter my PDE is not give me zero so i have to find this r[i] parameter, some letter of my mw file are not similar to paper but r[i]=l[i] as mention is paper al clear and i found all structure just this remain, i am looking for equation (14), thanks for any help

>

restart
>

with(PDEtools)
>

with(LinearAlgebra)
>

NULL
>

with(SolveTools)
>

_local(gamma)

Warning, A new binding for the name `gamma` has been created. The global instance of this name is still accessible using the :- prefix, :-`gamma`.  See ?protect for details.


>

NULL
>

declare(u(x, y, z, t))

u(x, y, z, t)*`will now be displayed as`*u

 (1)
>

declare(f(x, y, z, t))

f(x, y, z, t)*`will now be displayed as`*f

 (2)
>

pde1 := a*(diff(u(x, y, z, t), x, t))-((a^4-6*a^2*b^2+b^4)*(1/16))*(diff(u(x, y, z, t), `$`(x, 4)))-(1/4)*(3*(-a^2+b^2))*(diff(u(x, y, z, t)^2, `$`(x, 2)))+alpha*(diff(u(x, y, z, t), `$`(x, 2)))+beta*(diff(u(x, y, z, t), x, y))+delta*(diff(u(x, y, z, t), x, z))+lambda*(diff(u(x, y, z, t), `$`(z, 2)))+mu*(diff(u(x, y, z, t), y, z))+mu^2*(diff(u(x, y, z, t), `$`(y, 2)))/(4*lambda)

a*(diff(diff(u(x, y, z, t), t), x))-(1/16)*(a^4-6*a^2*b^2+b^4)*(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x))-(3/4)*(-a^2+b^2)*(2*(diff(u(x, y, z, t), x))^2+2*u(x, y, z, t)*(diff(diff(u(x, y, z, t), x), x)))+alpha*(diff(diff(u(x, y, z, t), x), x))+beta*(diff(diff(u(x, y, z, t), x), y))+delta*(diff(diff(u(x, y, z, t), x), z))+lambda*(diff(diff(u(x, y, z, t), z), z))+mu*(diff(diff(u(x, y, z, t), y), z))+(1/4)*mu^2*(diff(diff(u(x, y, z, t), y), y))/lambda

 (3)
>

Tr := {beta = alpha, delta = alpha, mu = 2*lambda}

{beta = alpha, delta = alpha, mu = 2*lambda}

 (4)
>

pde := subs(Tr, pde1)

a*(diff(diff(u(x, y, z, t), t), x))-(1/16)*(a^4-6*a^2*b^2+b^4)*(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x))-(3/4)*(-a^2+b^2)*(2*(diff(u(x, y, z, t), x))^2+2*u(x, y, z, t)*(diff(diff(u(x, y, z, t), x), x)))+alpha*(diff(diff(u(x, y, z, t), x), x))+alpha*(diff(diff(u(x, y, z, t), x), y))+alpha*(diff(diff(u(x, y, z, t), x), z))+lambda*(diff(diff(u(x, y, z, t), z), z))+2*lambda*(diff(diff(u(x, y, z, t), y), z))+lambda*(diff(diff(u(x, y, z, t), y), y))

 (5)
>

pde_linear, pde_nonlinear := selectremove(proc (term) options operator, arrow; not has((eval(term, u(x, y, z, t) = T*u(x, y, z, t)))/T, T) end proc, expand(pde))

a*(diff(diff(u(x, y, z, t), t), x))-(1/16)*(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x))*a^4+(3/8)*(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x))*a^2*b^2-(1/16)*(diff(diff(diff(diff(u(x, y, z, t), x), x), x), x))*b^4+alpha*(diff(diff(u(x, y, z, t), x), x))+alpha*(diff(diff(u(x, y, z, t), x), y))+alpha*(diff(diff(u(x, y, z, t), x), z))+lambda*(diff(diff(u(x, y, z, t), z), z))+2*lambda*(diff(diff(u(x, y, z, t), y), z))+lambda*(diff(diff(u(x, y, z, t), y), y)), (3/2)*(diff(u(x, y, z, t), x))^2*a^2-(3/2)*(diff(u(x, y, z, t), x))^2*b^2+(3/2)*u(x, y, z, t)*(diff(diff(u(x, y, z, t), x), x))*a^2-(3/2)*u(x, y, z, t)*(diff(diff(u(x, y, z, t), x), x))*b^2

 (6)
>

NULL
>

eq17 := u(x, y, z, t) = (-a^4+6*a^2*b^2-b^4)*((diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)-(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^2)/(2*a^2-2*b^2)
>

``NULL
>

betai := k[i]*(t*w[i]+y*l[i]+z*r[i]+x)+eta[i]

k[i]*(t*w[i]+y*l[i]+z*r[i]+x)+eta[i]

 (7)
>

W := w[i] = ((a^4-6*a^2*b^2+b^4)*k[i]^2-16*lambda*l[i]^2+(-32*lambda*r[i]-16*alpha)*l[i]-16*lambda*r[i]^2-16*alpha*r[i]-16*alpha)/(16*a)
>

AA := A[12] = (16*(l[1]-l[2]+r[1]-r[2])^2*lambda+3*(k[1]-k[2])^2*(a^2+2*a*b-b^2)*(a^2-2*a*b-b^2))/(16*(l[1]-l[2]+r[1]-r[2])^2*lambda+3*(k[1]+k[2])^2*(a^2+2*a*b-b^2)*(a^2-2*a*b-b^2))
>

F2 := 1+exp(beta[1])+A[1, 2]*exp(beta[1]+beta[2])+exp(beta[2])

1+exp(beta[1])+A[1, 2]*exp(beta[1]+beta[2])+exp(beta[2])

 (8)
>

NULL
>

F22 := f(x, y, z, t) = 1+exp((a^4*t*k[1]^3-6*a^2*b^2*t*k[1]^3+b^4*t*k[1]^3-16*lambda*t*k[1]*l[1]^2-32*lambda*t*k[1]*l[1]*r[1]-16*lambda*t*k[1]*r[1]^2+16*a*y*k[1]*l[1]+16*a*z*k[1]*r[1]-16*alpha*t*k[1]*l[1]-16*alpha*t*k[1]*r[1]+16*a*x*k[1]-16*alpha*t*k[1]+16*a*eta[1])/(16*a))+exp((a^4*t*k[2]^3-6*a^2*b^2*t*k[2]^3+b^4*t*k[2]^3-16*lambda*t*k[2]*l[2]^2-32*lambda*t*k[2]*l[2]*r[2]-16*lambda*t*k[2]*r[2]^2+16*a*y*k[2]*l[2]+16*a*z*k[2]*r[2]-16*alpha*t*k[2]*l[2]-16*alpha*t*k[2]*r[2]+16*a*x*k[2]-16*alpha*t*k[2]+16*a*eta[2])/(16*a))
>

eq := eval(eq17, F22)

u(x, y, z, t) = (-a^4+6*a^2*b^2-b^4)*((k[1]^2*exp((1/16)*(a^4*t*k[1]^3-6*a^2*b^2*t*k[1]^3+b^4*t*k[1]^3-16*lambda*t*k[1]*l[1]^2-32*lambda*t*k[1]*l[1]*r[1]-16*lambda*t*k[1]*r[1]^2+16*a*y*k[1]*l[1]+16*a*z*k[1]*r[1]-16*alpha*t*k[1]*l[1]-16*alpha*t*k[1]*r[1]+16*a*x*k[1]-16*alpha*t*k[1]+16*a*eta[1])/a)+k[2]^2*exp((1/16)*(a^4*t*k[2]^3-6*a^2*b^2*t*k[2]^3+b^4*t*k[2]^3-16*lambda*t*k[2]*l[2]^2-32*lambda*t*k[2]*l[2]*r[2]-16*lambda*t*k[2]*r[2]^2+16*a*y*k[2]*l[2]+16*a*z*k[2]*r[2]-16*alpha*t*k[2]*l[2]-16*alpha*t*k[2]*r[2]+16*a*x*k[2]-16*alpha*t*k[2]+16*a*eta[2])/a))/(1+exp((1/16)*(a^4*t*k[1]^3-6*a^2*b^2*t*k[1]^3+b^4*t*k[1]^3-16*lambda*t*k[1]*l[1]^2-32*lambda*t*k[1]*l[1]*r[1]-16*lambda*t*k[1]*r[1]^2+16*a*y*k[1]*l[1]+16*a*z*k[1]*r[1]-16*alpha*t*k[1]*l[1]-16*alpha*t*k[1]*r[1]+16*a*x*k[1]-16*alpha*t*k[1]+16*a*eta[1])/a)+exp((1/16)*(a^4*t*k[2]^3-6*a^2*b^2*t*k[2]^3+b^4*t*k[2]^3-16*lambda*t*k[2]*l[2]^2-32*lambda*t*k[2]*l[2]*r[2]-16*lambda*t*k[2]*r[2]^2+16*a*y*k[2]*l[2]+16*a*z*k[2]*r[2]-16*alpha*t*k[2]*l[2]-16*alpha*t*k[2]*r[2]+16*a*x*k[2]-16*alpha*t*k[2]+16*a*eta[2])/a))-(k[1]*exp((1/16)*(a^4*t*k[1]^3-6*a^2*b^2*t*k[1]^3+b^4*t*k[1]^3-16*lambda*t*k[1]*l[1]^2-32*lambda*t*k[1]*l[1]*r[1]-16*lambda*t*k[1]*r[1]^2+16*a*y*k[1]*l[1]+16*a*z*k[1]*r[1]-16*alpha*t*k[1]*l[1]-16*alpha*t*k[1]*r[1]+16*a*x*k[1]-16*alpha*t*k[1]+16*a*eta[1])/a)+k[2]*exp((1/16)*(a^4*t*k[2]^3-6*a^2*b^2*t*k[2]^3+b^4*t*k[2]^3-16*lambda*t*k[2]*l[2]^2-32*lambda*t*k[2]*l[2]*r[2]-16*lambda*t*k[2]*r[2]^2+16*a*y*k[2]*l[2]+16*a*z*k[2]*r[2]-16*alpha*t*k[2]*l[2]-16*alpha*t*k[2]*r[2]+16*a*x*k[2]-16*alpha*t*k[2]+16*a*eta[2])/a))^2/(1+exp((1/16)*(a^4*t*k[1]^3-6*a^2*b^2*t*k[1]^3+b^4*t*k[1]^3-16*lambda*t*k[1]*l[1]^2-32*lambda*t*k[1]*l[1]*r[1]-16*lambda*t*k[1]*r[1]^2+16*a*y*k[1]*l[1]+16*a*z*k[1]*r[1]-16*alpha*t*k[1]*l[1]-16*alpha*t*k[1]*r[1]+16*a*x*k[1]-16*alpha*t*k[1]+16*a*eta[1])/a)+exp((1/16)*(a^4*t*k[2]^3-6*a^2*b^2*t*k[2]^3+b^4*t*k[2]^3-16*lambda*t*k[2]*l[2]^2-32*lambda*t*k[2]*l[2]*r[2]-16*lambda*t*k[2]*r[2]^2+16*a*y*k[2]*l[2]+16*a*z*k[2]*r[2]-16*alpha*t*k[2]*l[2]-16*alpha*t*k[2]*r[2]+16*a*x*k[2]-16*alpha*t*k[2]+16*a*eta[2])/a))^2)/(2*a^2-2*b^2)

 (9)
>

pdetest(eq, pde)

Download fusion-undon.mw

How can I declare a local variable in an anonymous...

Asked by: Hsingyu Yen 5
procedure incomplete-question
April 18 2025
1  4

I encountered this issue while writing some code. Here is my code:

numArray := [17, 18, 19];
symArray := [x, y, z];
kronArray := map(i -> local j; symArray[i] = symArray[1]^mul(numArray[j], j = 1 .. i - 1), [$ (1 .. 3)]);

When I run it, I get the following warning:

Warning, (in anonymous procedure created in Typesetting:-FI) `j` is implicitly declared local;

After clicking the LINK  to Maple's help, I saw a similar issue in Example 3. However, Example 3 didn't resolve the problem. How can I declare a variable as local within an anonymous function?

How apply substitution and apply limit For get ex...

Asked by: salim-barzani 1555
solve parameters substitution
April 16 2025
2  23

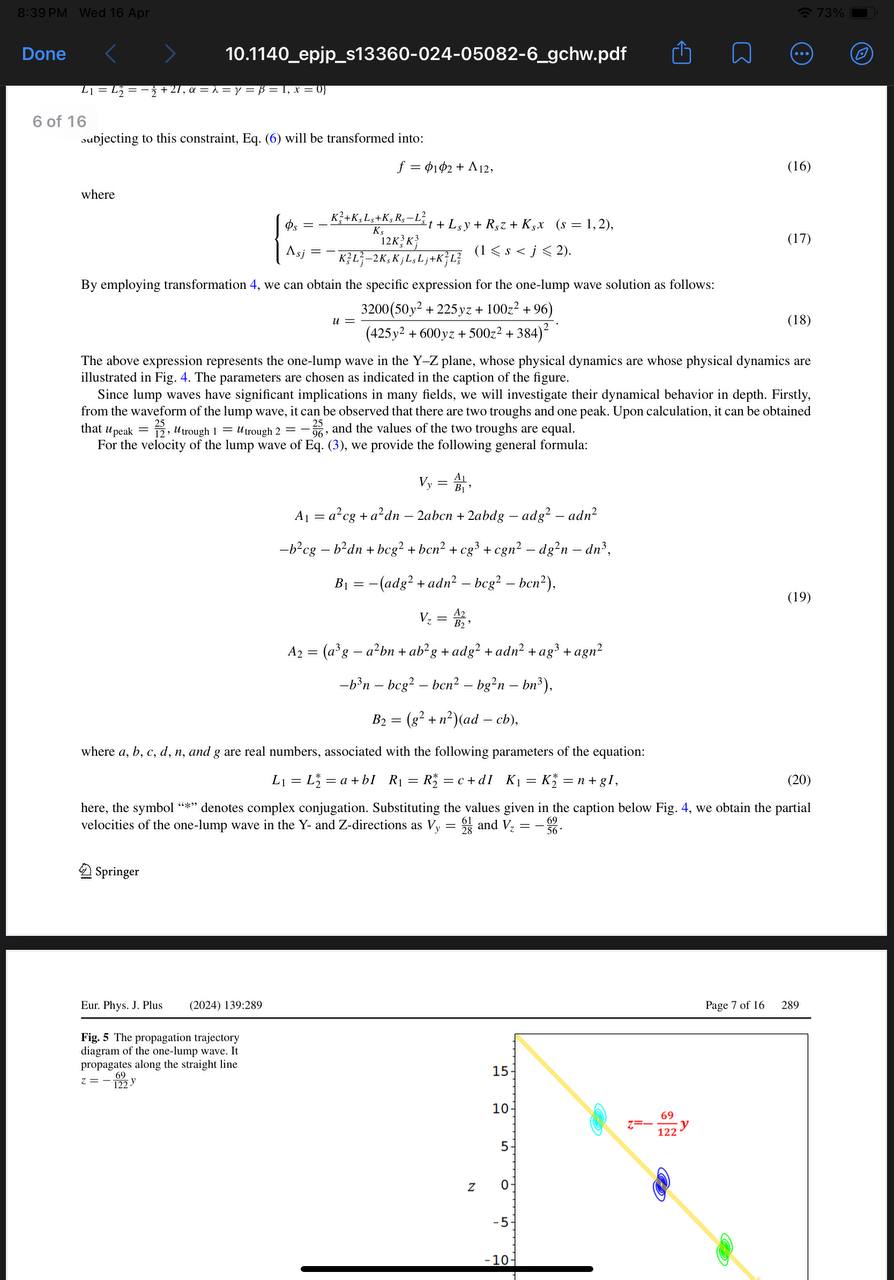

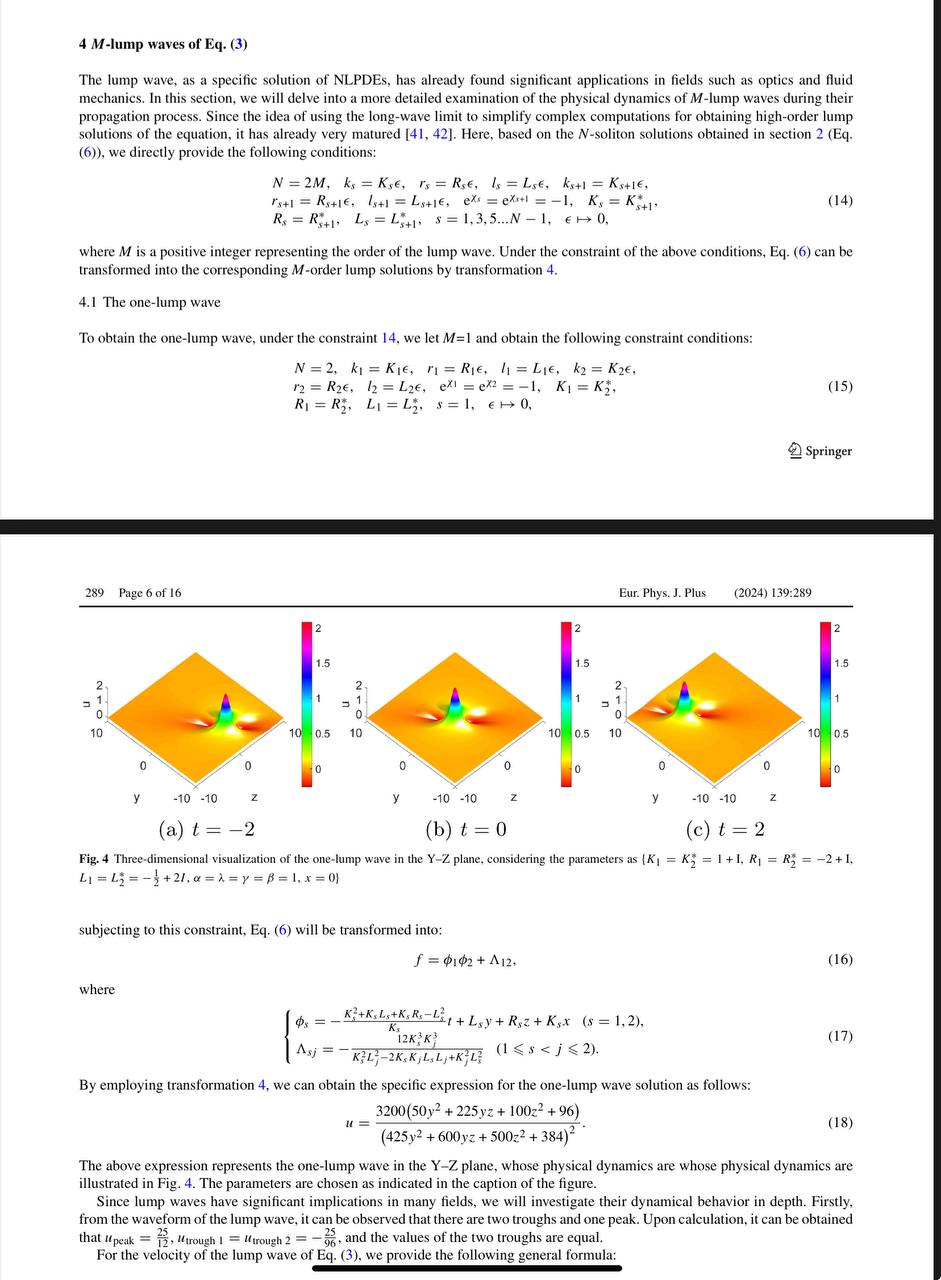

As shown in the paper, and in many similar ones, the authors use a particular method that I believe is related to the long wave limit. I’m familiar with other approaches, but the traditional methods haven’t been successful in this case. This author, along with a few others, has tried applying this long wave limit approach, though many papers don’t explicitly mention the substitutions they use to arrive at the lump solution.

I’ve been able to separately find the lump series, but for some of the other solutions, we first need to figure out how to derive this key result. Once that part is clear, the rest should be easier to handle. I've been working through everything step by step and have managed to reproduce many of the solutions from the paper.

Also i don't know how finding (eq17) in paper, which they found by apply long wave limit to (eq7) in paper

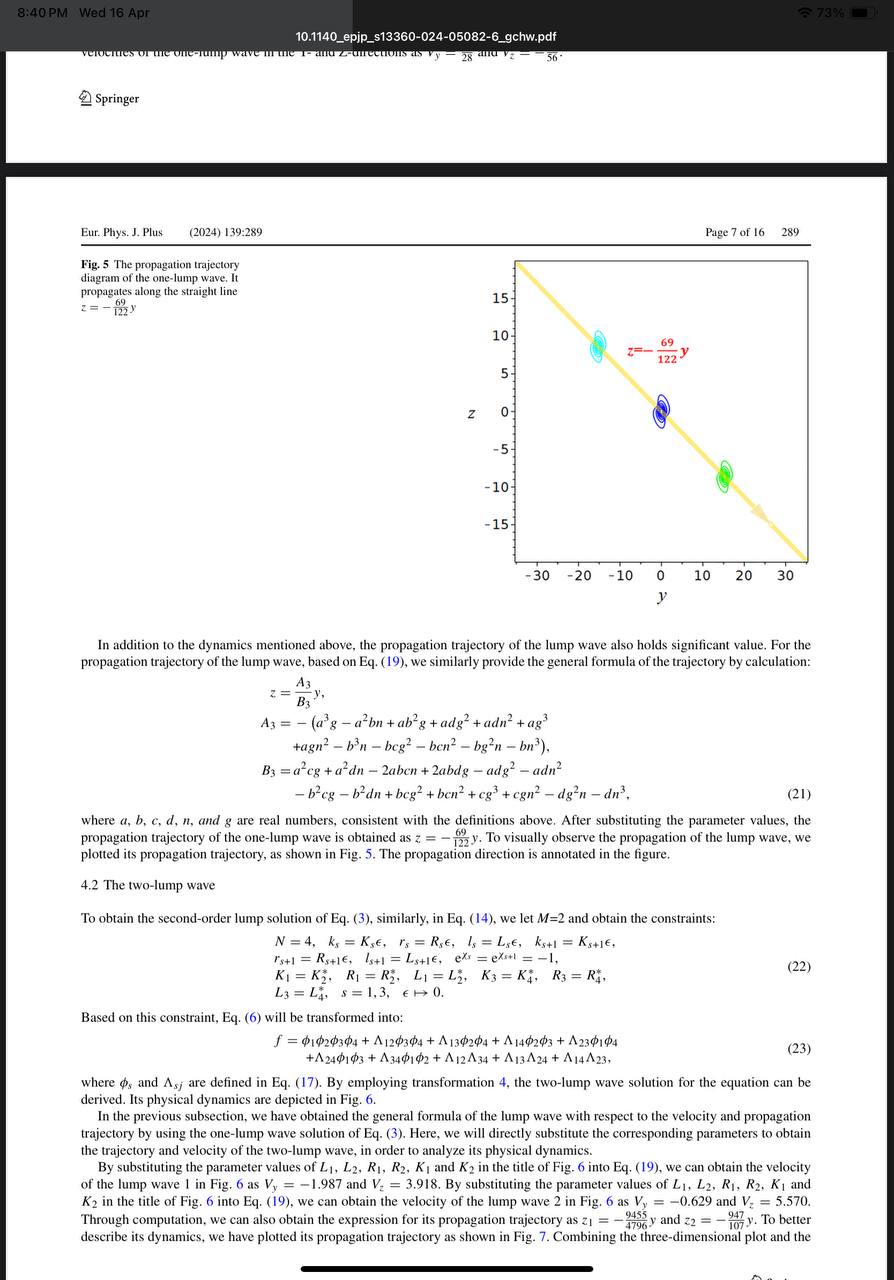

additionaly How finding line which i think they found by finding velocity?

Please, if you have any information or insight into how we can obtain this more difficult result, I would really appreciate your help.

>

restart
>

with(PDEtools)
>

with(LinearAlgebra)
>

NULL
>

with(SolveTools)
>

_local(gamma)
>

NULL
>

declare(u(x, y, z, t))

u(x, y, z, t)*`will now be displayed as`*u

 (1)
>

declare(f(x, y, z, t))

f(x, y, z, t)*`will now be displayed as`*f

 (2)
>

alpha := 1; beta := 1; delta := 1; lambda := 1

1



1



1



1

 (3)
>

pde := diff(diff(u(x, y, z, t), t)+6*u(x, y, z, t)*(diff(u(x, y, z, t), x))+diff(u(x, y, z, t), `$`(x, 3)), x)-lambda*(diff(u(x, y, z, t), `$`(y, 2)))+diff(alpha*(diff(u(x, y, z, t), x))+beta*(diff(u(x, y, z, t), y))+delta*(diff(u(x, y, z, t), z)), x)

diff(diff(u(x, y, z, t), t), x)+6*(diff(u(x, y, z, t), x))^2+6*u(x, y, z, t)*(diff(diff(u(x, y, z, t), x), x))+diff(diff(diff(diff(u(x, y, z, t), x), x), x), x)-(diff(diff(u(x, y, z, t), y), y))+diff(diff(u(x, y, z, t), x), x)+diff(diff(u(x, y, z, t), x), y)+diff(diff(u(x, y, z, t), x), z)

 (4)
>

thetai := t*w[i]+x*k[i]+y*l[i]+z*r[i]+eta[i]
>

eq15 := w[i] = -(k[i]^4+k[i]^2+k[i]*l[i]+k[i]*r[i]-l[i]^2)/k[i]
>

eq17 := u(x, y, z, t) = 2*(diff(diff(f(x, y, z, t), x), x))/f(x, y, z, t)-2*(diff(f(x, y, z, t), x))^2/f(x, y, z, t)^2
>

A[sj] := (3*k[i]^4*k[j]^2-6*k[i]^3*k[j]^3+(3*k[j]^4+l[j]^2)*k[i]^2-2*k[i]*k[j]*l[i]*l[j]+k[j]^2*l[i]^2)/(3*k[i]^4*k[j]^2+6*k[i]^3*k[j]^3+(3*k[j]^4+l[j]^2)*k[i]^2-2*k[i]*k[j]*l[i]*l[j]+k[j]^2*l[i]^2)
>

F2 := 1+exp(eta[1])+b[1, 2]*exp(eta[1]+eta[2])+exp(eta[2])

1+exp(eta[1])+b[1, 2]*exp(eta[1]+eta[2])+exp(eta[2])

 (5)
>

F22 := 1+exp(eta[1])+(3*k[1]^4*k[2]^2-6*k[1]^3*k[2]^3+(3*k[2]^4+l[2]^2)*k[1]^2-2*k[1]*k[2]*l[1]*l[2]+k[2]^2*l[1]^2)*exp(eta[1]+eta[2])/(3*k[1]^4*k[2]^2+6*k[1]^3*k[2]^3+(3*k[2]^4+l[2]^2)*k[1]^2-2*k[1]*k[2]*l[1]*l[2]+k[2]^2*l[1]^2)+exp(eta[2])

1+exp(eta[1])+(3*k[1]^4*k[2]^2-6*k[1]^3*k[2]^3+(3*k[2]^4+l[2]^2)*k[1]^2-2*k[1]*k[2]*l[1]*l[2]+k[2]^2*l[1]^2)*exp(eta[1]+eta[2])/(3*k[1]^4*k[2]^2+6*k[1]^3*k[2]^3+(3*k[2]^4+l[2]^2)*k[1]^2-2*k[1]*k[2]*l[1]*l[2]+k[2]^2*l[1]^2)+exp(eta[2])

 (6)
>

NULL
>

NULL
>

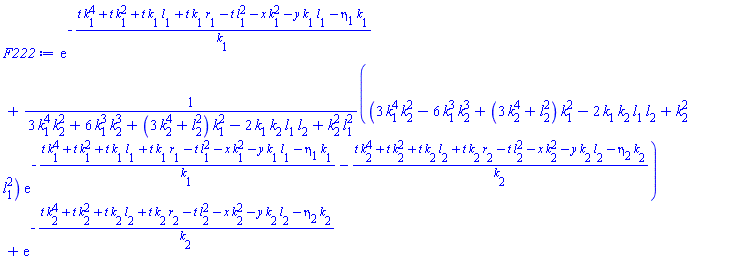

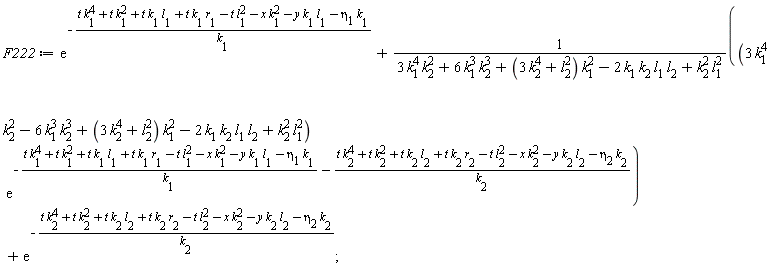

F222 := exp(-(t*k[1]^4+t*k[1]^2+t*k[1]*l[1]+t*k[1]*r[1]-t*l[1]^2-x*k[1]^2-y*k[1]*l[1]-eta[1]*k[1])/k[1])+(3*k[1]^4*k[2]^2-6*k[1]^3*k[2]^3+(3*k[2]^4+l[2]^2)*k[1]^2-2*k[1]*k[2]*l[1]*l[2]+k[2]^2*l[1]^2)*exp(-(t*k[1]^4+t*k[1]^2+t*k[1]*l[1]+t*k[1]*r[1]-t*l[1]^2-x*k[1]^2-y*k[1]*l[1]-eta[1]*k[1])/k[1]-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]-eta[2]*k[2])/k[2])/(3*k[1]^4*k[2]^2+6*k[1]^3*k[2]^3+(3*k[2]^4+l[2]^2)*k[1]^2-2*k[1]*k[2]*l[1]*l[2]+k[2]^2*l[1]^2)+exp(-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]-eta[2]*k[2])/k[2])

exp(-(t*k[1]^4+t*k[1]^2+t*k[1]*l[1]+t*k[1]*r[1]-t*l[1]^2-x*k[1]^2-y*k[1]*l[1]-eta[1]*k[1])/k[1])+(3*k[1]^4*k[2]^2-6*k[1]^3*k[2]^3+(3*k[2]^4+l[2]^2)*k[1]^2-2*k[1]*k[2]*l[1]*l[2]+k[2]^2*l[1]^2)*exp(-(t*k[1]^4+t*k[1]^2+t*k[1]*l[1]+t*k[1]*r[1]-t*l[1]^2-x*k[1]^2-y*k[1]*l[1]-eta[1]*k[1])/k[1]-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]-eta[2]*k[2])/k[2])/(3*k[1]^4*k[2]^2+6*k[1]^3*k[2]^3+(3*k[2]^4+l[2]^2)*k[1]^2-2*k[1]*k[2]*l[1]*l[2]+k[2]^2*l[1]^2)+exp(-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]-eta[2]*k[2])/k[2])

 (7)
>

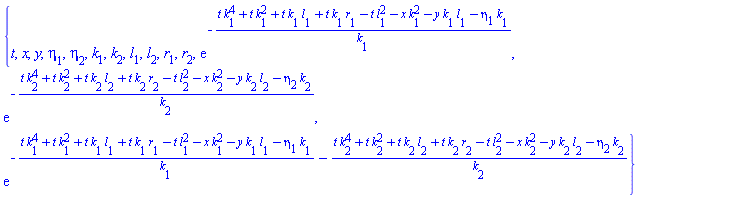

indets(F222)

{t, x, y, eta[1], eta[2], k[1], k[2], l[1], l[2], r[1], r[2], exp(-(t*k[1]^4+t*k[1]^2+t*k[1]*l[1]+t*k[1]*r[1]-t*l[1]^2-x*k[1]^2-y*k[1]*l[1]-eta[1]*k[1])/k[1]), exp(-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]-eta[2]*k[2])/k[2]), exp(-(t*k[1]^4+t*k[1]^2+t*k[1]*l[1]+t*k[1]*r[1]-t*l[1]^2-x*k[1]^2-y*k[1]*l[1]-eta[1]*k[1])/k[1]-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]-eta[2]*k[2])/k[2])}

 (8)
>

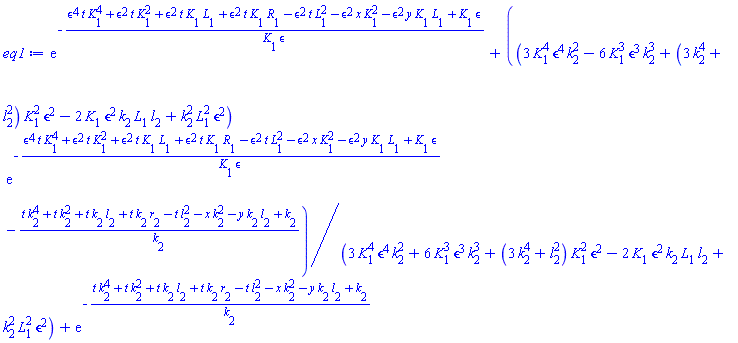

eq1 := eval(F222, {eta[1] = -1, eta[2] = -1, k[1] = K[1]*epsilon, l[1] = L[1]*epsilon, r[1] = R[1]*epsilon})

exp(-(epsilon^4*t*K[1]^4+epsilon^2*t*K[1]^2+epsilon^2*t*K[1]*L[1]+epsilon^2*t*K[1]*R[1]-epsilon^2*t*L[1]^2-epsilon^2*x*K[1]^2-epsilon^2*y*K[1]*L[1]+epsilon*K[1])/(K[1]*epsilon))+(3*K[1]^4*epsilon^4*k[2]^2-6*K[1]^3*epsilon^3*k[2]^3+(3*k[2]^4+l[2]^2)*K[1]^2*epsilon^2-2*K[1]*epsilon^2*k[2]*L[1]*l[2]+k[2]^2*L[1]^2*epsilon^2)*exp(-(epsilon^4*t*K[1]^4+epsilon^2*t*K[1]^2+epsilon^2*t*K[1]*L[1]+epsilon^2*t*K[1]*R[1]-epsilon^2*t*L[1]^2-epsilon^2*x*K[1]^2-epsilon^2*y*K[1]*L[1]+epsilon*K[1])/(K[1]*epsilon)-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]+k[2])/k[2])/(3*K[1]^4*epsilon^4*k[2]^2+6*K[1]^3*epsilon^3*k[2]^3+(3*k[2]^4+l[2]^2)*K[1]^2*epsilon^2-2*K[1]*epsilon^2*k[2]*L[1]*l[2]+k[2]^2*L[1]^2*epsilon^2)+exp(-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]+k[2])/k[2])

 (9)
>

G := limit(eq1, epsilon = 0)

exp(-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]+2*k[2])/k[2])+exp(-1)+exp(-(t*k[2]^4+t*k[2]^2+t*k[2]*l[2]+t*k[2]*r[2]-t*l[2]^2-x*k[2]^2-y*k[2]*l[2]+k[2])/k[2])

 (10)

Download LWL.mw

generate the systems with curly braces ?...

Asked by: jalal 435
solve typesetting piecewise
April 12 2025
0  6

Hi,

I'm experimenting with building random series on different topics, inspired by several of your comments, using a table-style layout. For this example, I'm testing systems of linear equations with two unknowns, but I can't manage to generate the systems with curly braces. I hope the purpose of my question is clear. Any ideas? Thanks

Systmes_Idea.mw

3 4 5 6 7 8 9 Last Page 5 of 43
