These are questions asked by Jean-Marc Roy

Screen display on Maple 2020 vs Maple 20...

Jean-Marc Roy 20 Maple 2024
November 20 2024
0 1

Any reason why the display of a fairly large plot in Maple 2024 (only show a print screen here)


be worst then the display of the same plot in Maple 2020

In 2024, it seams to be rasterized, while in 2020 it is still in vector form. Also the plot does not resize as well in 2024 compare to 2020. Any hint would help!

Maybe large plot are displayed in raster image, there is probably a setting somewhere in the documentation. When I export both are in vector format...

Thanks!

Simplifying bouded (link as oppose to fr...

Jean-Marc Roy 20 Maple 2020
vector simplification physics
April 19 2020
1 1

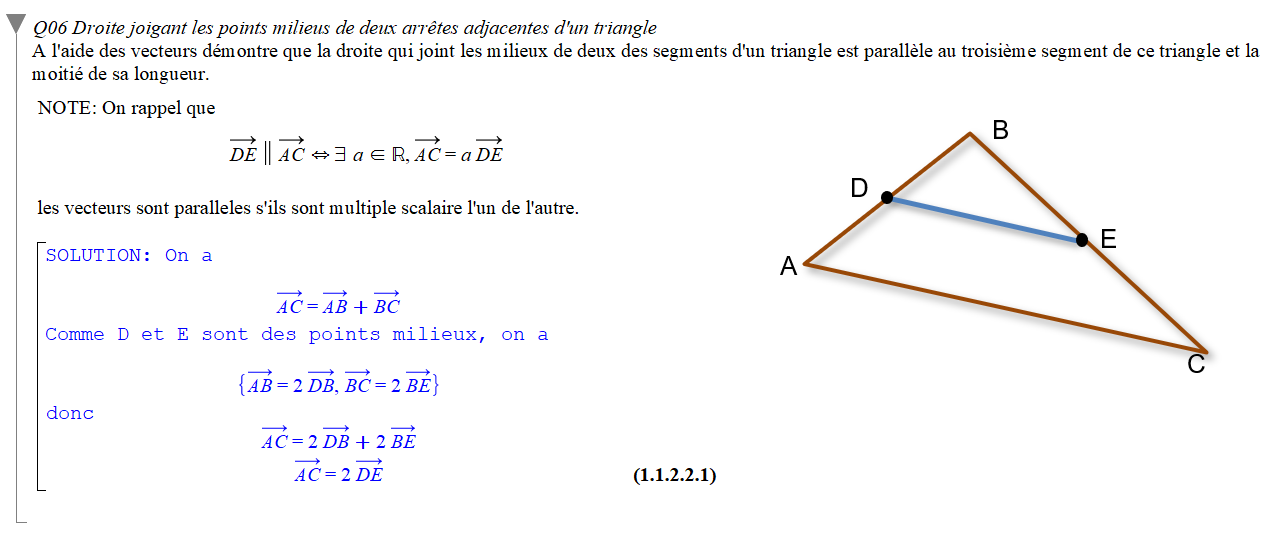

Hi - High school teacher

I'm using the with(Physics): Setup(mathematicalnotation=true):with(Physics[Vector]): libraries which gives elegant answers to some of the questions of elementary vector algebra.

But I become stuck when I try to simplify a simple expression like

Equa[01]:=AC_ = AB_ + BC_:Equa[01];                            #AC_ = AB_ + BC_
Equa[02]:={AB_=2*DB_,BC_=2*BE_}:Equa[02];
Equa[03]:=subs(Equa[02],Equa[01]):Equa[03];                #AC_ = 2*DB_ + 2*BE_
simplify(Equa[03]);                                                              #also try combine

which gives

AC_ = 2*DB_ + 2*BE_

rather than what I was hoping for

AC_ = 2*DE_

I have define a type and build a clumsy addition procedure - with no hope of overloading '+'

###########################
# TYPE VecPos (Vecteurs liés)
#
###########################
`type/VecPos`:=proc(Exp)
    local LstExp:
    LstExp:=convert(Exp,string):
   if length(LstExp)=3 and LstExp[-1]="_" then
     true
   else
     false
   fi:
 end proc:
###########################
# TYPE AddVecSub (addition de vecteur subsécants)
#
###########################
AddVectSubs:=proc(Exp)
local va,vb,a,b:
  if patmatch(2*Exp,a::realcons*va::VecPos+b::realcons*vb::VecPos,'Corr') then
    a:=subs(Corr,a)/2:                  b:=subs(Corr,b)/2:
    va:=convert(subs(Corr,va),string):  vb:=convert(subs(Corr,vb),string):
    if a < 0 then
      va:=convert(cat(va[2],va[1],va[3]),string);
      a:= -a;
    fi;
    if b < 0 then
      vb:=convert(cat(vb[2],vb[1],vb[3]),string);
      b:= -b;
    fi;
  fi;

  if va[2]=vb[1] then
    if a > b then
      return b*convert(cat(va[1],vb[2..3]),symbol)
         + (a-b)*convert(va,symbol);
    elif b > a then
      return a*convert(cat(va[1],vb[2..3]),symbol)
         + (b-a)*convert(vb,symbol);
    else
      return a*convert(cat(va[1],vb[2..3]),symbol)
    fi
  elif vb[2]=va[1]  then
    if a > b then
      return b*convert(cat(vb[1],va[2..3]),symbol)
          + (a-b)*convert(va,symbol);
    elif b > a then
      return a*convert(cat(vb[1],va[2..3]),symbol)
         + (b-a)*convert(vb,symbol);
    else
      return a*convert(cat(vb[1],va[2..3]),symbol)
    fi
  else
    return Exp
  fi
end proc:



But I am sure that their exist a better solution - which if possible should remain within the Physics[Vector] library. It is hard enough to convince high school student to use maple. Maybe adding rule in the setep... I just don't have the required time to look around.

Any help would be appreciated.

Thank

Jean-Marc Roy

Note:

patmatch(2*AB_ + 2*BC_,a::realcons*va::VecPos+b::realcons*vb::VecPos,'Corr');Corr;Corr:='Corr':

work, but neither

patmatch(AB_ + BC_,a::realcons*va::VecPos+b::realcons*vb::VecPos,'Corr');Corr;Corr:='Corr':
patmatch(AB_ + BC_,va::VecPos+vb::VecPos,'Corr');Corr;Corr:='Corr':

return results. Which explain why I mutiply 2*Exp in the addition function.
