These are questions asked by nm

display problem of constant of integrati...

nm 11353 Maple 2022
alias latex
April 25 2022
1 0

I am using the method of alias(seq(c[k] = _C||k, k = 1..10)); for better latex of constants generated from solving an ode as recommended. See this for example.

This works well 99.99% of the time. But now I noticed this in Maple 2022. Is this a display issue? When the constant is inside an inert Int it does not display the same as the other constant outside. Also the Latex is not the same. Even though lprint shows they are both correct.

This is the worksheet itself




>

restart;
>

interface(version);

`Standard Worksheet Interface, Maple 2022.0, Windows 10, March 8 2022 Build ID 1599809`

>

alias(seq(c[k] = _C||k, k = 1..10));
ode:=x*diff(y(x),x$2)-cos(x)*diff(y(x),x)+sin(x)*y(x)=2;
sol:=dsolve(ode);
lprint(sol)

c[1], c[2], c[3], c[4], c[5], c[6], c[7], c[8], c[9], c[10]

x*(diff(diff(y(x), x), x))-cos(x)*(diff(y(x), x))+sin(x)*y(x) = 2

y(x) = (c[2]+Int((c[1]+2*x)/(exp(Ci(x))*x^2), x))*exp(Ci(x))*x

y(x) = (c[2]+Int((c[1]+2*x)/exp(Ci(x))/x^2,x))*exp(Ci(x))*x

>

latex(sol)

y \! \left(x \right) =
\left(c_{2}+\textcolor{gray}{\int}\frac{\mathit{c[1]} +2 x}{{\mathrm e}^{\mathrm{Ci}\left(x \right)} x^{2}}\textcolor{gray}{d}x \right) {\mathrm e}^{\mathrm{Ci}\left(x \right)} x

>

restart;
>

ode:=x*diff(y(x),x$2)-cos(x)*diff(y(x),x)+sin(x)*y(x)=2;
sol:=dsolve(ode);
lprint(sol)

x*(diff(diff(y(x), x), x))-cos(x)*(diff(y(x), x))+sin(x)*y(x) = 2

y(x) = (_C2+Int((_C1+2*x)/(exp(Ci(x))*x^2), x))*exp(Ci(x))*x

y(x) = (_C2+Int((_C1+2*x)/exp(Ci(x))/x^2,x))*exp(Ci(x))*x

>






Download april_25_2022.mw





First timelimit hang discovered in Maple...

nm 11353 Maple 2022
int timelimit
March 18 2022
0 0

I knew it can't be true that timelimit in Maple 2022 no longer hangs and it is only a matter of time before I find a case where it still hangs.

Here are examples. timelimit hangs. No error or anything, it just hangs. timelimit is just ignored. set the limit to 60 seconds  (CPU time), and waited for 20 minutes (real time) and nothing happend.

I hope in Maple 2023 this will be fixed. Could others confirm this? it only hangs when adding the method=_RETURNVERBOSE otherwise it does not hang.

>

interface(version);

`Standard Worksheet Interface, Maple 2022.0, Windows 10, March 8 2022 Build ID 1599809`

Examples of timelimit hangs in Maple 2022



Example 1

>

restart;

>

integrand:=(B*x+A)/(c*x^2+b*x+a)^2/(f*x^2+e*x+d)

>

try
  timelimit(60,int(integrand,x,method=_RETURNVERBOSE));
catch:
  print("Timed out");
end try;

>



Example 2

>

restart

>

integrand:=(5*x^4-x^3+3*x^2+x+2)*(2*x^2-x+3)^(1/2)/(5+2*x)^3

>

try
    timelimit(60,int(integrand,x,method = _RETURNVERBOSE));
catch:
  print("Timed out");
end try;

>



>



Download int_hangs.mw

Maple 2022 resets to "share one engine a...

nm 11353 Maple 2022
March 18 2022
0 6

This is a serious problem.

I change "how should maple handle the creation of new math engine?" to "Create new engine for each document". Then click on "Apply globally".  This is under Tools->Options->General

After I close Maple and start it again, I found it back to "Share one engine among all documents" ??

Why is that and how to make this permanent?

Btw, the start Maple 2022 icon still says "Maple 2022 shared server". THis is in the start program menu. I complained about this in Maple 2021 but it is still not fixed.  https://www.mapleprimes.com/questions/231901-Why-Maple-2021-Only-Shows-shared-Server

I do not think this has anything to do with it. But who knows.

I noticed this when I started new worksheet and could not do anything in it because another worksheet was running something even though I made sure I had set the engine to start new one for each worksheet (this is the very first thing I do after I install Maple each time).

Any workaround to make the setting for the engine not change after closing Maple?

Windows 10. Maple 2022.

How to manually install fonts for Maple ...

nm 11353 Maple 2022
font windows10 installation
March 15 2022
2 2

This is the first time I see such an error installing Maple on windows.

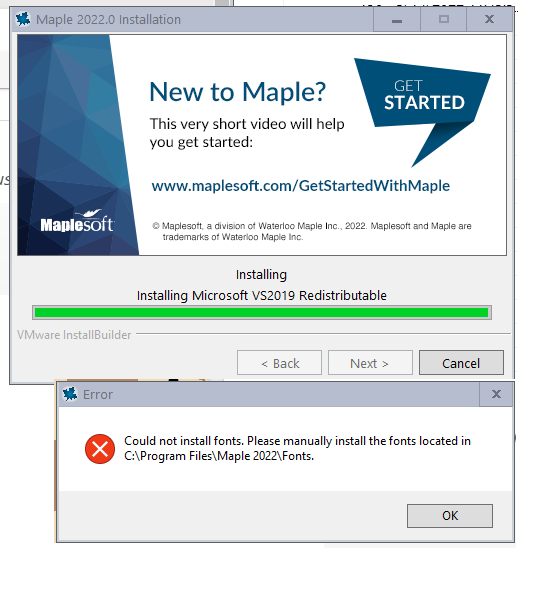

Right after the MS VS run-time installation completed (which is started by Maple installer) I got an error message saying it could not install fonts and to install them "manually".

Are there detailed instructions how is one supposed to do this? And what does this actually affect? As Maple starts ok and so far I see no issue with fonts but I have not done much with it yet other than open a worksheet and type few commands.

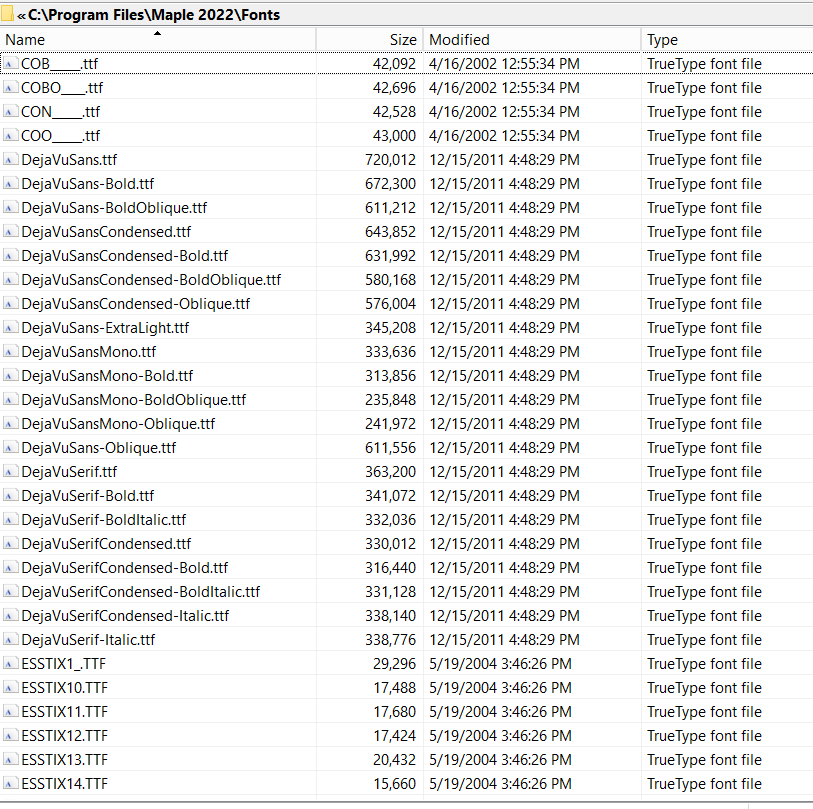

Looking at the folder in question, I see no instructions. Only font files. It will be good if Maplesoft could provide instructions for users on how to do that.  I do not want to do something that could end breaking the Maple installation or make things worst.



infolevel gives different output dependi...

nm 11353 Maple 2021
dsolve remember differential-equations
March 14 2022
3 8

I set infolevel[dsolve]:=2; and first time I use it, it gives very long output. Next time I use it on same ode with same command it gives much shorter output.

Why is that and how to make it give the shorter output from first call?  This is very strange behavior.  One would expect the same output each time. The worksheet attached shows that first time it is used, the output is very long. At the end of the worksheet the call is made again with same infolevel, and now output is much smaller.

(getting error uploading worksheet. Will try again. Unable to do insert content keep getting error from this site. So I am just attaching it as link. May be due to large size of the worksheet)

infolevel_changes.mw
